Assembly Instructions:

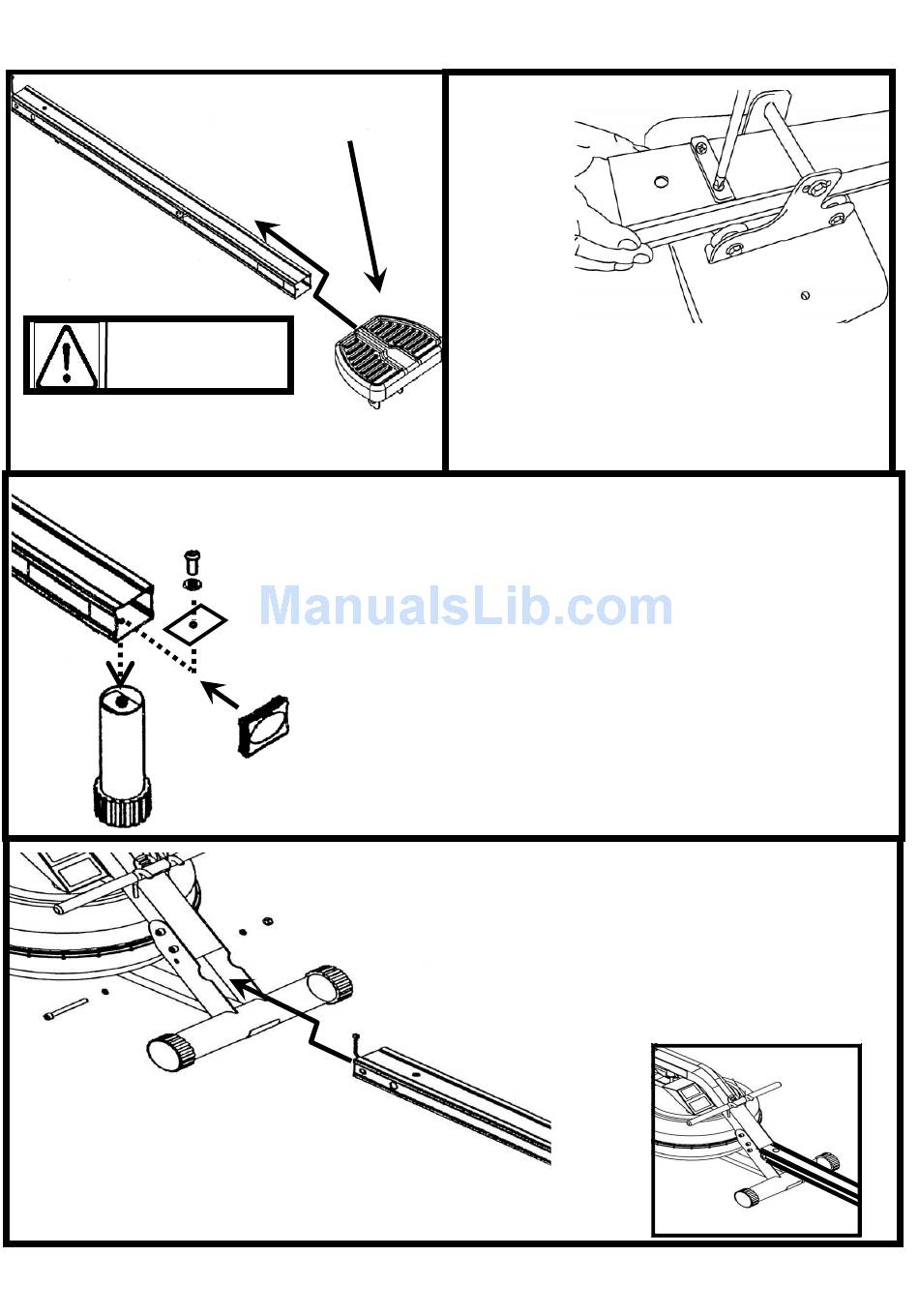

Install Rower Seat onto Seat
Rail, with widest part of seat
rearward.
Step 1
CAUTION
Installing the Seat incorrectly will result in lack of
data pickup during rowing.
Seat Rail
Rear Leg
M10x95mm
Bolt and
11x21x2T
Washer
4
M10x25mm Bolt and
11x21x2 Washer

Seat Rail Internal Support

Bracket
Rear Rubber End Cap
M10 Nylock Nut and
11x21x2T Washer
Sensor Lead
Step 2
Turn Seat Rail over, and install the Rear Rubber
Bumpstop using 2x M6x10mm screws with bev-
eled edge facing forward.
Step 3
Using the M10x25mm Bolt,
11x21x2T Washer, Seat Rail Internal
Support Bracket and Rear Leg, in-
stall as shown. Once Rear Leg is
tightened, install the Rear Rubber
End Cap.
Step 4: Install the Seat Rail onto the
Mainframe. Attach Sensor Lead from
Seat Rail to the Mainframe, then align
the front Seat Rail holes with Main-
frame and install, using 1x M10x85mm
Bolt, 2x 11x21x2T Washers and 1xM10
Nylock Nut.
