First Degree Fitness Fluid Rower FDR-02 Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Model FDR-02 Fluid Rower
Owners Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fluid Rower FDR-02 and is the answer not in the manual?

Questions and answers

Related Manuals for First Degree Fitness Fluid Rower FDR-02

Summary of Contents for First Degree Fitness Fluid Rower FDR-02

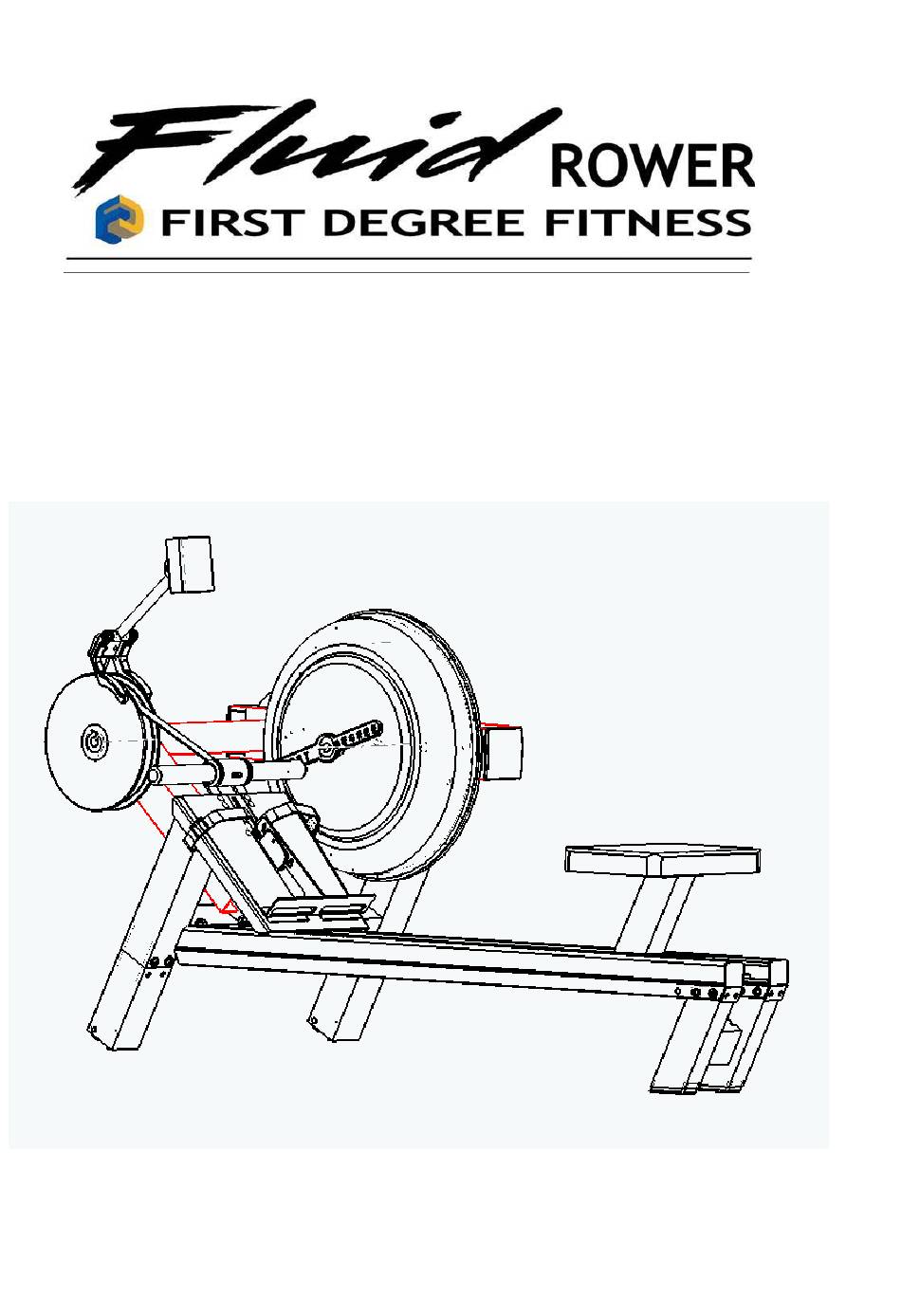

  • Page 1 Model FDR-02 Fluid Rower Owners Manual...
  • Page 3 FIRST DEGREE FITNESS – THE FLUID ROWER And that’s why the guys at First Degree Fitness have asked me to join their crew and share my expertise with current and potential customers via their website and this owner’s manual for the Fluid Rower. And I’m really happy to do so. If it gets you interested in rowing, that’s great.
  • Page 4 BE PREPARED Firstly ensure you are adequately prepared and in suitable physical condition. If in any doubt at all about this, please seek appropriate medical advice prior to attempting any exercise. Other aspects of being prepared are that you are wide awake and not under the influence of alcohol or mood-affecting drugs, that you are well hydrated and that you have allowed reasonable time to digest your last meal.
  • Page 5 Now, because rowing is a “backwards” sport, instead of saying “let’s start at the very beginning”, we normally start at the end. The coaching process begins at the finish of the stroke, finding out the right position for that. So as explained above, sit on the seat of the rower with your feet in position on the footboard, and your legs straight.
  • Page 6 The Fluid Rower handle is ergonomically designed for a comfortable light grip, which should enable a long workout without wrist pain and optimum avoidance of blisters. Now, as you hold the handle, look at your forearms. They should be horizontal and at right angles to the handle, so three sides of a flat rectangle are formed by the two forearms and the handle between them.

  • Page 7: Putting It All Together

    ARMS FINISH The word “arms” is emphasised because, as mentioned earlier, most beginners start bringing the arms in early. Yes, at Position E the arms are still straight but now it’s their turn. Go to Position E, and give a strong positive tug with the arms, retaining that flat rectangle of forearms and handle. So the forearms work like pistons pulling straight back, and the elbows slip past the sides of the body almost brushing the lower ribs.
  • Page 8 HOW TO THINK OF YOUR ROWING Rowing is a sport that is highly meditative, with the hypnotic repetition of simple body movements. Note that in describing the sequences we started with C, went D, E, F and continued with A, B and back to C. Why not start at A? Well, the cycle has no beginning or end.
  • Page 9 Computer functions.
  • Page 10 Assembly instructions. Parts List Step 1. Lay parts out as pictured. Frame 1. Main Frame 2. Front leg x 2 Note: Do not release 3. Rear Leg rowing handle until fully 4. Seat assembled. 5. Seat rail x 2 Bolts,nuts and washers in package.
  • Page 11 Assembly instructions. Step 2. Step 3. Insert front legs as pictured. Lay frame as shown on wheels and belt pulley then insert seat rails. Step 4. Insert 10 x 70mm front rail bolts Step 5. Insert rear leg. Use 10x47mm bolts and seat.
  • Page 12 Step 6. Step 7. Step 9. Free rowing handle and check for Step 8. the following conditions. Condition 1. Unwrap one turn of rower belt and check again. Add or remove belt Condition 2. Wrap one extra turn of belt and as pictured at left check again.
  • Page 13 Mark water treatment schedule on rear of tank and/ or in this manual. If rower placement is near window light sources consider turning the rower so the tank back is facing the window. Impeller represents a finger cutting hazard. operate or leave unattended with plugs removed.
  • Page 14 PROBLEM SOLUTION. Computer: No display 1) Change batteries 2) Change computer Computer: Display/ no 1) Check magnet ring (pictured below) is mounted correctly. 2) Change sensor. 3) Change reading computer 4) Change wire between computer and reed switch. Check magnet ring is flush mounted with the pulley.

  • Page 15: Bungee Cord Replacement. Dealer Assistance Required

    BUNGEE CORD REPLACEMENT. DEALER ASSISTANCE REQUIRED. (Expect 2-5 years bungee life in commercial use. Damage during initial rower assembly is not covered under warranty) 1. Remove computer mount with 6mm tool and lift 2. Remove C Clip, black spacer, belt pulley and old decal using a sharp edge.
