Removing The Lcd Panel - EUROCOM M220S Service Manual

Disassembly

Removing the LCD Panel

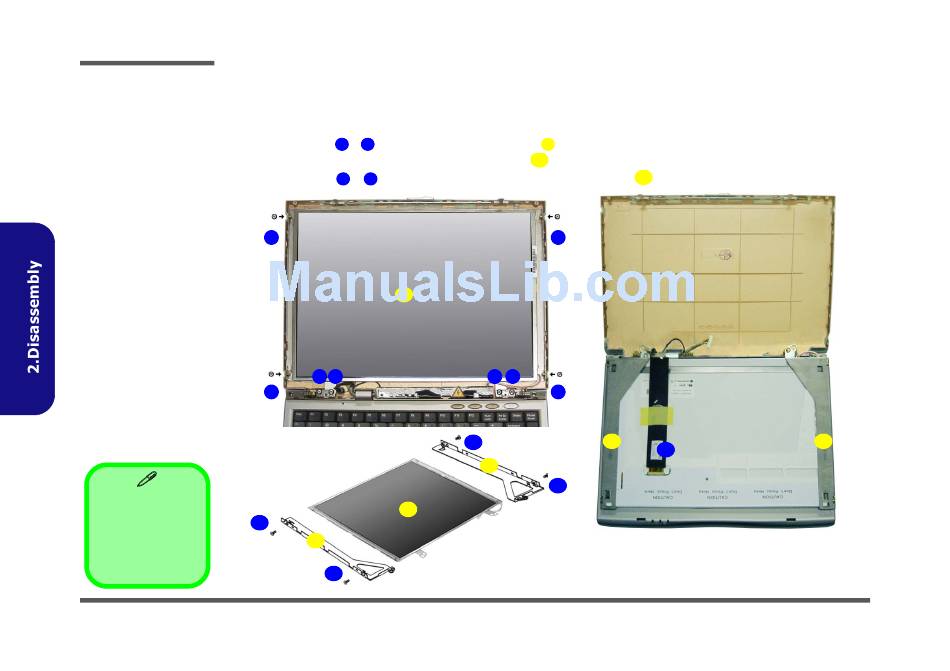

Figure 2 - 15
LCD Removal
1. Remove the battery
Sequence
(page 2 -
2. Remove screws
a. Remove the screws
3. Disconnect the LCD cable from the LCD connector
and lift the LCD pan-
el off the assembly.
4. Remove screws
b. Disconnect the LCD
a.
cable.
c. Remove the screws
to release the brack-
ets.
c.
9. LCD Panel
11
15. 2 * Brackets
• 12 Screws
2 - 18 Removing the LCD Panel
