Introduction

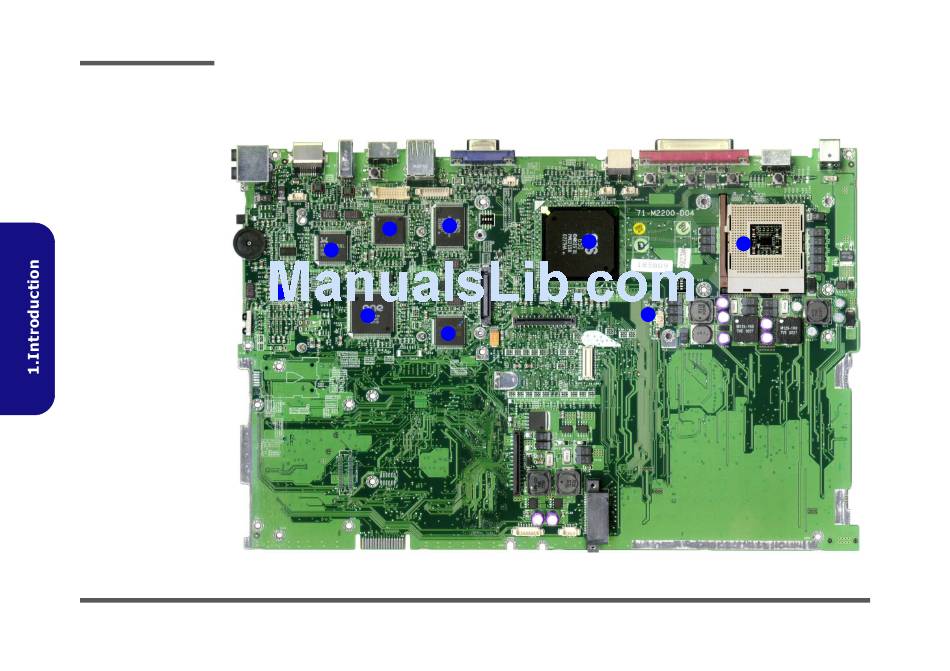

Mainboard Overview - Top

Figure 6
Mainboard

Key Parts

Overview - Top Key
Parts
1. CPU Socket (no
CPU Installed)
2. Northbridge SiS
650
3. SiS 301 (LVDS
Interface)
4. TSB41AB21 -
1394 PHY
(IEEE1394 Con-
troller)
5. RTL8100BL LAN
Controller
6. ALC201 - AC'97
Audio Codec
7. Cardbus Control-
ler
8. H8 Keyboard
Controller
9. CMOS Battery
1 - 10
3
4
5
6
7
8
2
1
9
