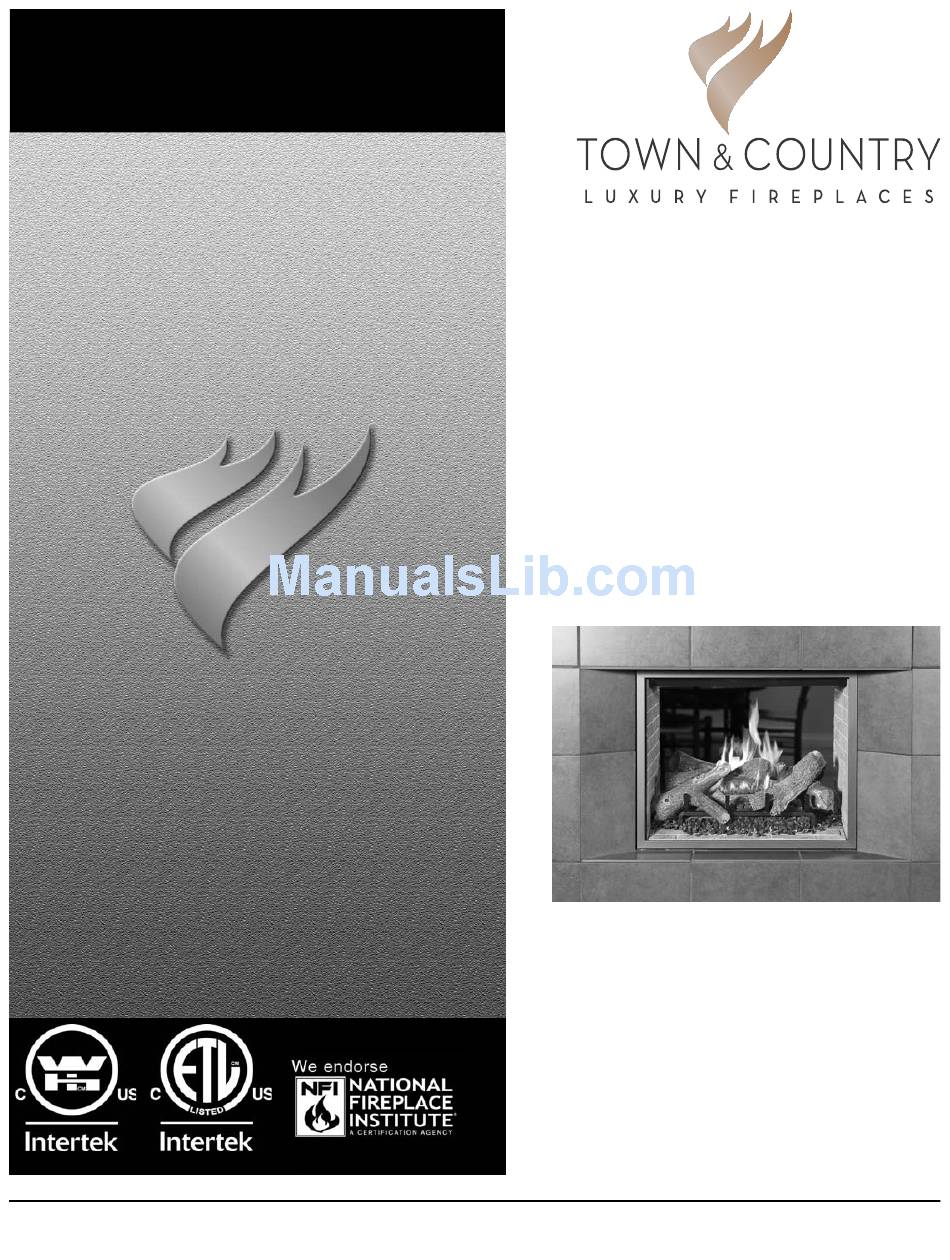

Town & Country Fireplaces TC36ST Instructions Manual
See-thru lodgewood burner and panel kit
Hide thumbs
Also See for TC36ST:
- Installation and operating instructions manual (44 pages) ,
- Installation instructions manual (40 pages) ,
- Manual (11 pages)
Table of Contents
Advertisement
Quick Links
IMPORTANT:
THESE INSTRUCTIONS ARE TO REMAIN
WITH THE HOMEOWNER
These instructions are supplementary to the Installation
and Operating Instructions supplied with the fi replace
and should be kept together. Refer to the Installation
and Operating Instructions for proper gas supply, safety
requirements and operating instructions.
010611-20
TC36 SEE-THRU
LODGEWOOD
BURNER AND
PANEL KIT
INSTRUCTIONS
PART# TC36.NGST07CA
FOR MODEL: TC36ST
SERIES: C
TC36.NGST07C
TC36.NGST07CB
TC36.NGST07CC
5056.42801C7
Advertisement
Table of Contents
Related Manuals for Town & Country Fireplaces TC36ST
Summary of Contents for Town & Country Fireplaces TC36ST
- Page 1 Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions. TC36 SEE-THRU LODGEWOOD BURNER AND PANEL KIT INSTRUCTIONS PART# TC36.NGST07CA TC36.NGST07CB TC36.NGST07CC FOR MODEL: TC36ST SERIES: C 010611-20 TC36.NGST07C 5056.42801C7...
-
Page 2: Package Contents
Package Contents • TC36.NGST07CA - EMBER BED/BURNER & GRATE ASSEMBLY • TC36.NGST07CB - 6 PCS LOG SET • TC36.NGST07CC - FLOOR, END CAPS & SIDE PANEL SET NOTE: If unit is to be converted to Propane, see Propane conversion instructions on page 13 before proceeding. - Page 3 3. Remove access cover from side of Fig. # 3 fi rebox(Fig. #3). 4. Secure the electrical bulkhead plate and 2 SCREWS gasket to the fi rebox. (2 X #8 SMS screws) Attach the ignition and sensor wires to the Fig.
-
Page 4: Panel Installation
Panel Installation Remove panel retainer clips, one on Fig. # 6 each side of the fi rebox. Insert bottom of valve side panel and tilt up into place then reinstall panel retainer clip(Fig. # 6 & 7). Repeat on opposite side. TOP OF UNIT Fig. - Page 5 Fig. # 8 2. Install the fl oor panels as shown (Fig. # 8 & 9). VALVE THIS SIDE VALVE THIS SIDE Fig. # 9 VALVE THIS SIDE VALVE THIS SIDE Fig. # 10 FLOOR PANEL 3. Install the fl oor panel end caps over the gas END CAPS connections and the air intake (Fig.
- Page 6 4. Install the log grate as shown (Fig. #11). Fig. # 11 EMBER EDGE Fig. # 12 5. Spread the black vermiculite evenly along the edge of the embers on both sides as shown (Fig. #11 & #12). BLACK VERMICULITE TC36.NGST07C 010611-20...
-
Page 7: Log Set Assembly
Log Set Assembly The logs are fragile and should be handled with care. Unpack and inspect log set. There should be a total of 6 logs. Gas plumbing and vent connections should be completed before proceeding. Position the logs as indicated by the following pictures. Step 1 #1 LOG PLACEMENT Fig. -
Page 8: Log Placement
Step 2 #2 LOG PLACEMENT 2. Place the notches in #2 log onto tabs on burner assembly. Fig. # 16 Fig. # 15 VALVE THIS SIDE VALVE THIS SIDE NOTCHES TABS 2. #2 log installed as pictured. Fig. # 17 VALVE THIS SIDE VALVE THIS SIDE TC36.NGST07C 010611-20... - Page 9 Step 3 #3 LOG PLACEMENT 3. Install the #3 log onto the grate straddling the grate as shown. The hole in the underside of Log #3 fi ts on the pin on Log #2. Fig. # 18 Fig. # 19 VALVE THIS SIDE VALVE THIS SIDE TC36.NGST07C 010611-20...
- Page 10 Step 4 #4 LOG PLACEMENT 4. Install the #4 log on the left end of the grate. Engage notches as shown. Fig. # 20 Fig. # 21 VALVE THIS SIDE VALVE THIS SIDE NOTCH ON LOG LOCATES ON GRATE HERE. TC36.NGST07C 010611-20...
- Page 11 Step 5 #5 LOG PLACEMENT 5. Place the #5 log as shown. The hole on the underside of Log #5 fi ts on the pin in the burner assembly. Fig. # 22 Fig. # 23 VALVE THIS SIDE VALVE THIS SIDE TC36.NGST07C 010611-20...
- Page 12 Step 6 #6 LOG PLACEMENT 6. Place the #6 log as shown. The hole on the underside of Log #6 locates on the pin on Log #1. Fig. # 24 Fig. # 25 VALVE THIS SIDE VALVE THIS SIDE Note: Improper placement of logs will create soot on internal parts and glass.
-
Page 13: Burner Flame Adjustment
Burner Flame Adjustment Fig. # 26 The air shutters on the burner control the primary combustion air to the gas burner and are pre-set to 1/8” open at the factory for natural gas fuel. Some adjustment may be necessary to obtain desired fl ame and to eliminate carbon deposits. -
Page 14: Propane Conversion
If the unit is to be used on propane, Kit # TC36.LPKTSB/ESB/ESC for use with model: MINIMUM RATE SCREW (5005.016) Pour utilise avec du modèle: TC36ST convert as follows using the Date: ______________________ components supplied with this By / Par: ___________________... -
Page 15: Burner Orifices
5. Remove the two screws securing the SCREWS manifold bracket to the burner (Fig #30). Fig. # 30 Fig. # 31 6. Using a 1/2” wrench, undo the natural gas burner orifi ces, (marked #32) (Fig. #31). Apply a small amount of pipe joint compound to the threads of the propane burner orifi ces (marked 180) to ensure a good seal, before screwing them into the... - Page 16 9. Carefully tilt the burner to access the pri- Fig. # 32 mary air shutters on the underside of the Securing Nuts burner. With a 3/8” socket, loosen the nuts securing the air shutters. Open primary air shutters fully and retighten nuts(Fig# 32). 10.
- Page 17 13. Remove access panel, 10 screws, and set aside (Fig. #41) Fig. # 36 14. Remove the minimum rate screw located in the valve. (Fig. #36). Minimum rate screw Removing the Minimum Rate Screw The minimum rate screw is sealed with an o-ring near the bottom of the screw. Use a thin bladed screwdriver to back the screw out to the limit of the threading.
-
Page 18: Gas Pressure Check
Peel off the protective backing and apply the Kit # TC36.LPKTSB/ESB/ESC for use with model: Pour utilise avec du modèle: TC36ST conversion label directly over the gas specifi cations on the rating label. Date: ______________________ By / Par: ___________________ 19. -
Page 19: Replacement Parts
Replacement Parts ITEM ..DESCRIPTION ........PART NO. ITEM ..DESCRIPTION ........PART NO. 1.... LOG GRATE ........TC36.9318 ..LOG SET, COMPLETE ....TC36.NGST07CB LOG #1 (shown in fi g.#13) ........... 2.... BURNER ASSEMBLY ....TC36.NGST07CA LOG #2 (shown in fi g.#16) ..........3.... - Page 20 TECHNICAL SUPPORT: 1-250-748-1184 www.townandcountryfi replaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
