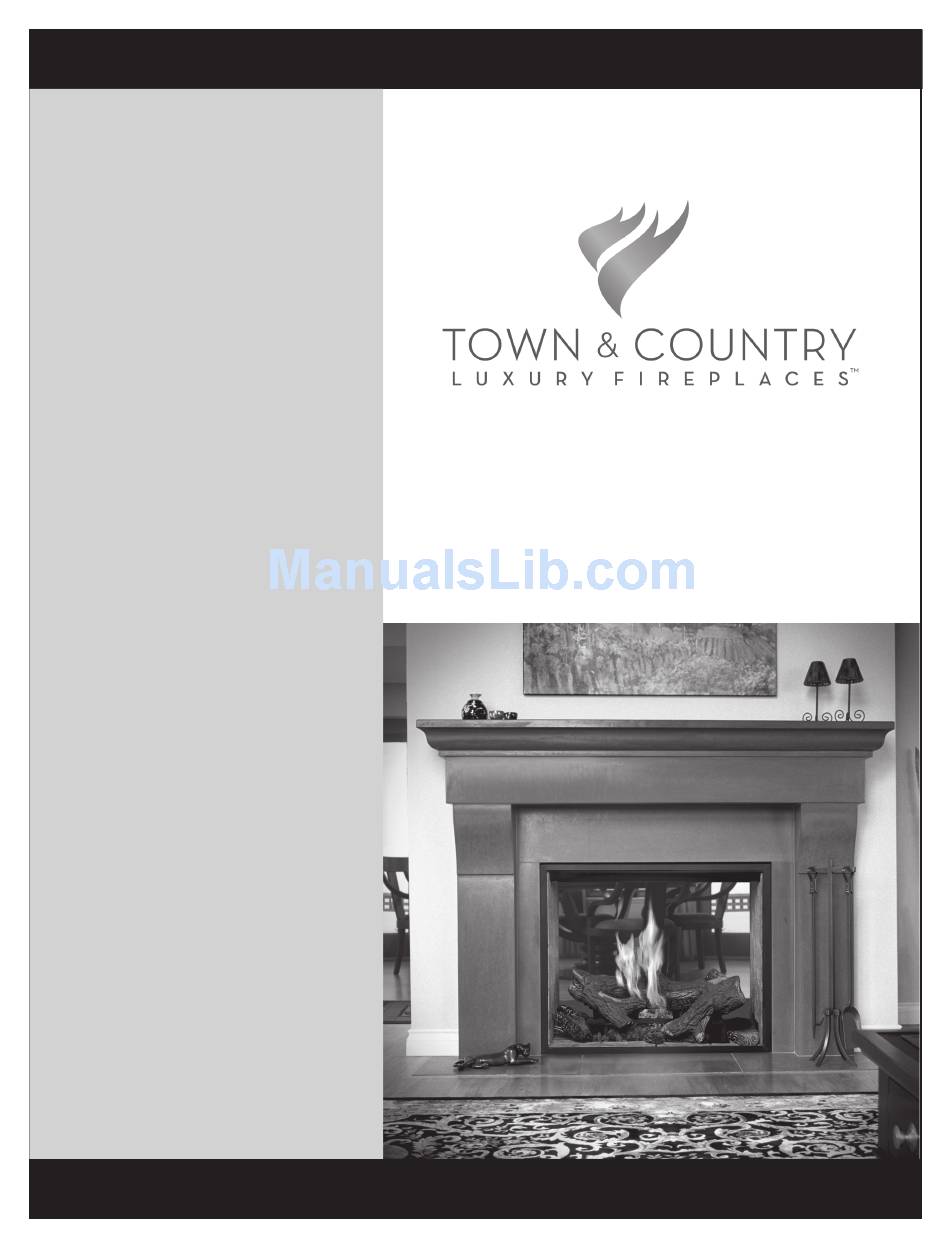

Town & Country Fireplaces TC36ST Manual
Series c see-thru
for
architects
&
designers
Hide thumbs
Also See for TC36ST:
- Installation and operating instructions manual (44 pages) ,
- Installation instructions manual (40 pages) ,
- Instructions manual (21 pages)
Table of Contents
Advertisement
Quick Links
Fireplace and Venting Specifications
for
architects
&
designers
IMPORTANT
This booklet is intended as a basic
specification guide for architects,
designers and builders. Please
refer to the Instruction Manual
supplied with the fireplace for
detailed information regarding
installation and operation.
Product installation manuals can
also be viewed at:
www.townandcountryfireplaces.com
Model TC36ST Series C
1
TC36ST.CE
For reference only. Consult Manual before installation
TC36 See-Thru
Series C
210611-11
Advertisement
Table of Contents
Related Manuals for Town & Country Fireplaces TC36ST
Summary of Contents for Town & Country Fireplaces TC36ST
- Page 1 Please refer to the Instruction Manual supplied with the fireplace for detailed information regarding installation and operation. Product installation manuals can also be viewed at: www.townandcountryfireplaces.com Model TC36ST Series C For reference only. Consult Manual before installation TC36ST.CE 210611-11...
-
Page 2: Fireplace Dimensions
32 1/8 32 1/8 23 3/4 11 5/8 27 3/16 29 1/8 14 3/16 37 1/2 5 15/16 46 5/16 23 3/4 TC36ST.CE Cad Drawing Available at www.townandcountryfireplaces.com Examples of Common Locations For reference only. Consult Manual before installation TC36ST.CE 210611-11... -
Page 3: Mantel Clearance Chart
(51 mm) Vertical vent pipe ....1 3/4" (45mm) Horizontal vent pipe (Top, sides and bottom) ..1 3/4" (45mm) UNIT MAY BE RECESSED UP TO 6" WITH NON-COMBUSTIBLE MASONRY TYPE MATERIAL For reference only. Consult Manual before installation TC36ST.CE 210611-11... -
Page 4: Non-Combustible Board Detail
All other framing can be done with of the framing edges. fireplace. conventional lumber Minimum Combustible Framing Dimensions 58 5/8” 3/4” 48” 22 3/8” 3/4” 58 5/8” NOTE: Fireplace should be in its final location before framing. For reference only. Consult Manual before installation TC36ST.CE 210611-11... -
Page 5: Maestro Control System
No building material is permitted to protrude past the framing edges attached to the fireplace under ANY circumstance. GLASS FRAME NON COMBUSTIBLE FINISH MATERIAL For reference only. Consult Manual before installation TC36ST.CE 210611-11... - Page 6 32 1/2" from the center of the flue outlet to the outside face of the outer wall. The height will need to be increased with longer horizontal pipe. For reference only. Consult Manual before installation TC36ST.CE 210611-11...
- Page 7 For each additional 90° elbow, or an equal combination of elbows, reduce TCVT Wall Vent horizontal vent run by 2 feet. Ensure vent Cad Drawing pipe is properly supported. Available at www.townandcountryfireplaces.com For reference only. Consult Manual before installation TC36ST.CE 210611-11...
- Page 8 For each additional 90° TCVT Roof Vent Cad Drawing elbow, or an equal combination of elbows, reduce Available at horizontal vent run by 2 feet. Ensure vent pipe is www.townandcountryfireplaces.com properly supported. For reference only. Consult Manual before installation TC36ST.CE 210611-11...
-
Page 9: Vent Terminal Minimum Clearances
* as specified in CAN/CSA B149 Installation Codes, Note: local Codes or Regulation may require different clearances * for U.S.A. Installations follow the current National Fuel Gas Code, NFPA54 /ANSI #Z21.50.b For reference only. Consult Manual before installation TC36ST.CE 210611-11... - Page 10 Power Vent Terminals Wall Termination Roof Termination Flush Mount Horizontal Termination Cad Drawings available at www.townandcountryfireplaces.com Direct Vent Terminals Standard Venting Standard Venting Stainless Steel Standard Venting Roof Termination Wall Termination Termination for Condo Installation Cad Drawings available at www.townandcountryfireplaces.com TC36ST.CE 210611-11...
- Page 11 For personal service pertaining to specific projects, contact: Town & Country Architect Resource Planner architects@pacificenergy.net Web: www.townandcountryfireplaces.com Phone: (250) 748-1184 Toll Free: 1-877-715-2664 2975 Allenby Road, Duncan, BC Canada V9L 6V8 Printed in Canada...
