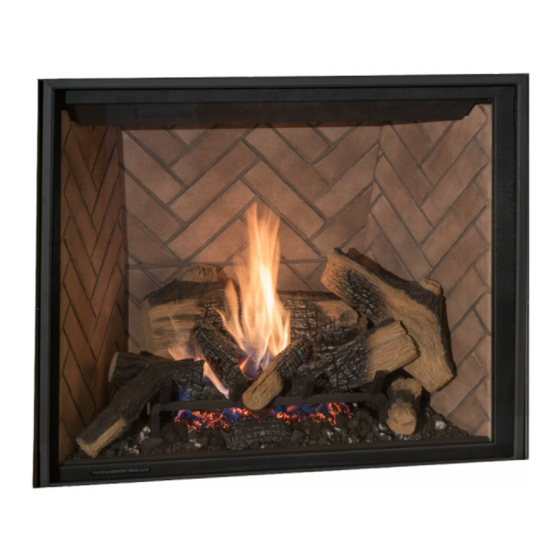

Town & Country Fireplaces TC36 ARCH Installation And Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Town & Country Fireplaces Manuals
  4. Indoor Fireplace
  5. TC36
  6. Installation and operating instructions manual

Town & Country Fireplaces TC36 ARCH Installation And Operating Instructions Manual

Modular direct vent fireplace
Hide thumbs Also See for TC36 ARCH:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual , Instruction and Installation Manual
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
WARNING:
If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury or death.
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
• Do not use any phone in your building.
• Immediately call your gas supplier from
a neighbour's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier call
the fire department.
Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certified kit is used.
This appliance is suitable for installation in a
bedroom or bed sitting room.
240809-48
TC36 & TC36 ARCH
INSTALLATION
AND OPERATING
INSTRUCTIONS
MODEL TC36 & TC36AR
SERIES C
MODULAR DIRECT VENT
FIREPLACE
TC36_CE
5056.427.C

Advertisement

Table of Contents
loading

Related Manuals for Town & Country Fireplaces TC36 ARCH

Summary of Contents for Town & Country Fireplaces TC36 ARCH

  • Page 1 FOR YOUR SAFETY TC36 & TC36 ARCH Do not store or use gasoline or other INSTALLATION flammable vapors and liquids in the vicinity of this or any other appliance.

  • Page 2: Table Of Contents

    Table of Contents Caution ................... 3 Safety ..................... 3 Massachusetts Rules and Regulations ........... 4 Fireplace Dimensions ..............5 Minimum Clearances to Combustible Material ....... 5 Installation Requirements ............... 6 Manufactured (Mobile) Home ............6 Window Frame Removal ..............6 Top Standoffs ..................

  • Page 3: Caution

    Caution FOR YOUR SAFETY - Do not install or operate your Town & Country fireplace without first reading and understanding this manual. Any installation or operational deviation from the following instructions voids the Town & Country Fireplaces Warranty and may prove hazardous.

  • Page 4: Massachusetts Rules And Regulations

    Important Note for the Commonwealth of Massachusetts: From Massachusetts Rules and Regulations 248 CMR 5.08: For all side wall horizontally vented gas fuelled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied.

  • Page 5: Fireplace Dimensions

    Fireplace Dimensions Fig. #1 Minimum Clearances to Combustible Material Fig. #2 NON-COMBUSTIBLE ZONE. COMBUSTIBLE FRAMING AND STEEL FRAMING DO NOT INSTALL ANY COMBUSTIBLE MATERI- AL, ELECTRICAL WIRING OR GAS PLUMBING IN FINISH WALL ABOVE STANDOFFS STANDOFFS THIS AREA. MAY USE COMBUSTIBLE FACING MATERIAL IN THIS AREA MANTEL CLEARANCE CHART...

  • Page 6: Installation Requirements

    Installation Requirements The Town & Country Fireplace installation and venting must conform to the current CAN/CGA-B149 installation code (in Canada) or the current National Fuel Gas Code, ANSI Z223.1 (in the USA), and approved per local codes. Only qualified (licensed or trained) personnel should install this product.

  • Page 7: Top Standoffs

    Top Standoffs The top standoffs are shipped loose inside Fig. #6 TOP STANDOFFS the fireplace and must be installed on top of the fireplace as shown in Fig #6. Do this once the fireplace is on site and in position. Locating The Fireplace In planning the installation for the fireplace, it is necessary to determine where the unit is to be installed, location of vent system and where gas supply piping may be plumbed.

  • Page 8: Framing And Finishing

    Framing and Finishing Note: The fireplace should be in place position. Secure the steel frame to the framing and venting installed before framing in or Chase Insulation: brackets on each side of the unit. Ensure that When installing this building an enclosure around the unit. the studs are set back far enough to allow fireplace against a non-insulated exterior wall for thickness of finishing surface.
  • Page 9 Fig. #9 NON-COMBUSTIBLE BOARD DETAIL NON-COMBUSTIBLE BOARD NON-COMBUSTIBLE MATERIALS MUST EXTEND 12" ABOVE AND 5" TO THE SIDES OF THE FRAMING EDGES. Fig. #10 NON-COMBUSTIBLE RECESSED INSTALLATION DETAIL NON-COMBUSTIBLE BOARD STEEL STUDS NON-COMBUSTIBLE MATERIAL Fig. #11 MINIMUM COMBUSTIBLE FRAMING DIMENSIONS Including Sheetrock NOTE: FIREPLACE SHOULD BE IN ITS FINAL LOCATION BEFORE FRAMING.

  • Page 10: Tc36 & 36Ar Steel Stud Framing Kit

    TC36 Steel Stud Framing Kit TC36.BFRKITA Each Kit Contains: Item Part # Description Qty. 5049.9912 SCREW, TEKS #8 x 1/2” 9794.2 STUD, SIDES, 48”L 9794.5 STUD, OUTER SIDES, 48”L 9093.22 STUD, CENTER, 15 7/16”L 9193.501 STUD, HEADER, 47 1/2”L 9393.001 STUD, PLATE, 41 1/4”L 9194.5...
  • Page 11 2. Attach Side Studs (Legs) Fig. #13 • Attach the outer side studs (3) to the top of the header stud (5). (Fig #13) • Fasten the outer side studs (3) at the bottom using the base plates (7). 3. Attach the Assembled Frame to Fig. #14 the Unit •...
  • Page 12 TC36 Arched Steel Stud Framing Kit TC36.BRFRKITA Each Kit Contains: Item Part # Description Qty. 5049.9912 SCREW, TEKS #8 x 1/2” 9794.2 STUD, SIDES, 48”L 9794.5 STUD, OUTER SIDES, 48”L 9093.22 STUD, CENTER, 15 7/16”L 9193.501 STUD, HEADER, 47 1/2”L 9393.001 STUD, PLATE, 41 1/4”L...
  • Page 13 2. Attach Side Studs (Legs) Fig. #13 • Attach the outer side studs (3) to the top of the header stud (5). (Fig #13) • Fasten the outer side studs (3) at the bottom using the base plates (7). 3. Attach the Assembled Frame to Fig. #14 the Unit •...

  • Page 14: Hearth Extension

    Hearth Extension Fig. #20 WINDOW FRAME 1" 1/4" SUB- HEARTH FLOOR EXTENSION WINDOW TRACK Caution: While a hearth extension is not required and combustible flooring materials may be brought directly up to the fireplace, many materials (such as wood flooring) may not tolerate the radiant heat from this fireplace, resulting in discoloration, shrinking and cracking.

  • Page 15: Maestro Control - Plumbing And Electrical

    Maestro Control – Plumbing and Electrical ACCESS PANEL The gas control system is located on the right hand side of the firebox behind an access Fig. #21 panel and the decorative firebox panel (if installed). The fireplace is operated via a wall control and a hand held remote control unit.

  • Page 16: Standing Pilot Function

    8. Route the control cable as required to the wall control electrical box. Fig. #25 9. Attach the control cable to the wall control. (Fig #25) 10. Insert the 4 supplied “AA” batteries into the battery pack and connect to wall control. (Fig #26) 11.

  • Page 17: Gas Supply

    Gas Supply Caution: The gas line should be installed by a qualified service person in accordance with all building codes. This section is intended as a guide for qualified technicians installing this appliance. Consult local and / or national building codes before proceeding. Gas supply line access holes are located at the top and left sides of the Control Box.

  • Page 18: Venting

    Venting Before installing venting for this unit, the installer should read these instructions to insure that the proper vent configuration has been selected. Use only Town and Country Termination kits #: TCVT.WTA - Wall Termination Kit TCVT.RTA - Roof Termination Kit Vent system components approved for use with the Town and Country Fireplace are shown in Fig.
  • Page 19 Fig. #31 Fig. #32 TRIM TO LENGTH WALL THIMBLE AND VENT MUST NOT PROTRUDE BEYOND SIDING Wall thimble: Where a vent pipe passes through a combustible wall, a wall thimble/shield must be used to retain insulation and maintain proper clearances. The wall thimble may be cut to length for various wall thicknesses up to 12"...

  • Page 20: Wall Vent Terminal

    Vent pipe: Install vent pipe through the wall thimble and attach to flue outlet collar on top of the fireplace. Secure all joints with screws and seal with approved "High Temp." self-adhesive aluminum tape provided. Adjust the fireplace position so that the vent pipe does not protrude beyond the outer wall.

  • Page 21: Wall Termination Venting Chart

    Wall Termination Venting Chart Fig. #35 Pipe length Minimum rise Pipe length Maximum run Max. 68 1/2” 1-24” 20 1/2" 1-12" 72 3/4” 1-12” 1-18" 75 3/4" 1-48" 1-12" 78 3/4” 1-24" 1-12” 11' 2" 2-48" 1-24" 3-48" 1-24" 84 3/4” 1-24”...

  • Page 22: Roof Termination Venting Chart

    Roof Termination Venting Chart Fig. #36 Pipe length Minimum rise Pipe length Maximum run Maximum 68 1/2” 1-24” 29" 1-12" 72 3/4” 1-12” 1-18" 75 1/4" 1-48" 1-12" 78 3/4” 1-24" 1-12” 11' 1 1/2" 2-48" 1-24" 3-48" 1-24" 84 3/4” 1-24"...
  • Page 23 Ceiling Opening: Fig. #37 Determine the exact position of the fireplace so that the vent pipe is centred (if possible) between two building framing members. Lay out the vent system path, minimizing the 14 1/2" number of elbows and length of vent. Consult your local building codes prior to proceed- ing.

  • Page 24: Roof Vent Terminal

    Roof Vent Terminal: 1. Place the roof flashing over the vent pipe, secure and seal it to the roof using the methods and materials appropriate for the type of roof on the building. Shingle roof example shown (Fig #39). Place the storm collar down over the vent pipe until it is level. Tighten storm collar for a snug fit.

  • Page 25: Vent Terminal Clearance

    Vent Terminal Clearance Fig. #40 Minimum clearances to the vent terminal must VENT TERMINAL MINIMUM CLEARANCES TO ADJACENT STRUCTURES be maintained as shown in figure #40 & 41. Measure clearances to the nearest edge of termination hood. NOTE: Vent terminal must not be 36"...

  • Page 26: Vent Pipe Sealant

    Vent Pipe Sealant Fig. #42 APPROVED “HIGH TEMP.” SELF-ADHESIVE TAPE VENT PIPE All outer joints of the vent pipe must be sealed with the approved "High Temperature" self- adhesive aluminium tape provided. Wrap the tape completely around the joint and press firmly in place.

  • Page 27: Vent Restrictor Adjustment

    Vent Restrictor Adjustment The vent restrictor is located on the underside of the firebox top. The unit leaves the fac- Fig. #43 tory with the vent restrictor open. The restrictor is built into the appliance for secondary air WALL AND ROOF flow adjustment.

  • Page 28: Firebox Panels Installation

    Firebox Panels Installation BEIGE HERRINGBONE ..............TCPN.757.C(TC36) ....................TCPN.7566.C(TC36 ARCH) TC36 & TC36 ARCH TUSCAN ..................TCPN.74741.C(TC36) PANELS ....................TCPN.748.C(TC36 ARCH) HERITAGE RED BRICK ..............TCPN.7571.C(TC36) ....................TCPN.75704.C(TC36 ARCH) BLACK PORCELAIN ..............TCPN.757031.C(TC36) ....................TCPN.75702.C(TC36 ARCH) COFFEE BEAN BROWN PORCELAIN ........TCPN.757031CB.C(TC36) ..................TCPN.75702CB.C(TC36 ARCH) (See Porcelain panel instruction manual for specific instructions for these panels) Before Fig.

  • Page 29: Finishing Touch Trim Kit Instructions

    Finishing Touch Trim Kit Instructions Place two smaller magnets on back of each side rail. Place two larger magnets on back of the top and bottom rails. Attach the side rails. Even the ends up with the door frame. Attach the top and bottom rails and adjust so mitres are even at the corners. Fig.

  • Page 30: Lighting Instructions

    Lighting Instructions FOR YOUR SAFETY READ BEFORE LIGHTING - Do not touch any electric switch; do not use any phone in your WARNING: If you do not follow these instructions building. - Immediately call your gas supplier from a neighbour's phone. exactly, a fire or explosion may result causing Follow the gas supplier's instructions.

  • Page 31: Maestro Control System

    Maestro Control System Remote Control Initial Setup This fireplace is supplied with a wall control Fig. #46 Fig. #47 and hand held remote control. Please note only genuine Town & Country Fireplace wall controls and hand held remote controls can be used on this fireplace.

  • Page 32: Maestro Control System - Operation

    Childproof Lock Fig. #49 An additional feature of this remote control is the childproof lock. To activate this system press and hold the timer and thermostat buttons for approx. 5 seconds until the “lock” symbol appears on the remote display. (Fig #49) The remote control hand set buttons are now locked and the lock symbol will reappear every time a button is pressed on the remote control until the timer and thermostat buttons are pressed and held again.
  • Page 33 Program Mode Fig. #51 Fig. #53 (To preset up to two on and off periods per day) The program mode has two settings for weekdays and two for weekends. The hand held remote comes with the following pre programmed settings: Weekday Program (Monday through Friday) Program one (P1) turns ON at 7:00am and...
  • Page 34 Thermostatic Mode Fig. #55 Fig. #57 THERMOSTATIC MODE THERMOSTATIC BUTTON (Only for use where permitted) BUTTON (Operates the fireplace within a set tem- perature range) The fireplace is shipped with thermostatic mode function deactivated. If this function is permitted for use in your area it can be activated by depressing the recessed button on the underside of the hand held remote.

  • Page 35: Appendix

    APPENDIX Maintenance CAUTION: Turn off gas and electrical power supply (if applicable) and allow ample time for unit to cool before servicing appliance. It is recommended that the fireplace and its venting should be inspected at least once a year by a qualified service person. Glass Panel: Warning: Do not operate fireplace with glass panel removed, cracked or broken.

  • Page 36: Tc36 & 36 Arch Replacement Parts

    TC36.CE Replacement Parts (WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. TC36 BODY ASSM......TC36.CE PANEL SETS HERRINGBONE ........TCPN.757.C TUSCAN ..........TCPN.74741.C FRAME & GLASS ASSM....TC36.9120ASSY HERITAGE RED ........TCPN.7571.C BLACK PORCELAIN ......TCPN.757031.C FRAMIMG KIT ........TC36.BFRKITA C B BROWN PORCELAIN.....TCPN.757031CB.C MAESTRO CONTROL ASSEMBLY - See Page 35 KIT CONTENTS:...
  • Page 37 TC36.CARE Replacement Parts (WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. TC36 ARCH BODY ASSM....TC36.CARE PANEL SETS HERRINGBONE ........TCPN.7566.C TUSCAN ..........TCPN.748.C FRAME & GLASS ASSM....TC36.9520 HERITAGE RED ........TCPN.75704.C BLACK PORCELAIN ......TCPN.75702.C FRAMIMG KIT ........TC36.BRFRKITA C B BROWN PORCELAIN....TCPN.75702CB.C...

  • Page 38: Replacement Parts - Maestro Control System

    Replacement Parts – Maestro Control System (WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM ..DESCRIPTION ..........PART NO. ITEM ..DESCRIPTION ..........PART NO. #1..CONTROL ASSEMBLY KIT ....TCRP.9271A #5..COMMUNICATION CABLE KIT ..TCRP.5005.062 #2..BULKHEAD ASSEMBLY KIT ....TCRP.9284 #6..

  • Page 39: Wiring Diagram

    Wiring Diagram Fig. #60 TC36_CE 240809...

  • Page 40: Wall Termination Kit

    Wall Termination Kit Wall Shield/ TCVT.WTA Ceiling Firestop Fig. #61 Thimble TCVT.THIMA WALL Fig. #62 TERMINAL 16 1/2" TCVT.9360 16 1/2" WALLSHIELD/CEILING FIRESTOP THIMBLE TCVT.THIMA 9 5/8" Roof Termination Kit TCVT.RTA Fig. #63 16 1/2" VERTICAL TERMINATION CAP TCVT.9365 9" STORM COLLAR TC42.90665 WALL SHIELD / CEILING FIRESTOP...

  • Page 41: Vent Pipe Dimensions

    Vent Pipe Dimensions Fig. #64 11" 12" PIPE ..10 1/4" 18" PIPE ..16 1/4" 24" PIPE ..22 1/4" 48" PIPE ..46 1/4" 10 15/16" 9 1/2" TCVT.811X12ADJ 11 1/8" TCVT.811X _ _ 13 13/16" 12 9/16" 8 5/16"...

  • Page 42: Vent Offset Chart

    Vent Offset Chart Fig. #65 12" PIPE 18 5/8" 18" 18" PIPE 22 7/8" 22 3/8" 10 7/8" 24" PIPE 27 1/8" 26 1/2" 48" PIPE 44 1/16" 43 1/2" 1 1/4” 11 3/8" ADDING AN ADJUSTABLE SECTION TO PIPE WILL INCREASE OFFSET BY 2 1/8"...

  • Page 43: Safety Label Location

    Safety Label Location NOTE: The Safety Label is located on a plate found in a slot between the left hand side lintel and the left hand side window frame. This plate is attached to the lintel with a cable. VENTED GAS FIREPLACE - NOT FOR USE WITH SOLID FUEL FOYER AU GAZ À...
  • Page 44 Notes TC36_CE 240809...
  • Page 45 Notes TC36_CE 240809...
  • Page 46 Notes TC36_CE 240809...
  • Page 47 Notes TC36_CE 240809...
  • Page 48 Technical support: 1-250-748-1184 Web site: www.townandcountryfireplaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada TC36_CE 240809...
