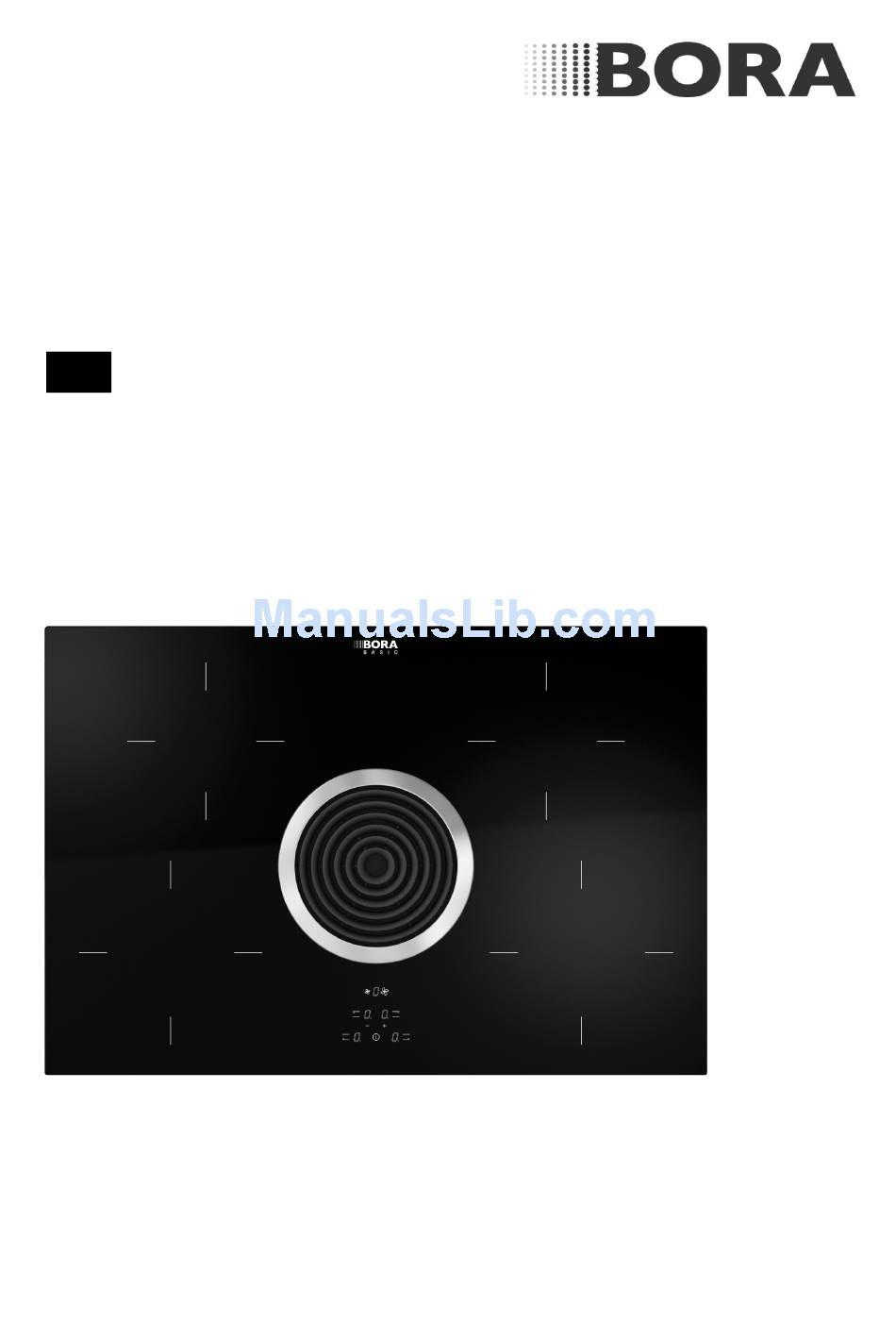

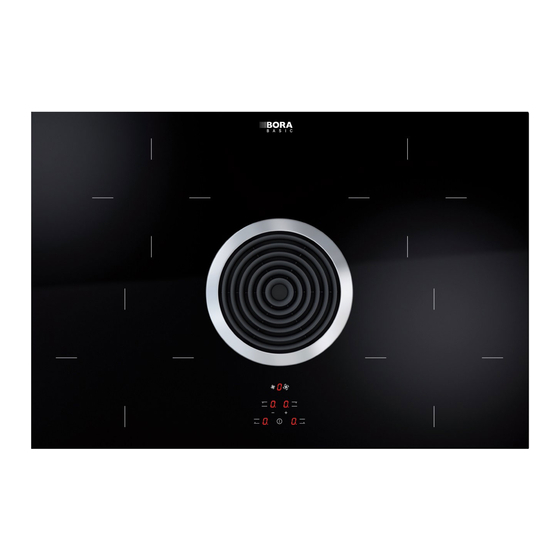

- Page 1 Operating and Mounting Manual Induction-glass ceramic cooktop with integrated cooktop extractor BIAS-UM-0000413 www.boragmbh.at...
-
Page 2: Table Of Contents
Safety instructions ......................21 Safety distances .......................21 Installation dimensions ......................22 Mounting - Installation .......................24 Air circulation variant BIU ....................25 Exhaust air variant BIA ....................27 Connecting the power supply line to the device .............30 Customer service, warranty ....................31 Environmentally friendly disposal ..................31... -
Page 3: Safety Instructions
manual that do not apply to your Safety instructions device. Make sure to look for the following symbol in particular when reading the Intended use manual: This device is only intended for use in private households. The WARNING manufacturer shall not assume any A dangerous situation may occur that liability for damages caused by will lead to serious injuries including... -
Page 4: Installation
A damaged device may put your safety at risk! Defective parts may only be replaced with original parts supplied by BORA. Only use the device when it is Only this way, it is guaranteed that the mounted in order to ensure its safe parts comply with the safety functioning. -
Page 5: Use
of devices operated with gas or other Danger to life, risk of combustibles. This must be checked poisoning! and approved by an authorised person due to combustion gases when using (e.g. chimney sweeper). the device at the same time as a fireplace depending on the air in the room. - Page 6 Burn hazard! Risk of injury! Do not touch hot hobs. Always keep the hob and and the Always keep children away from the base of the pot dry. If there are liquids device. The residual heat indicator between the base of the pot and the warns of hot hobs.
-
Page 7: Avoiding Damage To The Cooktop
or drinks containing sugar are spilled Fire hazard! on the hot cooking zone nevertheless, Clean or replace the filters at regular remove them immediately. intervals. Fire hazard due to fat Make sure to prevent food from deposits in the stainless steel fat filter. boiling over. -
Page 8: Operating Manual
3 Cooktop 4 Inlet opening 5 Operating panel 6 Air guiding housing with housing base Air circulation variant BIU Exhaust air variant BIA 7 Flex duct 11 Exhaust air arc with duct connection 8 Activated carbon filter housing NABER 9 Activated carbon filter housing cover... -
Page 9: Technical Data
6 Increase cooktop power level Technical data Increase timer value 9 Select cooking zone Maximum power 7.6 KW consumption Connection voltage 380 - 415 V 3N Indicators Fuse protection 3 x 16 A Frequency 50 Hz 2 Fan power level indicator Main dimensions 760 x 515 x (L x W x H... -
Page 10: Operating Modes
As far as the design of the duct system is concerned, please observe the planning documents provided by BORA. If the exhaust air is directed through the outer wall, please use the wall conducts recommended in the planning documents... -
Page 11: Operation
Filter service display appears Operation If an is shown in the display, the activated Operating the cooktop extractor carbon filter is depleted (only for air circulation) and the stainless steel fat filter requires a basic cleaning. Switching on the fan Replace the activated carbon filter (only for air Use the button to switch on the... - Page 12 Select the operating mode using the button will be shown in the display. The cooktop extractor will switch off after a few seconds.
-
Page 13: Operating The Cooktop
utensils, they are normally induction Operating the cooktop compatible. Function of induction cooktops The base of the cooking utensils must not have any sharp grooves or sharp edges. An induction coil is located underneath an induction cooktop. If the cooking zone is Make sure to only use cooking vessels with switched on, this coil creates a magnetic field a flat base. - Page 14 Switching on the cooktop Melting of butter and chocolate, dissolving gelatine Use the button to switch the cooktop on. Keeping warm sauces and soups, swelling of rice The displays of all cooking zones will show Cooking of potatoes, pasta . If no further input is made, the cooktop soups, ragouts, stewing of will switch off again after a few seconds for fruits, vegetables and fish,...
- Page 15 Switching off the cooking zone If no cooking zones are switched on, the control indicators will be flashing on the timer display. Press the cooking zone button of the desired cooking zone. By pressing the button , set the power level to Setting the timer (automatic cut-out) The display will show a for a few...
-
Page 16: Safety Devices
Switching the timer off early Safety devices Select the desired timer. Automatic safety shut-down The desired timer indicator appears and the indicator lamp of the hob starts flashing. If a cooking zone is heated at a steady power By pressing the button , set the level for an unusually long period of time (see timer to... -
Page 17: Cleaning And Maintenance
dirt using a special glass scraper for glass Cleaning and maintenance ceramic cooktops. Always switch the device off before carrying Burned-in sugar and melted plastic are to be out any cleaning or maintenance work. Switch immediately removed – while still being hot – off the fuse. - Page 18 Do not clean heavily soiled stainless steel fat filters along with dishes in the dishwashing machine. If the filter is washed by hand, use a brush for cleaning and rinse the filter thoroughly afterwards. Installing and removing the air inlet nozzle The air inlet nozzle must always be installed Installing the stainless steel fat filter during operation.
- Page 19 You can purchase the activated carbon filter BAKF at your specialist dealer or on the BORA online service website, under www.boragmbh.com/service/basic Switch off the cooktop extractor.
-
Page 20: What To Do If
Switch the safety cut-out back on. apartment and/or house is defective. The fuse or the safety cut-out trips Call the BORA customer service. several times. Interruption in the power supply Have the power supply checked by a qualified electrician. -
Page 21: Mounting Instructions
Mounting instructions Safety instructions The device may only be installed by a qualified expert connected to the mains by a specialist electrician. The device may not be operated at non-stationary installation locations (e.g. ships). The device may not be installed above cooling devices, dishwashing machines, stoves, baking ovens as well as washing and drying machines. -
Page 22: Installation Dimensions
Installation dimensions Air circulation variant BIU The floor unit must be equipped with a continuous back wall so that the exhaust air is not directed into the front furniture body compartment. Allow for a cut-out at the back wall. A minimum clearance between the back wall of the furniture body and an adjacent piece of furniture or room wall must be observed for the exhaust air. - Page 23 Planning information for the installation of the exhaust air ducts are provided in the BORA ventilation instructions. Air circulation variant BIA The back wall of the floor unit must be adjusted for the exhaust air duct. A minimum clearance between the back...
-
Page 24: Mounting - Installation
Cut-out dimensions worktop Mounting - Installation Flush installation Mounting accessories 1x flex duct (BIU) 1x horizontal exhaust air duct extension (BIA) 4x fastening clips 6x EURO screws (BIU) 4x lens head screws 1x cooktop sealing 2x cable routing clips Surface-mounting... -
Page 25: Air Circulation Variant Biu
Air circulation variant BIU Preparing the back wall of the furniture Adjust the position of the back wall according to the required installation dimensions. The back wall may have to be moved further towards the rear. Extend the height of the back wall so that the furniture body is closed to the front. - Page 26 Inserting the device into the floor unit Before inserting the device, remove the air inlet nozzle and the stainless steel fat filter [a]. The air inlet nozzle can be used as handle when inserting the device. Insert the device obliquely into the worktop cut- out [b].
-
Page 27: Exhaust Air Variant Bia
Exhaust air variant BIA Preparing the furniture floor unit Before carrying out the installation, check the required installation dimensions for the device and the planned duct system at the floor unit. If required, adjust the floor unit (back wall etc.). - Page 28 Insert the exhaust air extension between the air guiding housing and the exhaust air arc [f]. Position the mounted air guiding assembly at the device base in such a way that all retaining hooks are located in the openings [g]. Now move the air guiding assembly into the indicated direction [h].
- Page 29 Inserting the device into the floor unit Before inserting the device, remove the air inlet nozzle and the stainless steel fat filter [a]. The air inlet nozzle can be used as handle when inserting the device. Insert the device centrally into the designated cut-out in the worktop [b].
-
Page 30: Connecting The Power Supply Line To The Device
Connecting the power supply line to the device The device may only be connected to the mains Connect the power supply line to the device (1) by a specialist electrician who knows the country- according to the connection diagram. Fasten the specific regulations and additional regulations cable mounting clips in the designated bore stipulated by the local power supply companies in... -
Page 31: Customer Service, Warranty
BORA customer service. materials that are environmentally friendly and easy to dispose of The contact data of the BORA customer and can therefore be recycled. Returning the packaging material into the service are provided on the back of this material cycle saves resources and reduces manual. - Page 40 BORA Vertriebs GmbH & Co KG Prof. Dr. Anton Kathrein Straße 3 A-6342 Niederndorf T +43 (0) 5373 62250-0 F +43 (0) 5373 62250-90 info@boragmbh.at www.boragmbh.at...
