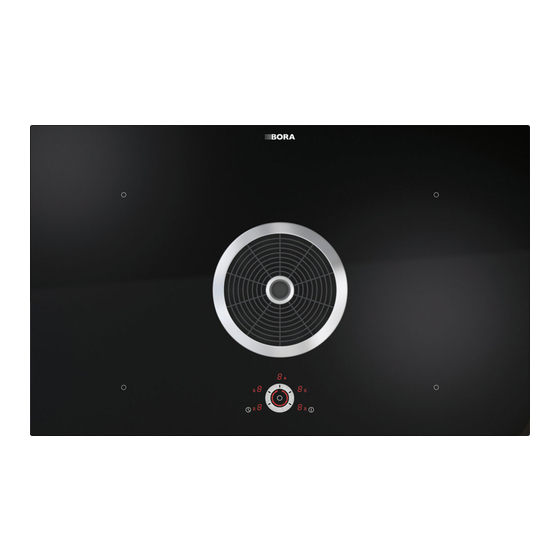

- Page 1 Operating and installation instructions BFIA, BFIU Surface induction glass ceramic cooktop with cooktop extractor BFIASUMEN-003 www.bora.com M8800406-000...
- Page 2 Please accept our apologies in this eventuality. An updated version can be requested from the BORA Service Team. Subject to printing errors and mistakes.
- Page 3 Safety distances ..........19 Cut-out dimensions for the cooktop ....19 Troubleshooting Installing the recirculation version (BFIU) ..21 Installing the exhaust air version (BFIA) ....24 Decommissioning, disassembly and 6.6.1 Operating the cooktop extractor with a fireplace that depends on the air in the room ...24 disposal Establishing the power connection....28...
-
Page 4: General Information
& Co KG, BORA APAC Pty Ltd and BORA Lüftungstechnik GmbH - hereinafter referred Target group to as BORA - do not assume any liability for damage arising from non-adherence to these These operating and installation instructions apply for the... -
Page 5: Safety And Warning Information
Caution Indicates a potentially hazardous situation which could lead to slight or minor injuries if ignored. — Caution Indicates a situation which could result in material damage if ignored. Tab. 1.2 Meaning of warning symbols and signal words www.bora.com... -
Page 6: Safety
Do not rely on the pan size recognition. Issues with pacemakers are unlikely. Keep pets away from the appliance. In case of doubt, please contact the manufacturer of your medical device or your doctor. www.bora.com... -
Page 7: Safety Instructions – Operation
Stifle the fire using a lid, for and maintenance section). example. DANGER! Risk of explosion caused by flammable liquids! Flammable liquids in the vicinity of the cooktop can explode and cause serious injury. Do not place any flammable liquids in the vicinity of the cooktop. www.bora.com... - Page 8 Unattended pans can boil over Do not place any items on the allowing hot liquids to escape. cooktop. Please use suitable tools Always keep an eye on pans while (pot holders, oven gloves). cooking. Short cooking sessions must be constantly monitored. www.bora.com...
- Page 9 Do not leave objects on the hot The cooktop extractor and its cooktop. touchable parts are hot when the cooking zone is switched on and during the cooling phase. Do not place any items on the cooktop. Please use suitable tools (pot holders, oven gloves). www.bora.com...
-
Page 10: Safety Instructions – Installation
Check the appliance for visible damage before installing it. Do not install damaged devices. A damaged device is a hazard. Repair work must only be carried out by specialists authorised by the manufacturer. www.bora.com... -
Page 11: Safety Instructions – Disassembly And Disposal
Securely disconnect the appliance use that goes beyond that which is described from the mains using LS switches, here is classed as unintended. BORA does not fuses, automatic circuit breakers assume any liability for damages caused by or contactors. -
Page 12: Technical Data
Extraction system (BFIA) Maximum flow volume 697.3 m Maximum static pressure 372 Pa Power control 1-9, power setting Exhaust air connection (BFIA) 222 x 40 x 89 mm Recirculation system (BFIU) Maximum flow volume 658.8 m Maximum static pressure 375 Pa Power control 1–9, power setting... -
Page 13: Energy Label
Energy label Energy label Product description Glass ceramic cooktop with 4 cooking zones and an integrated BFIA BFIU cooktop extractor Operating mode Exhaust air Recirculation Energy consumption Value Value EN standard Annual energy consumption (AEC 54,8 kW/a 51,9 kW/a 61591... -
Page 14: Device Description
Activated charcoal filter To prevent odours in the recirculated air, an activated Air guiding housing with housing base charcoal filter must be used. For hygiene and health www.bora.com... -
Page 15: Operating Panel And Operating Principle
[12] Heat retention level display [13] Cooking zone indicator [14] Power display Display field Display Meaning Fig. 5.3 Cooktop extractor – exhaust air (BFIA) Fan display Fan off Exhaust air arc with duct connection Power level 1 - 9 Horizontal exhaust air extension... -
Page 16: Functional Principle Of The Cooking Zone
42 °C Cooking large quantities of liquid, browning steaks Level 2 74 °C Heating up water Level 3 94 °C Tab. 5.2 Recommendations for power levels Tab. 5.4 Heat retention levels The specifications provided in the table are standard values. www.bora.com... -
Page 17: Bridging Function
If the power level of the cooking zones is changed, Front 120 mm the automatic cooktop extractor function adjusts the Back 120 mm cooktop extractor performance after a 30 second delay. Tab. 5.5 Minimum cookware diameter Once the cooking session is complete, the automatic after-run is activated. www.bora.com... -
Page 18: Power Setting
Where necessary, switch the cooktop back on. a power level. (residual heat display) is then displayed in 5.5.5 Childproofing feature the cooking zone indicator. Thechildproofingfeaturepreventsthecooktopfrom beingswitchedonaccidentally.Thechildproofingfeature can only be activated when the cooktop is switched on andallcookingzonesareswitchedoff(seetheOperation chapter). www.bora.com... -
Page 19: Installation
Stainless steel grease filter BAKF activated charcoal filter Flexible duct (BFIU only) EURO screws (BFIU only) BLAVH horizontal exhaust air extension (BFIA only) Fig. 6.1 Recommended minimum clearances Mounting straps Sealing tape Rear minimum clearance of 50 mm between the worktop cut-out and the rear corner of the worktop. - Page 20 Do not leave any gaps. With flush installation, attach the enclosed sealing tape [2] to the horizontal cutting edge in the worktop cut-out, even if you are sealing the cooktop with a silicone sealing compound [1] or similar. Precisely align the cooktop. www.bora.com...
-
Page 21: Installing The Recirculation Version (Bfiu)
Installation dimensions for recirculation, depth of worktop 600 mm The floor unit must have a continuous back wall so that the recirculation air is not directed into the front furniture body compartment. There must be a cut-out in the back wall. www.bora.com... - Page 22 Screwing on the flexible duct Fig. 6.15 Opening the housing cover Housing cover of the activated charcoal filter Open the housing cover of the activated charcoal filter [1] from below. Fig. 6.13 Flexible duct with 6 EURO screws 6.3 x 10 mm www.bora.com...
- Page 23 Activated charcoal filter Remove the packaging from the activated charcoal filters. Insert the two activated charcoal filters [2] from below. Check the direction of flow of the filters. This is identified by an arrow. Close the housing cover [1]. www.bora.com...
-
Page 24: Installing The Exhaust Air Version (Bfia)
Installation Installing the exhaust air version Installation dimensions (BFIA) INFO The state and regional laws and regulations must be observed with regard to the exhaust duct design. A sufficient air supply must be ensured. 6.6.1 Operating the cooktop extractor with... - Page 25 The maximum exhaust air duct length is 6 m. > 600 Planning instructions for the installation of the exhaust air ducts are provided in the BORA ventilation handbook. Preparing the back wall of the kitchen unit Before installation, check the suitability of floor unit with regard to the necessary installation dimensions for the device and the planned duct system.
- Page 26 Move the air guiding housing [2] laterally together with the exhaust air arc [1] to the left edge of the insertion aperture [3]. Fig. 6.30 Inserting the air duct extension Exhaust air arc Exhaust air duct extension Air guiding housing www.bora.com...
- Page 27 Use the suction opening [2] as a handle during insertion. Airflow assembly Hold the suction opening [2]. Openings Insert the cooktop in the middle of the worktop Now move the airflow assembly [1] to the right until it cut-out [5]. is fully engaged in the opening slot [2]. www.bora.com...
-
Page 28: Establishing The Power Connection
Observe all safety and warning information (see the Safety chapter). Observe all national and regional laws and regulations as well as the supplementary regulations of the local 220 - 240 V~ utility companies. Fig. 6.38 Connection diagram 1-phase connection www.bora.com... -
Page 29: Device Power Management (Overall Power Reduction)
The connection must always be equipped with 20 A fuse certified specialist. He/she also assumes protection as a minimum. responsibility for the proper installation and commissioning. www.bora.com... - Page 30 Connect the cable for the relevant contact to the contact plug [6] in accordance with the relevant connection diagram (see fig. Connection diagram for external switch contacts). INFO The Home-In contact must be bridged if this is not used (bridged on delivery). www.bora.com...
-
Page 31: Handover To User
Once installation is done: Explain the important functions to the user. Explain all safety-relevant aspects of operation and handling to the user. Provide the user with the accessories and operating and installation instructions to be kept in a safe place. www.bora.com... -
Page 32: Operation
Press the on/off switch to switch off the device. Pay attention to the residual heat display Pay attention to the residual heat display. (see the Device Description chapter). Be careful not to touch or place objects on hot hobs. www.bora.com... -
Page 33: Pause Function
(see the Device Description chapter), the cooking The segments are displayed on the circular display in session will continue with the desired continuous accordance with the position. cooking level, e.g. All displays will show the power level that was originally set. www.bora.com... -
Page 34: Switching Off The Automatic Heat Up Function
Change the minutes in the timer display by uniformly 7.2.17 Setting the short-time timer swiping the setting ring. (egg timer) Press the timer button 00 will appear in the timer display for a few seconds and the dot below the display will flash. www.bora.com... -
Page 35: Switching The Childproofing Feature On/Off
The segments are displayed on the circular display in automatic cooktop extractor function will be accordance with the position. reactivated after 10 minutes. All cooking zone indicators display The childproofing feature is deactivated. Press the selection button for the cooktop extractor. Press the multi-function button www.bora.com... -
Page 36: Switching Off The Automatic Cooktop Extractor Function
The cooktop extractor can still be operated without limitations. Changing the filter Switch off the cooktop with integrated cooktop extractor. Observe all warnings that are described in the Cleaning chapter. www.bora.com... -
Page 37: Cleaning And Maintenance
Make sure that the cleaning agent does not contain bases, or by unsuitable cleaning agents. They are very any sand, soda, acids or chloride. hard to remove. For air inlet nozzle and grease filter Do not use any aggressive, acidic or alkaline cleaning agents. www.bora.com... -
Page 38: Cleaning The Cooktop Extractor
Grab the stainless steel grease filter using the handle [2]. Make sure that the cooktop and cooktop extractor are Pull the stainless steel grease filter [1] out of the switched off (see Operating chapter). suction opening [3] upwards. Wait until the fan display is www.bora.com... -
Page 39: Closing The Air Guiding Housing
BAKF activated charcoal filters can be Hold the housing base with one hand [3]. pur chased from your specialist. Open both locks on the rear [4]. You can also contact BORA on its homepage Open both front locks [1]. http://www.bora.com. Remove the housing base [3]. - Page 40 Fold the activated charcoal filter housing lid [2] by Filter bracket Hold the activated charcoal filter with one hand [1]. moving up upwards. Push the filter retainer [2] to the back. Press on the activated charcoal filter housing lid until the locks [1] engage. www.bora.com...
-
Page 41: Troubleshooting
The fan cannot be switched on. The safety device is defective. Call the BORA Service Team. Tab. 9.1 Resolving a fault In all other instances, call the BORA Service Team (see the Warranty, service and spare parts chapter). www.bora.com... -
Page 42: Decommissioning, Disassembly And Disposal
Remove the device from the worktop by lifting it components and other materials. upwards. Remove any other accessories. Dispose of the old device and any contaminated accessories as described under “ Environmentally- friendly disposal”. www.bora.com... -
Page 43: Spare Parts
BORA specialist supplier or the BORA Service Team. The BORA Service Team requires the type designation and the build number of your appliance (FD number). Both pieces of information can be found on the nameplate on the back of the instructions and on the appliance base. - Page 44 F +49 (0) 8035 / 907-249 F +61 2 8076 3514 info@bora.com info@boraapac.com.au www.bora.com www.boraapac.com.au Austria: BORA Vertriebs GmbH & Co KG Prof.-Dr.-Anton-Kathrein-Straße 3 6342 Niederndorf Austria T +43 (0) 5373 / 62250-0 F +43 (0) 5373 / 62250-90 mail@bora.com www.bora.com...
