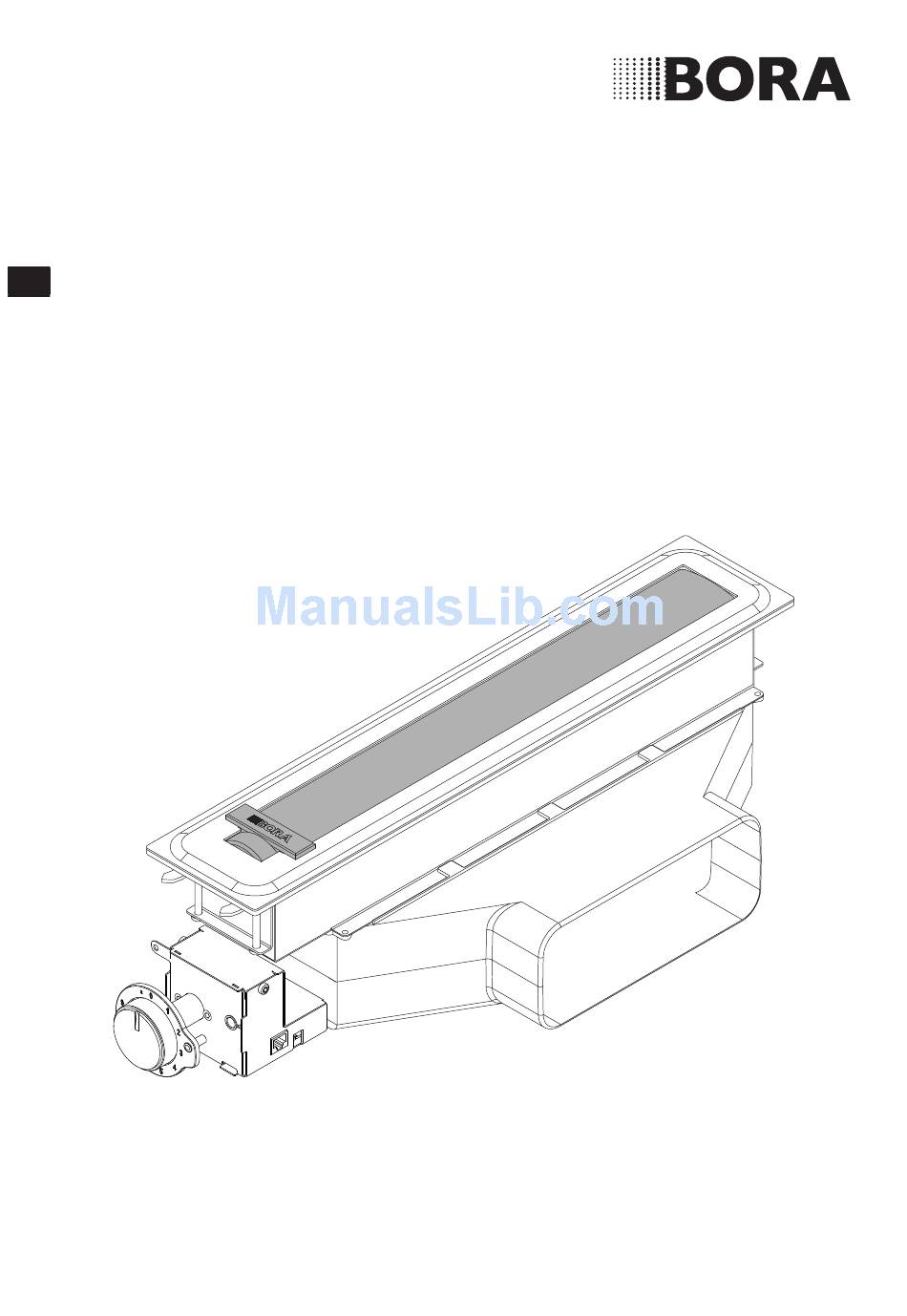

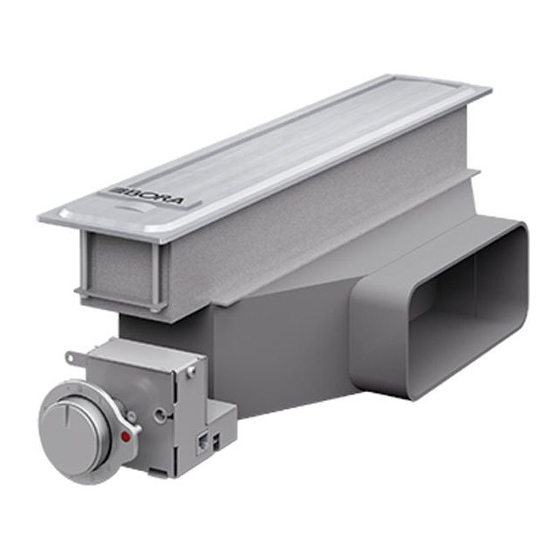

- Page 1 Operating and installation instructions PL540E Cooktop extractor PL540EUMEN-000 M8800359-000 www.bora.com...
- Page 2 T +49 (0) 8035 / 907-240 F +49 (0) 8035 / 907-249 info@bora.com www.bora.com The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited unless expressly authorised. © BORA Lüftungstechnik GmbH, 2015 All rights reserved.
-
Page 3: Table Of Contents
Operating the cooktop extractor ....25 7.1.1 Opening the cover flap ........25 7.1.2 Adjusting the power level ......26 7.1.3 Automatic after-run ........26 Note the filter service function ...... 26 7.2.1 Closing the cover flap ........26 www.bora.com... -
Page 4: General
General General INFO BORA Holding GmbH, BORA Vertriebs GmbH & Co KG, BORA APAC Pty Ltd and BORA Lüftungstechnik GmbH - hereinafter referred Target group to as BORA - shall not assume any liability for damage caused by non-compliance with these... - Page 5 CAUTION Indicates a possible hazard- ous situation which can cause minor injury if not respected. — CAUTION Indicates a situation which can cause minor injury if not respected. Tab. 1.2: Meaning of the warning symbols and signal words www.bora.com...
-
Page 6: Safety
XDo not use a steam cleaner for cleaning. Steam can cause a short circuit on live INFO Every time the device is used for parts and thus lead to property damage cooking, supplementary moisture is (see the Cleaning chapter). released into the room air. www.bora.com... -
Page 7: Safety Instructions, Operation
XClean or replace the filters at regular intervals. Installation and assembly of the device may only be carried out by trained personnel who are familiar with and comply with common national regulations and supplementary regulations of the local utility companies. www.bora.com... -
Page 8: Safety Instructions, Disassembly And Disposal
XSafely disconnect the device from the mains using miniature or automatic circuit breakers, fuses or contactors. XUse a suitable measuring device to ensure that the device is de-energised. www.bora.com... -
Page 9: Safety Instructions, Spare Parts
BORA shall not assume any liability for damages caused by improper use or incorrect operation. All misuse is prohibited! -
Page 10: Technical Data
Control box dimensions 96 x 85 x 76 mm (width x depth x height) Weight 5 kg (incl. accessories/packaging) Cooktop extractor Power levels 1 - 9 Tab. 3.1: Technical data Device dimensions Abb. 3.1 Device dimensions Abb. 3.2 Control box dimensions www.bora.com... -
Page 11: Energy Label
Energy label Energy label Product description Professional cooktop extractor system with ULS25 plinth fan PL540E Operating mode Exhaust air Energy consumption Value EN standard Annual energy consumption (AEC 26 kWh/a 61591 hood Energy efficiency class 61591 Flow volume Fluid dynamic efficiency (FDE 39.4... -
Page 12: Device Description
For hygiene and health Indicator light reasons, the activated charcoal filter must be replaced at the recommended intervals (see the Cleaning and mainte- nance section). INFO In recirculation mode, ensure sufficient ventilation and aeration to expel humidity. www.bora.com... -
Page 13: Functional Principle Of The Cooktop Extractor
5.3.6 Safety shut-down The cooktop extractor switches off automatically if no 5.3.2 Cover flap sensor buttons are pressed for 120 minutes. The cooktop extractor has a sensor in the cover flap area. This detects the position of the cover flap. www.bora.com... -
Page 14: Installation
Minimum clearance of 700 mm between the worktop If there are any missing or damaged parts, please and the wall unit. A minimum clearance of 1000 mm is notify BORA After Sales Service. recommended for ergonomic reasons. Do not under any circumstances install parts which are damaged. -
Page 15: Cut-Out Dimensions
If the induction glass ceramic wok is used, 1116 1088 the groove dimensions must be increased to 7 mm for flush installation. 1338 1310 1709 1681 Tab. 6.2: Cut-out dimensions Adhere the supplied nameplate (adhesive label) to the back of your operating and installation instructions. www.bora.com... -
Page 16: Installing The Extraction System
The drawers and/or shelves in the floor unit must be removable for maintenance and cleaning purposes. > 74 There must be a return flow aperture of > 500 cm the plinth area for recirculation. Installation dimensions > 900 Abb. 6.9 Device installation dimensions Abb. 6.7 Device dimensions www.bora.com... -
Page 17: Installing The Control Box Behind The Floor Unit's Fixed Front Panel
The total dimensions of the adjustment plates [2] and the fixed front panel [3] should be 36 mm. Abb. 6.12 Tighten the fixing nut The total dimensions of 36 mm must be adhered to in order to ensure that the control box [1] functions smoothly. www.bora.com... -
Page 18: Installing The Cooktop Extractor And Refitting The Exhaust Fitting On The Left
Depending on requirements, the exhaust fitting can slope Make sure that no air gap has formed between the down to either the left or the right. components. The cooktop extractor’s exhaust fitting is supplied by default sloping down to the right. www.bora.com... -
Page 19: Preparing For Installation - Standard Set-Up
Depending on the installation situation, adjust the levelling feet on the floor unit as necessary. Prepare the plinth fan by attaching the sealing tape depending on the installation situation. Secure the sealing tape to the inlet nozzle. www.bora.com... -
Page 20: Installation - Standard Set-Up
The maximum exhaust air duct length with a fan is 6 m. The minimum cross-section of the air ducts must be 176 cm , which equates to a round pipe with a diameter of 150 mm. www.bora.com... -
Page 21: Establishing The Power Connection And Communication
(e.g. heating engineer). Ensure that a minimum clearance of 300 cm is maintained between the fan units. Establishing the power Only use BORA universal fans with your BORA cooktop connection and communication extractor system. Operating the cooktop extractor with a... -
Page 22: Connecting External Switch Contacts
Lift up the cover. Connect the fan’s control line [1] to the universal control unit [5]. Connect the fan’s power supply cable [2] to the universal control unit [7]. Check all the plug connections to ensure that they are secure. www.bora.com... - Page 23 Installation Use the order code UFH (universal filter sleeve) to order the filter sleeve from your specialist supplier or contact BORA via the website at www.bora.com. Abb. 6.29 Wrap the connection cable round the ferrite sleeve three times Abb. 6.28 Open the universal control unit’s cover Wrap the connection cable around the ferrite sleeve three times to create the desired filter performance.
-
Page 24: Handover To User
[4]. handling to the user. Provide the user with the accessories and operating Remove the relevant snap-out element [2] in the and installation instructions to be kept in a safe place. plastic housing of the universal control unit. www.bora.com... -
Page 25: Operation
(see the Safety section). Switching on the cooktop extractor INFO The cooktop extractor must only be operated with BORA cooktops. INFO The cooktop extractor only works if the cover flap is open. INFO... -
Page 26: Adjusting The Power Level
Hold the control knob at level x for 5 seconds until the indicator light remains on. The filter service display has been reset. The filter service display can only be reset if a filter service is due after 400 operating hours. www.bora.com... -
Page 27: Cleaning And Maintenance
Use the control wheel [3] to turn the cover flap [1] to the middle setting. Lift the cover flap off upwards. INFO When removing the cover flap, ensure that it is at an angle of approximately 45° so that the tappet [2] glides cleanly out of the rotating mechanism. www.bora.com... -
Page 28: Cleaning The Cover Flap, Rotating Mechanism And Stainless Steel Grease Filter
Insert the stainless steel grease filter into the opening in the cooktop extractor. Ensure that the stainless steel grease filter is positioned in the gap in the cooktop extractor housing; it does not need to be locked into place. www.bora.com... -
Page 29: Cleaning The Control Knobs
INFO You can obtain activated charcoal filters from your specialist supplier or by contacting BORA via the website at www.bora.com. A description of how to replace the activated charcoal filter can be found in its operating instructions. -
Page 30: Troubleshooting
The fan is defective or a duct Call BORA After Sales Service. connection has become loose. Tab. 9.1: Resolving a fault In all other instances, call BORA After Sales Service (see the Warranty, After Sales Service and spare parts section). www.bora.com... -
Page 31: Decommissioning, Disassembly And Disposal
Remove the old appliance and dirty accessory as described under 9.3. Therefore do not dispose of your old appliance as household waste. Take the old appliance to a regional collection centre for return and recycling of electronic and electrical parts and other materials. www.bora.com... -
Page 32: Warranty, After Sales Service And Spare Parts
11.3 Spare parts Only use original spare parts when making repairs. INFO Spare parts can be obtained from your BORA dealer, the BORA online service website at www.bora.com/service or by calling the service number provided. -
Page 33: Notes
Notes: 12 Notes: www.bora.com... - Page 34 Notes: www.bora.com...
- Page 36 F +49 (0) 8035 / 907-249 F +61 297 /124 131 info@bora.com info@boraapac.com.au www.bora.com www.boraapac.com.au Austria: BORA Vertriebs GmbH & Co KG Prof.-Dr.-Anton-Kathrein-Straße 3 6342 Niederndorf Austria T +43 (0) 5373 / 62250-0 F +43 (0) 5373 / 62250-90 mail@bora.com www.bora.com...
