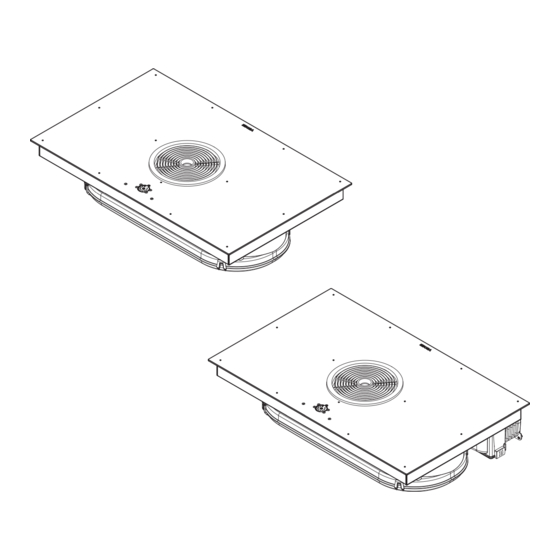

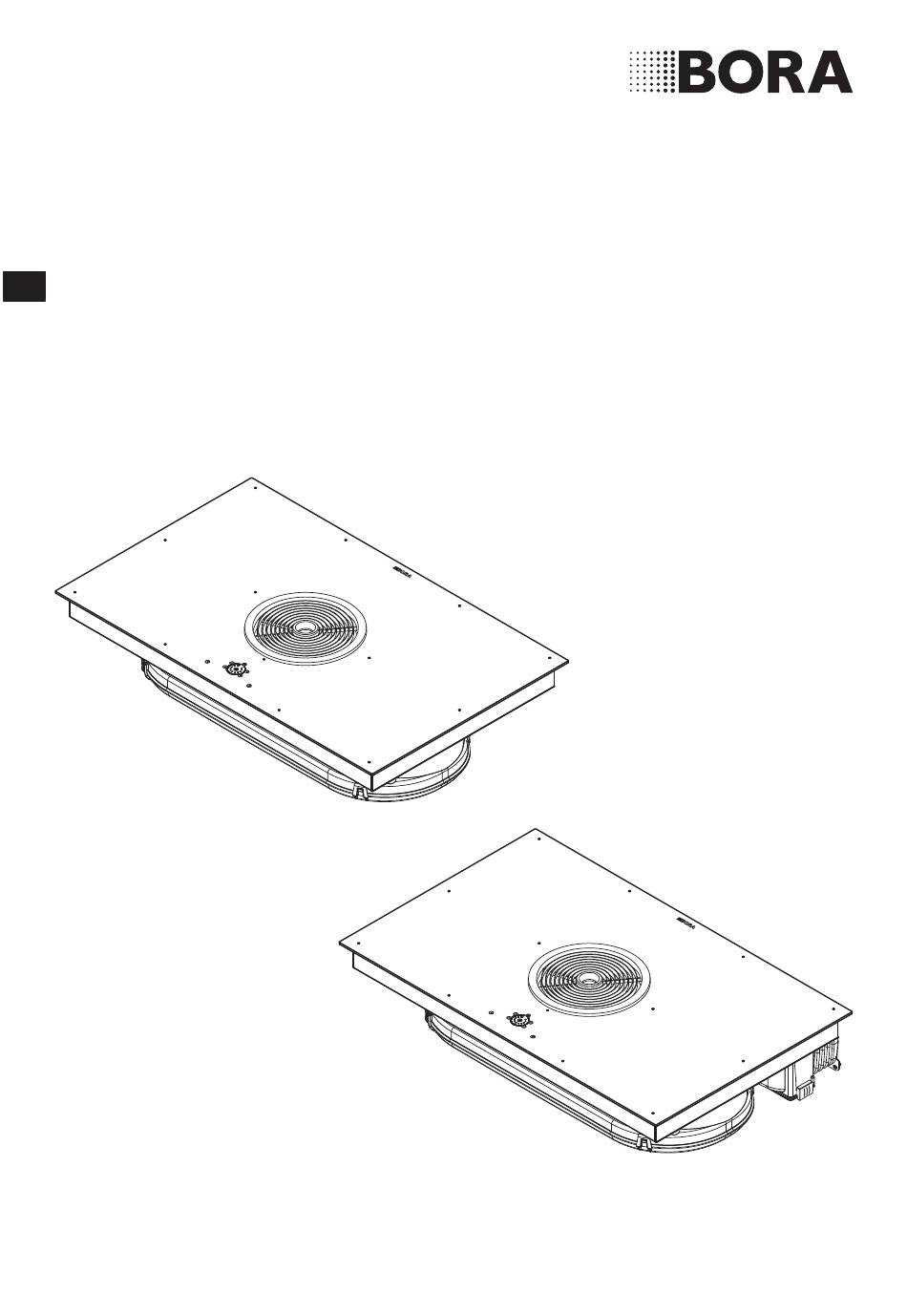

- Page 1 Operating and installation instructions BFIAS (BFIA, BFIU) BORA Basic induction-glass-ceramic-cooktop with cooktop extractor – exhaust/recirculation BFIASUMEN-005 www.bora.com...
- Page 2 Please accept our apologies in this eventuality. An updated version can be requested from the BORA Service Team. Subject to printing errors and mistakes.
-
Page 3: Table Of Contents
Establishing the power connection ......29 Warranty, technical service, Device power management spare parts, accessories (overall power reduction) ..........30 11.1 BORA manufacturer’s warranty ........44 6.10 Connect the external switch contact .......31 11.1.1 Warranty extension ...........44 6.11 Handover to user ............32 11.2 Service ...............44... -
Page 4: General Information
INFO BORA Holding GmbH, BORA Vertriebs GmbH & Co KG, BORA APAC Pty Ltd and BORA Lüftungstechnik GmbH - hereinafter referred to as BORA - do not assume any liability for damage Target group arising from non-adherence to these documents... -
Page 5: Presentation Of Information
Caution Indicates a potentially hazardous situation which could lead to slight or minor injuries if ignored. — Caution Indicates a situation which could result in material damage if ignored. Tab. 1.2 Meaning of warning symbols and signal words www.bora.com... -
Page 6: Safety
Switch off the appliance after use. Keep pets away from the appliance. INFO In recirculation mode, only a slight amount of moisture is removed from the cooking vapour. www.bora.com... -
Page 7: Safety Instructions - Cooktop Operation
Objects on the cooktop can heat up operation. and catch fire. Do not place any flammable liquids Do not place any items on the in the vicinity of the cooktop. cooktop. www.bora.com... - Page 8 Do not place any objects on the To choose a suitable stove guard, cooktop while it is hot. contact your specialist supplier or the BORA Service Team. 2.2.1 Safety instructions – cooktop installation WARNING! Do not rely on the pan size recognition.
-
Page 9: Safety Instructions - Cooktop Extractor
Check the appliance for visible damage prior holders, oven gloves). to installation. Do not install any damaged appliance. A damaged appliance may put your safety at risk. Repair and maintenance work may only be carried out by specialists authorised by the manufacturer. www.bora.com... - Page 10 Please pay attention to the channel length between the fan and the wall sleeve in straight channel design. A minimum space of 90 cm between the blow out opening of the fan and the blow out opening of the wall sleeve must be planned in. www.bora.com...
-
Page 11: Safety Instructions - Cleaning And Maintenance
LS switches, INFO BORA Holding GmbH, BORA Vertriebs fuses, automatic circuit breakers or GmbH & Co KG, BORA APAC Pty Ltd contactors. and BORA Lüftungstechnik GmbH do Use an authorised measuring device not assume any liability for damage... -
Page 12: Technical Data
Power control 1–9, power setting Recirculation connection (BFIU) 650 x 90 mm Recirculation filter Filter area 2 x 0,4 m Filter capacity 150 operating hours Service life 1 year Fig. 3.3 BFIA Device dimensions side view Tab. 3.1 Technical data www.bora.com... - Page 13 Ø222 Fig. 3.4 Device dimensions with cable extension (BFIA + BLAVH1) Device dimensions BFIU Fig. 3.5 BFIU Device dimensions aerial view Fig. 3.6 BFIU Device dimensions front view 15,5 Ø222 45–105 525–585 Fig. 3.7 BFIU Device dimensions side view www.bora.com...
-
Page 14: Energy Label
(The recirculation information is optional and not subject to mandatory inclusion on the label) * This specification is not applicable for this product. ** The sound pressure level has been determined from a distance of 1 m (distance-dependent level recording) on the basis of the sound power level established in EN 60704-2-13. www.bora.com... -
Page 15: Device Description
Activated charcoal filter housing cover and fed back into the room in which the appliance is installed. Activated charcoal filter To prevent odours in the recirculated air, an activated Air guiding housing with housing base charcoal filter must be used. www.bora.com... -
Page 16: Operating Panel And Operating Principle
Timer off [14] Activating the timer Timer display Set minutes for short time 0 1 - 99 [14] Setting the timer value (+10 min) (egg timer) or automatic cut-off Timer on; no time set Tab. 5.1 Meaning of displays www.bora.com... -
Page 17: Functional Principle Of The Cooking Zone
Cooking large quantities of liquid, browning steaks Level 1 42 °C Heating up water Level 2 74 °C Tab. 5.2 Recommendations for power levels Level 3 94 °C The specifications provided in the table are standard Tab. 5.4 Heat retention levels values. www.bora.com... -
Page 18: Bridging Function
If the power level of the cooking zones is changed, the automatic cooktop extractor function adjusts the Front 120 mm cooktop extractor performance after a 30 second Back 120 mm delay. Once the cooking session is complete, the automatic Tab. 5.5 Minimum cookware diameter after-run is activated. www.bora.com... -
Page 19: Power Setting
The childproofing feature can a power level. (residual heat display) is then displayed in only be activated when the cooktop is switched on and all the cooking zone indicator. cooking zones are switched off (see the Operation chapter). www.bora.com... -
Page 20: Installation
If there are any missing or damaged parts, please worktop cut-out may need to be removed. notify BORA After Sales Service immediately. No false floor is necessary below the cooktop. If cable Do not under any circumstances install parts which are protection (false floor) is planned, the following must damaged. -
Page 21: Cut-Out Dimensions For The Cooktop
Applies to flush installation and surface mounting. Flush installation 834 ±2 Fig. 6.6 Dimension of support for surface mounting 805 ±2 Attaching the sealing tape Fig. 6.7 Sealing tape with surface mounting Fig. 6.3 Cut-out dimensions for flush installation www.bora.com... -
Page 22: Installing The Recirculation Version (Bfiu)
Fig. 6.9 Furniture dimensions for recirculation any additional safety measures. > 600 > 50 510 - 570 > 25 Fig. 6.10 Installation dimensions for recirculation, depth of worktop 600 mm www.bora.com... - Page 23 Saw out the return flow aperture. Drill the connection drill holes. Decrease the height of the skirting boards or create corresponding openings in the plinth. Fig. 6.13 Insert the cooktop obliquely Cooktop Suction opening Air inlet nozzle Stainless steel grease filter Worktop cut-out www.bora.com...
- Page 24 Hang the frame of the flexible duct into the retaining Air inlet nozzle groove on the activated charcoal filter housing [2]. Stainless steel grease filter Make sure that the two lateral position shackles [1] are Worktop cut-out in the guide. Mounting bracket www.bora.com...
-
Page 25: Installing The Exhaust Air Version (Bfia)
If there is insufficient air supply, low pressure will occur. Toxic gases could be drawn out of the chimney or extraction ducting and back into the room. Fig. 6.21 Kitchen unit dimensions with exhaust air Worktop depth from 600 mm Worktop depth from 700 mm www.bora.com... - Page 26 Installation Planning instructions for the installation of the exhaust > 600 air ducts are provided in the BORA ventilation handbook. Preparing the back wall of the kitchen unit Before installation, check the suitability of floor unit with regard to the necessary installation dimensions for the device and the planned duct system.
- Page 27 Move the air guiding housing [2] laterally together with the exhaust air arc [1] to the left edge of the insertion aperture [3]. Fig. 6.29 Inserting the air duct extension Exhaust air arc Exhaust air duct extension Air guiding housing www.bora.com...
- Page 28 Hold the suction opening [2]. Openings Insert the cooktop in the middle of the worktop cut- Now move the airflow assembly [1] to the right until it out [5]. is fully engaged in the opening slot [2]. Precisely align the cooktop. www.bora.com...
-
Page 29: Establishing The Power Connection
220 - 240 V~ Connect the exhaust air duct [7] at the installation site to the exhaust air arc [6]. Fig. 6.36 Connection diagram 3-phase connection Seal the duct connection so that it is airtight using adhesive sealing tape UDB1. www.bora.com... -
Page 30: Device Power Management (Overall Power Reduction)
Press the timer button to save the change. Verify that the installation was done correctly. The cooktop is ready for use. Switch on the main switch/automatic circuit breaker. Put the cooktop into operation (see the Operation chapter). Check all the functions are working correctly. www.bora.com... -
Page 31: Connect The External Switch Contact
INFO Shielded cable must be used for cabled window contact switches.The shield for this cable must Fig. 6.42 External switch contacts connection diagram not come into contact with the earth wire of the device (cooktop). www.bora.com... -
Page 32: Handover To User
Connect the contact plug [6] to the electronic unit [5]. Ensure that the protective hose [4] is located directly on the contact plug [6] and that the protective hose [4] goes through the opening [3] in the cover [2]. www.bora.com... -
Page 33: Operation
Pay attention to the residual heat display is displayed in the cooking zone indicator (see the Device Description chapter). (residual heat display), do not touch the cooking zone or place any heat-sensitive objects on top of it. Risk of burns and fire! www.bora.com... -
Page 34: Pause Function
The power level of the continuous cooking level can be changed within 15 seconds of activation. Select the cooking zone. Select the desired power level. The selected continuous cooking level, e.g. appears in the cooking zone indicator. Fig. 7.3 Switching off the pause function www.bora.com... -
Page 35: Switching Off The Automatic Heat Up Function
Press any sensor button on the operating panel to end Press the timer button multiple times to increase the signal tone prematurely. the duration by 10 minutes each time. Change the minutes in the timer display by uniformly swiping the setting ring. www.bora.com... -
Page 36: Switching The Childproofing Feature On/Off
Press the multi-function button The childproofing feature is deactivated. The fan display lights up more brightly. The automatic cooktop extractor function is activated. The power level you require can now be set for each A appears on the display. cooking zone. www.bora.com... -
Page 37: Switching Off The Automatic Cooktop Extractor Function
Switch off the cooktop with integrated cooktop extractor. Observe all warnings that are described in the Cleaning chapter. Replace the activated charcoal filter. Clean the stainless steel grease filter, the air inlet nozzle, the air guiding housing and the housing base. www.bora.com... -
Page 38: Cleaning And Maintenance
They are very hard to remove. For air inlet nozzle and grease filter Do not use any aggressive, acidic or alkaline cleaning agents. www.bora.com... -
Page 39: Cleaning The Cooktop Extractor
Grab the stainless steel grease filter using the Make sure that the cooktop and cooktop extractor are handle [2]. switched off (see Operating chapter). Pull the stainless steel grease filter [1] out of the Wait until the fan display is suction opening [3] upwards. www.bora.com... -
Page 40: Closing The Air Guiding Housing
BAKF activated charcoal filters can be pur chased Hold the housing base with one hand [3]. from your specialist. Open both locks on the rear [1]. You can also contact BORA on its homepage Open both front locks [2]. http://www.bora.com. Remove the housing base [3]. - Page 41 [3] engages. Activated charcoal filter Press the activated charcoal filter housing cover on the Hold the activated charcoal filter with one hand [2]. sides and close the outer locks [1] until they engage. Push the filter retainer [1] backwards. www.bora.com...
-
Page 42: Troubleshooting
The fan cannot be switched on. The safety device is defective. Call the BORA Service Team. Tab. 9.1 Resolving a fault In all other instances, call the BORA Service Team (see the Warranty, service and spare parts chapter). www.bora.com... -
Page 43: Decommissioning, Disassembly And Disposal
Remove the device from the worktop by lifting it for return and recycling electrical and electronic upwards. components and other materials. Remove any other accessories. Dispose of the old device and any contaminated accessories as described under “ Environmentally- friendly disposal”. www.bora.com... -
Page 44: Warranty, Technical Service, Spare Parts, Accessories
+800 7890 0987 In order to file a warranty claim, the end customer is to notify their dealer or BORA of the fault and must present In the case of faults you cannot fix yourself, contact the receipt. Alternatively, the end customer can provide your BORA specialist supplier or the BORA Service proof of purchase by registering on www.bora.com. -
Page 45: Accessories
All Black air inlet nozzle BEDAB Sealing tape UDB25 Cooktop frame BKR830 Special accessory BFIA: Recirculation conversion set BUSU Exhaust air duct extension BLAVH1 Special accessory BFIU: Exhaust air conversion set BUSAE Activated charcoal filter set with ion exchanger BAKFS (2 pcs) www.bora.com... - Page 46 Notes: 12 Notes: www.bora.com...
- Page 48 F +49 (0) 8035 / 9840-300 F +43 (0) 5373 / 62250-90 info@bora.com mail@bora.com www.bora.com www.bora.com Austria: Australia - New Zealand: BORA Vertriebs GmbH & Co KG BORA APAC Pty Ltd Innstraße 1 100 Victoria Road 6342 Niederndorf Drummoyne NSW 2047 Austria Australia...
