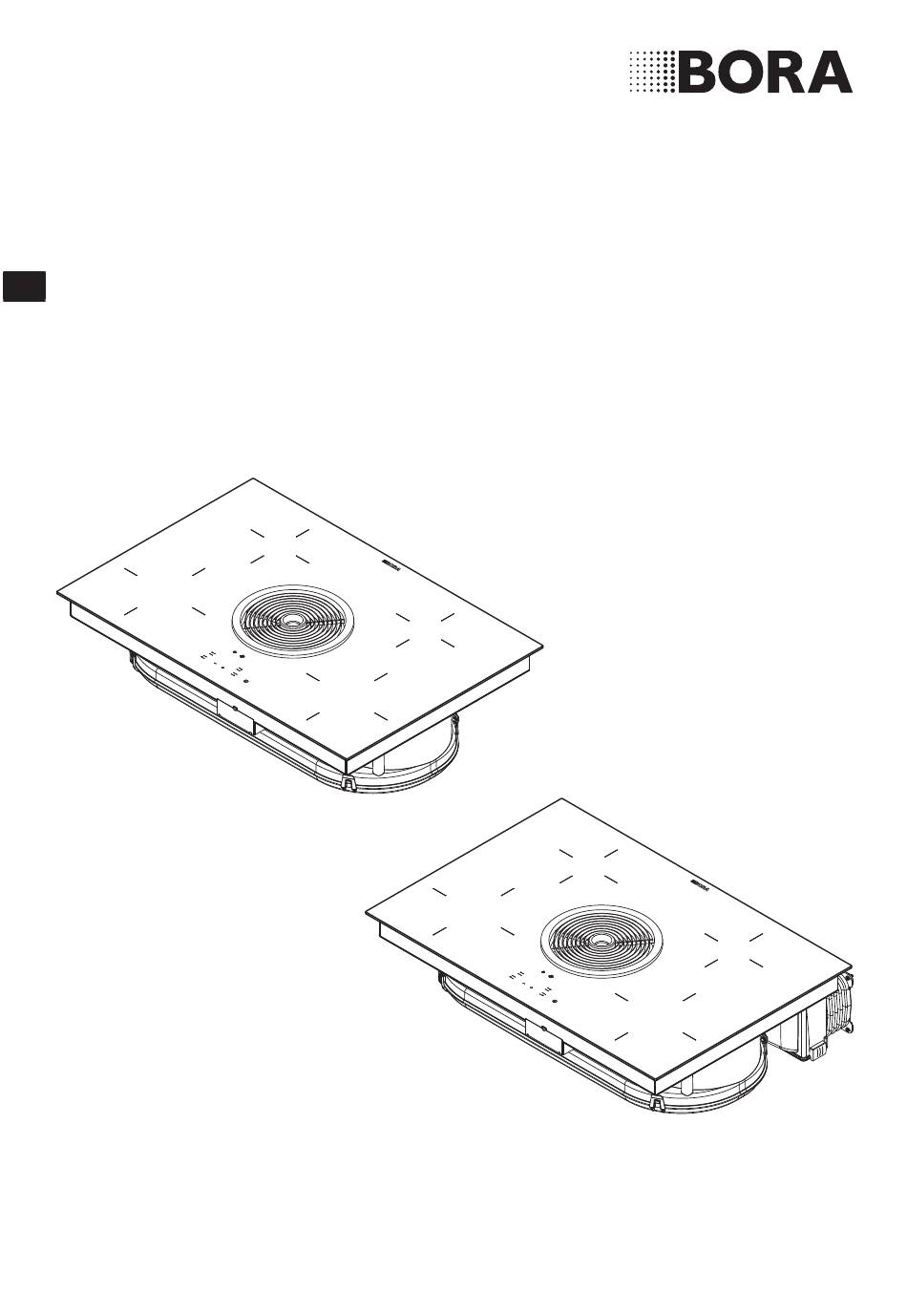

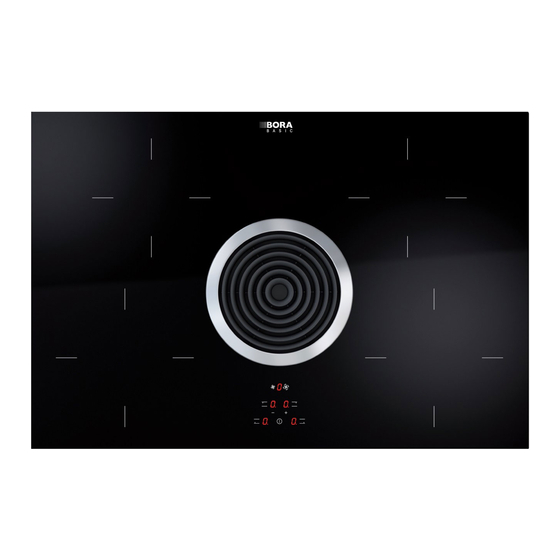

- Page 1 Operating and assembly instructions BHAS (BHA, BHU) BORA Basic Hyper-glass-ceramic-cooktop with cooktop extractor – exhaust/recirculation BHASUMEN--005 www.bora.com...
- Page 2 Please accept our apologies in this eventuality. An updated version can be requested from the BORA Service Team. Subject to printing errors and mistakes.
-
Page 3: Table Of Contents
Assembly Warranty, technical service, Checking the scope of delivery ......19 spare parts, accessories Tool and aids ............. 19 11.1 BORA manufacturer’s warranty ......40 Assembly instructions ........19 11.1.1 Warranty extension ........... 40 6.3.1 Safety distances ..........19 11.2 Service .............. -
Page 4: General Information
INFO BORA Holding GmbH, BORA Vertriebs GmbH & Co KG, BORA APAC Pty Ltd and BORA Lüftungstechnik GmbH - hereinafter referred to as BORA - do not assume any liability for damage Target group arising from non-adherence to these documents... -
Page 5: Presentation Of Information
Caution Indicates a potentially hazardous situation which could lead to slight or minor injuries if ignored. — Caution Indicates a situation which could result in material damage if ignored. Tab. 1.2 Meaning of warning symbols and signal words www.bora.com... -
Page 6: Safety
Switch off the appliance after use. Keep pets away from the appliance. INFO In recirculation mode, only a slight amount of moisture is removed from the cooking vapour. www.bora.com... -
Page 7: Safety Instructions - Cooktop Operation
Flammable liquids in the vicinity of the cooktop. cooktop can explode and cause serious injury. Do not spray aerosols in the vicinity of this appliance while it is in operation. Do not place any flammable liquids in the vicinity of the cooktop. www.bora.com... -
Page 8: Safety Instructions - Cooktop Extractor
(accident risk). Do not place any objects on the To choose a suitable stove guard, cooktop while it is hot. contact your specialist supplier or the BORA Service Team. Safety instructions – Cooktop extractor WARNING! Risk of burns! Liquid between the cooking zone and... -
Page 9: Safety Instructions - Installation
3 mm (LS Never use the cooktop extractor switch and automatic circuit without a stainless steel grease breakers, fuses, contactor). filter. www.bora.com... -
Page 10: Safety Instructions - Cleaning And Maintenance
The appliance must only be disassembled by (certified chimney sweep). trained specialists who are familiar with and comply with the standard national regulations and supplementary regulations of the local utility companies. Work on electrical components must only be conducted by trained electrical personnel. www.bora.com... -
Page 11: Safety Instructions - Spare Parts
INFO BORA Holding GmbH, BORA Vertriebs the appliance. GmbH & Co KG, BORA APAC Pty Ltd Do not touch exposed contacts on and BORA Lüftungstechnik GmbH do the electronic unit as they can not assume any liability for damage contain residual charge. -
Page 12: Technical Data
1 – 2, power setting Recirculation connection (BHU) 650 x 90 mm Recirculation filter Filter area 2 x 0.4m Filter capacity 150 operating hours Service life 1 year Fig. 3.3 BHA Device dimensions side view Tab. 3.1 Technical data www.bora.com... - Page 13 15,5 Ø222 Ø222 45–105 525–585 Fig. 3.7 BHU Device dimensions side view Fig. 3.4 Device dimensions with cable extension (BHA + BLAVH1) Device dimensions BHU Fig. 3.5 BHU Device dimensions aerial view Fig. 3.6 BHU Device dimensions front view www.bora.com...
-
Page 14: Energy Labelling
Energy labelling BHA Energy labelling Product information according to delegated regulation (EU) no. 65/2014 and regulation (EU) no. 66/2014. Product information according to delegated regulation (EU) no. 65/2014 and regulation (EU) no. 66/2014. Manufacturer BORA Model identification Symbol Value Unit... -
Page 15: Device Description
For hygiene and health reasons, the activated charcoal filter must be replaced Flexible duct at the recommended intervals (see the Cleaning and Activated charcoal filter housing maintenance section). Activated charcoal filter housing cover Activated charcoal filter Air guiding housing with housing base www.bora.com... -
Page 16: Operating Panel And Operating Principle
Fig. 5.3 Cooktop extractor exhaust air (BHA) Heat retention level Exhaust air arc with duct connection for BORA Ecotube Residual heat display: Horizontal exhaust air extension Cooking zone is Air guiding housing with housing base switched off but still hot (temperature >... -
Page 17: How The Cooking Zone Works
After this time, the power level is automatically switched back to The cooktop extractor fans continue to run at level 1 and the power level set. switch off automatically after 20 minutes. www.bora.com... -
Page 18: Filter Service Display
Overview of the safety shut-down Switch the cooking zone back on (see Operating control) if you want to put the cooking zone back into operation. Cooktop extractor The cooktop extractor switches off automatically if no buttons are pressed for 120 minutes. www.bora.com... -
Page 19: Assembly
If there are any missing or damaged parts, please Comply with the instructions of the worktop notify BORA Customer Services immediately. manufacturer. Do not under any circumstances install parts which are Cross bars on the kitchen unit in the area of the damaged. -
Page 20: Dimensions Of Cut-Out For Cooktop
Dimensions of cut-out for surface installation cooktop 12,5 INFO The minimum distance of 50 mm from the front edge of the worktop to the worktop cut-out is a recommendation from BORA. Flush installation 764 ±2 Fig. 6.5 Dimension of support for surface installation 735 ±2... -
Page 21: Installing The Air Recirculation Version (Bhu)
Where necessary, extend the height of the rear wall so >600 that the furniture body is closed to the front. 6 x ø5 >50 513 - 573 >25 >800 Fig. 6.10 Cut-out and connection bores Fig. 6.8 Dimensions of furniture, recirculated air www.bora.com... - Page 22 Inserting the cooktop Fig. 6.14 Hooking in the frame of the flexible duct Position shackles Fig. 6.12 Insert the cooktop at an angle Retaining groove on the activated charcoal filter housing Flexible duct frame Bottom lock www.bora.com...
-
Page 23: Installing Exhaust Air Duct Variant (Bha)
If there is insufficient air, an underpressure will occur. Toxic gases could be drawn out of the chimney or extraction duct and back into the room. www.bora.com... - Page 24 BORA Basic Assembly BHA Abluft (Zeile 600): BHA Abluft min. 600 min. 50 min. 50 Fig. 6.18 Incorrect exhaust air system installation max. 430 Fig. 6.19 Correct exhaust air system installation When running the cooktop extractor in the room in...
- Page 25 150 mm. The maximum exhaust air duct length is 6 m. Planning information for the installation of the exhaust air ducts are provided in the BORA ventilation instructions. Preparing the rear wall of the furniture Before carrying out the installation at the floor unit, check the required installation dimensions for the device and the planned duct system.
- Page 26 Inserting the extension for exhaust air duct Airflow assembly Openings Exhaust air arc Now move the airflow assembly [1] to the right until it Extension for exhaust air duct engages fully into the slot of the opening [2]. Air guiding housing www.bora.com...
- Page 27 Worktop cut-out Use the suction opening [2] as a handle during insertion. Exhaust air arc Reach into the suction opening [2]. Exhaust air duct Insert the cooktop centrally into the provided worktop Mounting bracket cut-out [5]. Align the cooktop precisely. www.bora.com...
-
Page 28: Establishing The Power Connection
3 x 16 A 2.5 mm Two-phase-connection 2 x 16 A 2.5 mm One-phase-connection 1 x 32 A 4 mm Tab. 6.2 Fuse protection and minimum cross section Fig. 6.38 Electrical connections of the cooktop Bore holes Power supply Cable mounting clip www.bora.com... -
Page 29: Handover To User
Once installation is done: Explain the important functions to the user. Explain all safety-relevant aspects of operation and handling to the user. Provide the user with the accessories and operating and installation instructions to be kept in a safe place. www.bora.com... -
Page 30: Operation
INFO The front left-hand cooking zone is equipped with using these settings, empty cookware is heated a performance-boosting power level. up in preparation for frying. Press the cooking zone button Continue pressing the until the power level displayed in the cooking zone indicator. www.bora.com... -
Page 31: Using The Timer Function
A signal tone will sound for a few seconds. Press until the timer display shows Switching off the timer signal tone Press any sensor button on the operating panel to end the signal tone prematurely. www.bora.com... -
Page 32: Activating/Deactivating The Child Safety Lock
All cooking zone indicators will show power level 0. The child safety lock is deactivated. Press to reduce the fan level. The following fan level sequence is run through: Fig. 7.2 Fan level sequence www.bora.com... -
Page 33: Switching On The Delayed Automatic After-Run
Switch on the cooktop with integrated cooktop extractor. The fan level indicator shows an Press simultaneously for at least three seconds until a flashes in the air level indicator. After a few seconds, will be displayed permanently. The filter service display has been reset. www.bora.com... -
Page 34: Cleaning And Maintenance
They are very hard to remove. For air inlet nozzle and grease filter Do not use any aggressive, acidic or alkaline cleaning agents. www.bora.com... -
Page 35: Cleaning The Cooktop Extractor
Grab the stainless steel grease filter using the Make sure that the cooktop and cooktop extractor are handle [2]. switched off (see Operating chapter). Pull the stainless steel grease filter [1] out of the Wait until the fan display is suction opening [3] upwards. www.bora.com... -
Page 36: Closing The Air Guiding Housing
BAKF activated charcoal filters can be pur chased Hold the housing base with one hand [3]. from your specialist. Open both locks on the rear [1]. You can also contact BORA on its homepage Open both front locks [2]. http://www.bora.com. Remove the housing base [3]. - Page 37 Hold the activated charcoal filter with one hand [2]. Resetting the filter service display Push the filter retainer [1] backwards. Pull the activated charcoal filter down and out. Reset the filter service display (see the Operation Dispose of the used activated charcoal filter in section). household waste. www.bora.com...
-
Page 38: Troubleshooting
The fan is defective or a Call the BORA Service Team. duct connection has loosened. Tab. 9.1 Resolving a fault In all other instances, call the BORA Service Team (see the Warranty, service and spare parts chapter). www.bora.com... -
Page 39: Decommissioning, Disassembly And Disposal
Remove the device from the worktop by lifting it for return and recycling electrical and electronic upwards. components and other materials. Remove any other accessories. Dispose of the old device and any contaminated accessories as described under “ Environmentally- friendly disposal”. www.bora.com... -
Page 40: Warranty, Technical Service, Spare Parts, Accessories
In order to file a warranty claim, the end customer is to In the case of faults you cannot fix yourself, contact notify their dealer or BORA of the fault and must present your BORA specialist supplier or the BORA Service the receipt. -
Page 41: Notes
Notes 12 Notes www.bora.com... - Page 42 Notes www.bora.com...
- Page 44 F +49 (0) 8035 / 9840-300 F +43 (0) 5373 / 62250-90 info@bora.com mail@bora.com www.bora.com www.bora.com Austria: Australia - New Zealand: BORA Vertriebs GmbH & Co KG BORA APAC Pty Ltd Innstraße 1 100 Victoria Road 6342 Niederndorf Drummoyne NSW 2047 Austria Australia...
