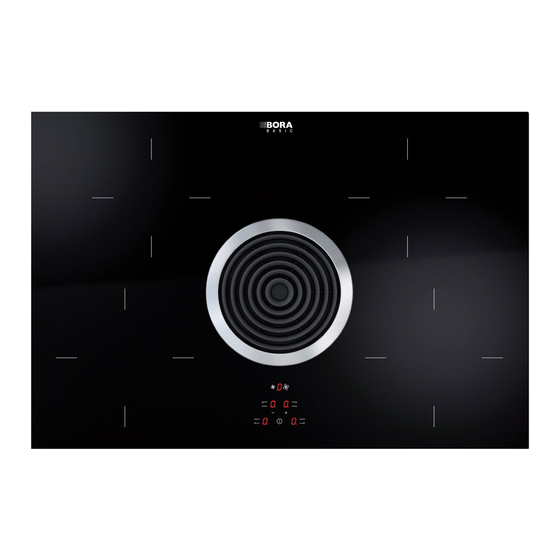

- Page 1 Operating and assembly instructions BIA, BIU Induction-glass ceramic cooktop with integrated cooktop extractor BIASUMEN--000 M8800361 www.bora.com...
- Page 2 T +49 (0) 8035 / 907-240 F +49 (0) 8035 / 907-249 info@bora.com www.bora.com The dissemination or reproduction of this document, processing and publication of its content is not permitted unless expressly authorised by BORA. © BORA Lüftungstechnik GmbH, 2014 All rights reserved.
-
Page 3: Table Of Contents
After Sales Service ........42 Installing the air recirculation version (BIU) ... 20 11.3 Spare parts ............ 42 Installing exhaust air duct variant (BIA) ..23 6.6.1 Using the cooktop extractor with a fireplace..which does not depend on room air ....23 Establishing the power connection .... -
Page 4: General
General General INFO BORA Holding GmbH, BORA Vertriebs GmbH & Co KG, BORA APAC Pty Ltd and BORA Lüftungstechnik GmbH - hereinafter referred Target group to as BORA - shall not assume any liability for damage caused by non-compliance with these... - Page 5 CAUTION Indicates a possible hazard- ous situation which can cause minor injury if not respected. — CAUTION Indicates a situation which can cause minor injury if not respected. Tab. 1.2: Meaning of the warning symbols and signal words www.bora.com...
-
Page 6: Safety
Ensure a normal and comfortable indoor climate perty damage (see the Cleaning chapter). (45-60% humidity), e.g. through natural ventilation openings or domestic ventilation systems. www.bora.com... -
Page 7: Safety Instructions, Operation
Do not use the cooktop surface as a breakers, fuses or contactors. kitchen worktop. Do not use any hard and pointed objects when working on the cooktop. www.bora.com... -
Page 8: Safety Instructions, Assembly
3 mm (miniature and automatic circuit Danger of injury when opening the bottom breakers, fuses, contactors). housing cover! There is a risk of injury while the fan is turning. Switch off the cooktop extractor and the cooktop. Turn off the fuse. www.bora.com... -
Page 9: Safety Instructions, Disassembly
Only use original spare parts when carrying Do not install a damaged device. out repairs. A damaged device may put your safety at risk! Repair and maintenance work may only be carried out by specialists authorised by the manufacturer. www.bora.com... -
Page 10: Use As Intended
Not using the device as described in this operating and assembly manual is considered not using the device as intended, as is using it beyond the purpose described here. BORA shall not assume any liability for damages caused by improper use or incorrect operation. All misuse is prohibited! INFO BORA Holding GmbH, BORA Vertriebs GmbH &... -
Page 11: Technical Data
Maximum flow volume 647 m Maximum static pressure 339 Pa Power control 1 – 2, power setting Exhaust air connection (BIA) 222 x 40 x 89 mm Recirculation system (BIU) Maximum flow volume 624 m Maximum static pressure 341 Pa Power control 1 –... -
Page 12: Energy Label
(The recirculation information is optional and not subject to mandatory inclusion on the label) * This specification is not applicable for this product. ** The sound pressure level has been determined from a distance of 1 m (distance-dependent level recording) on the basis of the sound power levels established in EN 60704-2-13. www.bora.com... -
Page 13: Device Description
For hygiene and health Fig. 5.2 Cooktop extractor recirculation (BIU) reasons, the activated charcoal filter must be replaced at the recommended intervals (see the Cleaning and Flexible duct maintenance section). Activated charcoal filter housing Activated charcoal filter housing cover www.bora.com... -
Page 14: Operating Panel And Operating Principle
Residual heat display: Cooking zone is switched off but still hot (temperature > 60°C) Fig. 5.3 Cooktop extractor exhaust air (BIA) Child safety lock active Cooking zone Automatic cut-off (timer) Exhaust air arc with duct connection for NABER... -
Page 15: How The Cooking Zone Works
Tab. 5.2: Recommendations for power levels stainless steel with a magnetisable base enamelled steel The specifications provided in the table are standard cast iron values. Depending on the cookware and filling quantity, it is recommended to either decrease or increase the power level. www.bora.com... -
Page 16: How The Cooktop Extractor Works
Before 5.4.2 Automatic after-run the induction coils and/or cooling elements overheat, The cooktop extractor fans continue to run at level 1 and the overheat protection will initiate one of the following switch off automatically after 20 minutes. measures: www.bora.com... -
Page 17: Automatic Switch-Off If The Button
5.5.5 Child safety lock The child safety lock prevents the cooktop from being switched on automatically. The child safety lock can only be activated when the cooktop is switched on and all cooking zones have been switched off (see the Operation chapter). www.bora.com... -
Page 18: Assembly
Check the scope of delivery for damage and make sure it is complete. If there are any missing or damaged parts, please notify BORA Customer Services immediately. Do not under any circumstances install parts which are damaged. Dispose of transport packaging in the proper manner... -
Page 19: Dimensions Of Cut-Out For Cooktop
Attaching the sealing tape Fig. 6.6 Sealing tape, surface installation Fig. 6.2 Dimensions of cut-out for flush installation 14,5 Fig. 6.7 Sealing tape, flush installation Black heat-resistant silicone sealing compound Fig. 6.3 Dimensions of groove for flush installation Sealing tape www.bora.com... -
Page 20: Installing The Air Recirculation Version (Biu)
500 cm >25 When the cooktop extractor is exclusively used in recircu- lated air mode, it is possible to operate it with an open furnace without any additional safety measures being required. >800 Fig. 6.10 Dimensions of furniture, recirculated air www.bora.com... - Page 21 You may need to move the rear wall. hand-tight. Where necessary, extend the height of the rear wall so that the furniture body is closed to the front. 6 x ø5 Fig. 6.12 Cut-out and connection bores www.bora.com...
- Page 22 Housing cover of the activated charcoal filter Fig. 6.17 Inserting the activated charcoal filter Housing cover of the activated charcoal filter Activated charcoal filter Remove the packaging from the activated charcoal fil- ters. Insert the two activated charcoal filters [2] from below. www.bora.com...
-
Page 23: Installing Exhaust Air Duct Variant (Bia)
[3]. by a qualified professional (e.g. chimneysweep). Seal the surrounding gap with a black heat-resistant silicone sealing compound. Installing exhaust air duct variant (BIA) INFO National and regional laws and regulations must be followed when executing the exhaust air duct. - Page 24 Device dimensions with a channel extension. > 700 >50 < 530 >800 Fig. 6.24 Installation dimensions for exhaust air, worktop depth Fig. 6.22 Furniture dimensions, exhaust air 700 mm Worktop depth from 600 mm Worktop depth from 700 mm www.bora.com...
- Page 25 150 mm. The maximum exhaust air duct length is 6 m. Planning information for the installation of the exhaust air ducts are provided in the BORA ventilation instruc- tions. Preparing the rear wall of the furniture Before carrying out the installation at the floor unit, Fig.
- Page 26 Extension for exhaust air duct Air guiding housing Insert the extension for the exhaust air duct [2] into the groove of the air guiding housing [3]. Fig. 6.28 Removing the air guiding housing Exhaust air arc Air guiding housing www.bora.com...
- Page 27 Turn the glass ceramic panel upwards. openings [2]. Fig. 6.34 Inserting the cooktop Cooktop Fig. 6.32 Engaging the airflow assembly Suction opening Airflow assembly Air inlet nozzle Openings Stainless steel grease filter Worktop cut-out www.bora.com...
-
Page 28: Establishing The Power Connection
Afterwards, insert the stainless steel grease filter [4] 220 - 240 V~ and air inlet nozzle [3]. 220 - 240 V~ Seal the surrounding gap with a black heat-resistant silicone sealing compound. Fig. 6.37 Connection diagram 2-phase connection www.bora.com... -
Page 29: Handover To User
Verify that the installation was done correctly. Switch on the main switch/automatic circuit breaker. Put the cooktop extractor into operation (see the Operation chapter). Check all the functions are working correctly. www.bora.com... -
Page 30: Operation
Only the two front cooking zones are equipped start time. with a power-enhancing power setting. If you first press , 30 minutes are pre-set as the start time. Press the cooking zone button (e.g. ) of the desired cooking zone. www.bora.com... -
Page 31: Activating/Deactivating The Child Safety Lock
Press sensor buttons simultaneously and beginning with the short time (egg timer). then one more time. Press to change the set time. All cooking zone indicators display power level . The child safety lock is deactivated. www.bora.com... -
Page 32: Operating The Cooktop Extractor
The fan level indicator displays Press simultaneously for at least three seconds until a flashes in the fan level indicator. After a few seconds, will be displayed permanently. The filter service display has been reset. Fig. 7.2 Fan level sequence www.bora.com... -
Page 33: Saving Energy
If possible, always close cookware using a suitable lid. Choose a suitable size of cookware commensurate with the amount of food you are cooking. A big pot that is barely filled requires a lot of energy. www.bora.com... -
Page 34: Cleaning And Maintenance
Coloured changes and shiny surfaces are not cooktop damage. They do not impact on the function of the cook- top and the stability of the glass ceramic. www.bora.com... -
Page 35: Cleaning The Cooktop Extractor
Reach into the access opening [2] with your hand. Cleaning in the dishwasher Remove the air inlet nozzle [1] out upwards. Rinse the air inlet nozzle and the stainless steel grease filter with a rinsing program at a maximum of 55 °C. www.bora.com... -
Page 36: Installing Stainless Steel Grease Filter
Press the housing base [5] upwards until the 4 locks (2 front, 2 rear) engage into the hooks [3]. Fig. 8.3 Opening the air guiding housing Check that all 4 locking straps [4] have correctly engaged. Front locks Air guiding housing Housing base Rear locks www.bora.com... -
Page 37: Replacing The Activated Charcoal Filter
(filter service display). BAKF activated charcoal filters can be pur- chased from your specialist. You can also contact BORA on its homepage Fig. 8.6 Opening middle lock http://www.bora.com. Lock, middle Make sure that the cooktop and cooktop extractor are switched off (see Chapter 6.1). - Page 38 Inserting the activated charcoal filter Fold the activated charcoal filter housing lid [2] by moving up upwards. Press on the activated charcoal filter housing lid until the locks [1] engage. Fig. 8.9 Inserting the activated charcoal filter Filter bracket Activated charcoal filter www.bora.com...
-
Page 39: Troubleshooting
Switch the safety cut-out back on. of the apartment and/or house is defective. The fuse or the automatic circuit Call BORA After Sales Service. breaker trips several times. The power supply is disconnected. Have a specialist electrician inspect the power supply. - Page 40 Remove the trapped object. housing (e.g. cleaning cloth). The fan is defective or Call BORA After Sales Service. a duct connection has loosened. Tab. 9.1: Resolving a fault In all other instances, contact BORA Customer Services (see Warranty and Customer Service chapter). www.bora.com...
-
Page 41: Decommissioning, Disassembly And Disposal
Therefore do not dispose of your old appliance as household waste. Take the old appliance to a regional collection centre for return and recycling of electronic and electrical parts and other materials. www.bora.com... -
Page 42: Warranty, After Sales Service And Spare Parts
11.3 Spare parts Only use original spare parts when making repairs. INFO Spare parts can be obtained from your BORA dealer, the BORA online service website at www.bora.com/service or by calling the service number provided. - Page 44 F +49 (0) 8035 / 907-249 F +61 297 /124 131 info@bora.com info@boraapac.com.au www.bora.com www.boraapac.com.au Austria: BORA Vertriebs GmbH & Co KG Prof.-Dr.-Anton-Kathrein-Straße 3 6342 Niederndorf Austria T +43 (0) 5373 / 62250-0 F +43 (0) 5373 / 62250-90 mail@bora.com www.bora.com...
