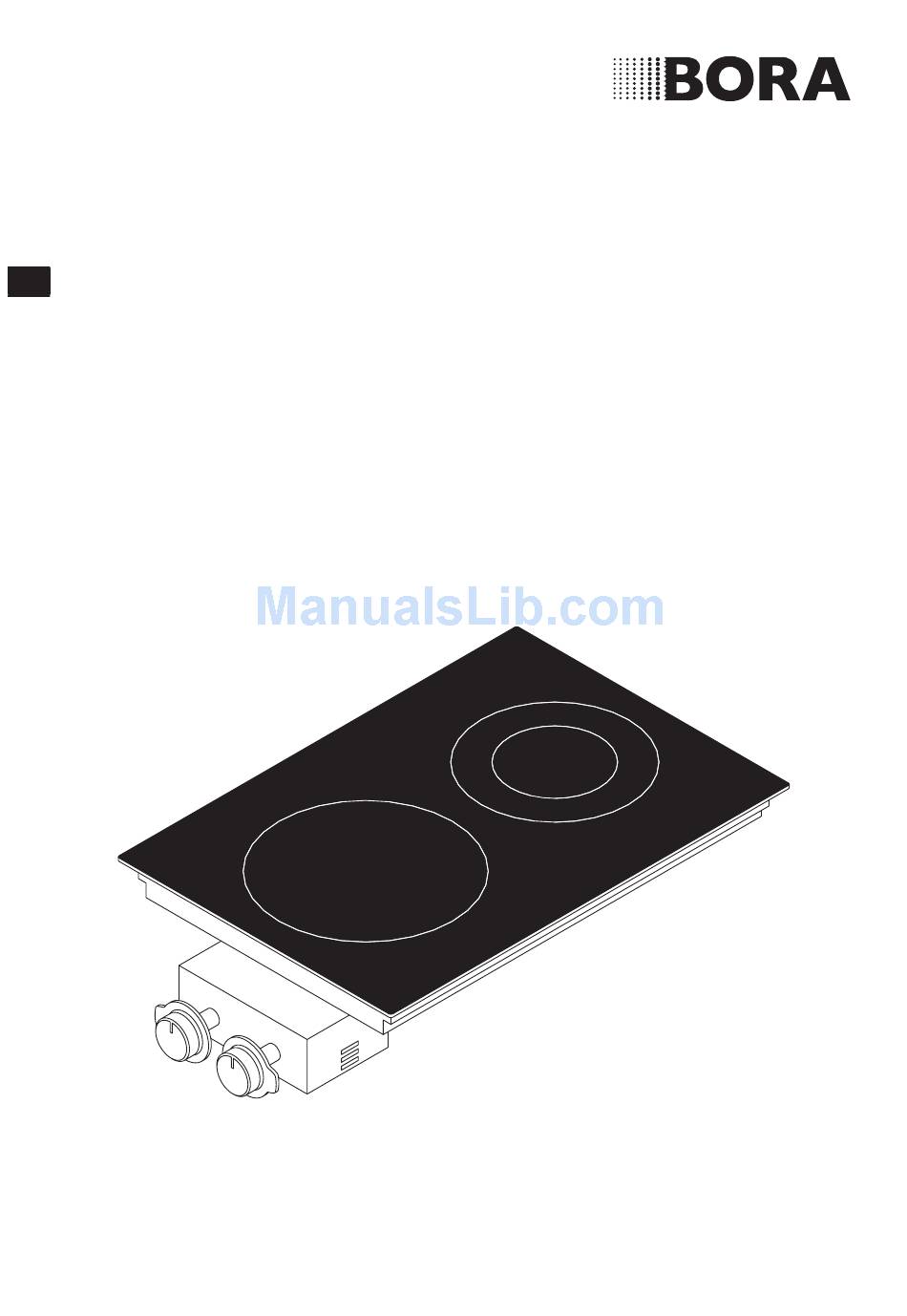

- Page 1 Operating and installation instructions PCH2 Hyper glass ceramic cooktop with 2 cooking zones 1-ring / 2-ring PCH2UMEN-000 1034783 www.bora.com...
- Page 2 T +49 (0) 8035 / 907-240 F +49 (0) 8035 / 907-249 info@bora.com www.bora.com The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited unless expressly authorised. © BORA Lüftungstechnik GmbH, 2014 All rights reserved.
-
Page 3: Table Of Contents
Switching on the cooking zone ...... 19 6.1.2 Switching off the cooking zone ..... 19 Cleaning and Maintenance Cleaning agents ..........20 Maintaining the cooktop ........ 20 Cleaning the cooktop ........20 7.3.1 Cleaning the control knobs ......20 Troubleshooting www.bora.com... -
Page 4: General
General General INFO BORA Holding GmbH, BORA Vertriebs GmbH & Co KG, BORA APAC Pty Ltd and BORA Lüftungstechnik GmbH - hereinafter referred Target group to as BORA - shall not assume any liability for damage caused by non-compliance with these... - Page 5 CAUTION Indicates a possible hazard- ous situation which can cause minor injury if not respected. — CAUTION Indicates a situation which can cause minor injury if not respected. Tab. 1.2: Meaning of the warning symbols and signal words www.bora.com...
-
Page 6: Safety
Ensure a normal and comfortable indoor climate Always lift (do not drag!) the cookware to prevent (45-60% humidity), e.g. through natural ventilation scratching and abrasion on the surface. openings or domestic ventilation systems. www.bora.com... -
Page 7: Safety Instructions, Operation
Do not leave any objects on the cooktop. Installation and assembly of the device may only be carried out by trained personnel who are familiar with and comply with common national regulations and supplementary regulations of the local utility companies. www.bora.com... -
Page 8: Safety Instructions, Disassembly And Disposal
Check the device for visible damages before installing it. Do not install a damaged device. A damaged device may put your safety at risk! Repair and maintenance work may only be carried out by specialists authorised by the manufacturer. www.bora.com... -
Page 9: Use As Intended
Not using the device as described in this operating and assembly manual is considered not using the device as intended, as is using it beyond the purpose described here. BORA shall not assume any liability for damages caused by improper use or incorrect operation. All misuse is prohibited! INFO BORA Holding GmbH, BORA Vertriebs GmbH &... -
Page 10: Technical Data
800 W Ø200 mm 1900 W Cooktop energy consumption PC32 Front cooking zone Ø235 mm 185.1 (Wh/kg) Back cooking zone Ø120 mm 182.7 Ø200 mm (Wh/kg) Fig. 3.2 Control box dimensions Total (average) 183.9 (Wh/kg) Tab. 3.1: Technical data www.bora.com... -
Page 11: Device Description
Control knob for the front cooking zone The cooktop display shows the corresponding function or power level of the cooking zone. 4.2.2 Operating indicator light If the indicator light illuminates, the allocated cooking zone is switched on. www.bora.com... -
Page 12: Functional Principle
Risk of burns and fire! After switching it off, the cooking zone remains hot. is displayed in the cooking zone indicator (residual heat indicator). The cooking zone indicator will go out after sufficient cooling time (temperature < 60°C). www.bora.com... -
Page 13: Installation
If there are any missing or damaged parts, please notify BORA After Sales Service immediately. Do not under any circumstances install parts which are damaged. Dispose of transport packaging in the proper manner (see the Decommissioning and Disposal chapter). -
Page 14: Preparing The Worktop
Fig. 5.3 Dimension of groove for flush installation 1116 1088 INFO If the induction glass ceramic wok is used, the groove dimensions must be increased to 7 mm for flush installation. 1338 1310 1709 1681 Tab. 5.2: Cut-out dimensions www.bora.com... -
Page 15: Installing The Cooktop
Fig. 5.8 Control box structure Control box Adjustment plates Fixed front panel (not included in scope of delivery) Power level sleeve Nuts Control knobs Draw the bore holes accordingly with the aid of the drilling template provided. www.bora.com... - Page 16 For fine adjustment, the distance between the control plates knob and the power level sleeve can be set. [mm] Fig. 5.11 Position control knob 18,5 mm Tab. 5.3: Adjustment plate overview Fig. 5.12 Distance of the control knob www.bora.com...
-
Page 17: Installing The Cooktop
Firstly connect the yellow/green earthing cable to the indicated point on the control box. Cooktop Height adjustment plates Earthing symbol Now connect the multi-pin, colour-coded plugs on the relevant cooking zone to the corresponding colour-coded sockets on the control box. www.bora.com... -
Page 18: Power Connection
Explain the important functions to the user. Explain all safety-relevant aspects of operation and handling to the user. Provide the user with the accessories and operating and installation instructions to be kept in a safe place. www.bora.com... -
Page 19: Operation
The operating indicator light is active. Adjusting the power level INFO The right control knob has an end stop. The left control knob can be used in both directions for setting the cooking level. Turn the control knob to the desired power level. www.bora.com... -
Page 20: Cleaning And Maintenance
Clean the control knob with a soft brush. cooktops (see the Device description chapter). Rinse the control knob well after cleaning. Allow the control knob to dry thoroughly. Re-insert the clean and dry control knob into the slot after the cleaning is completed. www.bora.com... -
Page 21: Troubleshooting
(see the Operation chapter). The overheat protection has tripped. (see the Device Description chapter) Tab. 8.1: Resolving a fault In all other instances, call BORA After Sales Service (see the Warranty, After Sales and Spare parts chapter). www.bora.com... -
Page 22: Decommissioning, Disassembly And Disposal
Therefore do not dispose of your old appliance as household waste. Take the old appliance to a regional collection centre for return and recycling of electronic and electrical parts and other materials. www.bora.com... -
Page 23: Warranty, After Sales Service And Spare Parts
10.3 Spare parts Only use original spare parts when making repairs. INFO Spare parts can be obtained from your BORA dealer, the BORA online service website at www.bora.com/service or by calling the service number provided. - Page 24 Notes: 11 Notes: www.bora.com...
- Page 25 Notes: www.bora.com...
- Page 26 Notes: www.bora.com...
- Page 28 F +49 (0) 8035 / 907-249 F +61 297 /124 131 info@bora.com info@boraapac.com.au www.bora.com www.boraapac.com.au Austria: BORA Vertriebs GmbH & Co KG Prof.-Dr.-Anton-Kathrein-Straße 3 6342 Niederndorf Österreich T +43 (0) 5373 / 62250-0 F +43 (0) 5373 / 62250-90 mail@bora.com www.bora.com...
