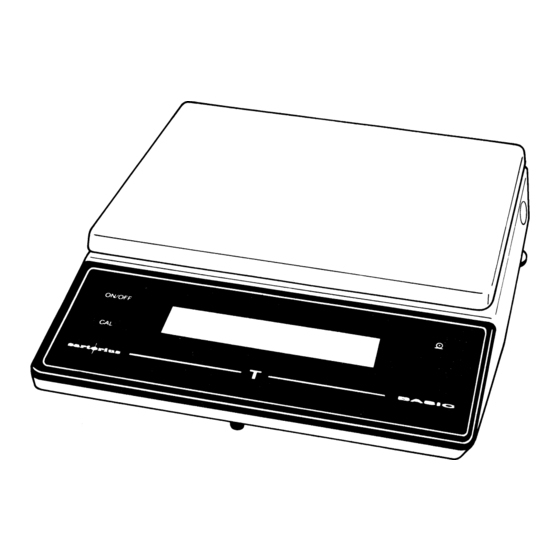

Sartorius Basic Series Installation And Operating Instructions Manual

Electronic analytical and precision balances

Hide thumbs Also See for Basic Series:

User manual (122 pages)

Installation and operating instructions manual (42 pages)

Service manual (40 pages)

Table Of Contents

Need help?

Do you have a question about the Basic Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Sartorius Basic Series

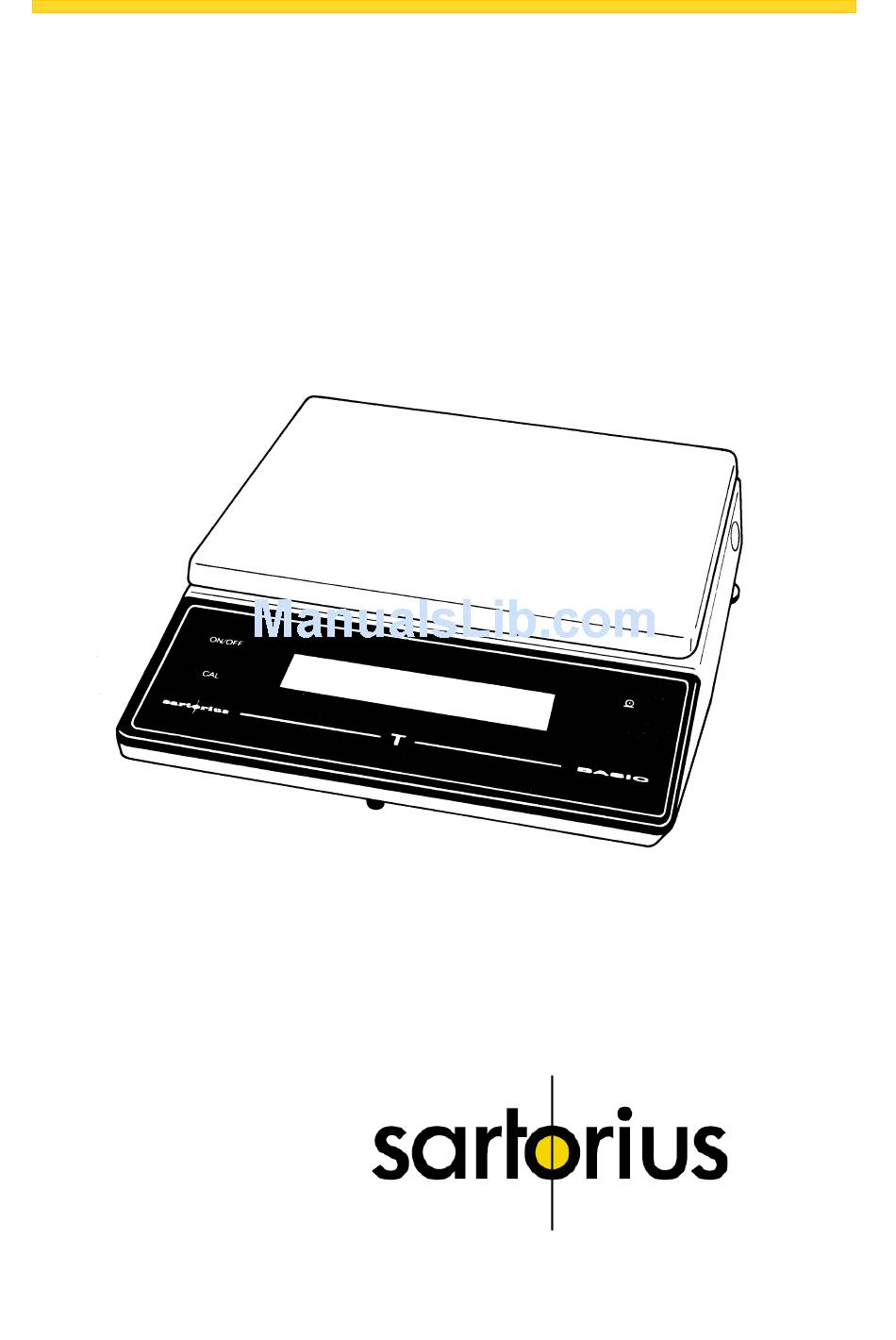

Page 1 Sartorius Basic Series Electronic Analytical and Precision Balances Installation and Operating Instructions...
Page 2 B 120S...
Page 3 B 310P, B 310S...
Page 4 B 410, B 610, B 3100P, B 3100S, B 4100, B 6100...
Page 5 Weighing pan Protective ring (only for B 120S) Shield plate (only for B 120S) Round draft shield lid (only B 310P and B 310S) Glass draft shield cylinder (only B 310P and B 310S) Base plate shield cylinder (only B 310P and B 310S) Pan adapter (only B 310P and B 310S) Power receptacle Level indicator (only B 120S, B 310P, B 310S, B 3100P and B 3100S)
Page 6 Sartorius Basic Series With this Sartorius Balance, you have acquired a high-quality elec- tronic precision weighing instrument that will help ease your daily workload. Please read these installation and operating instructions carefully be- fore operating your new balance. Pursuant to the German Directive for the Implementation of Regulations for Prevention of Accidents "Elektrische Anlagen...
Page 7: Table Of Contents
Contents Page Equipment Supplied Installation Instructions How to Start Up the B 120 S How to Start Up the B 310P and B 310S How to Start Up the B 410, B 610, B 3100P, B 3100S, B 4100, and B 6100 Operation Calibration Balance Operating Program...
Page 8: Equipment Supplied
Shield plate Weighing pan Glass draft shield cylinder Round draft shield lid Do not miss out on the benefits of our warranty. Please complete the warranty registration card, indicating the date of installation, and return the card to your Sartorius dealer.
Page 9: Installation Instructions
— aggressive/corrosive environments — vibrations — drafts. Despite unfavorable operating conditions, your Sartorius Bal- ance will deliver accurate results because you can adapt it to your particular requirements and to the specific ambient condi- tions simply by changing the menu code settings in the balance operating program.
Page 10: How To Start Up The B 120S
How to Start up the B 120S Install the components (3-1) in the weighing chamber one at a time in the order indicated. Your balance is powered by an AC adapter. Make sure that the voltage rating printed on this unit is identical to your local line voltage rating.
Page 11: How To Start Up The B 310P And B 310S
How to Start up the B 310P and B 310S Attach the dust cover by pressing down on the adhesive disks, and install the components (7, 6, 1, 5 and 4) one at a time on the balance in the order given. Your balance is powered by an AC adapter.
Page 12: How To Start Up The B 410, B 610
How to Start up the B 410, B 610, B 3100P/S, B 4100 and B 6100 Attach the dust cover by pressing down on the adhesive disks, and place the weighing pan (1) on the balance. Your balance is powered by an AG adapter. Make sure that the voltage rating printed on this unit is identical to your local line voltage rating.
Page 13: Operation
Operation The weight display shows the following special messages for your information: BUSY The balance processor is still busy processing a function and will not accept any other commands to perform functions at this time. STANDBY The balance has been turned off with the ON/OFF key (15) and is now in the STANDBY mode and ready to operate without warmup.
Page 14 Press the ON/OFF key (15) to turn the balance on or off. You can also turn it on by pressing the tare control (13). After the balance has been plugged into a wall outlet using the adapter, the weight display will go out whenever you turn off the power.
Page 15: Calibration
Calibration - Only possible with an accurate calibration weight (B 120S — 100 g; B 310P — 200 g; B 310S, B 410 — 300 g; B 610 — 500 g; B 3100P/S, B 4100 — 2,000 g; B 6100 — 5,000 g) – see "Accessories" – Unload the balance and press the CAL key (14) for at least 3 seconds until the calibration weight readout appears in the display.
Page 16: Balance Operating Program
Balance Operating Program The balance operating program lets you adapt your balance to various ambient conditions and requirements and select weight units commonly used in your country. At the factory, we have set the codes for a Standard program, which is protected by a program lock to prevent accidental changes.
Page 17 After you have accessed the menu of the balance operating program, the display will show a continuous sequence of num- bers from 0-5 for the "page" or first digit of the code, in addition to the Status code letter "L" or "C." When the first digit of the code you wish to check or change ap- pears, press the tare control (13).
Page 18 C 1 3 1 Page Line Word Menu of the Balance Operating Program (Active Parameters) Code Ambient Conditions Code Program Lock Very stable (B 410, B 610) C 1 1 1 C 4 1 1 Stable C 1 1 2 C 4 1 2 Unstable C 1 1 3...
Page 19: Troubleshooting Guide
Troubleshooting Guide Problem ... Causes ... Remedy No segments appear in the weight No line voltage available Check current supply display (16) The AC adapter has not been Plug in the AC adapter plugged in Weight display shows “L” or “CH2” The pan (1) is not in place Place the pan Load exceeds capacity of the...
Page 20: Accessories
Accessories (Options) Interface — for B 120S YDO 01A — for B 310P/S, B 410, B 610 YDO 01L — for B 3100P/S, B 4100, B 6100 YDO 01U Data printer with date/time YDP 02-0D and statistics functions Print speed approx.lines/sec.1.5 Printer housing (W x D x H) in mm 150 x 138 x 43...
Page 21 Special draft shield chamber YDS 01L (only for B 31OP/S) Calibration weights for: B 120S (1 x 100 g) 7072 19 B 310P (1 x 200 g) 7072 20 B 310S, B 410 (4 x 100 g) 7072 04 B 610 (1 x 500 g) 7072 16 B 3100 P, B 3100 S, B 4100 7072 08...
Page 22: Specifications
Specifications Model B 120S B 310P B 310S Capacity/weighing range 60/120/310 Readability 0.0001 0.001/0.002/0.005 0.001 Tare range (by subtraction) -121 -310 -310 Standard deviation ≤±0.0001 ≤±0.001/0.001/0.0025 ≤±0.001 Max. linearity ≤±0.0002 ≤±0.0015/0.002/0.005 ≤±0.002 Stabilization time (typical) Display update 0.1 – 0.8 (selectable) Adaption to ambient conditions by selection of one of 4 optimized filter levels and application requirements...
Page 23 Specifications Model B 410 B 610 B 3100P Capacity/weighing range 600/1,200/3,100 Readability 0.01 0.01 0.01/0.02/0.05 Tare range (by subtraction) -410 -610 -3,100 Standard deviation ≤±0.005 ≤±0.005 ≤±0.01/0.01/0.025 Max. linearity ≤±0.01 ≤±0.01 ≤±0.015/0.02/0.05 Stabilization time (typical) Display update 0.1 – 0.8 (selectable) Adaption to ambient conditions by selection of one of 4 optimized filter levels and application requirements...
Page 24 Specifications Model B 3100S B 4100 B 6100 Capacity/weighing range 3,100 4,100 6,100 Readability 0.01 Tare range (by subtraction) -3,100 -4,100 -6,100 Standard deviation ≤±0.01 ≤±0.05 ≤±0.05 Max. linearity ≤±0.02 ≤±0.1 ≤±0.1 Stabilization time (typical) Display update 0.1 – 0.8 (selectable) Adaption to ambient conditions by selection of one of 4 optimized filter levels and application requirements...
Page 26 All rights reserved. No part of this publication may be printed or translated in any form or by any means without the prior written permission of Sartorius AG. Sartorius AG reserves the right to make change to the technology, features, specification and design of the equipment without notice.
