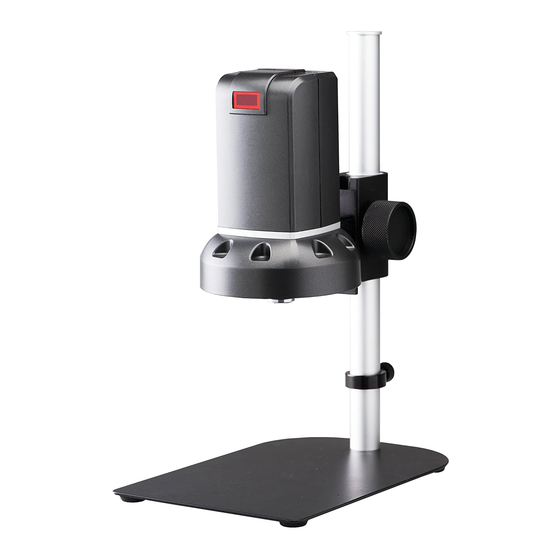

ViTiny UM06 User Manual

Digi microscope
Hide thumbs Also See for UM06:
Table of Contents

Advertisement

Quick Links

Download this manual
User's Guide
DiGi Microscope
Version 1.0A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UM06 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ViTiny UM06

Summary of Contents for ViTiny UM06

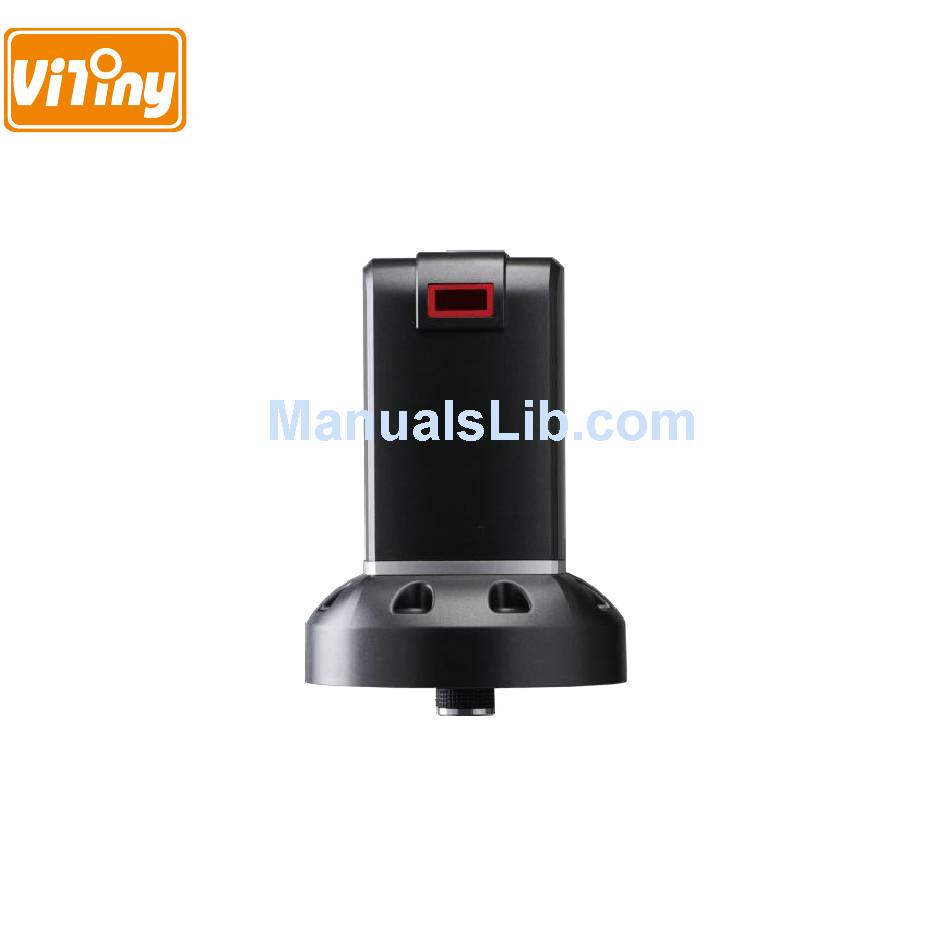

  • Page 1 User’s Guide DiGi Microscope Version 1.0A...

  • Page 3: Table Of Contents

    Content Products Introduction ......3 Packing Contents ......3 IR remote controller ....3 Microscope introduction: ..11 Microscope focus ....... 14 Change microscope Object lens 17 Microscope accessory....20 Install Application Program ....21 Insert CD to CD-ROM ....21 Install Application Program ..
  • Page 4 Function modes ......25 Printed Notice ........27 Maintenance ......27 Product Specification ....28 Safety Instructions ..... 29...

  • Page 5: Products Introduction

    1. Products Introduction 1.1 Packing Contents There are 1 microscope and 10 accessories in the box. The Object Lens 4X is already assembled onto microscope. If object lens needs to change, please refer to Section 1.5. Item Q’ty Item Q’ty DiGi Microscope White Balance Card HDMI Cable...
  • Page 6 position. If electricity black out occurred during operation, please reset the whole operation. (4) Manual focus ：Descending speed when press longer Zoom in. (4-1) Zoom in ：Descending speed when press longer Zoom out. (4-2) Zoom out ：zoom in by steps. (4-3) Step zoom in ：zoom out by steps.
  • Page 7 Buttons for PC CAM mode Buttons for HDMI mode 1.2.2 Buttons for PC CAM The said buttons are only used for PC Cam mode. ： When press the PC CAM mode, the USB cable has to connect with (1) PC CAM PC and microscope.
  • Page 8 ：Take 5M picture and delivery to Application program. (3) Snapshot 1.2.3 Buttons for HDMI The said buttons are only used for HDMI mode. ：When press HDMI mode, the HDMI cable has to connect with (1) HDMI screen and microscope. ：Open/close menu for setting. (2) Menu on Screen (2-1) BRIGHTNESS：To adjust the brightness of whole image.
  • Page 9 inquires to adjust LED brightness and exposure value +/-. The image brightness will change as the LED brightness and exposure value changed. (2-5) SHARPNESS：On/Off the sharpness. [ON/OFF]。  [ON] the image is sharp.  [OFF]the image is less-sharp, but more smooth. (2-6) STATUS BAR：Show or not show the status bar on the screen top.
  • Page 10 ：Choose image ratio or Field of View. There are 3 types of (8) Video Ratio video ratio, press the button to next ratio. (8-1) 4/3F：4:3 means the image is from 5M image (2592*1944) output to fit 4:3 screen size. (The screen image: 1440*1080). Proportionally reduce the input image height to fit the screen.
  • Page 11 (8-3) 16/9C：16:9C means the image from 5M (2592*1944) output to 16:9 screen size (the screen image: 1920*1080). Crop image (1920*1080) from input image 5M (2595*1944); therefore, FOV become smaller, magnification become higher. (9) Status Bar : On/Off to show or not show the status bar. Each color represents different information.
  • Page 12 (9-1) ZOOM：Zoom path, total 15 sections. (9-2) FOV：Field of View, display image on the effective horizontal size of screen. (9-3) M：Magnification. Magnification size changes depending on lens position, screen size, and image ratio. Please refer to Section 1.4.2. (9-4) D：Distance, means the distance from object lens to object. (9-5) EV：Exposure Value, please refer to Section 1.2.3-(7).

  • Page 13: Microscope Introduction

    (11) Image Freeze : On/Off image freeze. Freeze the image, press the button again to return to preview. (12) Sharpness : On/Off sharpness mode. Please refer to Section 1.2.3-(2). 1.3 Microscope introduction: 1.3.1 IR Remote area/Indicator When both HDMI and USB indicator light on means the microscope is turn off. ○...
  • Page 14 1.3.2 Power/USB/HDMI port (1) Power○ : Please only use the power supplier from the box, do not use any other power supplier. ○ (2) USB○ : USB port for connecting application program. When using PC Cam mode, please connect the microscope to PC by using the USB cable from the box.
  • Page 15 ：HDMI port for connecting screen. When using HDMI mode, please (3) HDMI○ connect the microscope to screen by using the HDMI cable from the box. *Note: if connect with TV screen, please choose the homologous image ratio and format. ○ 1.3.3 Stand gear box The universal joint as ○...

  • Page 16: Microscope Focus

    1.3.4 LED/ Light socket (1) LED○ : Luminance for object lens 4x, total 30pcs LEDs with angle. 6pcs as fig have wider angle for purpose. (2) Light socket○ : Luminance for object lens 10x. ○ ○ 1.4 Microscope focus There are two ways to focus. First, to choose focus distance to adjust the microscope height, then tuning focus by remote controller until clear.
  • Page 17 program to tuning to clear image. (2) Fixed image sensor position (2-1) In HDMI mode, the status bar will show on the screen, please refer to Section 1.2.3-(9). Use remote controller to adjust image sensor position based on magnification size, FOV, or distance height. (2-2) In PC CAM mode, choose required height or FOV from drop down list on application program (see below fig).
  • Page 18 1.4.2 Magnification chart 15 image sensor positions had set from the whole area, the image sensor position tells the magnification size, field of view, or height. The below chart is measured on 21.5” screen, it’s only a reference data, might not be accurate enough.

  • Page 19: Change Microscope Object Lens

    (2) Object lens 10X, focus distance from 4.5mm to 7.7mm (0.177 to 0.303inch. Object lens 10X on 21.5” screen Sensor position Distance 7.70 7.10 6.70 6.40 6.10 5.89 5.60 5.41 F,S FOV 1.39 1.30 1.21 1.14 1.07 1.01 0.96 0.91 C FOV 1.02 0.96...
  • Page 20 ○ 1.5.2 Connect power cable Plug in the power cable○ onto LED board socket○ . Pass through the power cable out of LED cover○ . When remove, please never pull and drag the power cable from inappropriate force, and hold the cable thread when disassemble.
  • Page 21 1.5.3 Assemble LED cover After power cable plugged onto LED board, grip the other head of power cable ○ and screw the LED cover ○ back. ○ ○ 1.5.4 Change object lens Remove the original object lens ○ and replace with object lens 10x ○ then screw lens tight.

  • Page 22: Microscope Accessory

    1.5.5 Luminance adaptor Insert the adaptor ○ onto lens, (the 2 sockets on LED board and adaptor needs to face the same side). And plug in the power cable ○ onto adaptor○ for luminance. This is for first time assembling. ○...

  • Page 23: Install Application Program

    Autorun fig show as below. If the CD is missing or damaging, please download from http://www.vitiny.com. 2.2 Install Application Program (Step 2) Click “Install Application program” button (step 2). 2.3 Exit Install Program (Step 4) When install completed, click “Exit”...

  • Page 24: Application Program Operation

    3. Application Program Operation The application program divided into 6 parts which is primary about AP operation. For more details, please refer to AP manual inside CD. (User’s Manual \ English \Microscope Application Program Operation Manual.pdf)

  • Page 25: Video Preview Window

    3.1 Video Preview Window After connecting to microscope, the window will show preview images. As well as video plays, image reviews, and special function modules will shown in this same window. 3.2 Image Preview Window The window is applied to display shot images, edit and process images. 3.3 Main Menu The Main Menu of the Application Program contains the following selections: 3.3.1 File: open, save and print files.
  • Page 26 3.4.2 Snapshot : press the button to capture image from Video Preview Window. The captured image will be displayed in Images Preview Window. ：store images in Images Preview Window 3.4.3 Save Image ：to enter or quit Image Edition function. 3.4.4 Editor Image / Exit Editor After entering, tools of image edition are listed below Images Preview Window as follows:...

  • Page 27: Files List

    functions. After entering Image Processing model, tools will be displayed below Images Preview Window as follows: ：print images displayed in Images Preview Window. 3.4.9 Print Image ：close the Application Program. 3.4.10 Exit 3.5 Files List Files List is primarily applied to list all current files contained in folders. Select BMP, JPG or AVI to view saved images/videos.
  • Page 28 3.6.2 Aiming mode : This mode provides 4 different aiming aids, which are cross, scope, rectangle and circular to aim at shot objects as an auxiliary function. Please refer to the following image for tools of the mode. 3.6.3 Video control mode : you can take the device by your left or right hand, adjust image direction of yourself or object, as well as adjusting contrast, brightness and exposure rate of the image.

  • Page 29: Printed Notice

    4. Printed Notice Please read the following information before operate. 4.1 Maintenance Please abide by the following items while storing or using the product: 4.1.1 Keep dry: do not place the product in a humid environment. Dry surroundings are helpful to extend the life of the product. 4.1.2 Avoid temperature shock: temperature shock will cause internal condensation inside the machine, for example, take the product into a warm room from cold environment.

  • Page 30: Product Specification

    IR remote controller/PC(application program) control Power adaptor (input：DC 5.0V/2.0A input：AC 100-240V 50/60Hz) supplier Electric 5V/1200mA Consumption Size 106(L)×106(W)×152(T) mm Weight Host weight around 310 grams Temperature -5℃ ~ 50℃; Humidity-lower than 85% (No Operation environment Condensation) For any change, please visit http://www.vitiny.com...

  • Page 31: Safety Instructions

     Please remove power supplier from microscope if not using for period.  Do not disassemble the machine for inspection on your own. For any problem occurred in the machine itself, please switch off the machine and then contact us by e-mail to the following address: mltc@vitiny.com...
  • Page 33 ViTiny UM06 Warranty P r o d u c t Model no S/L nos. P u r c h a s e DD/MM/YYYY d a t e Purchaser T e l n o : A d d r e s s...

  • Page 34: Hdmi Cable

    (1) Service fees (including transportation fees) of product inspection. (2) Repair fees. (3) Fees of replaced parts ViTiny Service Center Tel: 07-657-9551 Fax: 07-657-9561 Address: 10 F., No.1, Section 1, Syuecheng Road, Dashu District, Kaohsiung City 840, Taiwan (R.O.C.) Website: http://www.vitiny.com...
  • Page 36 HTTP://WWW.VITINY.COM © MicroLinks Technology Corp. All rights reserve...
