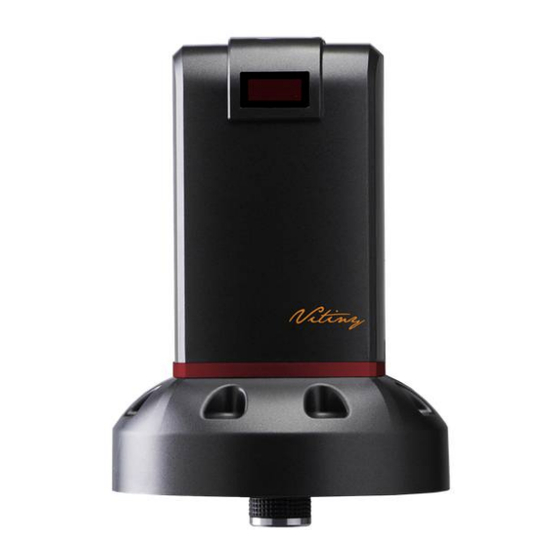

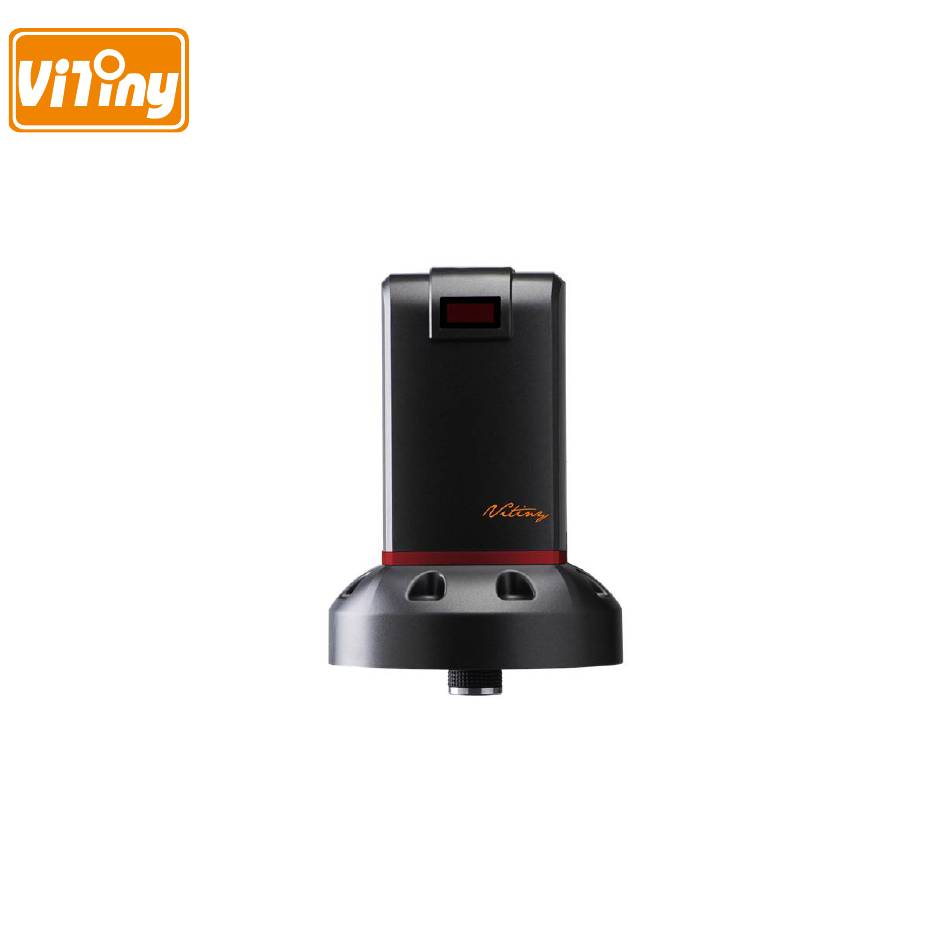

ViTiny UM30 User Manual

4k digi microscope
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
UM30 User's Guide
4K DiGi Microscope
Version 1.0A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UM30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ViTiny UM30

Summary of Contents for ViTiny UM30

  • Page 1 UM30 User’s Guide 4K DiGi Microscope Version 1.0A...

  • Page 3: Table Of Contents

    Contents Product Introduction ......2 Packing Contents ......2 Assemble microscope with stand 2 IR Remote controller ....4 Microscope menu functions ..11 Microscope introduction: ..18 Microscope Focus ..... 22 Microscope accessory ....25 Printed Notice ........26 Maintenance ......

  • Page 4: Product Introduction

    Object Lens 4x Stand assemble guide 1 Object Lens 10x Option MicroSD Card Option Software download: https://www.vitiny.com/en/download.html 1.2 Assemble microscope with stand 1.2.1 Fix microscope Tighten the microscope onto stand ○ . Refer to stand assembling instruction for detailed explanation.
  • Page 5 ○ 1.2.2 Start to use microscope Connect the HDMI cable ○ and adaptor ○ to HDMI monitor and power. See below: ○ ○ 1.2.3 Power On/Off Press Power to turn on microscope. Choose HDMI mode or Auto on HDMI monitor to output image. *Long press...

  • Page 6: Ir Remote Controller

    means press and hold the button for 2 seconds. 1.3 IR Remote controller The microscope operation and functions is controlled by the IR remote controller. (1) Power Turn on/off. ： ： When in HDMI mode, the HDMI cable must (2) HDMI connect with the screen and microscope.
  • Page 7 ：In HDMI mode, (4) Snapshot press button to save an 8MP .jpg file into SD card. Per snapshot takes 9 Seconds to complete. In PCCAM mode, press snapshot to take an 8MP image, select photo type when saving the image on the software.
  • Page 8 (7-1) Zoom in ：Zooms in; speed increases when held. (7-2) Zoom out ：Zooms out; speed increases when held. (7-3) Step zoom in ：Zoom in by steps. (7-4) Step zoom out ：Zoom out by steps. (8) Autofocus: Press one time to search focus in current area, long press for 2 seconds to search focus in whole area.
  • Page 9 (13) Left ：Choose the next value, if Crosshair is ON, select Line Size. (14) Right ：Choose the last value. When MENU function is off, press to turn on/off Crosshair. ：No Function. (15) Video Ratio ：There are 8 fixed information on Status bar (16) Status Bar and one is operating information which only display 3 sec.
  • Page 10 ○ ○ ○ ○ ○ ○ ○ ○ ○ (16-1) Fixed information： (16-1-1) 4X ○ ：Object Lens (4X/10X) or other Lens type. (FL/FLC/TL) (16-1-2) FOV ○ ：Field of View (FOV) display image on the effective horizontal size of screen. (16-1-3) MAG ○ ：(Magnification) The magnification size will change depending on the lens position, screen size, and image ratio.
  • Page 11 (16-1-6) LED ○ ：LED levels (16-1-7) POS ○ ：Focus Position (16-1-8) SD ○ ：SD card status. If SD card is loaded, it will show SD on the status bar. (16-2) Operating Information ○ ： (16-2-1) OZ：Optical Zoom. Ex: OZ: IN. Optical zoom in. (16-2-2) SZ：Step Zoom.
  • Page 12 (16-2-12) SAVED：Save the Menu Setting. (16-2-13) NO SD：No SD Card loaded. Unable to take picture. (16-2-14) SD FULL：SD Card Storage is full. Unable to take picture. (16-2-15) LOAD DEF：Loading the Default Setting. (16-2-16) FINISHED：Photo saved or Default setting completed. (16-2-17) FAILED：Failed to save image. Please format the SD card in FAT32, or SD card is damaged.

  • Page 13: Microscope Menu Functions

    (18) Image Freeze : ON/Off to freeze or unfreeze the image. (19) Sharpness : On/Off to set sharpness at Minimum and Maximum level. 1.4 Microscope menu functions There are 2 pages in Manu, total 16 items. Press button to enter MENU, press Up and Down to choose item, Left and Right...
  • Page 15 1.4.1 IMG ADJUST To adjust Image parameters. See below: (1) CONTRAST：Adjust Image’s Contrast. Range from 0~63. (2) BRIGHTNESS：Adjust Image’s Brightness, range from 0~255 (3) SATURATION：Adjust Image’s Saturation. Range from 0~63. (4) SHARPNESS：Adjust Sharpness, higher value increases the higher contrast along/near edges of the image. Higher edges might show image noise.
  • Page 16 1.4.2 IMG EFFECT To adjust Image effect, please see below. (2-1) COLOR MODE：Output image can be Color mode or Black/White (MONO). (2-2) VIDEO FLIP：Image flip function. HORI: Horizontal Flip, Mirror: VERT: Vertical and Diagonal (BOTH: Flip Horizontal and vertical) (2-3) FREEZE：(ON/OFF), Image Freeze function.
  • Page 17 1.4.4 GAIN CTRL Set gain Control level to raise up brightness of image. When the observing, LED turn maximum, but the image is still dark, increase the Gain control level. Gain level does not affect frame rate speed. Range: LVL0~ LVL7。 1.4.5 BACKLIGHT To choose the backlight mode.
  • Page 18 (3-1) RED：RED, adjust Red percentage, range 0~255. (3-2) GREEN：Green, adjust Green percentage, range 0~255. (3-3) BLUE：Blue, adjust Blue percentage, range 0~255. (3-4) DEFAULT：Return to default setting. (3-5) RETURN：Return to last page. 1.4.7 2D NR Two Dimensional Noise Reduction: 2DNR. To obtain high quality output image.
  • Page 19 (1-1) NR LEVEL：Noise Reduction level. Higher level will decrease the image noise, cause the edge sharpness downgrade. (1-2) DEFAULT：Return to Default Setting. (1-3) RETURN：Return to last page. (2) OFF：OFF. 1.4.8 POWER FREQ Power line frequency. Based on the power line to choose 60Hz or 50Hz.

  • Page 20: Microscope Introduction

    1.4.12 EXIT Exit menu, press Left or Right to choose “END ” or ”SAVE ” current setting. 1.5 Microscope introduction: 1.5.1 IR Remote Area/Indicator When both ○ and ○ LED indicator blinks, the microscope is in standby mode. Caution: Please remove the transparent protection sheet on the IR receiver area.
  • Page 21 ○ ○ ○ (1) IR remote control aiming area ○ : The indicator will blink whenever buttons are pressed. If the indicator did not blink means the signal was not delivered and please repress again. (2) HDMI indicator ○ ：When lit up, the microscope is in HDMI mode.
  • Page 22 ○ ○ ○ ○ (1) Power ○ Power adaptor is only compatible with the cord ： in the box. Please do not use other adaptor. (2) USB ○ USB port for PC connection, SD card reading and ： Firmware update. (3) HDMI ○...
  • Page 23 ○ 1.5.4 LED/ Light socket (1) LED ○ ：30 pcs LEDs for object lens 4x. (2) Light socket ○ ：For Optional accessory Lens 10x. ○ ○...

  • Page 24: Microscope Focus

    1.6 Microscope Focus There are two ways to focus. First, choose focus distance to adjust the microscope height, then tuning focus by remote controller until clear. On the contrary, first to choose the image sensor position then adjusts the microscope height. Focus distance: distance from object lens to object.
  • Page 25 ○ ○ 1.6.2 Magnification chart 26 focus section setting is based on the whole focus area per 4x object lens. 10x object lens only have 14 focus sections. The sensor position tells the magnification size (Mag.), field of view (FOV), or working distance(WD). The below chart is measured on 4:3 ratio on 24”...
  • Page 26 (1) 4X object lens, focus distance from 21.8mm~213.5mm (0.858~8.4405inch). 4X object lens on 24” (Reference data) Focus section Sensor 1638 1614 1584 1540 1474 1440 1392 1362 1330 position WD(mm) 213.5 186.6 160.1 133.7 107.4 96.6 86.2 80.8 75.5 FOV(mm) Mag.

  • Page 27: Microscope Accessory

    (2) 10X object lens, focus distance from 6.7mm~10.4mm (0.263~0.409inch) 10X object lens on 24” (Reference data) Focus section Sensor position 1822 1752 1680 1594 1502 1404 1294 1170 1020 WD(mm) 10.4 10.1 9.8 FOV(mm) Mag. (X) 231 242 253 266 280 295 313 332 354 Focus section Sensor position 860 670 450 186...

  • Page 28: Printed Notice

    Printed Notice Please read the following information before operating. Maintenance Please abide by the following rules while storing or using this product: 2.1.1 Keep dry: do not place the product in a humid environment. Dry surroundings help extend the life of the product. 2.1.2 Avoid temperature shock: temperature shock (for example, taking the product into a warm room from a cold environment) will cause internal condensation inside the machine.

  • Page 29: Product Specification

    IR remote control Adaptor Power Supplier (Output：DC 5.0V/2.0A Input：AC 100-240V 50/60Hz) Power 1.8A(Max) /9W Consumption (A/C) Size 106(L)×106(W)×152(T) mm Weight Host weight around 328 grams Temperature -5℃ ~ 35℃; Humidity-lower than 85% Operation Environment (No Condensation) For any changes, please visit http://www.vitiny.com...

  • Page 30: Safety Instructions

     Please remove the power supply from the microscope when not in use. Do not disassemble the machine for inspection. For any problems  occurring in the machine itself, please power off the device and contact us through e-mail: mltc@vitiny.com...
  • Page 31 Service fees (including transportation fees) of product inspection. Repair fees. Fees of replaced parts ViTiny Service Center Tel: 886-7-657-9551 Fax: 886-7-657-9561 Address: 10 F., No.1, Section 1, Syuecheng Road, Dashu District, Kaohsiung City 840, Taiwan (R.O.C.) Website: http://www.vitiny.com...
  • Page 33 ViTiny UM30 Warranty Product Model no S/L nos. Purchase DD/MM/YYYY date Purchaser Tel no: Address Email Distributor Seal for Confirmation ( Stamp is necessary for validation of the Warranty ) ※Distributor’s seal shall include name of the shop, telephone and address※...
  • Page 34 HTTP://WWW.VITINY.COM © MicroLinks Technology Corp. All rights reserved.
