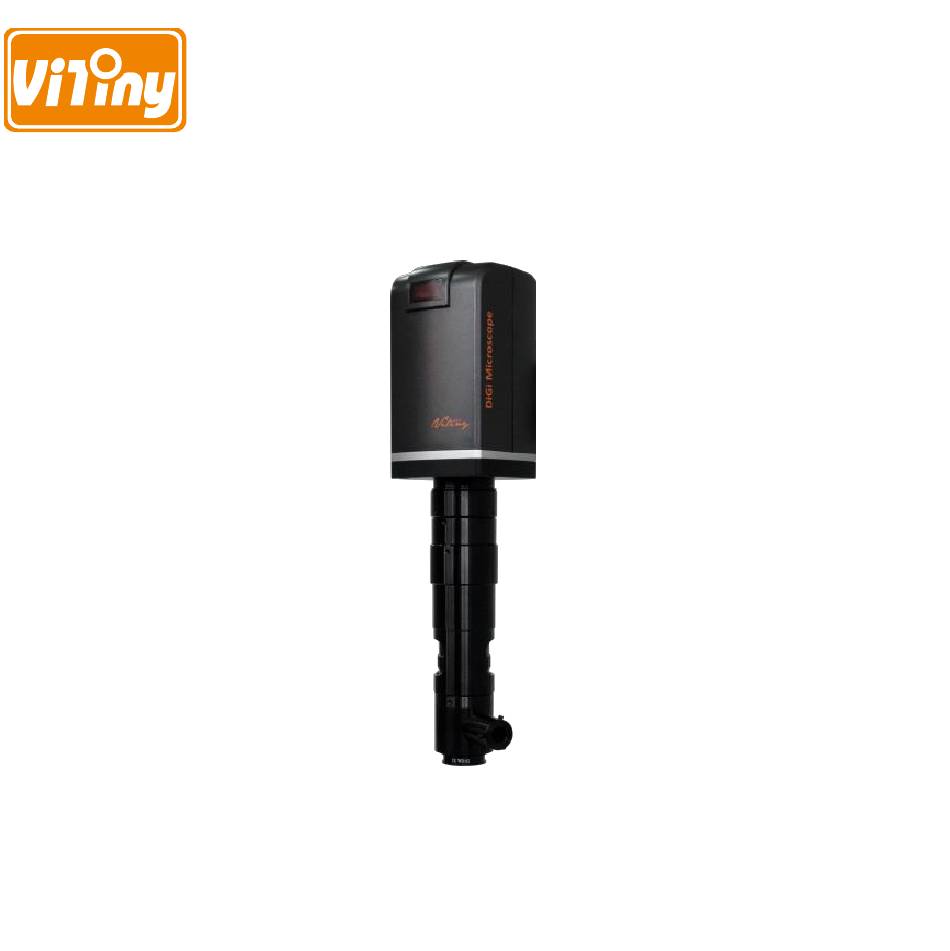

- Page 1 UM06-CSZ064C User’s Guide Version 1.0A...
-
Page 3: Table Of Contents
Content Product Introduction ......2 Packing Contents ......2 IR remote controller ....2 Microscope introduction: .... 7 Microscope Focus ...... 12 Microscope accessory....14 Printed Notice ........15 Maintenance ......15 Product Specification ....16 Safety Instructions ..... 17... -
Page 4: Product Introduction
1. Product Introduction 1.1 Packing Contents The box contains 1 microscope and 10 accessories. Each model comes with different accessories. Item Q’ty Item Q’ty UM06 Camera White Balance Card HDMI Cable Calibrator USB 2.0 Cable User’s Guide Power adaptor Software CD S110 Stand CSZ064C Lens Stand assemble guide... - Page 5 ：Zooms in; speed increases when held. (3-1) Zoom in ：Zooms out; speed increases when held. (3-2) Zoom out Buttons for common use Microscope remote controller...
- Page 6 Buttons for PC CAM mode Buttons for HDMI mode 1.2.2 Buttons for PC CAM The following buttons are used only for PC Cam mode. ：When in PC CAM mode, the USB cable must connect to a PC and (1) PC CAM microscope.
- Page 7 1.2.3 Buttons for HDMI The following buttons are used only for HDMI mode. ： When in HDMI mode, the HDMI cable must connect with the screen (1) HDMI and microscope. ：Open/close menu for setting. (2) Menu on Screen (2-1) BRIGHTNESS：Adjusts the brightness of the entire image. [1~31] (2-2) CONTRAST：Emphasizes the difference between bright and dark.
- Page 8 (2-5) SHARPNESS： [ON] Sharpens the image. [OFF] Smooth the image. (2-6) STATUS BAR：Suggest to OFF the Status Bar in CSZ064 model. [ON] Displays the status bar on the top of screen. For more on the status bar, please refer to Section 1.2.3-(9). ...
-
Page 9: Microscope Introduction
light sources, it is recommended to calibrate the white balance if the color seems off or incorrect. (11) Image Freeze : On/Off image freeze. Freezes the image; press the button again to return to preview. (12) Sharpness : On/Off sharpness mode. Please refer to Section 1.2.3-(2). 1.3 Microscope introduction: 1.3.1 IR Remote Area/Indicator When both the HDMI and USB indicator lights are on, the microscope is in standby... - Page 10 ○ ○ ○ (1) IR remote control aiming area○ : The indicator will blink whenever buttons are pressed. The indicator will blink, if the indicator did not blink means the signal was not delivered and please repress again. (2) HDMI indicator○ : When lit up, the device is in HDMI mode.
- Page 11 1.3.2 Power/USB/HDMI port (1) Power○ : Power supply is only compatible with the cord in the box. ○ (2) USB○ : The USB cable is used to connect the microscope to a PC to access the application program. When the device is in PC Cam mode, connect the microscope to a PC through the USB cable from the box.
- Page 12 ：The HDMI port is used to connect the microscope to a screen. When (3) HDMI○ the device is in HDMI mode, connect the microscope to the screen using the HDMI cable from the box. * For TV screen connections, make sure to choose the homologous image ratio and format.
- Page 13 ○ 1.3.4 Illuminance CSZ064C Lens has its own Coaxial illuminance, please insert the coaxial light ○ ○ j to lens, then switch power ON ○ j ○...
-
Page 14: Microscope Focus
1.4 Microscope Focus Move the CSZ064C upward, leave 82mm to the object; press Zoom out button to move the sensor to end position. Rotate the optical zoom from 0.6x-4x see if all image is clear. If the lens does not reach parfocal distance, try turning the gearbox to find clear image. - Page 15 1.4.1 Magnification chart The below chart measured base on UM06-CSZ064C model on 24” screen with working distance 82mm, and optical focusing from 0.6x-4x. The chart is only a reference data, might not be accurate enough. To use the measurement function in software, all the build in scales are not correct.
-
Page 16: Microscope Accessory
1.5 Microscope accessory 1.5.1 Calibrator Mainly used to calibrate the scale on the application program (please refer to the AP manual for more information). The calibrator is transparent and can be applied onto the object directly. 1.5.2 White balance card The white side is used to calibrate the white balance. -
Page 17: Printed Notice
2. Printed Notice Please read the following information before operating. 2.1 Maintenance Please abide by the following rules while storing or using this product: 2.1.1 Keep dry: do not place the product in a humid environment. Dry surroundings help extend the life of the product. 2.1.2 Avoid temperature shock: temperature shock (for example, taking the product into a warm room from a cold environment) will cause internal condensation inside the machine. -
Page 18: Product Specification
IR remote controller/PC(application program) control adaptor Power supplier (input：DC 5.0V/2.0A input：AC 100-240V 50/60Hz) Power Consumption (A/C) 0.225A (Max.) Size 115x66x68mm Weight Host weight around 710 grams Temperature -5℃ ~ 50℃; Humidity-lower than 85% Operation environment (No Condensation) For any changes, please visit http://www.vitiny.com... -
Page 19: Safety Instructions
Please remove the power supply from the microscope when not in use. Do not disassemble the machine for inspection. For any problems occurring in the machine itself, please power off the device and contact us through e-mail: mltc@vitiny.com... - Page 20 (1) Service fees (including transportation fees) of product inspection. (2) Repair fees. (3) Fees of replaced parts ViTiny Service Center Tel: 07-657-9551 Fax: 07-657-9561 Address: 10 F., No.1, Section 1, Syuecheng Road, Dashu District, Kaohsiung City 840, Taiwan (R.O.C.) Website: http://www.vitiny.com...
- Page 22 ViTiny UM06 Warranty P r o d u c t Model no S/L nos. P u r c h a s e DD/MM/YYYY d a t e Purchaser T e l n o : A d d r e s s...
- Page 24 HTTP://WWW.VITINY.COM © MicroLinks Technology Corp. All rights reserve...
