Summary of Contents for ViTiny UM12

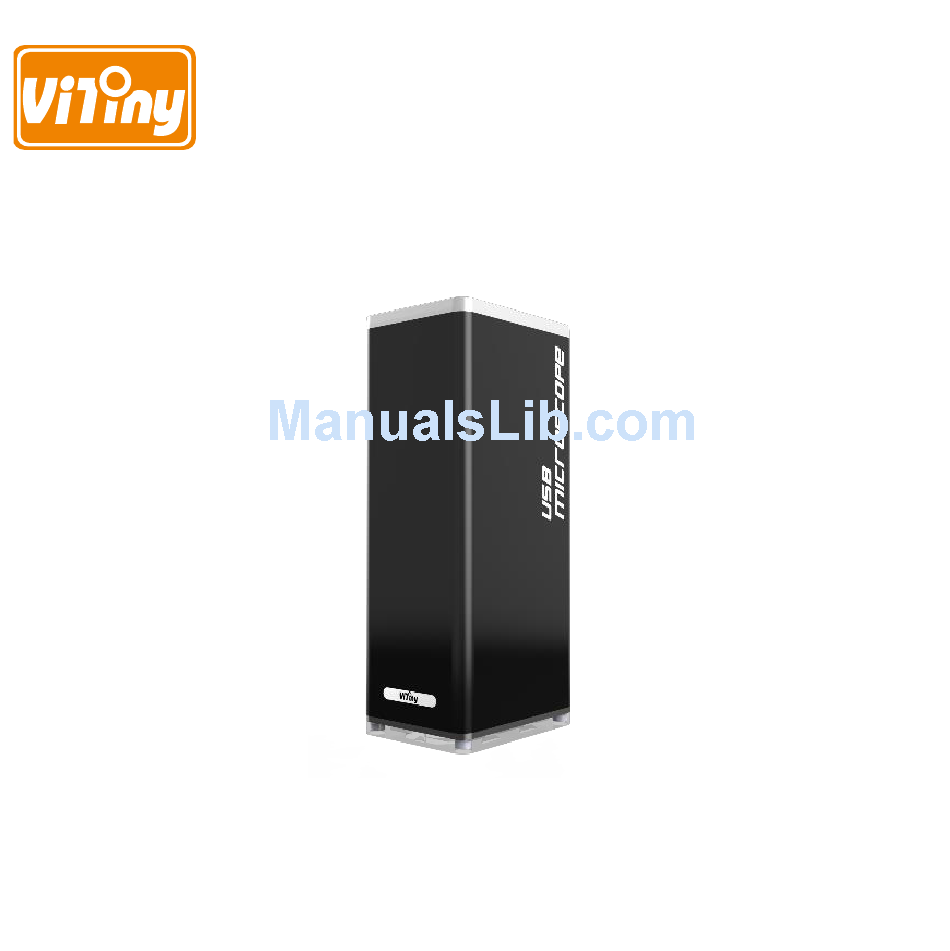

- Page 1 User’s Guide USB Microscope Version 1.2A...
-
Page 3: Table Of Contents
Contents Product Introduction ......2 Packing Contents: ......2 Start to use ........2 Buttons on microscope ....4 Microscope focus ......5 Printed Notice ........8 Maintenance ........ 8 Product Specification ....9 Safety Instructions ..... 10... -
Page 4: Product Introduction

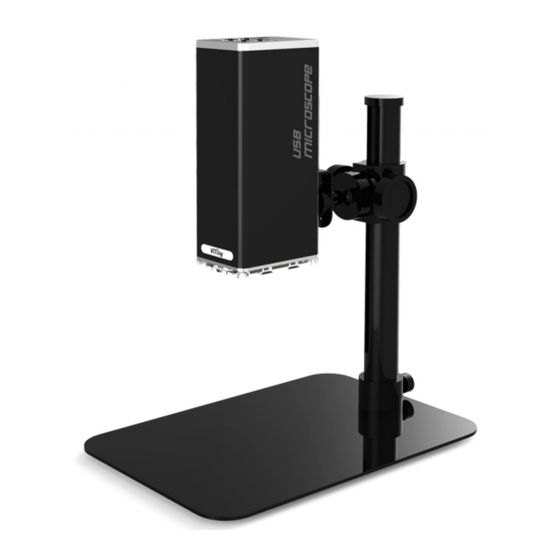

1. Product Introduction 1.1 Packing Contents: The box contains 1 microscope and 7 accessories. Item Q’ty Item Q’ty USB Microscope Install CD USB 2.0 Cable User’s Guide Stand S108 Calibrator Stand assemble guide White Balance card 1.2 Start to use Assemble microscope with Stand Tighten microscope onto stand ○... - Page 5 ○ For detailed install procedures, please refer to the Install Manual inside the software CD. If the software CD is missing or damaged, please download from http://www.vitiny.com . Connect to PC Double click microscope software icon ( ○...
-
Page 6: Buttons On Microscope
Manual inside the software CD.。 ○ ○ ○ 1.3 Buttons on microscope ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Optical zoom Zoom in/out button. Zoom in( , when magnification is ○ higher, the distance is closer. Zoom out ( , when ○... -
Page 7: Microscope Focus
LED Adjustment: Preview image in higher magnification requires higher luminance, on the contrary, lower magnification requires less luminance. It’s suggested to set the “Auto Exposure” as “Manual” in the software. ) Increase luminance. ( ) Decrease luminance. ( ) LED ○... - Page 8 Fix focus distance Use knob ( ○ ) to adjust the distance from lens to object. When the distance is closer, the magnification is higher. Either use Distance control mode in the software or buttons on the microscope to focus. Fix sensor position Choose the desired distance or FOV from the drop down list in the software.
- Page 9 Magnification chart 26 focus section setting is based on the whole focus area, the sensor position tells the magnification size, field of view, or distance. The below chart is measured on 4:3 ratio on 21.5” screen, it’s only a reference data, might not be accurate enough.
-
Page 10: Printed Notice
2. Printed Notice Please read the following information before operating. Maintenance Please abide by the following rules while storing or using this product: 2.1.1 Keep dry: do not place the product in a humid environment. Dry surroundings help extend the life of the product. 2.1.2 Avoid temperature shock: temperature shock (for example, taking the product into a warm room from a cold environment) will cause internal condensation inside the machine. -
Page 11: Product Specification
Microscope buttons/ Pc focus control P o w e r 1.125A(Max) Consumption 48(L)×64(W)×150(T) mm W i g h t Host weight around 310 grams Temperature -5℃ ~ 50℃; Humidity-lower Operation environment than 85% (No Condensation) For any changes, please visit http://www.vitiny.com... -
Page 12: Safety Instructions
Please remove the power supply from the microscope when not in use. Do not disassemble the machine for inspection. For any problems occurring in the machine itself, please power off the device and contact us through e-mail: mltc@vitiny.com... - Page 13 ViTiny Warranty Sheet P r o d u c t Model no S/L nos. P u r c h a s e DD/MM/YYYY d a t e Purchaser T e l n o : A d d r e s s...
- Page 14 (1) Service fees (including transportation fees) of product inspection. (2) Repair fees. (3) Fees of replaced parts ViTiny Service Center Tel: 07-657-9551 Fax: 07-657-9561 Address: 10 F., No.1, Section 1, Syuecheng Road, Dashu District, Kaohsiung City 840, Taiwan (R.O.C.) Website: http://www.vitiny.com...
- Page 16 HTTP://WWW.VITINY.COM © MicroLinks Technology Corp. All rights reserved.
