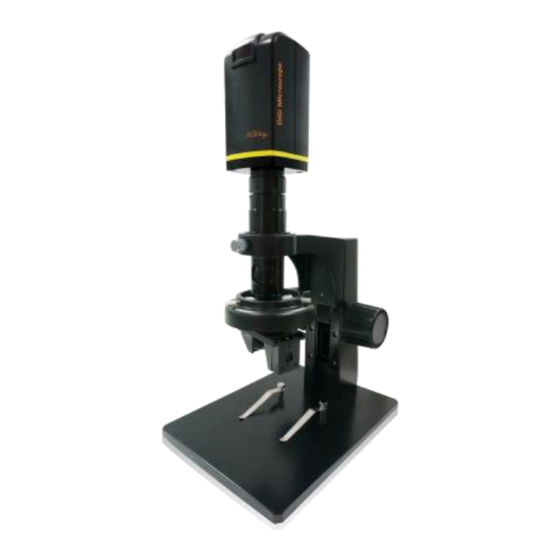

UM08D-CSZ064
User's Guide
Version 1.0A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UM08D-CSZ064 and is the answer not in the manual?

Questions and answers

Related Manuals for ViTiny UM08D-CSZ064

Summary of Contents for ViTiny UM08D-CSZ064

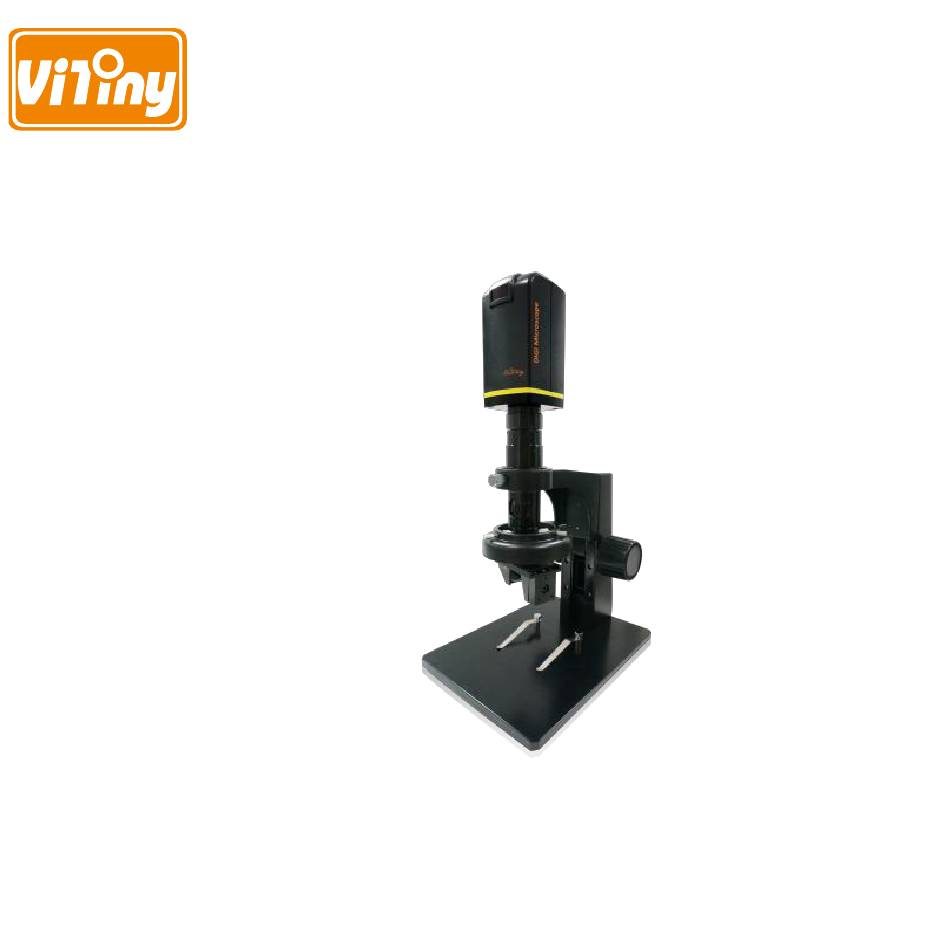

  • Page 1 UM08D-CSZ064 User’s Guide Version 1.0A...

  • Page 2: Table Of Contents

    Contents Product Introduction ......2 Packing Contents ......2 D-CSZ064 Lens Assembling ..2 IR Remote controller....5 Microscope menu functions ..8 Microscope introduction: ..22 Microscope Focus ...... 26 Microscope accessory....28 Printed Notice ........29 Maintenance ......29 Product Specification ....

  • Page 3: Product Introduction

    Product Introduction 1.1 Packing Contents The box contains 1 camera and 9 accessories. Item Q’ty Item Q’ty Microscope Camera White Balance Card HDMI Cable IR Remote Control Power Adaptor User’s Guide S115 Stand D-CSZ064 Lens Stand AssembleGuide LED Ring Light GN03 1.2 D-CSZ064 Lens Assembling 1.2.1 Fix microscope Each D-CSZ064 lens has reach its parfocal distance when goods ship...
  • Page 4 ○ ○ b 1.2.2 Start to use microscope Connect the HDMI cable and adaptor (included in box) ○ ○ to HDMI monitor and power. See below:...
  • Page 5 ○ ○ 1.2.3 Power On/Off Press Power to turn on microscope. Choose HDMI mode or Auto on HDMI monitor to output image.

  • Page 6: Ir Remote Controller

    1.3 IR Remote controller The microscope operation and functions is controlled by the IR remote controller. (1) Power Turn on/off. ： ：No Function. (2) HDMI ：No Function. (3) PC CAM ：No Function. (4) Snapshot Only when connect to optional accessory Image Capture Box IMB05 for snapshot.
  • Page 7 ：Zooms in; speed increases when held. (7-1) Zoom in ：Zooms out; speed increases when held. (7-2) Zoom out (8) Autofocus: Does not suggest to use this function in CSZ064 model. Whenever active the AF function, sensor position will change. This might cause the sensor position not at the end so image will not clear in every stage when manual adjust.
  • Page 8 ：Choose the next item (12) Down ：Choose the next value (13) Left ：Choose the last value (14) Right ：No Function (15) Video Ratio ：Status bar show [FL] for free lens. By switching (16) Status Bar the Status bar, it will show OZ (sensor position), and EV (Exposure).

  • Page 9: Microscope Menu Functions

    (18) Image Freeze : ON/Off to freeze or unfreeze the image. (19) Sharpness : On/Off to set sharpness atMinimum and Maximum level. 1.4 Microscope menu functions There are 8 functions in menu, press Up and Down choose item, Left and Right to turn on/off or adjust parameter.
  • Page 10 1.4.1 EXPOSURE To set exposure time, see below: (1) Shutter: Digitally control amount of light, the amount is smaller the image is darker and the frame rate is also slower. (2) AGC (Auto Gain Control): auto control the brightness based on setting when light is not enough.
  • Page 11 (6) DEFOG：De-Fog. When observing under strong light or special environment, use Defog function to see clear image. Below fig for De-Fog setting. (6-1) POS/SIZE：Adjust de-fog position and area. (6-2) GRADATION：To set gradation levels near the edge of defog area. (6-3) DEFAULT：Return to default setting. (6-4) RETURN: Return to last page.
  • Page 12 (2-1) GAIN: Set WDR gain level to raise up brightness of darker image. (2-2) WDR OFFSET：Wide Dynamic Range OFFSET. (2-3) RETURN: Return to last page. (3) BLC (Back Light Compensation) To adjust brightness for darker image in back light environment. (3-1) GAIN: To adjust brightness level.
  • Page 13 (4) HSBLC (High Suppress Back Light Compensation) To identify the over luminance area by backlight, and proceed masking the area. (4-1) SELECT: Select the areas which needs to be adjusted. 4 areas are selectable. (4-2) DISPLAY: Display the selected area. (4-3) LEVEL: Set value to judge if the image is too bright.
  • Page 14 (4-8) DEFAULT: Return to factory default setting. (4-9) RETURN: Return to last page. 1.4.3 MANUAL WB Calibrate the white balance. (1) AWB: Auto white balance. (2) ATW: Auto tracing white area and calibration. (3) AWC->SET: Semi-auto white balance. Use to track the white color from current image.
  • Page 15 (1) 2D NR：ON/OFF, Edge Preserving 2D NR. (2) 3D NR：ON/OFF, Motion Adaptive 3D NR. See below: (3-1) SMART NR: Distinguish the moving object not moving noise, and auto close the “3D NR”. (3-1-1) SMART NR：The sensitivity to detect the moving object.
  • Page 16 (3-5) Return: Return to last page. (3) Return: Return to last page. 1.4.5 SPECIAL Set special functions: (1) D-EFFECT: There are few more functions in D-EFFECT, but (1-3), (1-4) and (1-6) function can only turn on one item at one time. Press Left or right to turn on or off.
  • Page 17 (1-1) FREEZE: Turn ON/OFF to freeze image. If Freeze function is turn on, the (1-2) Mirror function cannot be used at the same time (1-2) MIRROR: Image rotatory. (Horizontal or Vertical) (1-3) D-ZOOM: Digitally enlarge the chose area. Digital zoom selection can from 1-62 times. See below setting for D-Zoom.
  • Page 18 (1-3-2) D-Zoom: Set digital zoom times. (1-3-3) PAN&TILT: To set the enlarge position. (1-3-4) DEFAULT: Return to default setting. (1-3-5) RETURN: Return to last page. (1-4) SMART D-ZOOM: Assign 1 or 2 areas to enlarge the image from 1-62 times whenever detected the object moves.
  • Page 19 (1-4-1) SELECT: Choose the enlarge area, totally 2 areas. (1-4-2) DISPLAY: Display enlargement frame. Position and area can be set in (1-4-1) (1-4-3) SENSITIVITY: The sensitivity to detect whenever objects move. The lower value gets the higher sensitivity. (1-4-4) PIP: No Function. (1-4-5) D-Zoom: Set magnification times.
  • Page 20 (1-5) NEG. IMAGE: Turn On/Off Negative image. (1-6) DIS: Digital Image Stabilization function. (1-7) RETURN: Return to last page. (2) MOTION: Detect the moving object, see below setting. (2-1) SELECT: Select the areas which need to be detected. 4 areas are selectable. (2-2) DISPLAY: Display the selected area.
  • Page 21 (3) LANGUAGES: 16 languages are selectable. (4) DEFFECT: Dead Pixel compensation. (4-1) LIVE DPC: Dead Pixel Correction. Correct the live dead pixel during preview. (4-1-2) LEVEL: Set the threshold value to judge if it needs RETURN: Return to last page. (4-2) STATIC DPC: Static Dead Pixel Correction, scan and find the dead pixel then save the position for correction.
  • Page 22 (4-2-1) START: Start to do Static Dead Pixel correction. (4-2-2) LEVEL: Set the threshold value to judge if it needs to be corrected. (4-2-3) SENS-UP: Raise up the sensor’s sensitivity to compensate the dead pixel. (4-2-4) AGC: Auto Gain Control. When light is not enough, AGC will follow the threshold setting to compensate the dead pixel.

  • Page 23: Microscope Introduction

    (2) LSC：Lens Shading Correction. Use Lens shading correction to average the luminance of image. 1.4.7 RESET Return to factory default setting. Press Left/right button to choose “CHANGE” to return default. 1.4.8 RETURN Exit from menu. 1.5 Microscope introduction: 1.5.1 IR Remote Area/Indicator When both ○...
  • Page 24 ○ ○ ○ (1) IR remote control aiming area ○ The indicator will blink whenever buttons are pressed. If the indicator did not blink means the signal was not delivered and please repress again (2) HDMI indicator○ When lit up, the microscope is in HDMI ：...
  • Page 25 1.5.2 Power/USB/HDMI port Caution: Please hold the cable when remove from microscope and do not disassemble cables forcefully. ○ ○ ○ (1) HDMI○ The HDMI port is used to connect the microscope to ： a screen. When the device is in HDMI mode, connect the microscope to the screen using the HDMI cable from the box.
  • Page 26 1.5.3 Ring Adaptor Assembling Assemble the stand first. Insert D-CSZ064 lens into Ring Adaptor and screw tight with Hex Key. Insert lens with Ring adaptor into Universal Adaptor then screw tight○ , the lens face front center position. ○...

  • Page 27: Microscope Focus

    1.5.4 Illuminance ○ m ○ l (1) Put the Ring Light beneath the 3D lens and screw tight○ l . (2) Again counterclockwise 3D lens part to 3D lens○ m . 1.6 Microscope Focus 2D Image Observation: Move the D-CSZ064 lens upward, leave WD80mm from the object;...
  • Page 28 When the image is clear, turn the optical zoom from 4x to 0.6x to see if image is clear at each magnification. If clear at each stage, the focus is done. If the image is not clear at each magnification, please re-try from beginning. 3D Image Observation: Turn the optical zoom to 0.6x and Switch the 3D lens part○...

  • Page 29: Microscope Accessory

    1.6.1 Magnification chart The below chart measured base on UM08D-CSZ064 model on 24” screen and optical focusing from 0.6x-4x. The chart is only a reference data. For different monitor size, please measure again. UM08D-CSZ064 on 24” (Reference data) Adaptor 0.5X Objective 0.75X...

  • Page 30: Printed Notice

    2. Printed Notice Please read the following information before operating. 2.1 Maintenance Please abide by the following rules while storing or using this product: 2.1.1 Keep dry: do not place the product in a humid environment. Dry surroundings help extend the life of the product. 2.1.2 Avoid temperature shock: temperature shock (for example, taking the product into a warm room from a cold environment) will cause internal condensation inside the machine.

  • Page 31: Product Specification

    Power Supply (Output DC 5.0V/2.0A ; Input AC 100-240V 50/60Hz) Power 0.225A(Max) Consumption (A/C) Size 68(L)×66(W)×315(H) mm Weight Host weight around 775 grams Operation Temperature -5℃ ~ 50℃; Humidity-lower than environment 85% (No Condensation) For any changes, please visit http://www.vitiny.com...
  • Page 32  Please remove the power supply from the microscope when not in use.  Do not disassemble the machine for inspection. For any problems occurring in the machine itself, please power off the device and contact us through e-mail: mltc@vitiny.com...
  • Page 33 Service fees (including transportation fees) of product inspection. Repair fees. Fees of replaced parts ViTiny Service Center Tel: 8867-657-9551 Fax: 8867-657-9561 Address: 10 F., No.1, Section 1, Syuecheng Road, Dashu District, Kaohsiung City 840, Taiwan Website: http://www.vitiny.com...
  • Page 34 ViTinyUM08D-CSZ064 Warranty Product Model no S/L nos. Purchase DD/MM/YYYY date Purchaser Tel no: Address Email Distributor Seal for Confirmation ( Stamp is necessary for validation of the Warranty ) ※Distributor’s seal shall include name of the shop, telephone and address※ Please ask the distributor to fill in the name of the shop, address, purchase date, and other contents to protect your rights and validate your one-year warranty since upon the purchase date.
  • Page 36 HTTP://WWW.VITINY.COM © MicroLinks Technology Corp. All rights reserved.
