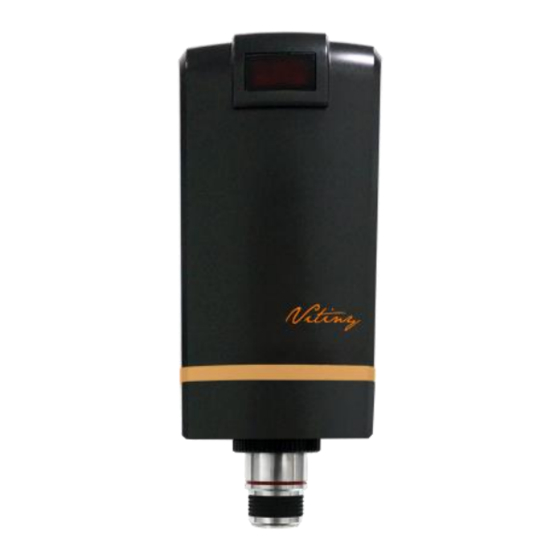

ViTiny UM08-GN User Manual
  1. Manuals
  2. Brands
  3. ViTiny Manuals
  4. Microscope
  5. UM08-GN
  6. User manual

ViTiny UM08-GN User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
UM08-GN
User's Guide
Version 2.0A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UM08-GN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ViTiny UM08-GN

Summary of Contents for ViTiny UM08-GN

  • Page 1 UM08-GN User’s Guide Version 2.0A...

  • Page 3: Table Of Contents

    Contents Product Introduction ......2 Packing Contents ......2 Assemble microscope with stand 2 IR Remote controller....4 Microscope menu functions ..10 Microscope introduction: ..23 Microscope Focus ...... 26 Microscope accessory....30 Printed Notice ........31 Maintenance ......31 Product Specification ....

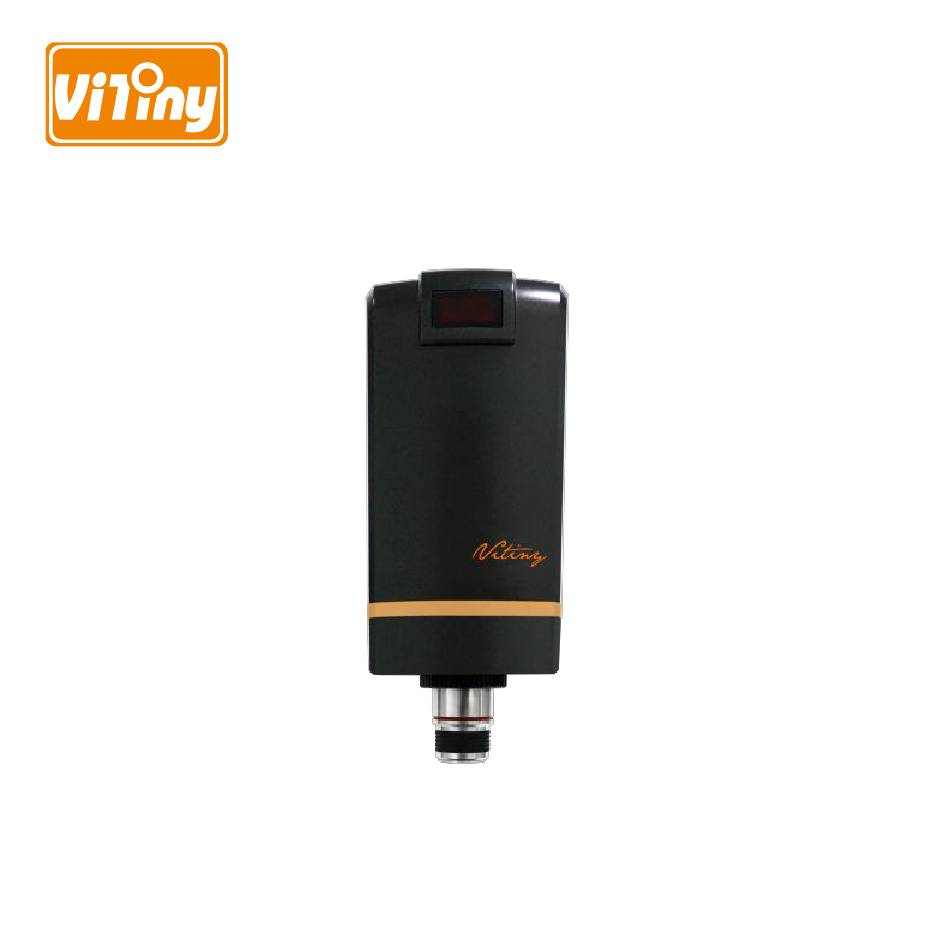

  • Page 4: Product Introduction

    Product Introduction 1.1 Packing Contents The box contains microscope and accessories. The Object Lens 4X is already assembled onto microscope. Item Q’ty Item Q’ty DiGi Microscope White Balance Card HDMI Cable IR Remote Control Power adaptor User’s Guide S107 Stand Object Lens 4x Stand assemble guide Object Lens 10x...
  • Page 5 ○ 1.2.2 Start to use microscope Connect the HDMI cable○ and adaptor○ to HDMI monitor and power. See below: ○ ○...

  • Page 6: Ir Remote Controller

    1.2.3 Power On/Off Press Power to turn on microscope. Choose HDMI mode or Auto on HDMI monitor to output image. *Long press means press and hold the button for 2 seconds* 1.3 IR Remote controller The microscope operation and functions is controlled by the IR remote controller.
  • Page 7 (5) LED Adjustment: 12 levels of brightness. ：Increase LED brightness. (5-1) Increase ：Decrease LED brightness. (5-2) Decrease (5-3) On/Off ：Turn the LED on/off. When turn on the LED, the brightness will return to the situation before turn off. (6) Motor Reset (Recalibrates entire operation)：Returns to the lens position.
  • Page 8 Decrease ：Use to decrease exposure when the image (9-2) is too bright. ：Open/close menu for setting. Refer to (10) Menu on Screen Section 1.4. (11) Up ： Choose the previous item, if Crosshair is ON, select other color. (12) Down ：Choose the next item,, if Crosshair is ON, select other color.
  • Page 9 ○ ○ ： (16-1) Area○ (16-1-1) FOV：Field of View (FOV) display image on the effective horizontal size of screen. (16-1-2) MAG：(Magnification) The magnification size will change depending on the lens position, screen size, and image ratio. (16-1-3) WD: Working Distance. (16-2) Area○...
  • Page 10 position. AFS►W500, “W” means search focus in “whole area”. (16-2-4) AFC：Continuous autofocus, “A” and “W” are same function as AFS. (16-2-5) LED：LED levels. Ex: LED：12, 12 means the LED level. (16-2-6) EV：Exposure Value. Ex: EV： 5, means EV is +5, EV：-5 means EV is -5.
  • Page 11 (17) Auto White Balance Calibration : To calibrate the white balance, place the white balance card (included in box) under the lens, focus until clear, and choose On. Because the white balance is sometimes influenced by external light sources, it is recommended to calibrate the white balance if the color seems off or incorrect.

  • Page 12: Microscope Menu Functions

    Microscope menu functions Press button to enter MENU, press Up and Down choose item, Left and Right to turn on/off or adjust parameter. Enter means more functions, press Menu to enter next function or confirm. means no more settings. Return to return last page, or press Left or Right to choose “End”...
  • Page 13 (1) Shutter: Digitally control amount of light, the amount is smaller the image is darker and the frame rate is also slower. (2) AGC (Auto Gain Control) :auto control the brightness based on setting when light is not enough. (3) SENS-UP :Only available when item (2) AGC value is larger than 0, use to increase Senor to light’s sensibility.
  • Page 14 Below fig for De-Fog setting. When select AUTO, enter the DEFOG Setting. (6-1) POS/SIZE：Adjust de-fog position and area. (6-2) GRADATION: To set gradation levels near the edge of defog area. (6-3) DEFAULT: Return to Factory setting. (6-4) RETURN: Return to Last page or Save & End Menu. (7) RETURN: Return to Last page or Save &...
  • Page 15 1.4.2 BACKLIGHT Press left/right button to choose turn on/off Backlight mode. (1) OFF :Disable backlight function. (2) BLC (Back Light Compensation) To adjust brightness for darker image in back light environment. (2-1) LEVEL: To adjust brightness level. (2-2) AREA: Choose the back light compensation area and size.
  • Page 16 (3-1) SELECT: Select the areas which needs to be adjusted. 4 areas are selectable. (3-2) DISPLAY: Display the selected area. (3-3) BLACK MASK: Shade the over exposed area into Black. (3-4) LEVEL: Set Threshold for over exposed image. (3-5) DEFAULT: Return to factory default setting. (3-6) RETURN: Return to last page or Save &...
  • Page 17 (4-1) LEVEL: Adjust the WDR Level. (4-2) RETURN: Return to last page or Save & End Menu. 1.4.3 MANUAL WB Calibrate the white light balance, to find out right White color. (1) AWB: Auto white balance. (2) ATW: Trace white area and auto-calibrated. (3) AWC->SET :Semi-auto white balance.
  • Page 18 1.4.4 NR Noise Reduction：(NR) To obtain high quality output image and increase file compression. See below: (1) 2D NR：LOW/MIDDLE/HIGH, Edge Preserving 2D NR. (2) 3D NR LOW/MIDDLE/HIGH, Motion Adaptive 3D NR. (3) Return :Return to last page or Save & End Menu. 1.4.5 SPECIAL Set special functions: (1) D-EFFECT : Functions as following: Press Left...
  • Page 19 (1-1) FREEZE: Turn ON/OFF to freeze image. If Freeze function is turn on, the (1-2) Mirror function can not be used at the same time (1-2) MIRROR: Image rotatory. (Horizontal or Vertical) (1-3) NEG. IMAGE: Turn On/Off Negative image. (1-4) RETURN: Return to last page or Save & End Menu. MOTION: Detect the moving object, see below setting.
  • Page 20 4 areas are selectable. The selected area and sequence will change as MIRROR function is ON. (2-2) DISPLAY: Display the selected area. Position and area can be set in (2-1). (2-3) SENSITIVITY: The sensitivity to detect whenever object moves. The lower value gets the higher sensitivity. (2-4) COLOR: The Area frame color: Green, Blue, White and Red.
  • Page 21 (2-6-4) RETURN: Return to last page or Save & End Menu. (2-7) DEFAULT: Return to factory setting. (2-8) RETURN: Return to last page or Save & End Menu. LANGUAGES: 16 languages are selectable. DEFFECT: Dead Pixel compensation. (4-1) LIVE DPC: Dead Pixel Correction. Correct the live dead pixel during preview.
  • Page 22 (4-1-3) RETURN: Return to last page or Save & End Menu. (4-2) WHITE DPC: White Dead Pixel Correction, scan and find the dead pixel then save the position for correction. Note: Please do not change this setting. (4-2-1) POZ/SIZE: Choose the compensation area. (4-2-2) START: Start to do Static Dead Pixel correction.
  • Page 23 (4-2-7) RETURN: Return to last page or Save & End Menu. (5) FIRMWARM: Firmware version. (6) RETURN: Return to last page or Save & End Menu. 1.4.6 ADJUST Image Adjustment (1) SHARPNESS: Adjust Sharpness, higher value increases the higher contrast along/near edges of the image. (1-1) LEVEL: Adjust Image Sharpness level.
  • Page 24 (1-3) END AGC: Set end levels to end adjust sharpness. (1-4) RETURN: Return to last page or Save & End Menu. (2) MONITOR: Adjust Monitor settings. (2-1) GAMMA: Adjust display contrast. (2-2) GLUE GAIN: Adjust Blue GAIN level. (2-3) RED GAIN: Adjust Red Gain level. (2-4) RETURN: Return to last page or Save &...

  • Page 25: Microscope Introduction

    Microscope introduction: 1.5.1 IR Remote Area/Indicator When both ○ and ○ LED indicator blinks, the microscope is in standby mode. Caution: Please remove the transparent protection sheet on the IR receiver area. ○ ○ ○ IR remote control aiming area○ The indicator will blink whenever buttons are pressed.
  • Page 26 enable Distance Control Toolbar in PC software, lit off when disable the toolbar. 1.5.1 Power/USB/HDMI port Caution: Please hold the cable when remove from microscope and do not disassemble cables forcefully. ○ ○ ○ (1) HDMI○ The HDMI port is used to connect the microscope to a ：...
  • Page 27 1.5.2 Stand gear box Assemble the stand and then screw the microscope onto the universal joint ○ on the gear box. ○ 1.5.3 LED/ Light socket ：Gooseneck Light GN-01 for 4x lens. (1) LED○ ○...

  • Page 28: Microscope Focus

    ：Provides luminance for object lens 10x. (2) Light socket○ (Optional accessory) ○ Microscope Focus There are two ways to focus. First, choose focus distance to adjust the microscope height, then tuning focus by remote controller until clear. On the contrary, first to choose the image sensor position then adjusts the microscope height.
  • Page 29 1.6.1 Focus Techniques (1) Fixed focus distance Use knob ○ o or ○ p to adjust the distance from the object lens to the object. When the distance is closer, the magnification size is higher. When the focus distance is fixed, use the remote controller or far distance control mode on the application program to focus the image.
  • Page 30 ○ ○ 1.6.2 Magnification chart 26 focus section setting is based on the whole focus area per 4x object lens. 10x object lens only have 14 focus sections. The sensor position tells the magnification size(Mag.), field of view(FOV), or working distance(WD). The below chart is measured on 4:3 ratio on 24”...
  • Page 31 4X object lens, focus distance from 22mm~214mm(0.866~8.425inch). 4X object lens on 24” (Reference data) Focus section Sensor position 1620 1595 1565 1520 1455 1420 1375 1350 1315 WD(mm) 97.0 86.5 81.5 76.0 FOV(mm) Mag. (X) 13.2 15.1 17.7 21.2 26.5 29.5 33.2 35.4 37.9 Focus section Sensor position...

  • Page 32: Microscope Accessory

    10X object lens, focus distance from 6.3mm~10mm(0.248~0.393inch) 10X object lens on 24” (Reference data) Focus section Sensor position 1790 1725 1650 1565 1475 1375 1265 1135 WD (mm) FOV(mm) Mag. (X) Focus section Sensor position WD (mm) FOV(mm) 1.07 Mag. (X) 1.7 Microscope accessory 1.7.1 White balance card The white side is used to calibrate the white balance.

  • Page 33: Printed Notice

    Printed Notice Please read the following information before operating. Maintenance Please abide by the following rules while storing or using this product: 2.1.1 Keep dry: do not place the product in a humid environment. Dry surroundings help extend the life of the product. 2.1.2 Avoid temperature shock: temperature shock (for example, taking the product into a warm room from a cold environment) will cause internal condensation inside the machine.

  • Page 34: Product Specification

    Adaptor (Output ： DC 5.0V/2.0A Input ： AC 100-240V Power supplier 50/60Hz) Power 0.9A(Max) Consumption (A/C) Size 106(L)×106(W)×152(T) mm Weight Host weight around330 grams Temperature -5℃ ~ 50℃; Humidity-lower than Operation environment 85% (No Condensation) For any changes, please visithttp://www.vitiny.com...

  • Page 35: Safety Instructions

     Please remove the power supply from the microscope when not in use.  Do not disassemble the machine for inspection. For any problems occurring in the machine itself, please power off the device and contact us through e-mail: mltc@vitiny.com...
  • Page 36 Service fees (including transportation fees) of product inspection. Repair fees. Fees of replaced parts ViTiny Service Center Tel: 07-657-9551 Fax: 07-657-9561 Address: 10 F., No.1, Section 1, Syuecheng Road, Dashu District, Kaohsiung City 840, Taiwan (R.O.C.) Website: http://www.vitiny.com...
  • Page 38 ViTiny UM08A-GN Warranty Product Model no S/L nos. Purchase DD/MM/YYYY date Purchaser Tel no: Address Email Distributor Seal for Confirmation ( Stamp is necessary for validation of the Warranty ) ※Distributor’s seal shall include name of the shop, telephone and address※...
  • Page 40 HTTP://WWW.VITINY.COM © MicroLinks Technology Corp. All rights reserved.
