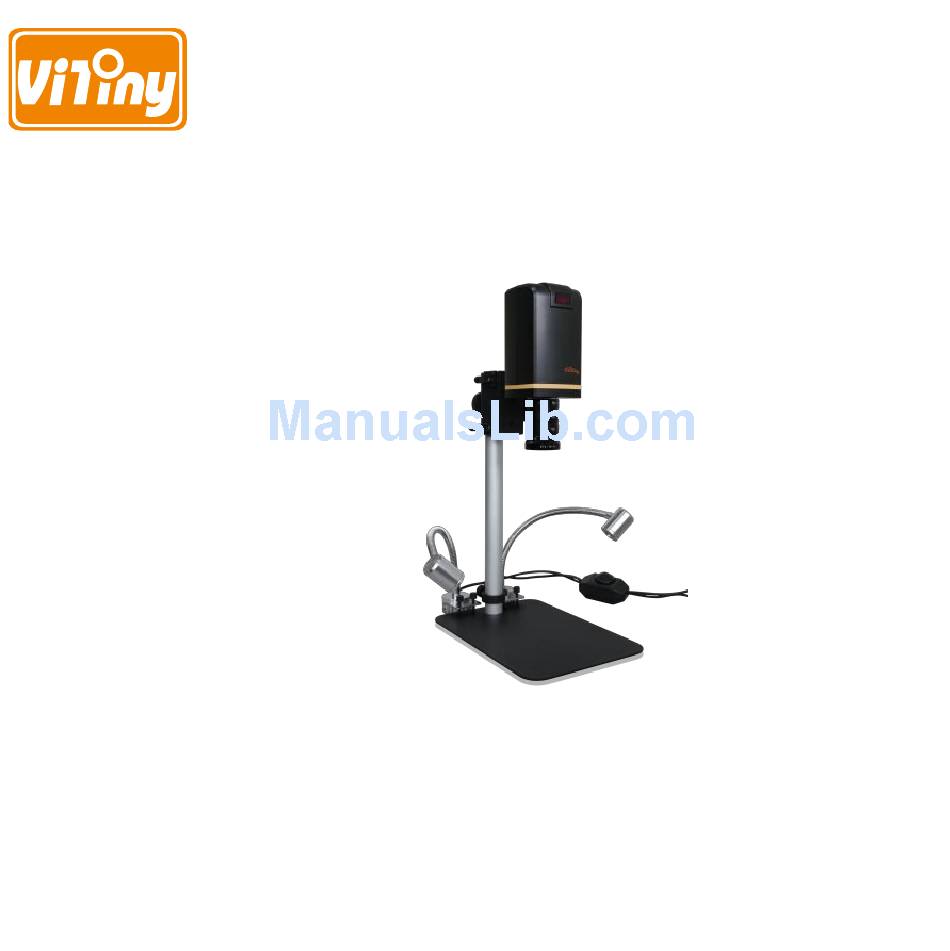

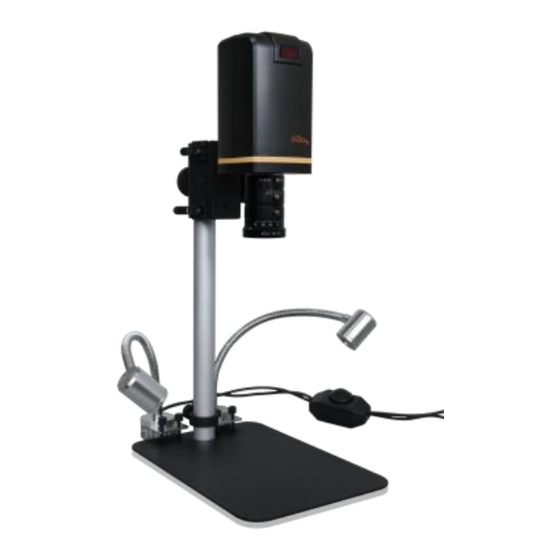

  • Page 1 UM08-CSZ1236 User’s Guide Version 1.0A...

  • Page 3: Table Of Contents

    Contents Product Introduction ......2 Packing Contents ......2 CSZ1236 Lens Assembling ... 2 IR Remote controller ....5 Microscope menu functions ..8 Microscope introduction: ..21 Microscope Focus ...... 25 Microscope accessory....28 Printed Notice ........29 Maintenance ......29 Product Specification ....

  • Page 4: Product Introduction

    Product Introduction 1.1 Packing Contents The box contains 1 camera and 9 accessories. Item Q’ty Item Q’ty UM08 Camera White Balance Card HDMI Cable IR Remote Control Power adaptor User’s Guide S107 Stand CSZ1236 Lens Stand assemble guide Gooseneck Light 1.2 CSZ1236 Lens Assembling 1.2.1 Fix microscope Screw CSZ1236 Lens with UM08 Camera, the adjustment...
  • Page 5 ○ ○ a ○ 1.2.2 Start to use microscope Connect the HDMI cable and adaptor within the box ○ ○ to HDMI monitor and power. See below:...
  • Page 6 1.2.3 Power On/Off Press Power to turn on microscope.

  • Page 7: Ir Remote Controller

    1.3 IR Remote controller The microscope operation and functions is controlled by the IR remote controller. (1) Power Turn on/off. ： ：No Function. (2) HDMI ：No Function. (3) PC CAM ： No Function. (4) Snapshot (only with IMB05) (5) LED Adjustment: No Function (6) Motor Reset (Recalibrates entire operation)：Returns to...
  • Page 8 (8) Autofocus: Does not suggest to use this function in CSZ1236 model. Press one time to search focus in current area, press and hold for 2 seconds to search focus in whole area. Single Autofocus : Focus one time. Continuous autofocus : Re-focus whenever image blurred.
  • Page 9 ：Suggest to OFF the Status Bar in CSZ1236 (16) Status Bar model. (17) Auto White Balance Calibration : To calibrate the white balance, place the white balance card (included in box) under the lens, focus until clear, and choose On. Because the white balance is sometimes influenced by external light sources, it is recommended to calibrate the white balance if the color seems off or incorrect.

  • Page 10: Microscope Menu Functions

    (19) Sharpness : On/Off to set sharpness at Minimum and Maximum level. 1.4 Microscope menu functions There are 8 functions in menu, press Up and Down choose item, Left and Right to turn on/off or adjust parameter. Enter means more functions, press Menu enter next function or confirm.
  • Page 11 1.4.1 EXPOSURE To set exposure time, see below: (1) Shutter: Digitally control amount of light, the amount is smaller the image is darker and the frame rate is also slower. (2) AGC (Auto Gain Control): auto control the brightness based on setting when light is not enough.
  • Page 12 (5) D-WDR: Digital-wide dynamic range. Digitally adjusting exposure in areas of the frame to maintain optimum detail in both the shadows and highlights of the image. (6) DEFOG：De-Fog. When observing under strong light or special environment, use Defog function to see clear image. Below fig for De-Fog setting.
  • Page 13 and thus enhances the ability to distinguish features and shapes on the subject. See below for setting WDR. (2-1) GAIN: Set WDR gain level to raise up brightness of darker image. (2-2) WDR OFFSET：Wide Dynamic Range OFFSET. (2-3) RETURN: Return to last page. (3) BLC (Back Light Compensation) To adjust brightness for darker image in back light environment.
  • Page 14 (4) HSBLC (High Suppress Back Light Compensation) To identify the over luminance area by backlight, and proceed masking the area. (4-1) SELECT: Select the areas which needs to be adjusted. 4 areas are selectable. (4-2) DISPLAY: Display the selected area. (4-3) LEVEL: Set value to judge if the image is too bright.
  • Page 15 (4-8) DEFAULT: Return to factory default setting. (4-9) RETURN: Return to last page. 1.4.3 MANUAL WB Calibrate the white balance. (1) AWB: Auto white balance. (2) ATW: Auto tracing white area and calibration. (3) AWC->SET: Semi-auto white balance. Use to track the white color from current image.
  • Page 16 (1) 2D NR：ON/OFF, Edge Preserving 2D NR. (2) 3D NR：ON/OFF, Motion Adaptive 3D NR. See below: (3-1) SMART NR: Distinguish the moving object not moving noise, and auto close the “3D NR”. (3-1-1) The sensitivity to detect the moving SMART NR： object.
  • Page 17 (3-5) Return: Return to last page. (3) Return: Return to last page. 1.4.5 SPECIAL Set special functions: (1) D-EFFECT: There are few more functions in D-EFFECT, but (1-3), (1-4) and (1-6) function can only turn on one item at one time. Press Left or right to turn on or off.
  • Page 18 (1-1) FREEZE: Turn ON/OFF to freeze image. If Freeze function is turn on, the (1-2) Mirror function can not be used at the same time (1-2) MIRROR: Image rotatory. (Horizontal or Vertical) (1-3) D-ZOOM: Digitally enlarge the chose area. Digital zoom selection can from 1-62 times.
  • Page 19 the assigned area for few seconds and then return to original image. (1-4-1) SELECT: Choose the enlarge area, totally 2 areas. (1-4-2) DISPLAY: Display enlargement frame. Position and area can be set in (1-4-1) (1-4-3) SENSITIVITY: The sensitivity to detect whenever object moves.
  • Page 20 (1-5) NEG. IMAGE: Turn On/Off Negative image. (1-6) DIS: Digital Image Stabilization function. (1-7) RETURN: Return to last page. (2) MOTION: Detect the moving object, see below setting. (2-1) SELECT: Select the areas which needs to be detected. 4 areas are selectable. (2-2) DISPLAY: Display the selected area.
  • Page 21 (3) LANGUAGES: 16 languages are selectable. (4) DEFFECT: Dead Pixel compensation. (4-1) LIVE DPC: Dead Pixel Correction. Correct the live dead pixel during preview. (4-2-1) LEVEL: Set the threshold value to judge if it needs RETURN: Return to last page. (4-2) STATIC DPC: Static Dead Pixel Correction, scan and find the dead pixel then save the position for correction.
  • Page 22 (4-2-1) START: Start to do Static Dead Pixel correction. (4-2-2) LEVEL: Set the threshold value to judge if it needs to be corrected. (4-2-3) SENS-UP: Raise up the sensor’s sensitivity to compensate the dead pixel. (4-2-4) AGC: Auto Gain Control. When light is not enough, AGC will follow the threshold setting to compensate the dead pixel.

  • Page 23: Microscope Introduction

    (2) LSC：Lens Shading Correction. Use Lens shading correction to average the luminance of image. 1.4.7 RESET Return to factory default setting. Press Left/right button to choose “CHANGE” to return default. 1.4.8 RETURN Exit from menu. 1.5 Microscope introduction: 1.5.1 IR Remote Area/Indicator and ○...
  • Page 24 ○ ○ ○ (1) IR remote control aiming area ○ The indicator will blink whenever buttons are pressed. If the indicator did not blink means the signal was not delivered and please repress again (2) HDMI indicator○ When lit up, the microscope is in HDMI ：...
  • Page 25 1.5.2 Power/USB/HDMI port Caution: Please hold the cable when remove from microscope and do not disassemble cables forcefully. ○ ○ ○ (1) HDMI ○ The HDMI port is used to connect the microscope to ： a screen. Connect the microscope to the screen using the HDMI cable from the box.
  • Page 26 ○ 1.5.4 Illuminance Gooseneck Light○ : Insert the Gooseneck light clip into base near the pole, tighten the screws. Connect power with UM08’s power adaptor.

  • Page 27: Microscope Focus

    ○ 1.6 Microscope Focus The working distance for CSZ1236 lens is 300mm~20mm. The higher magnification, the smaller FOV and the shorter working distance. On the contrary, the smaller magnification, the wider FOV and longer working distance. There are 3 adjustment screws on CSZ1236 Lens. The function as following: (A) Focus Adjustment: Loose the screws and rotate left/right...
  • Page 28 rotate left/right toward C~2.8, the lighter working environment, the smaller aperture. (C) Focal Length Adjustment: The focal length is from12-36, each adjustment requires to adjust (A) Focus. If the image is not clear after adjusted (A) and (C), means the focus distance is not correct.
  • Page 29 1.6.1 Magnification chart This chart measured base on UM08-CSZ1236 on 24” screen. This is only a reference data, might not be accurate enough. CSZ1236 Zoom lens working distance: 300mm~20mm, (24” monitor) Ref data WD(mm) 300mm 200mm Aperture Focal length FOV(mm) 141.5...

  • Page 30: Microscope Accessory

    1.7 Microscope accessory 1.7.1 White balance card The white side is used to calibrate the white balance. If the object is tiny, place it onto the white balance card and move the card instead of the object.

  • Page 31: Printed Notice

    2. Printed Notice Please read the following information before operating. Maintenance Please abide by the following rules while storing or using this product: 2.1.1 Keep dry: do not place the product in a humid environment. Dry surroundings help extend the life of the product. 2.1.2 Avoid temperature shock: temperature shock (for example, taking the product into a warm room from a cold environment) will cause internal condensation inside the machine.

  • Page 32: Product Specification

    Adaptor (Output ： DC 5.0V/2.0A Input ： AC Power supplier 100-240V 50/60Hz) A/C Power 0.225A(Max) Consumption Size 115(L)×66(W)×68(T) mm Weight Host weight around 710 grams Temperature -5℃ ~ 50℃; Humidity-lower than Operation environment 85% (No Condensation) For any changes, please visit http://www.vitiny.com...
  • Page 33  Please remove the power supply from the microscope when not in use.  Do not disassemble the machine for inspection. For any problems occurring in the machine itself, please power off the device and contact us through e-mail: mltc@vitiny.com...
  • Page 34 Service fees (including transportation fees) of product inspection. Repair fees. Fees of replaced parts ViTiny Service Center Tel: 07-657-9551 Fax: 07-657-9561 Address: 10 F., No.1, Section 1, Syuecheng Road, Dashu District, Kaohsiung City 840, Taiwan (R.O.C.) Website: http://www.vitiny.com...
  • Page 35 ViTiny UM08-CSZ1236 Warranty Product Model no S/L nos. Purchase DD/MM/YYYY date Purchaser Tel no: Address Email Distributor Seal for Confirmation ( Stamp is necessary for validation of the Warranty ) ※Distributor’s seal shall include name of the shop, telephone and address※...
  • Page 36 HTTP://WWW.VITINY.COM © MicroLinks Technology Corp. All rights reserved.
