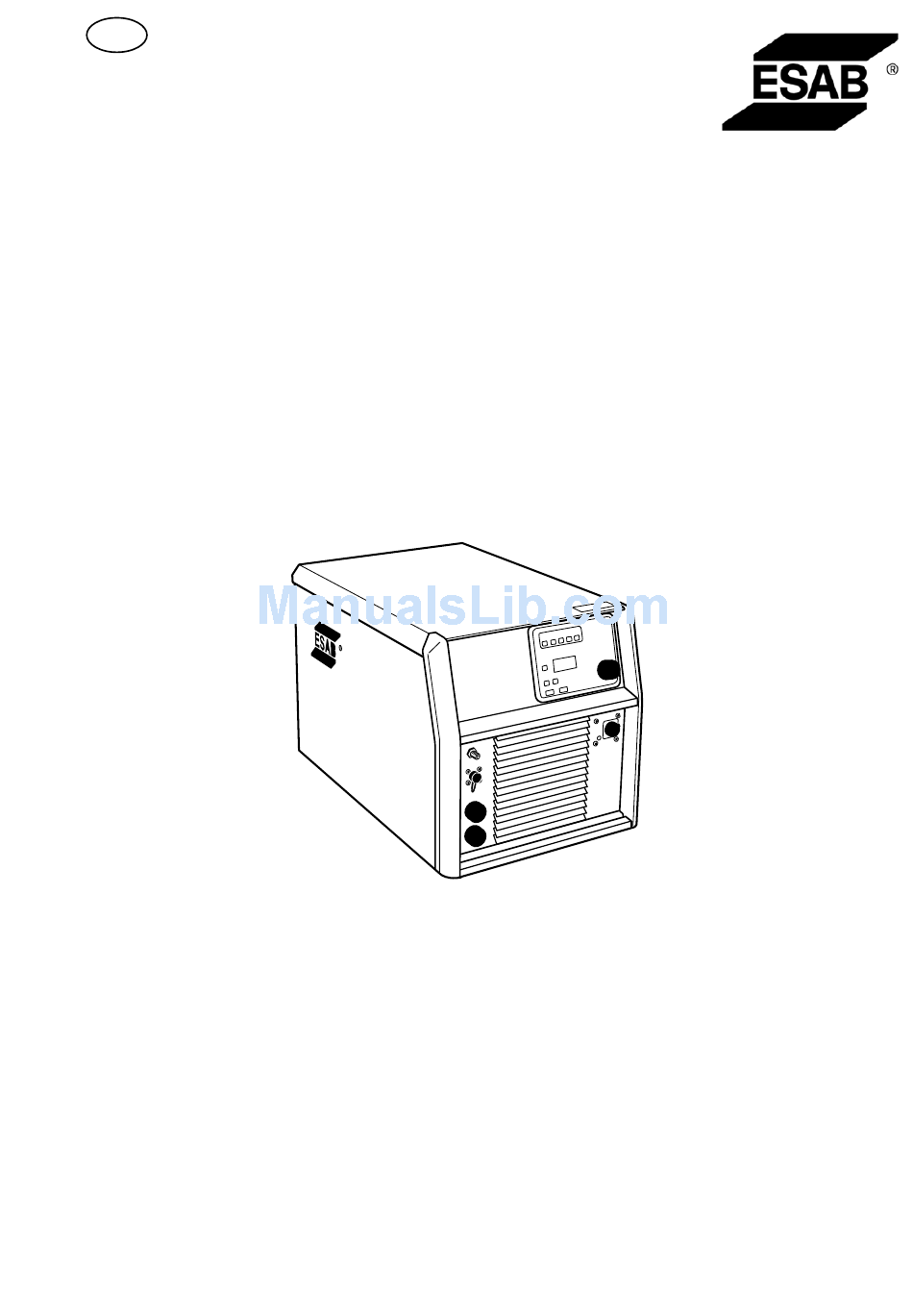

- Page 1 Origo™ Tig 3000i AC/DC Instruction manual 0459 942 101 GB 20110628 Valid for serial no. 802-xxx-xxxx, 039-xxx-xxxx...
- Page 2 - 2 -...
-
Page 3: Table Of Contents
1 SAFETY ............2 INTRODUCTION . -
Page 4: Safety
SAFETY Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be ob... - Page 5 CAUTION This product is solely intended for arc welding. CAUTION Read and understand the instruction manual before installing or operating. ESAB can provide you with all necessary welding protection and accessories. - 5 - © ESAB AB 2006 bt31d1ea...
-
Page 6: Introduction

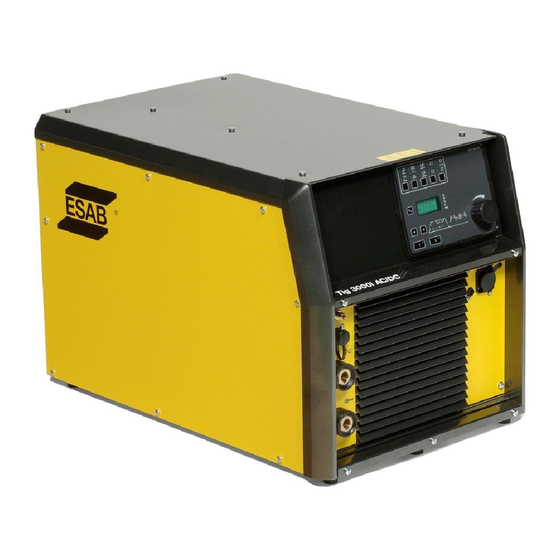

The Tig 3000i AC/DC is a TIG welding power source for alternating current (AC) or direct current (DC). It can also be used for MMA welding. ESAB's accessories for the product can be found on page 15. Equipment The power source is supplied with: Instruction manual for the welding power source, instruction manual for the control panel and 5 m return cable. -
Page 7: Installation
(see technical data). In this case it is the responsibility of the installer or user of the equipment to ensure, by consultation with the distrubution network operator if necessary, that the equipment may be connected. - 7 - © ESAB AB 2006 bt31d1ea... -
Page 8: Lifting Instruction
Note! The welding power source is designed for connection to a 230 / 400 volt system with four conductors. If the power source is to be used in countries with a higher supply voltage, the power source must be connected via a safety transformer. - 8 - © ESAB AB 2006 bt31d1ea... -
Page 9: Operation
Connection for shielding gas Connection for start signal from the welding torch CAN connection for cooling unit or remote Connection for gas to the torch control unit Key to symbols Return clamp - 9 - © ESAB AB 2006 bt31d1ea... -
Page 10: Fan Control
Clogged or blocked air inlets and outlets otherwise result in overheating. Welding torch The welding torch's wear parts should be cleaned and replaced at regular intervals in order to achieve trouble-free welding. - 10 - © ESAB AB 2006 bt31d1ea... -
Page 11: Fault-Tracing
Spare parts may be ordered through your nearest ESAB dealer, see the last page of this publication. -
Page 12: Diagram
Diagram - 12 - © ESAB AB 2006 bt31e... - Page 13 - 13 - © ESAB AB 2006 bt31e...
-
Page 14: Ordering Number
0459 839 003 Spare parts list Control panel Origot TA24 AC/DC 0459 944 Instruction manual Control panel Origot TA24 AC/DC Instruction manuals and the spare parts list are available on the Internet at www.esab.com - 14 - © ESAB AB 2006 bt31o... -
Page 15: Accessories
TIG: current, pulse and background current Remote control unit M1 10Prog CAN ..0459 491 882 Choice of on of 10 programs MIG/MAG: voltage deviation TIG and MMA: current deviation - 15 - © ESAB AB 2006 bt30a... - Page 16 0.25 m ......Return cable 5 m 50 mm ..0156 743 907 Information on Tig torches can be found in separate brochures. - 16 - © ESAB AB 2006 bt30a...
- Page 17 NOTES ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................- 17 - notes...
- Page 18 NOTES ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................- 18 - notes...
- Page 19 NOTES ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................- 19 - notes...
