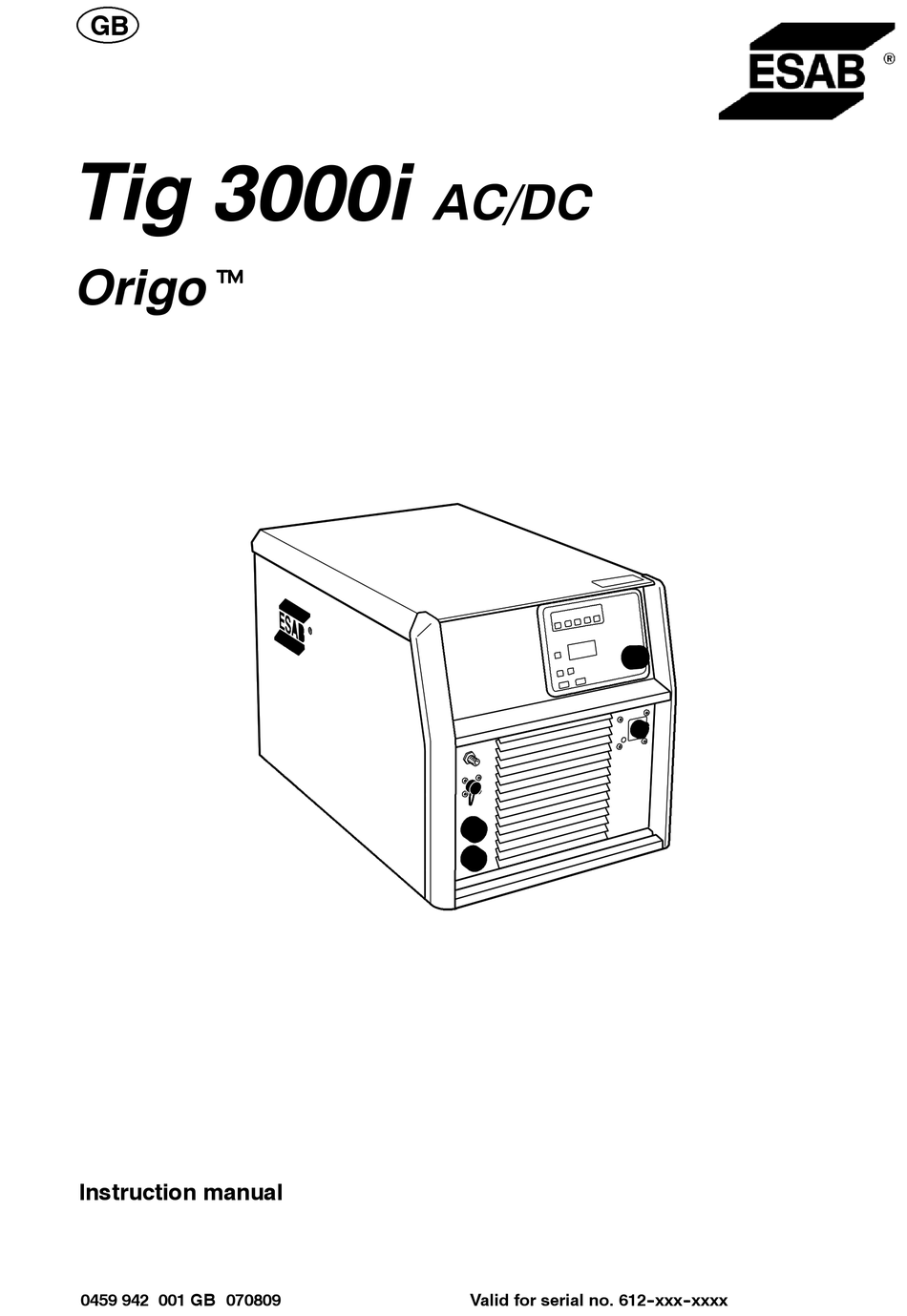

- Page 1 Tig 3000i AC/DC Origot Instruction manual 0459 942 001 GB 070809 Valid for serial no. 612- -xxx- -xxxx...
-
Page 2: Table Of Contents
1 DIRECTIVE ............2 SAFETY . -
Page 3: Directive
DIRECTIVE DECLARATION OF CONFORMITY ESAB AB, Welding Equipment, SE--695 81 Laxå, Sweden, gives its unreserved guarantee that weld- ing power source Tig 3000i AC/DC from serial number 612 are constructed and tested in compliance with the standard EN 60974--1 /--3 and EN 60974--10 in accordance with the requirements of directive (2006/95/EC) and (2004/108/EEC). - Page 4 MALFUNCTION - - Call for expert assistance in the event of malfunction. READ AND UNDERSTAND THE INSTRUCTION MANUAL BEFORE INSTALLING OR OPERATING. PROTECT YOURSELF AND OTHERS! ESAB can provide you with all necessary welding protection and accessories. WARNING! Read and understand the instruction manual before installing or operating.
-
Page 5: Introduction

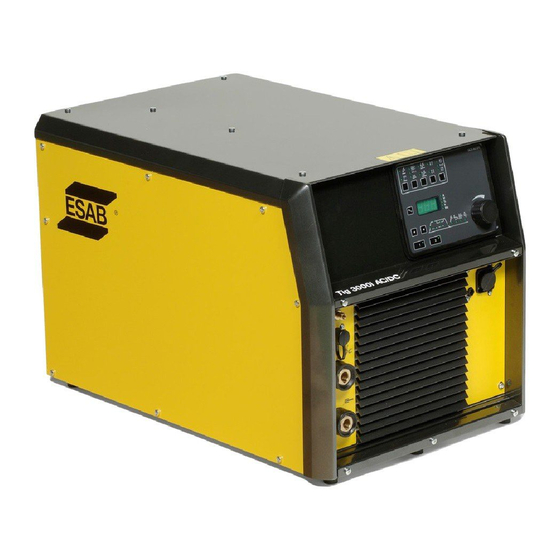

The Tig 3000i AC/DC is a TIG welding power source, which can also be used for MMA welding. It can be used with alternating current (AC) or direct current (DC). ESAB’s accessories for the product can be found on page 16. Equipment... -
Page 6: Installation
Tig 3000i AC/DC Operating temperature --10 to +40˚C Constant A- -weighted sound pressure < 70 dB Dimensions lxwxh 652 x 412 x 423 mm Weight 42 kg Insulation class transformer Enclosure class IP 23C Application class *) The minimum current during AC welding depends on the alloy used for the aluminium plates and their surface cleanliness. -
Page 7: Mains Power Supply
Mains power supply Check that the welding power source is connected to the correct mains power supply voltage, and that it is protected by the correct fuse size. A protective earth connection must be made in accordance with regulations. Rating plate with supply connection data Recommended fuse sizes and minimum cable area Tig 3000i AC/DC Mains voltage... -
Page 8: Connections And Control Devices
Connections and control devices Control panel, Connection for return cable see separate instruction manual Mains voltage switch Connection for welding cable or welding torch Connection for shielding gas Connection for start signal from the welding torch CAN connection for cooling unit or remote Connection for gas to the torch control unit Key to symbols... -
Page 9: Maintenance
MAINTENANCE Regular maintenance is important for safe, reliable operation. Note! All guarantee undertakings from the supplier cease to apply if the customer himself attempts any work in the product during the guarantee period in order to rectify any faults. Maintenance must be executed by a professional. Only those persons who have appropriate electrical knowledge (authorized personnel) may remove the safety plates. -
Page 10: Ordering Spare Parts
Spare parts may be ordered through your nearest ESAB dealer, see the last page of this publication. - Page 11 - - 11 - -...
-
Page 12: Diagram
Diagram - - 12 - - Edition 070809 bt31e... - Page 13 - - 13 - - Edition 070809 bt31e...
-
Page 14: Ordering Number
0459 839 003 Spare parts list Control panel Origot TA24 AC/DC 0459 944 Instruction manual Control panel Origot TA24 AC/DC Instruction manuals and the spare parts list are available on the Internet at www.esab.com - - 14 - - Edition 070809 bt31o... - Page 15 - - 15 - -...
-
Page 16: Accessories
Tig 3000i AC/DC Accessories Trolley 2 wheel ......0459 366 890 Trolley 4 wheel ......0460 060 880 Cooling unit CoolMidi 1800 . - Page 17 Tig 3000i AC/DC Remote control unit AT1 CAN ... . 0459 491 883 MMA and TIG: current Remote control unit AT1 CF CAN ..0459 491 884 MMA and TIG: rough and fine setting of current.
- Page 18 - - 18 - -...
- Page 19 - - 19 - -...
- Page 20 ESAB subsidiaries and representative offices Europe Asia/Pacific Representative offices NORWAY AS ESAB AUSTRIA BULGARIA CHINA Larvik ESAB Ges.m.b.H ESAB Representative Office Shanghai ESAB A/P Tel: +47 33 12 10 00 Vienna- -Liesing Sofia Shanghai Fax: +47 33 11 52 03...
