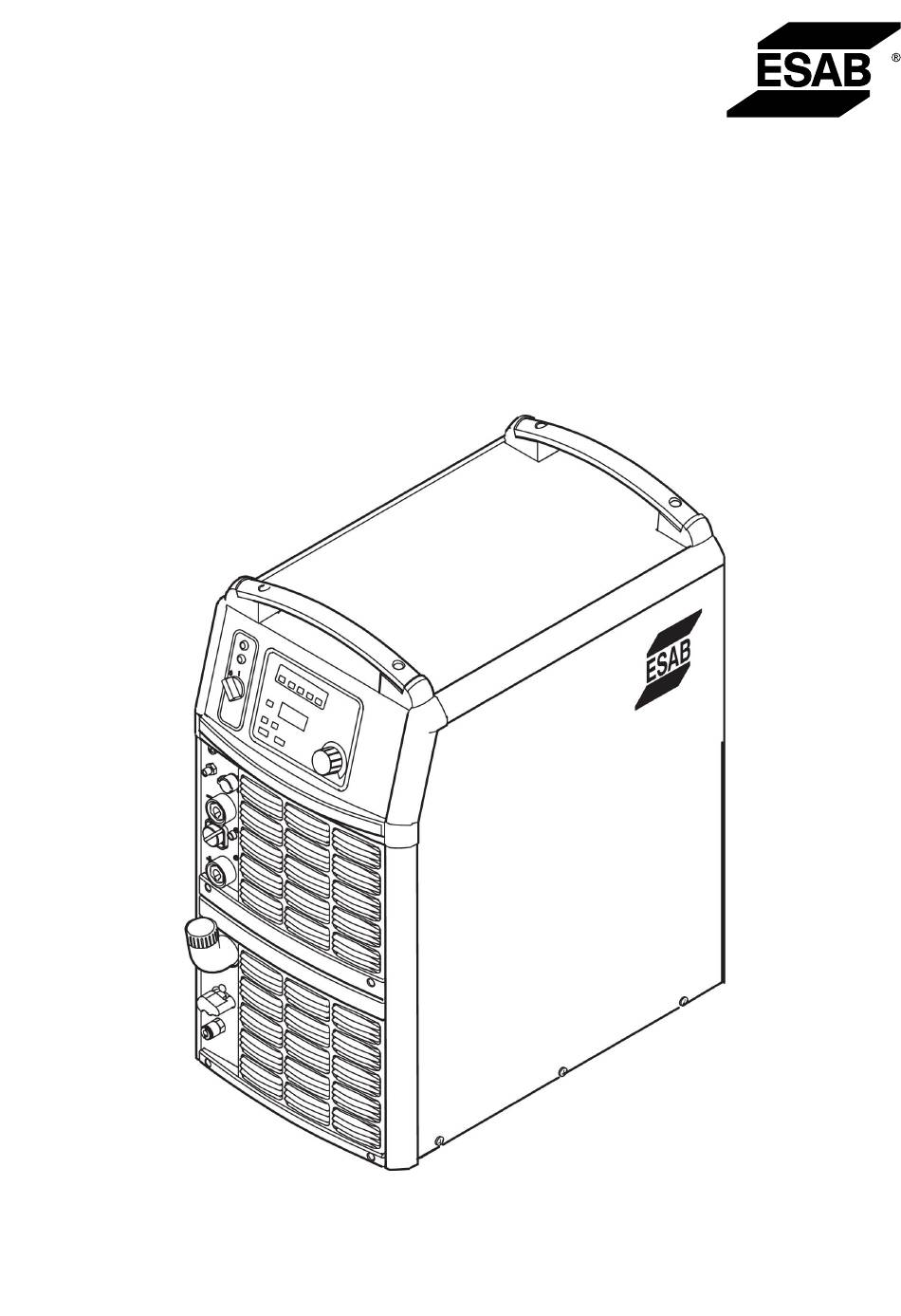

- Page 1 Origo™ Tig 4300iw AC/DC Instruction manual Valid for: 950-xxx-xxxx 0460 157 301 GB 20181217...
-
Page 3: Table Of Contents
Cleaning the filter ................... Topping up the coolant ................TROUBLESHOOTING ................. ORDERING SPARE PARTS ................ DIAGRAM ......................ORDERING NUMBERS ..................22 SPARE PARTS LIST.................... 23 ACCESSORIES ....................24 Rights reserved to alter specifications without notice. 0460 157 301 © ESAB AB 2018... -
Page 4: Safety
Safety Data Sheets (SDSs). Safety precautions Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be observed in addition to the standard regulations that apply to the workplace. - Page 5 Protect your eyes and body. Use the correct welding screen and filter lens and wear protective clothing. • Protect bystanders with suitable screens or curtains. NOISE - Excessive noise can damage hearing Protect your ears. Use earmuffs or other hearing protection. 0460 157 301 - 5 - © ESAB AB 2018...
- Page 6 For further information contact the nearest ESAB dealer. ESAB has an assortment of welding accessories and personal protection equipment for purchase. For ordering information contact your local ESAB dealer or visit us on our website. 0460 157 301 - 6 - ©...
-
Page 7: Introduction

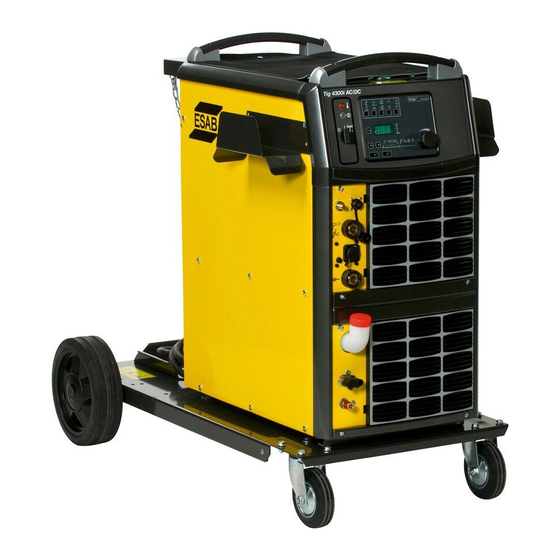

The Tig 4300iw AC/DC is a TIG welding power source, which can also be used for MMA welding. The power welding source can be used with alternating current (AC) or direct current (DC). ESAB accessories for the product can be found in the "ACCESSORIES" chapter of this manual. Equipment The power source is delivered with 5 m (16.4 ft) mains cable including the plug, 5 m (16.4 ft) -
Page 8: Technical Data
-10 to +40 °C (+14 to +104 °F) Transportation temperature -20 to +55 °C (-4 to +131 °F) Dimensions l × w × h 625 × 394 × 776 mm (24.6 × 15.5 × 30.5 in.) Continual sound pressure at no-load <70 db (A) Weight 95 kg (209.4 lb) Insulation class 0460 157 301 - 8 - © ESAB AB 2018... - Page 9 Cooling unit Cooling power 2.0 kW at 40 °C (104 °F) temperature difference and flow 1.0 l/min (0.26 gpm) Coolant ESAB ready mixed coolant Liquid quantity 5.5 l (1.45 gal) Maximum water flow 2.0 l/min (0.53 gpm) Duty cycle The duty cycle refers to the time as a percentage of a ten-minute period that you can weld or cut at a certain load without overloading.
-
Page 10: Installation
With power source With trolley and power source Positioning of the power source Position the welding power source in such a way that its cooling air inlets and outlets are not obstructed. 0460 157 301 - 10 - © ESAB AB 2018... -
Page 11: Mains Power Supply
The mains cable areas and fuse sizes as shown above are in accordance with Swedish regulations. For other regions, supply cables must be suitable for the application and meet local and national regulations. 0460 157 301 - 11 - © ESAB AB 2018... -
Page 12: Operation
15 Connection for gas hose welding torch Connection for gas to the TIG torch 16 Fuse 42 V (from serial number 950-xxx-xxx only) *ELP = ESAB Logic Pump, see "Cooling unit" section. 0460 157 301 - 12 - © ESAB AB 2018... -
Page 13: Key To Symbols
They reset automatically when the temperature has fallen. Cooling unit Water lock The cooling unit is equipped with a detection system ELP (ESAB Logic Pump) which checks whether the water hoses are connected. 0460 157 301 - 13 -... - Page 14 The water flow guard interrupts the welding current in the event of loss of coolant, and displays an error message on the control panel. The water flow guard is an accessory, see "ACCESSORIES" chapter. 0460 157 301 - 14 - © ESAB AB 2018...
-
Page 15: Maintenance
Replace the front grille with the filter. Topping up the coolant Top up with coolant until it is up to the level of the filling hole. ESAB ready mixed coolant is recommended for use, see "ACCESSORIES" chapter. NOTE! Coolant must be topped up if connecting a welding torch or connection cables that are 5 m... -
Page 16: Troubleshooting
Check that the correct electrode / wire is used. • Check that the correct welding gas is being used. • Check the gas flow. • Check the main power supply fuses. 0460 157 301 - 16 - © ESAB AB 2018... -
Page 17: Ordering Spare Parts
Spare parts and wear parts can be ordered through your nearest ESAB dealer, see esab.com. When ordering, please state product type, serial number, designation and spare part number in accordance with the spare parts list. -
Page 18: Diagram
DIAGRAM DIAGRAM 0460 157 301 - 18 - © ESAB AB 2018... - Page 19 DIAGRAM 0460 157 301 - 19 - © ESAB AB 2018...
- Page 20 DIAGRAM 0460 157 301 - 20 - © ESAB AB 2018...
- Page 21 DIAGRAM Cooling Unit 0460 157 301 - 21 - © ESAB AB 2018...
-
Page 22: Ordering Numbers
Spare parts list Control Panel, Origo™ TA24 AC/DC 0459 944 xxx Instruction manual Control Panel, Origo™ TA24 AC/DC Instruction manuals and the spare parts list are available on the Internet at: www.esab.com 0460 157 301 - 22 - © ESAB AB 2018... -
Page 23: Spare Parts List
SPARE PARTS LIST SPARE PARTS LIST Item Ordering no. Denomination 0458 398 001 Filter 0458 383 991 Front grille 0460 157 301 - 23 - © ESAB AB 2018... -
Page 24: Accessories
5 m (16.4 ft) 0459 554 881 10 m (32.8 ft) 0459 554 882 15 m (49.2 ft) 0459 554 883 25 m (82.0 ft) 0459 554 884 0.25 m (0.82 ft) 0700 006 895 Return cable 5 m 70 mm (16.4 ft) 0460 157 301 - 24 - © ESAB AB 2018... - Page 25 0459 554 884 0456 855 880 Water flow guard 0.7 l/min (0.17 gpm) 0465 720 002 ESAB ready mixed coolant (10 l / 2.64 gal) Use of any other cooling liquid than the prescribed one might damage the equipment. In case of such damage, all warranty undertakings from ESAB cease to apply.
- Page 26 For contact information visit esab.com ESAB AB, Lindholmsallén 9, Box 8004, 402 77 Gothenburg, Sweden, Phone +46 (0) 31 50 90 00 http://manuals.esab.com...
