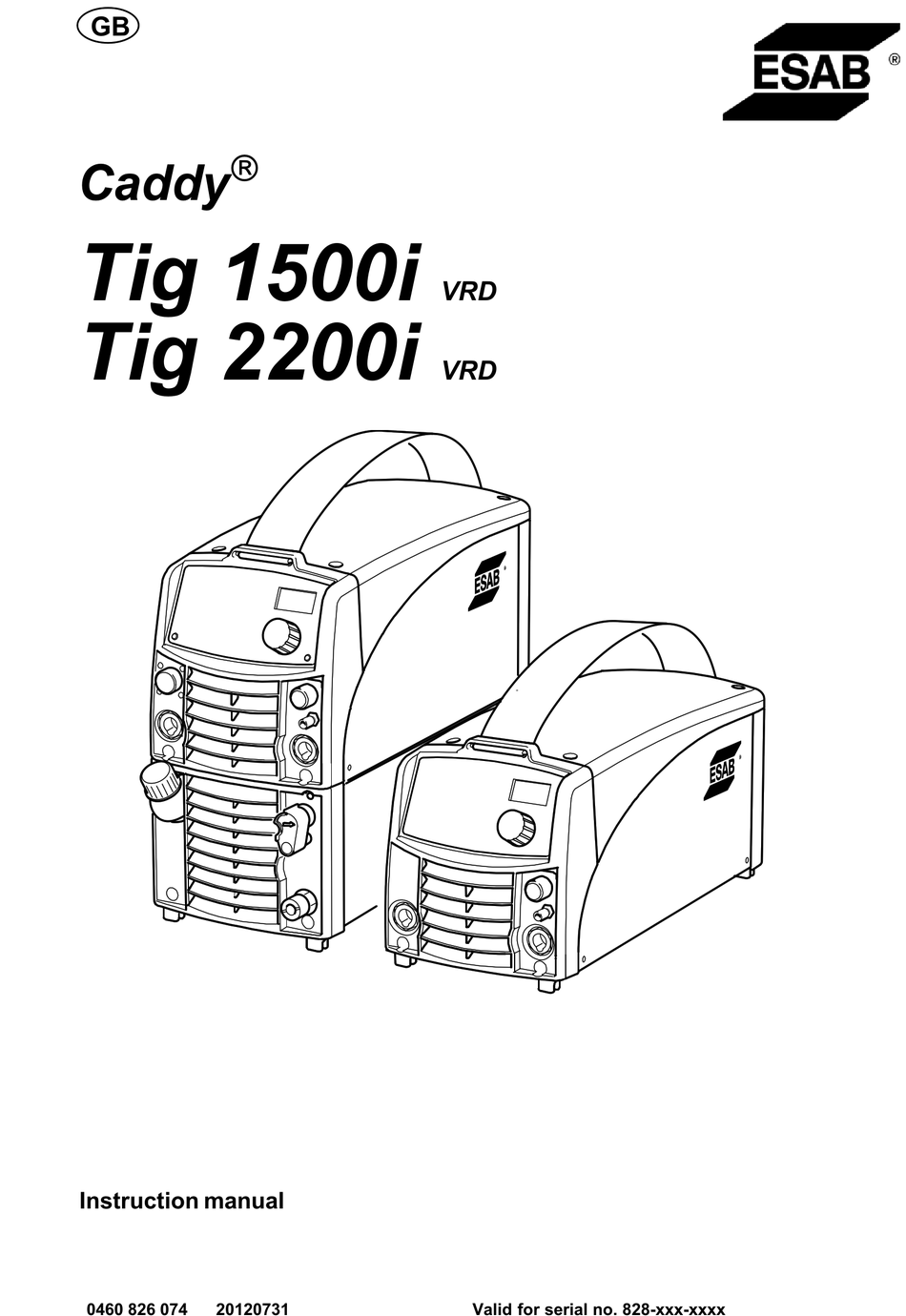

- Page 1 â Caddy Tig 1500i Tig 2200i Instruction manual 0460 826 074 20120731 Valid for serial no. 828-xxx-xxxx...
-
Page 2: Table Of Contents
1 SAFETY ............2 INTRODUCTION . -
Page 3: Safety
SAFETY Users of ESAB welding equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety pre cautions. Safety precautions must meet the requirements that apply to this type of welding equipment. - Page 4 MALFUNCTION - Call for expert assistance in the event of malfunction. Read and understand the instruction manual before installing or operating. PROTECT YOURSELF AND OTHERS! ESAB can provide you with all necessary welding protection and accessories. WARNING! Do not use the power source for thawing frozen pipes.
-
Page 5: Introduction
The Tig 1500i / 2200i is a TIG welding power source, which can also be used for MMA welding. It can be used direct current (DC). ESAB's accessories for the product can be found on page 19. Equipment The power source is supplied with a 3 m welding cable complete with a TIG-torch, 3 m return cable, 3 m mains cable, instruction manual for power source and control panel, see Ordering information on page 18. - Page 6 The symbol indicates that the power source is designed for use in areas with increased electrical hazard. Mains supply, Z Maximum permissible line impedance of the network in accordance with IEC 61000-3-11. - 6 - bt39d1aus © ESAB AB 2008...
-
Page 7: Installation
16 A NOTE! The mains cable areas and fuse sizes as shown above are in accordance with Swedish reg ulations. Use the welding power source in ac cordance with the relevant national regulations. - 7 - bt39d1aus © ESAB AB 2008... -
Page 8: Operation
* ESAB Logic Pump, see under Key to symbols Water connection The cooling unit is equipped with a detection system ELP (ESAB Logic Pump) which checks that the water hoses are connected. When connecting a water-cooled TIG torch cooling starts. -
Page 9: Tig-Welding
Whether the mains power supply is interrupted or the power unit is switched off in the normal manner, welding data will be stored and is available next time the unit is started. - 9 - bt39d1aus © ESAB AB 2008... -
Page 10: Maintenance
Check that the welding current supply and return cables are correctly connected. Check that the correct current value is set. Check that the correct electrodes are being used. Check the gas flow. - 10 - bt39d1aus © ESAB AB 2008... -
Page 11: Ordering Spare Parts
Spare parts may be ordered through your nearest ESAB dealer, see the last page of this publication. -
Page 12: Diagram
Diagram Tig 1500i TA34 - 12 - © ESAB AB 2008 bt39e... - Page 13 - 13 - © ESAB AB 2008 bt39e...
- Page 14 Tig 1500i TA33 - 14 - © ESAB AB 2008 bt39e...
- Page 15 - 15 - © ESAB AB 2008 bt39e...
- Page 16 Tig 2200i TA33/TA34 - 16 - © ESAB AB 2008 bt39e...
- Page 17 - 17 - © ESAB AB 2008 bt39e...
-
Page 18: Order Number
0459 839 028 Spare parts list Control panel, Caddy TA33 â 0459 839 028 Spare parts list Control panel, Caddy TA34 Instruction manuals and the spare parts list are available on the Internet at www.esab.com - 18 - bt39o © ESAB AB 2008... -
