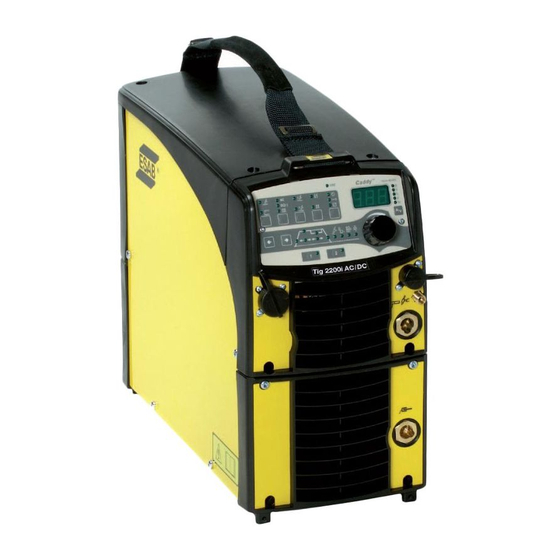

ESAB Caddy Tig 2200i AC/DC Instruction Manual
Hide thumbs
Also See for Caddy Tig 2200i AC/DC:
- User manual ,
- Service manual (64 pages) ,
- Instruction manual (32 pages)
Related Manuals for ESAB Caddy Tig 2200i AC/DC
Summary of Contents for ESAB Caddy Tig 2200i AC/DC

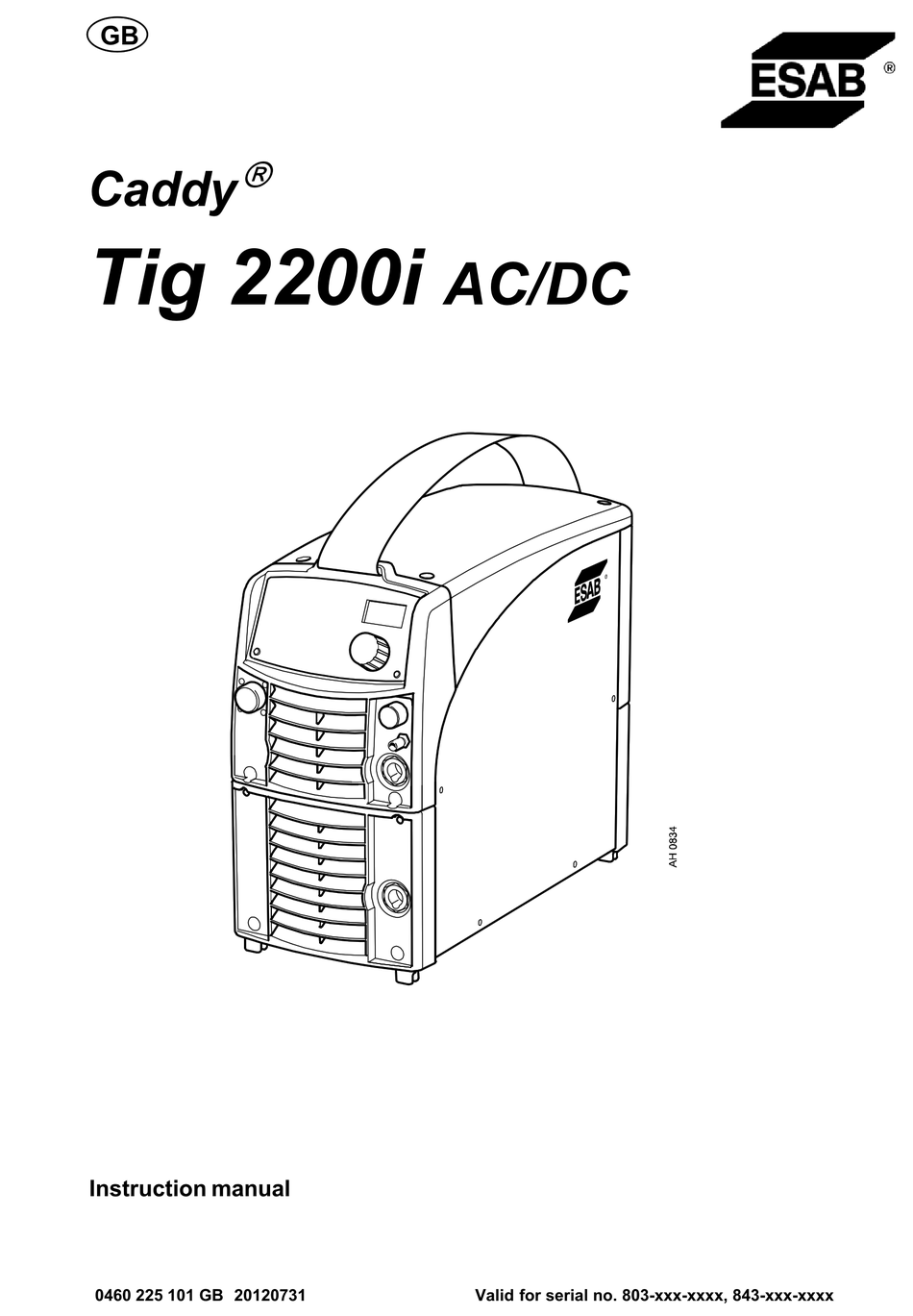

- Page 1 â Caddy Tig 2200i AC/DC Instruction manual 0460 225 101 GB 20120731 Valid for serial no. 803-xxx-xxxx, 843-xxx-xxxx...
- Page 2 - 82 -...
-
Page 3: Table Of Contents
1 SAFETY ............2 INTRODUCTION . -
Page 4: Safety
SAFETY Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be ob... - Page 5 There may be potential difficulties in ensuring electromagnetic compatibility of class A equipment in those locations, due to conducted as well as radiated disturbances. ESAB can provide you with all necessary welding protection and accessories. - 85 - bt33d1ea © ESAB AB 2007...
-
Page 6: Introduction
The Tig 2200i AC/DC is a TIG welding power source, which can also be used for MMA welding. It can be used with alternating current (AC) or direct current (DC). ESAB's accessories for the product can be found on page 97. Equipment The power source is supplied with a 5 m return cable, 3 m mains cable, carrying strap, cable holder, shaft belt, instruction manual for power source and control panel. - Page 7 The symbol indicates that the power source is designed for use in areas with increased electrical hazard. Mains supply, Z Maximum permissible line impedance of the network in accordance with IEC 61000-3-11. - 87 - bt33d1ea © ESAB AB 2007...
-
Page 8: Installation
16 A 16 A NOTE!The mains cable areas and fuse sizes as shown above are in accordance with Swedish regulations. Use the welding power source in accordance with the relevant national regulations. - 88 - bt33d1ea © ESAB AB 2007... -
Page 9: Operation
Control panel (see separate instruction Mains switch manual) Connection for torch Mains cable Connection for gas to the torch Connection for shielding gas Connection for welding cable or torch Key to symbols Return clamp - 89 - bt33d1ea © ESAB AB 2007... -
Page 10: Connection To Cooling Unit
Clogged or blocked air inlets and outlets otherwise result in overheating. Welding torch The welding torch's wear parts should be cleaned and replaced at regular intervals in order to achieve trouble-free welding. - 90 - bt33d1ea © ESAB AB 2007... -
Page 11: Fault-Tracing
Spare parts may be ordered through your nearest ESAB dealer, see the last page of this publication. - Page 12 NOTES ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................- 92 - notes...
-
Page 13: Assembly Instructions
Assembly instructions - 93 - bt33m11a © ESAB AB 2007... -
Page 14: Diagram
Diagram - 94 - bt33e © ESAB AB 2007... - Page 15 - 95 - bt33e © ESAB AB 2007...
-
Page 16: Order Number
0460 226 Instruction manual Control panel, Caddy TA33 AC/DC â 0460 227 Instruction manual Control panel, Caddy TA34 AC/DC Instruction manuals and the spare parts list are available on the Internet at www.esab.com - 96 - bt33o © ESAB AB 2007... -
Page 17: Accessories
0.25 m ........- 97 - bt33a11a © ESAB AB 2007... - Page 18 20-50 litre gasbottle ....0460 330 880 Tig torch TXH 200 4 m ....0460 012 840 - 98 - bt33a11a © ESAB AB 2007...
- Page 19 Foot pedal TI Foot CAN ....0460 315 880 Cooling unit CoolMini ....0460 144 880 - 99 - bt33a11a © ESAB AB 2007...
- Page 20 ESAB Romania Trading SRL ESAB VAMBERK s.r.o. SOUTH AFRICA ESAB Mexico S.A. Bucharest Vamberk ESAB Africa Welding & Cutting Ltd Monterrey Tel: +40 316 900 600 Tel: +420 2 819 40 885 Durbanvill 7570 - Cape Town Tel: +52 8 350 5959...
