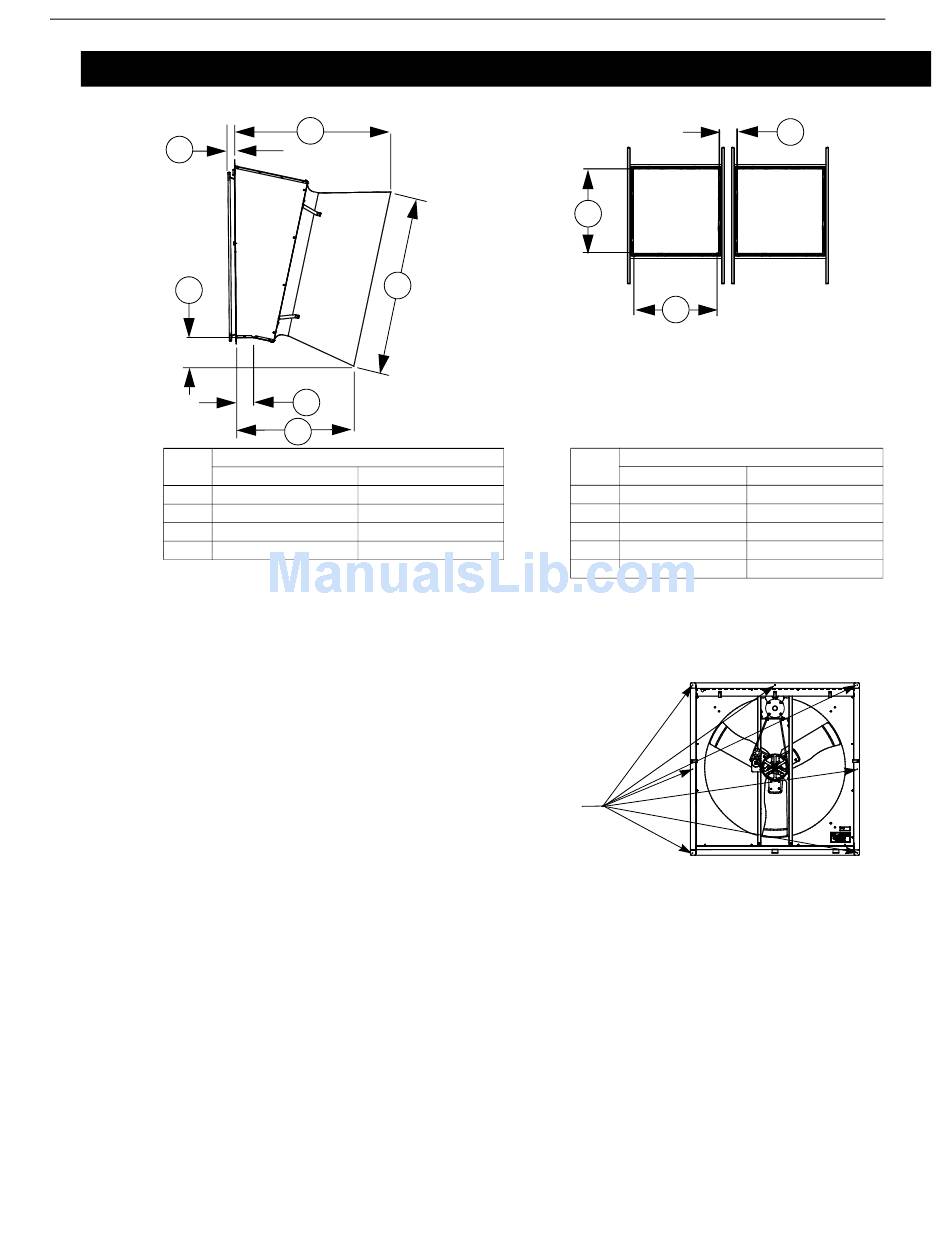

Fan and Fan Framing Dimensions
Fan and Fan Framing Dimensions
9
7
Item
48" Fans
1 55" [139.7 cm]
2 57-1/2" [146.05 cm]
3 4" [10.16 cm] Minimum 8" [20.32 cm] Minimum
4 5-3/4" [14.61 cm]
Mounting Fan in Wall
Install the Fan into the wall opening
with the Decals at the bottom as
shown. Use 7 Lag Screws to attach the
Fan to the Wall in the locations
shown.
Do Not operate these Fans with a variable speed control device. Operating static pressure should be less than
0.15 inches water column.
2
48" and 52" Vanguard Plus Belt Drive Fans Installation and Operators Instruction Manual
5
6
1760-001 05/03
4
8
Description
52" Fans
56-1/2" [143.51 cm]
58" [147.32 cm]
6" [15.24 cm]
Lag Screw Locations
2
1
Planning the layout of the spacing between fans is very
important. Spacing too close together will cause interfer-
ence between Discharge Cones. Rough Openings for
Fans are shown above.
Item
48" Fans
5 51-3/4" [131.45 cm]
6 59" [149.86 cm]
7 9-3/4" [24.77 cm]
8 39" [99.06 cm]
9 2-1/4" [5.7 cm]
3
MV1760-002 05/03
Description
52" Fans
51" [129.54 cm]
64" [162.56 cm]
10-1/4" [26.04 cm]
40" [101.6 cm]
2-1/4" [5.7 cm]
1760-027 06/03
