  • Page 1 Service manual CATER Your retail dealer S_EN Rev 110126...

  • Page 2: Table Of Contents

    Table of contents. Cater. Table of contents page General Function description Start up Overview of components Overview operation buttons Indications brewing Installation and start Operation instructions, brewing 7-10 Maintenance and cleaning 11-13 Important! Dimension sketch Programming Adjusting quantity of water...

  • Page 3: General

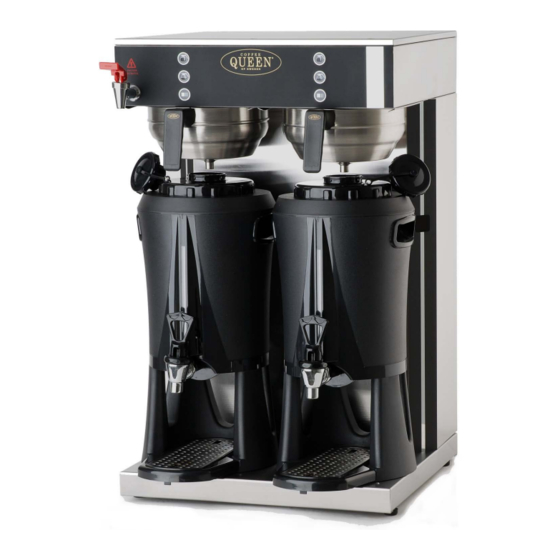

    Cater. Coffee Queen Cater We congratulate to your choice of coffee brewer. Cater single is equiped with full and half brew function and a separate outlet for hot water. Cater is delivered with a brew unit, 2 serving stations and filter holder.

  • Page 4: Overview Of Components

    Overview of components. Cater. Tap for Hot water Filter holder Programming buttons Upper lid Display Handle Serving station Level tube ON/OFF- switch Tap for coffee Drip tray insert Drip tray Warning! The machine must be connected correctly for your safety.

  • Page 5: Overview Operation Buttons

    Overview operating buttons. Cater. 1/1 Brewing 1/2 Brewing PAUSE / STOP 1/1 Brewing 1/2 Brewing Full brew = 2,5 litre Half brew = 1,25 litre Indications when brewing. Cater. While machine is brewing Full brew Display shows: see A While machine is brewing...

  • Page 6: Installation And Start

    7. INSTALLATION AND START Cater. 7.1. Place the brewer unit on a flat, level and waterproof surface. 7.2. Connect to cold water feed with connection tube supplied. Connection to a closable valve is recommended. Water pressure shall be 14,5 - 72,5 PSI (1 - 5 bar) for a correct operation Water supply to the machine is the customer’s responsibility...

  • Page 7: Operation Instructions, Brewing

    When water has reached the right temperature. Display will light up. Machine is now ready to use. 8.3. Place a filter in the filter holder. Place a filter in the filter holder. Always use Coffee Queen´s recommended coffee filter Filter type 110mm filter 110110 Article no.
  • Page 8 8. Operating instructions. Brewing with coffee Cater. 8.4. Brewing: Add coffee. Add coffee 115 - 135 gram, restaurant / catering grounded coffee). This is recommended for full brewing. Make sure that the coffee is evenly spread. 8.5. Place filter holder and serving station.
  • Page 9 8. Operating instructions. Brewing with coffee Cater. 8.6. START BREWING. 1. Push button 1/1 for 2,5 litre. Full brew 2,5 litre 1/1 Full brew 2,5 litre Half brew 1,25 litre 1/1 Half brew 1,25 litre PAUSE / STOP When ”Brewing” is ready. The ”Brewing”...
  • Page 10 8. Operating instructions. Brewing with coffee Cater. 8.7. To keep temperature and aroma. Put the lid (A) back on the serving station immediately after the brewing. 8.8. Empty the filter holder from filter and coffee grounds and clean the filter holder.

  • Page 11: Maintenance And Cleaning

    9. Maintenance and cleaning. Cater. EACH DAY NOTE! Before each brewing. Rinse the serving station with fresh tap water. Each day. Rinse serving station and filtre holder with hot water. Outside cleaning use a soft rag with liquid cleaning agent to prevent scratches.
  • Page 12 9. Maintenance and Cleaning. Cater. EACH WEEK. Cleaning serving station Dismount the level tube and clean it every week with the enclosed brush. Turn off the bigger lid, and clean the mixer tube. Mixer tube CLEANING OF SERVING STATION 2,5 LITRE.

  • Page 13: Important

    9. Maintenance and Cleaning. Cater. NOTE! Outwardly Cleaning of machine Use a soft rag with liquid cleaning agent to prevent scratches. 10. Important! Cater. Important. Do not make any alterations to the machine. Such measures may cause personal injury and the machine to fail.

  • Page 14: Dimension Sketch

    11. Dimension sketch. Cater.

  • Page 15: Programming

    12. Programming. Adjustings. - SERVICE Cater. ADJUSTING OF WATER TEMP. Press buttons full brew and half brew at the same time for 5 seconds. Buzzer beeps once. Display shows: actual setting. Adjust with the buttons; full brew = (increase water temp.) half brew = (decrease water temp.)

  • Page 16: Adjusting Quantity Of Water

    13. Adjusting quantity of water. - SERVICE Cater. This is to improve the water flow into filter holder. The flow of PDS valve is set to 0.95 litre /minute. Depending on the coarseness and amount of coffee that’s used when brewing, the flow might need adjustments to prevent overflow in the filter holder.

  • Page 17: Error Message

    14. Error message - SERVICE Cater. Error message: Display shows: E1, E2, E3, E4. LEVEL CONTROL Display shows: Level sensors short electrod is Clean level sensor. earthed, (GND) Change level sensor. but not level sensors long electrod. Cables wrongly coupled.

  • Page 18: Facts

    15. Facts. Cater. Facts: Height 676 mm Width 410 mm Depth 420 mm Weight Tank volume 2x 5 litre Electricity 400 V 2N / 4400 W Water connection ½” outside thread Capacity: 6 minutes to brew 17 cups Hot water 2x20 L / timme...

  • Page 19: Contemplated Use And Warnings

    Contemplated use and warnings. Cater. Contemplated use and warnings Coffee brewer is an appliance for delivering hot water and preparation of coffee. Its long lasting, non-toxic components are easily accessible for proper cleaning and maintenance. The user must be an adult.

  • Page 20: Spare Parts List

    17. Spare parts list. Cater Pos. nr. Art. no. Description Amount per unit Valid spare part list for cater page 22 Machine 1 1201924 FAUCET, CATER COPPER 1603864 Membrane switch double cater NA 1664002 Indicating lamp, 230v, red NA 1031646...
  • Page 21 17. Spare parts list. Serveringsstation 2,5 litre Cater Pos. nr. Art. no. Description Amount per unit Valid spare part list for servingstation page 25 1103351 1103452 Brew-Thru Lid SS Tube 1103453 Main housing 1103455 Lower Housing 1103456 Outlet Tube Jacket...

  • Page 22: Exploded View Machine

    18. Exploded view. Machine 1 Cater...
  • Page 23 18. Exploded view. Machine 2 Cater...
  • Page 24 18. Exploded view. Tank Cater...
  • Page 25 18. Exploded view. Serving station 2,5 litre Cater.
  • Page 26 Cater For Service Please contact Your retail dealer CREM International AB Box 10, Viksgränd 2, SE-670 40 Åmotfors, Sweden Tel: +46 (0)570-477 00, Fax: +46 (0)570-47719 E-mail: info.se@creminternational.com www.creminternational.com Art. no. 1740022...
