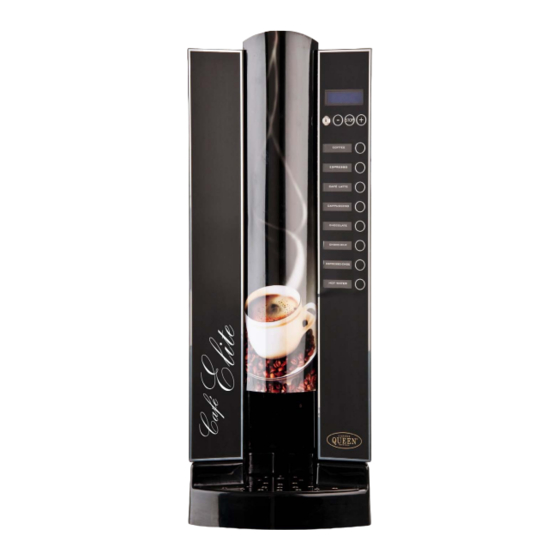

Coffee Queen CAFÉ ELITE User Manual

Hide thumbs Also See for CAFÉ ELITE:
Table of Contents

Advertisement

Quick Links

See also: Technical Manual

User manual

CAFÉ ELITE
Your retail dealer
U_EN
Rev. 110119

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAFÉ ELITE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Coffee Queen CAFÉ ELITE

Summary of Contents for Coffee Queen CAFÉ ELITE

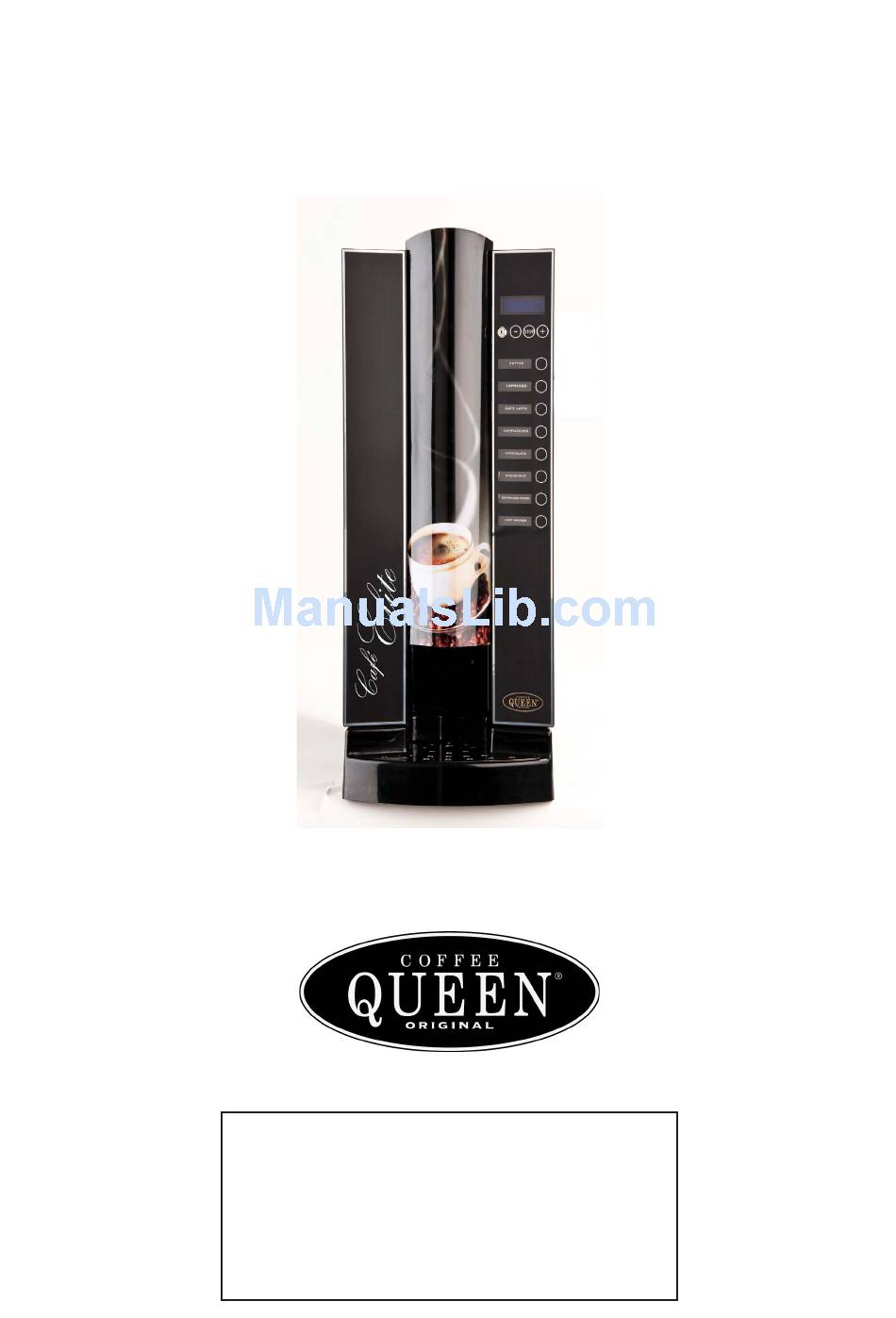

  • Page 1: User Manual

    User manual CAFÉ ELITE Your retail dealer U_EN Rev. 110119...

  • Page 2: Table Of Contents

    1. Table of contents. Contents sid. General; Warning and safety/ Function descriptions Overview components, front Overview components, inside Overview components, membrane switch Overview, user card SERVICE; Installation and start up Place machine Connecting electrical, water First start up Fill ingredients containers Operation Dispensing drinks Brewing of jug...
  • Page 3 2. General. CAFÉ ELITE Congratulations on choosing a Café Elite Instant coffee machine . Read this manual before using the coffee machine for the first time. Only qualified personnel should install the machine. Check that all parts are free of defects. If they are not, stop the installation and contact your dealer. Keep this manual in a safe place. Crem International AB is certified in accordance with ISO 9001 and ISO 14001, ensuring that its products have the lowest possible environmental impact.

  • Page 4: First Start Up

    2. General. CAFÉ ELITE Function description: Café Elite has three nozzles, one for hot water and two for a choice of other drinks. Café Elite has eight buttons, one of which is generally reserved for hot water only and the others are programmable for dispensing a choice of other drinks. Café...
  • Page 5 3. View of components, front CAFÉ ELITE Display Strength of drinks ++ or - - Key switch (cup and jug) Card reader Door lock Drinks outlet Drip tray insert Drip tray...
  • Page 6 3. View of components, inside CAFÉ ELITE Canister lids Canisters Chute Mixing bowl ON/ OFF Service lid main switch (for emptying water tank) Drinks outlet...
  • Page 7 3. Overview of components, membrane switch CAFÉ ELITE Membrane switch, function buttons Press the + button if you wish to increase the strength of the drink or go forwards in menu. Press the - button if you wish to decrease the strength of the drink or go backwards in menu. Press the Back button if you want to leave the submenu and go back to the main menu.
  • Page 8 3. Overview of components, User Card CAFÉ ELITE 5. Overview of components, function buttons AC12 USER CARD. USER CARD Item number: 1602693.is used for adjusting drinks and counters. The user card is supplied by your dealer. Insert the user card, according to the illustration. To use the machine again. Remove the card and keep it in a safe place.
  • Page 9 4. Service. Installation and starting CAFÉ ELITE 4.1. Place the machine on a flat Connect the electrical plug to a separate waterproof surface. grounded wall socket Grounded wall socket 230V 10A 90º Attention! Make sure there is a space behind the machine for free flow of air. (minimum 10cm). 4.2. Water connection Connect to a cold water supply inlet 1/2”Radius using the tube supplied. In areas with high levels of lime, a water filter should be installed.
  • Page 10 4. Service. Installation and start CAFÉ ELITE First start up 4.4. Open the door. 4.5. Turn ON the main switch behind the door. 4.6. Close the door. 4.7. The display will show: “water level low” “Press Enter” 4.8. Press the button to start up machine. ON / OFF main switch 4.9. Displayen shows: “filling water”...
  • Page 11 4. Service. Installation and start CAFÉ ELITE 4.12. Fill canisters with ingredients. Take out ingredient canisters (to avoid any spillage in the machine) and fill them with ingredients. 4.12.1. Loosen ingredients canister. 4.12.2. Remove lid and fill with ingredients. 4.12.3. Reassemble canisters. When placing the ingredient canisters; Make sure that the outlet pipes on the ingredient canisters are touching the steam traps (A). (A). (A).

  • Page 12: Operation Dispensing Drinks

    5. Operation; Dispensing drinks CAFÉ ELITE 5.1. Place a cup in the centre of the drip tray. 5.2. The strength has a standard setting, if you wish to increase or decrease it, do as follows. For a stronger drink increase by pushing button. or alternatively For a weaker drink decrease by pushing button.

  • Page 13: Brewing Of Jug

    5. Operation. Brewing coffee in a jug. CAFÉ ELITE Brewing coffee in jug. Place a jug in the centre of drip tray. Serving pot 1,2L art.no. 1103091 Turn on the key with jug symbole clockwise. 6 cups of brewing is standard settings, Change amount of cups by pushing + or - button. Optional up to 12 cups or down to 1 cup brewing.

  • Page 14: Cleaning Daily Cleaning

    6. CLEANING: Daily Cleaning CAFÉ ELITE Automatic cleaning of mixing system. 1. Put a container that takes c. 0.5 litres under the dispenser 2. Insert the user card in the card reader. 3. Display shows Service Menu, Clean Machine. 4. Press the E button. 5. Move through the menu until the display shows Select Cleaning, Clean Mixer.

  • Page 15: Automatic Cleaning Of Valves

    6. CLEANING: Daily Cleaning CAFÉ ELITE Automatic cleaning of valves. 1. Put a container that takes c. 0.5 litres under the dispenser. 2. Insert the user card in the card reader. 3. Display shows Service Menu, Clean Machine. 4. Press the E button. 5. Move through the menu until the display shows Select Cleaning, Clean Valves.

  • Page 16: Cleaning Weekly

    7. CLEANING: Weekly cleaning CAFÉ ELITE Disassemble: the mixer system 1. Loosen canister and output hose. see fig. 1. 2. Turn the lever anticlockwise. see fig. 2. 3. Loosen the mixing bowl by pull straight out. see fig. 3. Fig 1. Fig 2. Fig 3. 4. Loosen whipper by pulling it straight out. see fig. 4 5. Loosen the mounting plate. Turn the lever anticlockwise, until it stops.see fig. 5. Fig 4. Fig 5. Reassembly mixing system. See next page.

  • Page 17: Wash Parts

    7. CLEANING: Weekly cleaning CAFÉ ELITE Wash these parts. Clean with a moist Mixing bowl Condensation trap Mounting plate Whipper cloth and wipe dry. All parts must be dry before reassembly. Reassembly mixer system reversed. CHECK all seals before reassembly of parts. see fig. 6. The plane side of the whipper motor shaft must correspond with the marking on the whipper. see fig. 7. Fit the whipper, push until a slight clicking sound can be heard. Follow the instructions of the mixer, arrow. It is only possible to fit the whipper in one way.

  • Page 18: Failure Messages

    8. Failure messages. Failure messages which can mostly be corrected without any help from service company 1. Display shows: ”water level low” ”Press enter”. Check if water tap is open. Press button. ”water level low” ”press enter” 2. Display shows normal: but no drink is coming. Possible cause of failure: Mechanical stop in the ingredients canisters or whipper unit.

  • Page 19: Cleaning And Maintenance

    10. Cleaning and maintenance. CAFÉ ELITE Cleaning the outside; Use a soft rag and liquid cleaning agent to prevent scratches. NOTE! The machine must not be covered with or immersed in water. TO BE WASHED AS NEEDED Drip tray and drip tray insert should be washed by hand in ordinary dishwater. Do not wash in a dish washing machine! NB: All parts must be dry before being re-inserted.

  • Page 20: Programming

    11. PROGRAMMING CAFÉ ELITE Activate programming with the user card. 1. Insert the user card in the card reader. Displayen shows: Service Menu, Clean Machine Function buttons programming Press this button if you wish to leave the submenu and return to the main menu. Press the enter button if you want to enter a menu, alter the value or a setting. Alter a value by pressing the button or the button.

  • Page 21: Programming Main Menu

    11. PROGRAMMING MAIN MENU CAFÉ ELITE PROGRAMMING AND SETTINGS. Service Menu Display shows Clean Machine Press button Service Menu Display shows Counters Press button...

  • Page 22: Clean Machine

    11. PROGRAMMING Clean Machine CAFÉ ELITE Place card in the card reader. Service Menu Clean Machine Press E-button Press E Machine starts cleaning mixer Select Cleaning system Clean Mixer To go forward in menu press Press E-button Press E Machine starts clean valves Select Cleaning Clean Valves...
  • Page 23 11. PROGRAMMING Counters CAFÉ ELITE Se the number of performed cleanings or reset the counter: Service Menu Counters Press button Press E Press E Beverage counter Drink 1 Counters Per beverage Served xxx Beverages To go forward in menu. Press Drink 2 Served xxx Press E Beverage counter Total Beverages Total Served Served xxx Step forwards in...

  • Page 24: Counters

    11. PROGRAMMING Counters CAFÉ ELITE Se the number of performed cleanings or reset the counter: Service Menu Counters Press button Press Counters Clean counter Clean counter Total 00 Press button Press Press Water Filter Counters Reset? NO/YES Reset Filter Water Filter Months Left 6 Standard = 6 Step forward in menu months Press Press...
  • Page 25 CAFÈ ELITE FOR SERVICE Please contact your retail dealer Your retail dealer ................................................CREM International AB Box 10, Viksgränd 2, SE-670 40 Åmotfors, Sweden Tel: +46 (0)570-477 00, Fax: +46 (0)570-47719 E-mail: info.se@creminternational.com www.creminternational.com Art. nr/Art. no.1730114...
