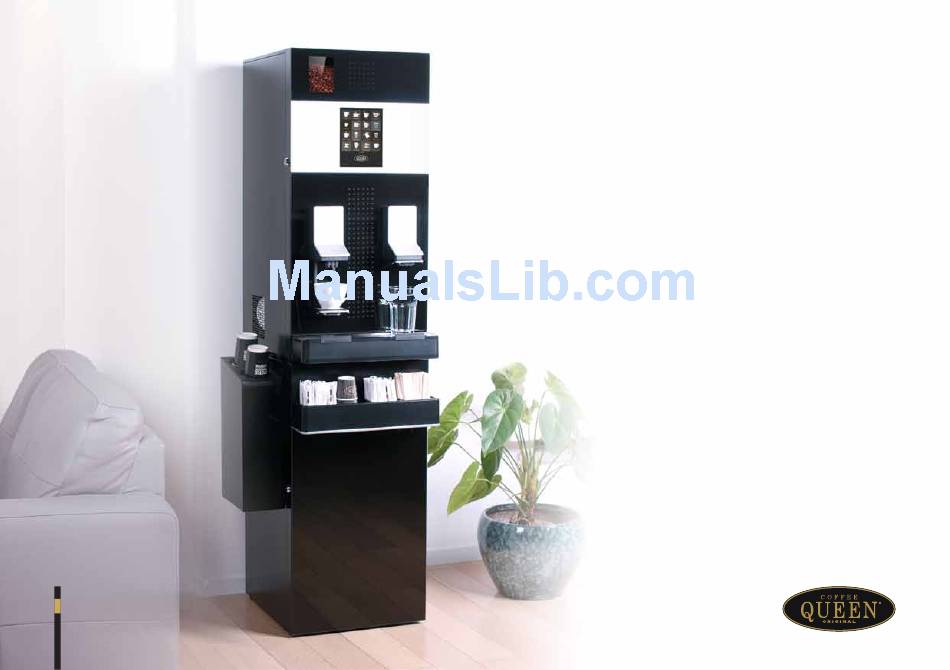

- Page 1 CQUBE EVO CLEANING AND CARE MANUAL EVO_C&CM_EN Part No.: 1764256_05...
-
Page 2: Table Of Contents
CONTENTS CONTENTS REASSEMBLY PROCEDURE 15 Step 10: Reassemble the brewing system INTRODUCTION 16 Step 11: Reassemble the mixing system 3 Cleaning and care overview 17 Step 12: Reassemble the drink outlet beam bracket 3 Required equipment 17 Step 13: Fill and replace the canisters 3 Optional equipment 18 Step 14: Fill and replace the bean hopper (MF13 only) 18 Step 15: Replace the waste bin... -
Page 3: Introduction
INTRODUCTION Cleaning and care overview This manual has been optimized for cleaning and care of the appliance and base cabinet Responsible Person: Task: Reference Guide: by a hygiene technician on a monthly (every four weeks) basis. As such, it is expressly focused on cleaning the machine in the most efficient manner possible while still Daily cleaning guaranteeing a complete and thorough cleaning procedure. -
Page 4: Operator Information
OPERATOR INFORMATION Accessing the Service Menu Open the door, remove the rubber cover and insert the 02 02 03 03 03 Operator USB stick into the USB port (see Fig. 1). Within a few seconds the Service Menu will display on the touchscreen (see Fig. -
Page 5: Monthly Cleaning Procedure
MONTHLY CLEANING PROCEDURE Step 1: Run the automatic valve and mixer cleaning functions Place the cleaning container on the Enter the Service Menu then select Select the Clean Valves function and Select the Clean Mixer function and drip tray underneath both outlets. the Cleaning &... -
Page 6: Step 2: Run The Automatic Brewer Cleaning Function
MONTHLY CLEANING PROCEDURE Step 2: Run the automatic brewer cleaning function WARNING: Cleaning water is very hot! Important!: For brewer cleaning only use the cleaning powder (article number: 1104161) which is compatible with the brewer material. Unlock and open the door. Rotate the waste bin (or other large Select the Clean Brewer function and container) 90 degrees inside the... -
Page 7: Step 3: Clean The Drip Tray
MONTHLY CLEANING PROCEDURE Step 3: Clean the drip tray Remove the cup slider liners and grids. Wash the drip tray, cup slider liner and all grids with warm water Dry all parts and set aside. and scrub them with a brush, then rinse with clean water. -
Page 8: Step 4: Clean The Mixing System
MONTHLY CLEANING PROCEDURE Step 4: Clean the mixing system 03 03 03 Open the door. Turn the canister chute Lift the canister slightly and slide it out to Disconnect the tubes from the mixer Rotate the mounting plate levers clear the mixing bowl. anticlockwise to the 5:00 position. -
Page 9: Step 5: Clean The Canister Bodies
MONTHLY CLEANING PROCEDURE Step 5: Clean the canister bodies Remove the coffee (MF04 only) and Pull the outlets off then clean the outside of ingredient canisters. each canister with a damp cloth. Step 6: Clean the canister outlets Soak all the mixing system parts and canister outlets Clean out any remaining ingredients from the all of the Replace the outlets back onto the correct in a bin with warm water and cleaning agent for a... -
Page 10: Step 7: Cleaning The Brewing System - Vki Brewer Equipped Models
MONTHLY CLEANING PROCEDURE Step 7: Cleaning the brewing system - VKI brewer equipped models Remove the waste guides by lifting them Disconnect the coffee outlet from the Pull the tube off of the water supply. Use the brewer motor rotating tool up about 1cm toward the brewer until brewer and the water outlets from the to rotate the brewer so that the piston... - Page 11 MONTHLY CLEANING PROCEDURE Step 7: Cleaning the brewing system - VKI brewer equipped models (continued) 07 07 08 08 Wash all these parts with warm water Wash the inside and top of the brew Reassemble the fi lter in the brewer by Reassemble the brew chamber on the and a brush.
-
Page 12: Step 2: Clean The Waste Bin
MONTHLY CLEANING PROCEDURE Step 2: Clean the waste bin For countertop machines remove the waste bin from the machine. For base Rinse the waste bin (and waste funnel Dry all parts and replace the waste cabinet-mounted machines, remove the waste chute from the machine and the for machines with base cabinet) with bag with new, then set aside. -
Page 13: Step 8: Clean The Grinder, Bean Hopper And Grinder Area (Mf13 Only)
MONTHLY CLEANING PROCEDURE Step 8: Clean the grinder, bean hopper and grinder area (MF13 only) Remove the bean hopper and Sweep up any beans that have spilled Add one capful of GRINDZ cleaning Place a container under the grinder temporarily store the remaining beans. into the bean hopper slider assembly. -
Page 14: Step 9: Clean The Machine And Base Cabinet Interiors
MONTHLY CLEANING PROCEDURE Step 9: Clean the machine and base cabinet interiors Remove the drink outlets and wash Using a spray kitchen cleaner, clean the area around the brewer, mixers, and in the Clean the inside of the door, including them with warm water and scrub bottom of the machine below the waste bin/waste chute (see Fig. -
Page 15: Reassembly Procedure
REASSEMBLY PROCEDURE Step 10: Reassemble the brewing system 03 03 Reinstall the brew chamber on top of Reinstall the brewer, by hooking it on Reinstall the steam trap and connect Reinstall the waste guides. the brewer, making sure the studs snap the screw studs then snap the crank the tubes. -
Page 16: Step 11: Reassemble The Mixing System
REASSEMBLY PROCEDURE Step 11: Reassemble the mixing system Reinstall the mixer mounting plate onto Ensure the mounting plate handle is in With the arrow facing out (A), align it with the fl at area on the shaft (B) and slide the the motor shaft and push it all the way the 4:00 o’clock position when inserted, disk onto the shaft until it latches (C). -
Page 17: Step 12: Reassemble The Drink Outlet Beam Bracket
REASSEMBLY PROCEDURE Step 12: Reassemble the drink outlet beam bracket Tilted back slightly at the top, hook the outlet Insert the water spout(s) into the beam bracket beam onto the upper screws studs, then rotate and align the coffee spout in its housing. it back to secure the bottom. -
Page 18: Step 14: Fill And Replace The Bean Hopper (Mf13 Only)
REASSEMBLY PROCEDURE Step 14: Fill and replace the bean hopper (MF13 only) Refi ll the bean hopper with the stored beans Slide the bean hopper all the way into the and top off with fresh coffee beans as needed. housing and ensure the bean hopper gates are in the opened position. -
Page 19: Step 16: Reassemble The Drip Tray, Cup Slider Grids, And Accessories
REASSEMBLY PROCEDURE Step 16: Reassemble the drip tray, cup slider grids, and accessories Reinstall the drip tray. Reinstall the cup slider grids. Reinstall the condiment shelf and Refi ll the cup dispenser(s). restock all items. Step 17: Make test drinks First, make one cup of black coffee Second, make one drink requiring to ensure the brewer is assembled... - Page 20 www.creminternational.com...
