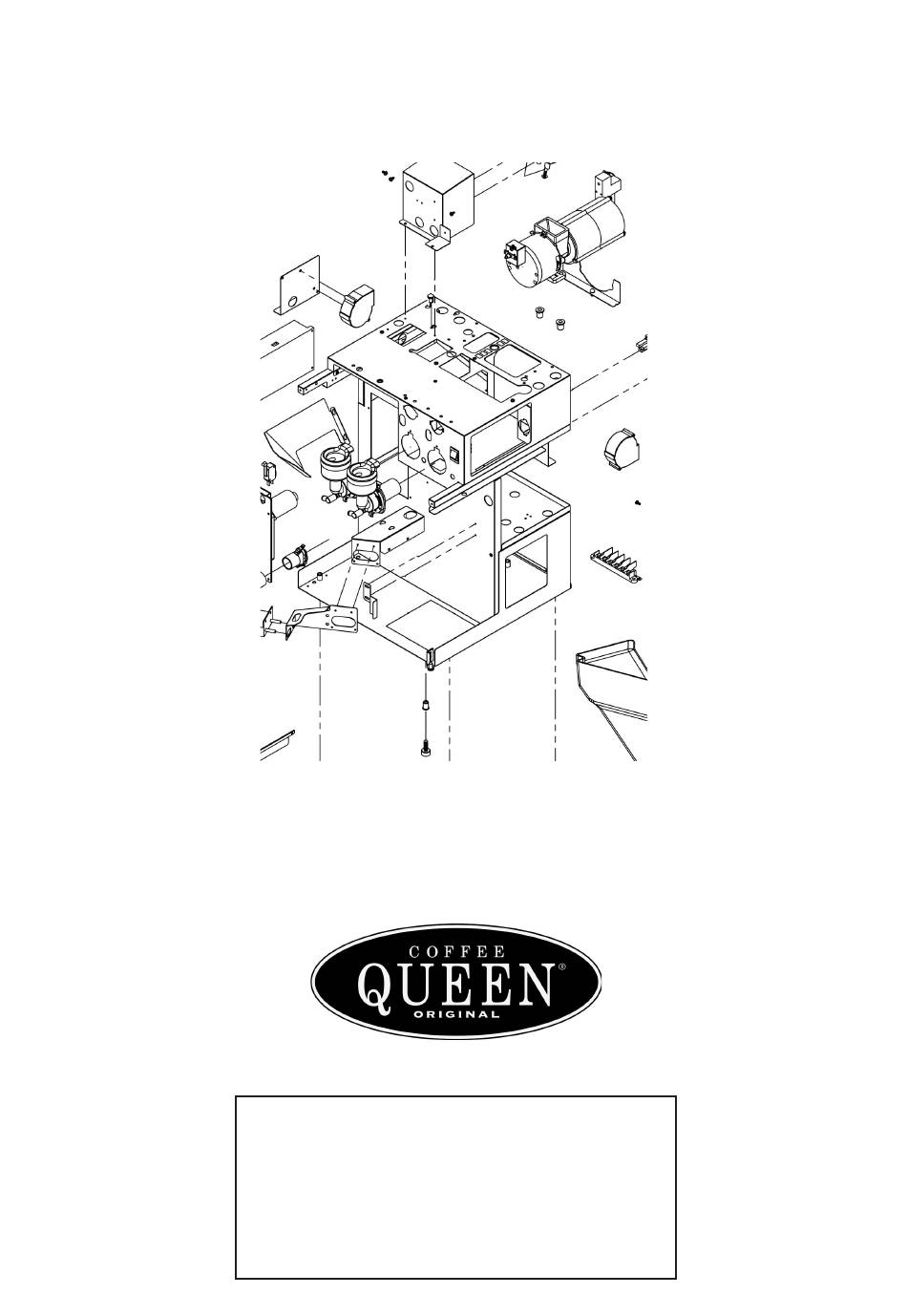

  • Page 1 TECHNICAL MANUAL CAFÉ ELITE Your retail dealer Rev. 110202...

  • Page 2: Table Of Contents

    1. Table of contents. Technical manual CAFÉ ELITE Contents sid. General Overview User card Warning message shown in display 5 - 6 Error code description Circuit diagram Circuit diagram UC and IO Pay card Spare part list 10-11 Exploded view 12 - 16 Dimension sketch Serviceintervals...

  • Page 3: General

    2. General. CAFÉ ELITE Function description: Café Elite has three nozzles, one for hot water and two for a choice of other drinks. Café Elite has eight buttons, one of which is generally reserved for hot water only and the others are programmable for dispensing a choice of other drinks. Café...

  • Page 4: Overview User Card

    3. Overview of components, User Card CAFÉ ELITE 5. Overview of components, function buttons AC12 TECHNICAL SERVICE CARD. (TECHNICAL SERVICE CARD) Item number: 1602693.is used for adjusting drinks and counters. The user card is supplied by your dealer. Insert the user card, according to the illustration. The display will show the Service Menu, Counters and you can now browse forwards through the menu.

  • Page 5: Warning Message Shown In Display

    4. Warning message shown on display CAFÉ ELITE Message on display: Display shows Hardware Error: Hardware error Not available Drink cannot be selected as pot. Heating Water Low temperature in the water tank, the machine is heating up (blocked) Please Wait... Low Water Level Low water level in water tank.
  • Page 6 4. Warning message shown on display CAFÉ ELITE Message on display: Display shows Error: The water has not reached the correct level in the water tank. Water Supply Check the water tap, restart the machine. Error: Check the level sensor, cable failure, level pins connected incorrect Water level pins Place Cup If the cup sensor has been activated, this is...

  • Page 7: Error Code Description

    5. Error code description. CAFÉ ELITE Felkodsbeskrivning: Error code description: Overcurrent Group 1:2 = Other components (Fan, Valves, Relays Etc..) (1,5A limit) Group 1:3 = Mixer 1 (3,5A limit) Group 1:5 = Mixer 2 (3,5A limit) Message is shown if one of the software fuses have been trigged. Caused by a component using too much current (A).

  • Page 8: Circuit Diagram

    6. Circuit diagram. CAFÉ ELITE...

  • Page 9: Circuit Diagram Uc And Io Pay Card

    6. Circuit diagram. UC Pay...

  • Page 10: Spare Part List

    Display Board complete 180115 guide pin, Door 1602697 Card Reader 1605401 Grommet 260067-02 Spill Grid 1264007 Drip Tray Cafe Elite Black Valid for page 13 Machine 1 120250 Key Lock 160841 Microswitch Instant 1206123 Non Return Valve complete 1604111 Main PCB...
  • Page 11 7. Spare part list. CAFÉ ELITE Pos. Amount/unit Article . no. Description Valid for page 15 Tank 160538 Plug for water outlet 1561010 Seal for Outlet Valve 711000 NTC thermistor complete 1605361 Seal for NTC Nut M10 1403101 Plain Washer Hex thin nuts for high limit switch 1561012 Seal gasket deep draw rectange tank...

  • Page 12: Exploded View

    8. Exploded view. Door CAFÉ ELITE...
  • Page 13 8. Exploded view. Machine 1 CAFÉ ELITE...
  • Page 14 8. Exploded view. Machine 2 CAFÉ ELITE...
  • Page 15 8. Exploded view. Tank CAFÉ ELITE...
  • Page 16 8. Exploded view. Mixing system and outlet CAFÉ ELITE...

  • Page 17: Dimension Sketch

    9. Dimension sketch. CAFÉ ELITE...

  • Page 18: Serviceintervals

    10. Service intervals. CAFÉ ELITE Serviceintervals - Empire/Elite MONTHS MAIN COMPONENTS PARTS ARTICLE NO BOILER Outlet valve Membrane 1501191 CHECK REPLACE Sealing 160537-03 CHECK REPLACE Levelsensor Levelpins CLEAN CLEAN 1205302 1205301 CLEAN CLEAN Sensor CHECK CHECK 711000 Sealing CHECK CHECK 1605361 Mixer Whipper...
  • Page 19 CAFÈ ELITE FOR SERVICE Please contact your retail dealer Your retail dealer ................................................CREM International AB Box 10, Viksgränd 2, SE-670 40 Åmotfors, Sweden Tel: +46 (0)570-477 00, Fax: +46 (0)570-47719 E-mail: info.se@creminternational.com www.creminternational.com Art. nr/Art. no.1740069...
