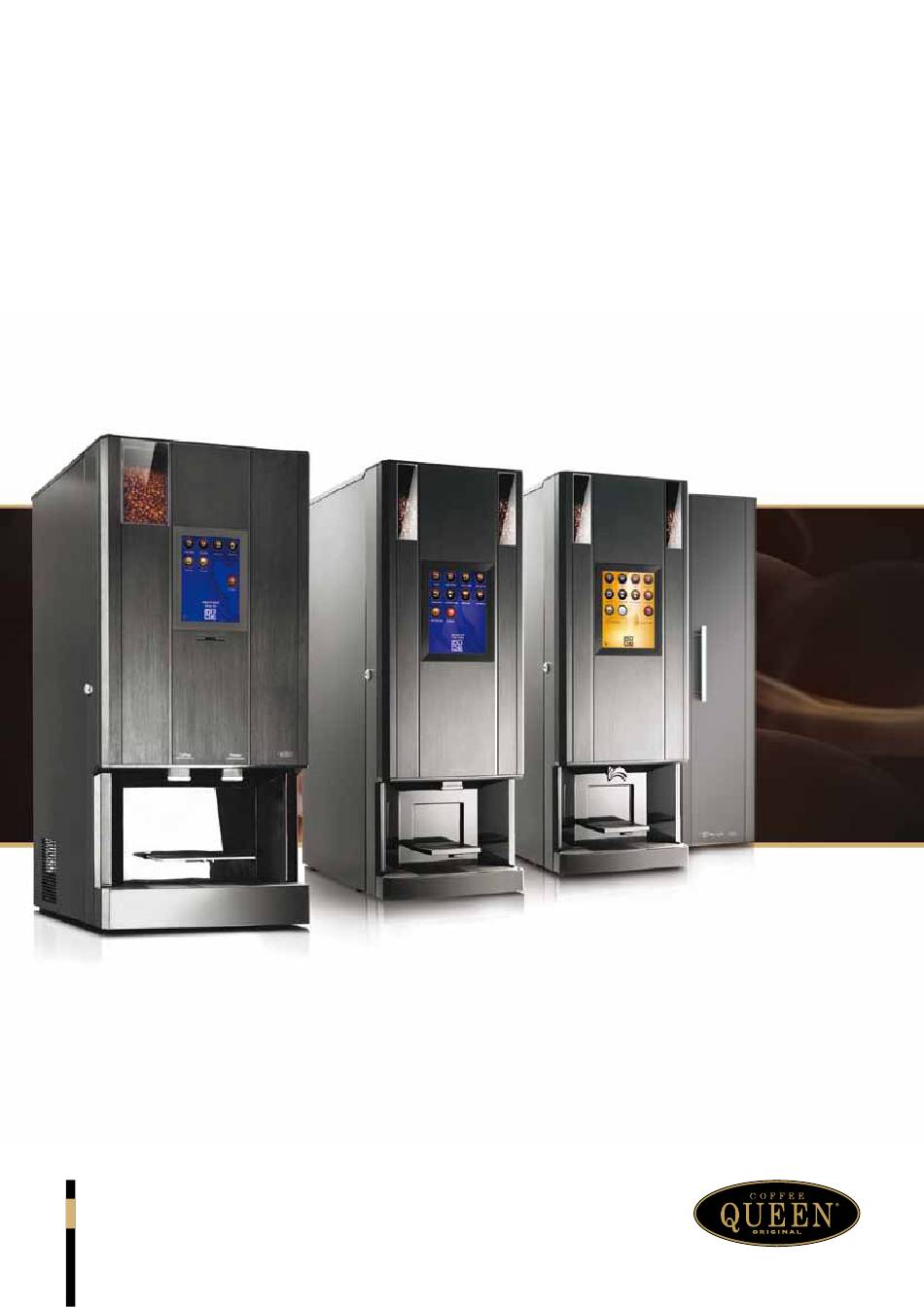

- Page 1 CQUBE SERIES PROGRAMMING MANUAL PM_EN Part No.: 1764073_01...
-
Page 2: Table Of Contents
CONTENT CQUBE SERIES CONTENT ....................................2 ACTIVATE WITH CARD ..............................3 Activate programming with technical service card ............................3 Programming buttons ......................................4 MAIN MENU ....................................5 Pay system menu ........................................5 Jug beverage ..........................................5 PROGRAMMING .................................6 Clean machine .......................................... 6 Counters ............................................ 7 Beverage setup, Strength ...................................... -
Page 3: Activate With Card
CQUBE SERIES Freshbrew / Espresso Activate programming with technical service card Insert technical card in the card reader (A) The display indicates CQube Series with membrane switch CQube Series with touch display Service Menu Jug Beverage Service Menu Clean Machine... -
Page 4: Programming Buttons
ACTIVATE WITH CARD CQUBE SERIES Freshbrew / Espresso Programming buttons Membrane Touch Display Description Switch Press this button if you wish to leave the submenu and return to the main BACK menu. Press the ENTER button if you want to enter a menu, alter the value or a ENTER setting. -
Page 5: Main Menu
MAIN MENU CQUBE SERIES Freshbrew / Espresso Pay system menu Service Menu These menus will Free Vending only be visible if the machine has any pay system Service Menu installed. Free Vend Off Press button to scroll Service Menu between the different menus... -
Page 6: Programming
PROGRAMMING CQUBE SERIES Freshbrew / Espresso Clean machine Perform cleaning of the machine. Cleaning hot key Press Clean Machine Cleanning Hot Key See maintenance manual for detailed information about the cleaning programs. Press Clean Brewer Press Clean Mixer Press Clean Valves... -
Page 7: Counters
PROGRAMMING CQUBE SERIES Freshbrew / Espresso Counters See the counter of each drink or total counters Service Menu for all drinks. It’s also possible to reset the drink Counters counters. Service Menu Counters Press Press Press Counters Beverage Counters Drink 1... - Page 8 PROGRAMMING CQUBE SERIES Freshbrew / Espresso Counters See the number of times cleaning has been Service Menu performed or reset the clean counter. Counters Press Press Clean Counter Counters Brewer 000 Clean Counter To go forward in menu. Press Press...
-
Page 9: Beverage Setup, Strength
PROGRAMMING CQUBE SERIES Freshbrew / Espresso Beverage setup, Strength Service Menu Change strength of the different drinks. Beverage Setup Press STRENGTH Factory default value Press Press Increase or reduce Beverage Setup Drink 1 Drink 1 value in % Strength Strength xx% Strength xx%+0 To go forward in menu. -
Page 10: Beverage Setup, Volume
PROGRAMMING CQUBE SERIES Freshbrew / Espresso Beverage setup, Volume Service Menu Change strength and volume of the different drinks. Beverage Setup Press VOLUME Factory default value Press Press Increase or reduce Beverage Setup Drink 1 Drink 1 value in %... -
Page 11: Beverage Setup Drink Settings
PROGRAMMING CQUBE SERIES Freshbrew / Espresso Beverage setup, Drink Settings Service Menu Change drink settings. Beverage Setup Press (Filter mec. adjustments) Drink Settings Press Press Factory default value Increase or reduce Beverage Setup Drink 1 Drink 1 value in %... -
Page 12: Beverage Setup, Water/Recipe Bank
PROGRAMMING CQUBE SERIES Freshbrew / Espresso Beverage setup, Water/Recipe Bank Beverage Setup Turn the water ON/OFF and enter recipe bank. Water <On/Off> Press Enable or disable water with ON/OFF settings. Beverage Setup Confirm with ENTER Water <On/Off> Press Press Press... -
Page 13: Beverage Setup, Enable Beverage
PROGRAMMING CQUBE SERIES Freshbrew / Espresso Beverage setup, Enable Beverage Service Menu Enable or disable different drinks. Beverage Setup Press ENABLE BEVERAGE Press Press Beverage Setup Drink 1 Drink 1 Enable Beverage Enable Bev ON Enable Bev On-Off To go forward in menu. -
Page 14: Jug Setup
PROGRAMMING CQUBE SERIES Freshbrew / Espresso Jug setup Service Menu Change the number of cups for standard jug. Jug Setup Press Jug Setup Press Press Choose the amount of cups to be used Sevice Menu Jug Setup as standard when you enter Jug Mode. -
Page 15: Calibration
PROGRAMMING CQUBE SERIES Freshbrew / Espresso Calibration Service Menu Change calibration settings of the machine. Calibration Service Menu Calibration Press Press Press Press Select Valve HWater-M1 ###ml HWater-M1 Calibration HWater M1 Verify Valve Verify: ###ml Valves Water will dispense from the... - Page 16 PROGRAMMING CQUBE SERIES Freshbrew / Espresso Calibration Service Menu Change calibration settings of the machine. Calibration To go forward in menu. Chnage the time for when the filter wiper stops in open Press brewer function. Press Press Time Open Brewer...
-
Page 17: Machine Settings
PROGRAMMING CQUBE SERIES Freshbrew / Espresso Machine settings Service Menu Change Machine Settings. Machine Settings Service Menu Machine Settings Press Press Press Set Heater Temp Heater Machine Settings Heater Idle Temp <XX>ºC Heater Temp Press Press Heater Heater ESP Prio Temp <XX>ºC... - Page 18 PROGRAMMING CQUBE SERIES Freshbrew / Espresso Machine settings Service Menu Change Machine Settings. Machine Settings Press Press Press Fan Run Time Set fan run time Machine Settings 00:30 Confirm with ENTER Fan Run Time Press Press Machine Settings Use Driptray<On/Off>...
-
Page 19: Language Setup And Set Time/Day
PROGRAMMING CQUBE SERIES Freshbrew / Espresso Language setup and set time/day Service Menu Change language or update time/day. Language Setup Press Press Press Press User Language Service Menu Language Setup English Language Setup User Language To go forward in menu. -
Page 20: Hardware Test
PROGRAMMING CQUBE SERIES Freshbrew / Espresso Hardware test Service Menu Test different components in the machine. Hardware Test Press Press Service Menu Hardware Test Run one espresso brewer cycle Hardware Test ESP-MCC Press Hardware Test Display current temp in heater... - Page 21 PROGRAMMING CQUBE SERIES Freshbrew / Espresso Press Pressing ENTER will open/close outlet valve 3 Hardware Test 0 = valve closed; 1= valve open HWater-M3 0 Press Warning: when Press opening any valves Pressing ENTER will open/close hot water valve Hardware Test 0 = valve closed;...
- Page 22 PROGRAMMING CQUBE SERIES Freshbrew / Espresso Press Pressing ENTER will start/stop canister motor 1 Hardware Test 0 = motor off; 1= motor on Canister 1 0 Press Press Pressing ENTER will start/stop canister motor 2 Hardware Test 0 = motor off; 1= motor on...
- Page 23 PROGRAMMING CQUBE SERIES Freshbrew / Espresso Show status of level sensors signal Hardware Test 0= Tank empty LevelSens 3 1= Level low triggerd 3= Tank full Press Press Pressing ENTER will start/stop the mixer 2 Hardware Test 0 = mixer stopped;...
- Page 24 PROGRAMMING CQUBE SERIES Freshbrew / Espresso Press Pressing ENTER will open/close milk clean valve Hardware Test 0 = valve closed; 1= valve open M-Clean V Press Press Pressing ENTER will open/close milk disp C valve Hardware Test 0 = valve closed; 1= valve open...
-
Page 25: Factory Reset
PROGRAMMING CQUBE SERIES Freshbrew / Espresso Factory reset Service Menu How to perform a factory reset of the machine. Factory Reset Press Press and hold ENTER for 3 Press and hold Service Menu seconds. Machine will go back ENTER to reset... -
Page 26: Expert Settings
PROGRAMMING CQUBE SERIES Freshbrew / Espresso Expert settings Service Menu Expert Settings of the machine. Expert Settings Press Press Press Expert Settings Open Valves Service Menu Open Valves Valves<Closed/Open> Expert Settings Observe! Place a 1liter pint Press ENTER will open/... -
Page 27: Time Schedule (Energy Mode)
PROGRAMMING CQUBE SERIES Freshbrew / Espresso Time schedule (Energy Mode) How to setup a schedule for energy mode and Service Menu cleaning Time Schedule Press Press Press Service Menu Scheduled Tasks Energy Mode 0 Time Schedule Energy Mode <XX:XX XX:XX >... -
Page 28: Pay System
PROGRAMMING CQUBE SERIES Freshbrew / Espresso Pay system These menus are included if the machine is Service Menu Note! Only for equipped with pay system. Free Vending machines with pay system. Press Free Vending The machine will go in normal mode and drinks are free as long as the service card is in the card reader. -
Page 29: Cashflow
PROGRAMMING CQUBE SERIES Freshbrew / Espresso Cashflow Service Menu Note! Only for Change Service Menu Cashflow Cashflow machines with pay system. Service Menu Cashflow Press Press Cashflow System Cashflow System Parameters Suffix: SEK Press Press Lowest coin Cashflow System xx:xx... - Page 30 PROGRAMMING CQUBE SERIES Freshbrew / Espresso Cashflow Note! Only for Service Menu Change Service Menu Cashflow machines with Cashflow pay system. Press Press Drink 1 Drink 1 Cashflow System Price 0.00 Price 0.00 Price List Change value by Drink 2 Pressing Price 0.00...
- Page 31 For the warranty to be valid the conditions for maintenance must have been followed according to our instructions, proper precaution has been made and warranty claim been issued without delay. The affected equipment may not be used during awaiting service if there is any risk that the damage or defect would worsen.
