  • Page 1 Service manual COFFEE QUEEN CATER SINGLE (Cater Train) Your Dealer S / EN Rev 100104...

  • Page 2: Table Of Contents

    Table of contents Cater Train 1. Table of contents page 2. General 3. Function description 4. Start up 5. Overview of components 5. Overview operation buttons 6. Indications brewing 7. Installation and start 8. Operation instructions, brewing 7 - 10 9.

  • Page 3: General

    Cater is delivered with a brew unit, serving station and filter holder. Coffee Queen AB is certified ISO 9001 and 14001 and therefore a minimal stress of the enviroment. 3. Function description Coffee brewer with automatic water supply.

  • Page 4: Overview Of Components

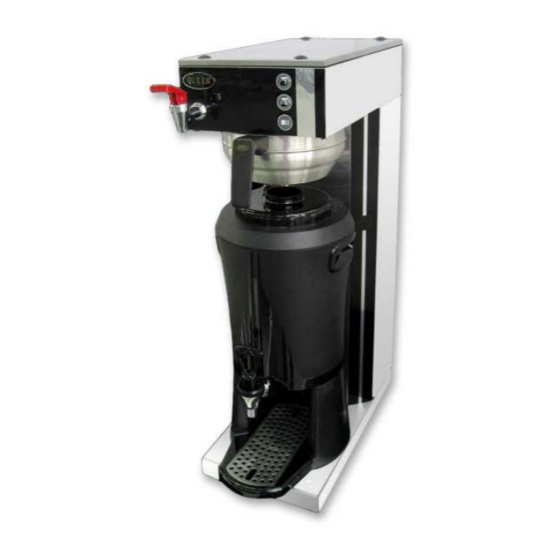

    Overview of components. Cater Train Tap for Hot water Programming Filter holder buttons Upper lid Display Handle Serving station Level tube ON/OFF-switch Tap for coffee Drip tray insert Drip tray Warning! The machine must be connected correctly for your safety. Read the manual before using the machine.

  • Page 5: Overview Operation Buttons

    Overview operating buttons. Cater Train 1/1 Brewing 1/2 Brewing PAUSE / STOP 1/1 Brewing 1/2 Brewing Full brew = 2,5 litre Half brew = 1,25 litre Indications when brewing. Cater Train While machine is brewing Full brew Display shows: see A While machine is brewing Half brew Display shows: see B...

  • Page 6: Installation And Start

    7. INSTALLATION AND START. Cater Train 7.1. Place the brewer unit on a flat, level and waterproof surface. 7.2. Connect to cold water feed with connection tube supplied. Connection to a closable valve is recommended. Water pressure shall be 14,5 - 72,5 PSI (1 - 5 bar) for a correct operation Water supply to the machine is the customer’s responsibility according to instruction and advice from the supplier.

  • Page 7: Operation Instructions, Brewing

    When water has reached the right temperature. Display will light up. Machine is now ready to use. 8.3. Place a filter in the filter holder. Place a filter in the filter holder. Always use Coffee Queen´s recommended coffee filter Filter type 110mm filter Article no. 110110...
  • Page 8 8. Operating instructions. Brewing with coffee Cater Train 8.4. Brewing: Add coffee. Add coffee 115 - 135 gram, restaurant / catering grounded coffee). This is recommended for full brewing. Make sure that the coffee is evenly spread. 8.5. Place filter holder and serving station. Place the filter holder.
  • Page 9 8. Operating instructions. Brewing with coffee Cater Train 8.6. START BREWING. 1. Push button 1/1 for 2,5 litre. Full brew 2,5 litre 1/1 Full brew 2,5 litre Half brew 1,25 litre 1/2 Half brew 1,25 litre PAUSE / STOP When ”Brewing” is ready. The ”Brewing”...
  • Page 10 8. Operating instructions. Brewing with coffee Cater Train 8.7. To keep temperature and aroma. Put the lid (A) back on the serving station immediately after the brewing. 8.8. Empty the filter holder from filter and coffee grounds and clean the filter holder. Machine is now ready for the next brew.

  • Page 11: Maintenance And Cleaning

    9. Maintenance and cleaning. Cater Train EACH DAY NOTE! Before each brewing. Rinse the serving station with fresh tap water. Each day. Rinse serving station and filtre holder with hot water. Outside cleaning use a soft rag and liquid solution that not prevent scratches.
  • Page 12 9. Maintenance and Cleaning. Cater Train EACH WEEK. Cleaning serving station Dismount the level tube and clean it every week with the enclosed brush. Turn off the bigger lid, and clean the mixer tube. Mixer tube CLEANING OF 5 and 2.5 LITER SERVING STATION. Begin cleaning according to the manual.

  • Page 13: Important

    9. Maintenance and Cleaning. Cater Train NOTE! Outwardly Cleaning of machine Use a soft rag and liquid cleaning agent to prevent scratches. 10. Important! Cater Train Important. Do not make any alterations to the machine. Such measures may cause personal injury and the machine to fail.

  • Page 14: Dimension Sketch

    11. Dimension sketch. Cater Train...

  • Page 15: Programming

    12. Programming. Adjustings. - SERVICE Cater Train ADJUSTING OF WATER TEMP. Press buttons full brew and half brew at the same time for 5 seconds. Buzzer beeps once. Display shows: actual setting. Adjust with the buttons; full brew = (increase water temp.) half brew = (decrease water temp.) Confirm the new settings by pressing button Stop/Pause.
  • Page 16 12. Programming. Adjustings. - SERVICE Cater Train ADJUST BREWING TIME. (Coffee ready). Adjust Signal 1. Press buttons half brew and Stop/Pause att the same time for 5 seconds until you hear 3 beeps. Display shows: present setting. 2. Adjust with the buttons; full brew = (increase) and half brew = (decrease) 3.

  • Page 17: Error Message

    13. Error message - SERVICE Cater Train Error message: Display shows: E1, E2, E3, E4. LEVEL CONTROL Display shows: Level sensors short electrod is Clean level sensor. earthed, (GND) Change level sensor. but not level sensors long electrod. Cables wrongly coupled. Display shows: Filling time too long.

  • Page 18: Facts

    14. Facts. Cater Train Facts: Height 701mm Width 205 mm Depth 420 mm Weight Tank volume 5 litre Electricity 2x230VAC 1N + 230VAC 1N Water connection ½” outside thread Drain connection 3/8” outside thread Capacity: 6 minutes to brew 17 cups 20 L / hour...
  • Page 19 15. Spare parts list. Cater Train Pos. nr. Art. no. Description Amount per unit Valid spare part list for cater page 22 1203531 Tank 120422 Air Inlet Plastic 1.8L PC 1201924 FAUCET, CATER COPPER 1604203 Solid State 220221 High Limit switch short 1206505 Gasket for HL Switch Fiber 120620-01...
  • Page 20 15. Spare parts list. Train components Cater Train Pos. nr. Art. no. Description Amount per unit Valid spare part list for cater page 24 1104032 Guide serving station 1202492 Fastening Kit S302306 Bulk Head union 1/8-3/8 S302314 Reducing nipple 1/8-1/4 180158 Nipple for hose 1/4”...

  • Page 21: Spare Parts Lists

    15. Spare parts list. Serveringsstation 2,5 litre Cater Train Pos. nr. Art. no. Description Amount per unit Valid spare part list for servingstation page 25 1103351 1103452 Brew-Thru Lid SS Tube 1103453 Main housing 1103455 Lower Housing 1103456 Outlet Tube Jacket 1103457 Stand 1103458...

  • Page 22: Exploded Views

    16. Exploded view. Cater Train Membrane switch Overlay without hole Drainage Overlay hose with hole...
  • Page 23 16. Exploded view. Tank Cater Train...
  • Page 24 16. Exploded view. Train components Cater Train...
  • Page 25 16. Exploded view. Serveringsstation 2,5 litre Cater Train...

  • Page 26: Electrical Drawing

    17. Electrical drawing. 2x230VAC 1N + 230VAC 1N Cater train version.

  • Page 27: Mounting And Dimension Drawings

    18. Mounting and dimension drawings. Cater train version. Mounting and dimensions bottom...
  • Page 28 18. Mounting and dimension drawings. Cater train version. Fastening Kit Inlethose 3/4”-1/2” inside Threads Outlethose 3/8”-3/8” Inside Threads Air Ventilation CQ Cater Serving Station Drain Signal Harting HAN Q 5/0 Male Size 3A Harting HAN Q 7/0 male Size 3A Power Cable 3x2,5mm²...
  • Page 29 18. Mounting and dimension drawings. Cater train version. Connections; water, electricity 1 Drain water outlet 3/8” Outside Threads 2 Inlet valve 3/4” Outside Threads 3 Cable Restrainer...

  • Page 30: Contemplated Use And Warnings

    18. Contemplated use and warnings. Cater. Contemplated use and warnings Coffee brewer is an appliance for delivering hot water and preparation of coffee. Its long lasting, non-toxic components are easily accessible for proper cleaning and maintenance. The user must be an adult. The appliance must not be used by children or unsuitable people.
  • Page 31 For Service Please contact Your retail dealer ................................................CREM International AB Box 10, Viksgränd 2, SE-670 40 Åmotfors, Sweden Tel: +46 (0)570-477 00, Fax: +46 (0)570-47719 E-mail: info.se@creminternational.com www.creminternational.com Art.nr. 1740037...
