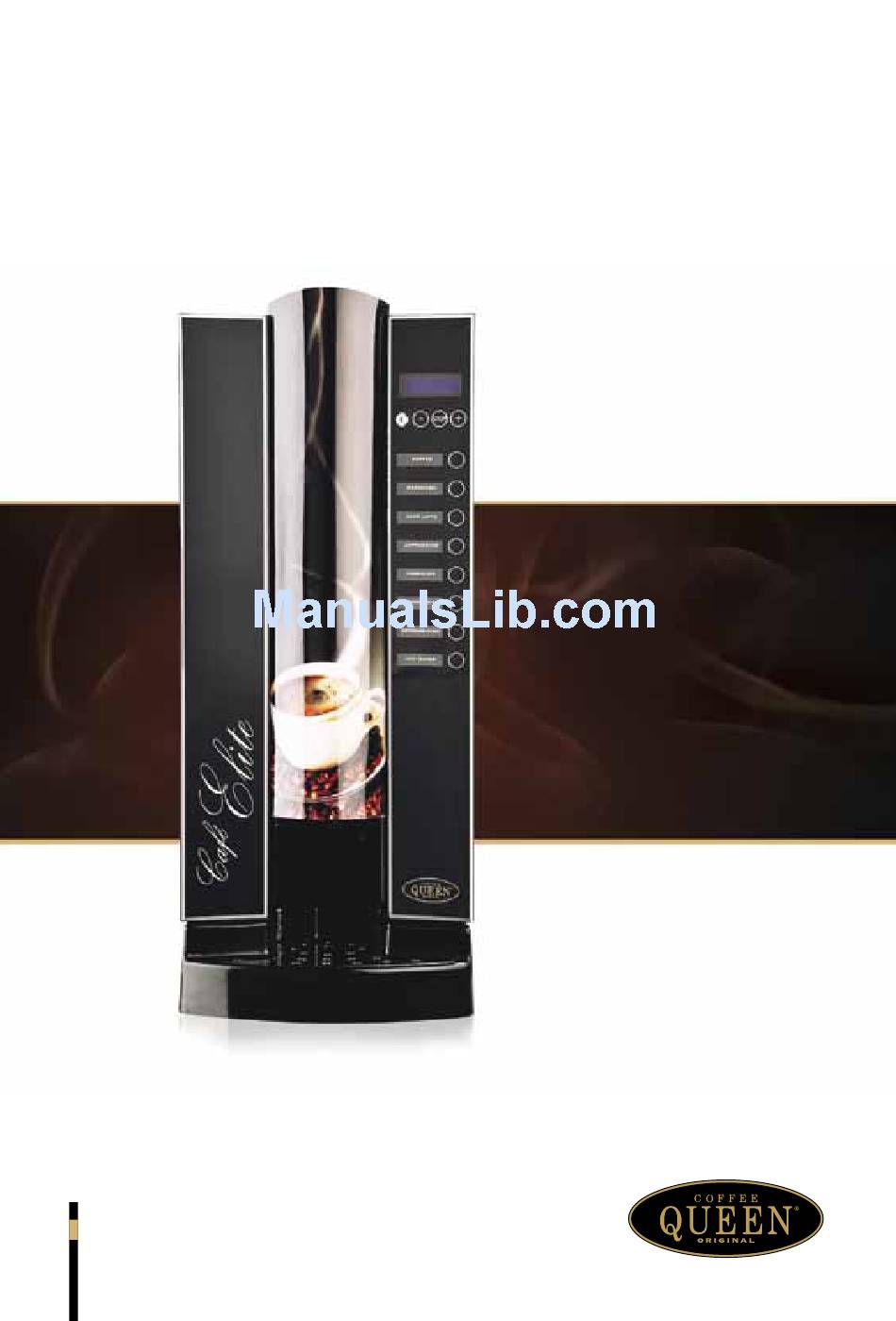

- Page 1 CAFÉ ELITE TECHNICAL MANUAL TM_EN Part No.: 1740056_02...
-
Page 2: Table Of Contents
CONTENT CAFÉ ELITE CONTENT ................................ 2 GENERAL ................................4 Introduction ................................4 Warnings ..................................4 Precautions ................................4 Intended use ................................4 Facts & weight ................................5 OVERVIEW OF COMPONENTS ......................6 Front exterior ................................6 Front interior of Elite II ............................7 Front interior of Elite III ............................8 Front interior of Elite IV ............................9 Membrane switch navigation .......................... - Page 3 CONTENT CAFÉ ELITE Beverage setup, Strength and Volume ....................... 28 Beverage setup, Drink Settings and Enable Beverages .................. 29 Beverage setup, Water and Recipe Bank ......................30 Jug setup .................................. 31 Calibration ................................32 Machine settings ..............................33 Language setup and set time & day ........................34 Hardware Test ...............................
-
Page 4: General
GENERAL CAFÉ ELITE Introduction Thank you for choosing a Café Elite vending machine. We hope you enjoy it ! Read the user guide before using the machine. Always keep this guide close at hand for future This guide contains important instructions for reference. -
Page 5: Facts & Weight
GENERAL CAFÉ ELITE Facts & weight MODEL/NAME CAFÉ ELITE II CAFÉ ELITE III CAFÉ ELITE IV Built-in grinder None None None Function for selecting jug Drink options Ingredient canister Bean hopper None None None Brewing mechanism None None None Cleaning function by smart card Electronic temperature control Adjustable coffee strength Illumination of cup during brewing... -
Page 6: Overview Of Components
OVERVIEW OF COMPONENTS CAFÉ ELITE Front exterior Display Smart Card Key Switch Reader (Enable Jug Mode) Strength Adjustment Door Lock Drink Buttons Outlet Hot Drinks Drip Tray Insert Drip Tray... -
Page 7: Front Interior Of Elite Ii
OVERVIEW OF COMPONENTS CAFÉ ELITE Front interior of Elite II Ingredient Canisters Mixing System Service lid (for emptying water tank) Power Switch Outlet Hot Drinks Ingredient canisters DETAIL INGREDIENTS WIDTH DEPTH HEIGHT CAPACITY CUPS/UNIT Canister Coffee 137mm 335mm 225mm 5.4L ~675 cups Canister Topping... -
Page 8: Front Interior Of Elite Iii
OVERVIEW OF COMPONENTS CAFÉ ELITE Front interior of Elite III Ingredient Canisters Mixing System Service Lid (For emptying water tank) Power Switch Outlet Hot Drinks Ingredient canisters DETAIL INGREDIENTS WIDTH DEPTH HEIGHT CAPACITY CUPS/UNIT Canister Coffee 137mm 335mm 225mm 5.4 L ~675 cups Canister Chocolate... -
Page 9: Front Interior Of Elite Iv
OVERVIEW OF COMPONENTS CAFÉ ELITE Front interior of Elite IV Ingredient Canisters Mixing System Service lid (for emptying water tank) Power Switch Outlet Hot Drinks Ingredient canisters DETAIL INGREDIENTS WIDTH DEPTH HEIGHT CAPACITY CUPS/UNIT Canister Coffee 67mm 335mm 225mm 2.7 L ~338 cups Canister Espresso... -
Page 10: Membrane Switch Navigation
OVERVIEW OF COMPONENTS CAFÉ ELITE Membrane switch navigation Button functions Press the BACK button if you want to leave the submenu and go back in the menu. Press the ENTER button to select a menu function, confirm a set value or a setting. Confirm the new setting by pressing the E-button. -
Page 11: Technical Service Card
OVERVIEW OF COMPONENTS CAFÉ ELITE Technical service card Technical service card is used for example cleaning of the machine and change different settings. The smart card is supplied by your dealer. Insert the technical service card with the chip facing towards the back of the machine. -
Page 12: Installation And Start-Up
Set temperature is 85º Celsius. Once the water heating is complete “Low temp” text will disappear from the display. (The display text will start to rotate between these two screens COFFEE QUEEN AT YOUR SERVICE... -
Page 13: Fill Ingredient Canisters
INSTALLATION AND START-UP CAFÉ ELITE Fill ingredient canisters Remove the ingredient canisters to avoid spilling in the machine and fill with ingredients . When filling the ingredients, keep the opening of the canister chute upwards (A). Open the door. Reassembly canisters. When placing the ingredient canisters, Ensure that the openings of the canister chutes point down toward the mixing bowl (B). -
Page 14: Operation
OPERATION CAFÉ ELITE Dispensing drinks in a cup Place a cup under the outlet for hot drinks. (See fig. A) The strength of the drink is set to default. If you would like to increase or decrease the strength then follow the steps in the section below. Stronger drink, Press the button Weaker drink, Press the... -
Page 15: Dispensing Drinks In A Jug
OPERATION CAFÉ ELITE Dispensing drinks in a jug Key Switch Turn key switch to enable jug mode. (See fig. A) Place a jug under the outlet for hot drinks. The strength of the drink is set to default. If you would like to increase or decrease the strength then follow the steps in the section below. -
Page 16: Cleaning Program
CLEANING PROGRAM CAFÉ ELITE Daily cleaning Automatic rinsing of the mixing bowl Cleaning means rinsing with water and rotating the whipper. Cleaning of the mixing bowl should be performed once per day. Put a container that holds at least 0.5 litres under the outlet for hot drinks. Insert smart card in the card reader (A). -
Page 17: Automatic Cleaning Of Dispenser Valves
CLEANING PROGRAM CAFÉ ELITE Daily cleaning Automatic cleaning of dispenser valves Cleaning entails that the valves “knock” off any lime scale and other particles that may get stuck in the cylinders and flushing them with water. Put a container under outlet for hot drinks. Insert smart card in the card reader (A). -
Page 18: Cleaning And Care
CLEANING AND CARE CAFÉ ELITE Weekly cleaning Disassemble mixing system Loosen or take out canisters and pull out the outlet hose. Turn the mounting plate lever anticlockwise. Loosen the mixing bowl by pulling it straight out. Loose the whipper by pulling it straight out. Loosen the mounting plate. -
Page 19: Wash These Parts
CLEANING AND CARE CAFÉ ELITE Weekly cleaning Wash these parts Clean with a moist Mixing bowl Condensation trap Mounting plate Whipper cloth and wipe dry. All parts must be dry before reassembly. Reassemble mixing system Check all seals (red) before The flat side of the whipper shaft must correspond with the marked arrow on the reassembly of parts. -
Page 20: Failure Message
CLEANING AND CARE CAFÉ ELITE Failure message Failure messages Water Level Low which can mostly Press Enter be corrected without any help from service company Water Level Low Display shows Check if water tap is open. Press Enter Then press the button. -
Page 21: Exterior Cleaning
CLEANING AND CARE CAFÉ ELITE Exterior cleaning Cleaning the outside Use a soft rag and liquid cleaning agent to prevent scratches. The machine must not be covered with or immersed in water. Note To be washed as needed Drip tray and drip tray insert should be washed by hand in ordinary dishwater. Do not wash in a dish washing machine! -
Page 22: Warning Message Shown On Display
WARNING MESSAGE SHOWN ON DISPLAY CAFÉ ELITE Message on display Indication Drink can not be selected as pot. Not Available Heating Water Low temperature in the water tank, the machine is heating up Please Wait... (blocked). Low Water Level Low water level in water tank. Press enter key to start filling up Press Enter Key the water tank. -
Page 23: Programming
PROGRAMMING CAFÉ ELITE Activate programming with smart card Insert the technical service card in the card reader(A). Service Menu Display shows Clean Machine Buttons function Press this button if you wish to leave the submenu and return to the main menu. -
Page 24: Main Menu
PROGRAMMING CAFÉ ELITE Main menu Overview Service Menu Clean Machine Service Menu Counters Service Menu Beverage Setup Service Menu Jug Setup Service Menu Calibration Service Menu Machine Settings Display shows Service Menu Language Setup Press Service Menu Set Time/Day Service Menu Hardware Test Service Menu Factory Reset... -
Page 25: Clean Machine
PROGRAMMING CAFÉ ELITE Clean machine Service Menu Perform cleaning of the machine. Clean Machine Press Press Machine starts cleaning mixer system. The display will Service Menu Select Cleaning show ”Mixer System” during Clean Machine Mixer System cleaning. Press Press Press Machine starts cleaning valves. -
Page 26: Counters
PROGRAMMING CAFÉ ELITE Counters See the counter of each drink or total counters Service Menu for all drinks. It’s also possible to reset the drink Counters counters. Service Menu Counters Press Press Press Counters Beverage Counters Drink 1 Beverages Per Beverage Served xxx Press Press... - Page 27 PROGRAMMING CAFÉ ELITE Counters See the number of times cleaning has been Service Menu Counters performed or reset the clean counter. Press Counters Clean Counter Clean Counter Total xxx Press Press Press Counters Water Filter Reset? NO/YES Water Filter Reset Water Filter Months Left 6 Step forwards Press...
-
Page 28: Beverage Setup, Strength And Volume
PROGRAMMING CAFÉ ELITE Beverage setup, Strength and Volume Change strength and volume of the Beverage Setup Strength different drinks. Press Press Press Change drink strength Beverage Setup Drink 1 value. Strength Strength # #%<±X> Confirm with ENTER Press Press Change drink strength Drink 2 Press value. -
Page 29: Beverage Setup, Drink Settings And Enable Beverages
PROGRAMMING CAFÉ ELITE Beverage setup, Drink Settings and Enable Beverages Beverage Setup Change drink settings and disable drinks. Drink Settings Drink settings are only available for mixed drinks Press Press Press Beverage Setup Drink 1 Drink 1 Drink Settings Ingredient ##%<±X> Change drink ingredient value. -
Page 30: Beverage Setup, Water And Recipe Bank
PROGRAMMING CAFÉ ELITE Beverage setup, Water and Recipe Bank Beverage Setup Turn the water ON/OFF and enter recipe bank. Water <On/Off> Press Enable or disable water with ON/OFF settings. Beverage Setup Confirm with ENTER Water <On/Off> Press Press Press Choose which drink key Beverage Setup Key#ZZ R#XXX (key #ZZ) that should be... -
Page 31: Jug Setup
PROGRAMMING CAFÉ ELITE Jug setup Service Menu Change the number of cups for standard jug. Jug Setup Press Press Press Choose the amount of cups to Service Menu Jug Setup be used as standard when you Jug Setup Default Cups <X> enter jug mode. -
Page 32: Calibration
PROGRAMMING CAFÉ ELITE Calibration Service Menu Change calibration settings of the machine. Calibration Service Menu Calibration Press Press Press Press Calibration Select Valve HWater-M1 ###ml HWater-M1 Valves HWater M1 Verify Valve Verify: ###ml Water will dispense from the outlet valve nr 1 Press Press Press... -
Page 33: Machine Settings
PROGRAMMING CAFÉ ELITE Machine settings Service Menu Change different machine settings. Machine Settings Service Menu Machine Settings Press Press Press Heater Confirm Machine Settings Set Heater Temp Idle Temp <XX>ºC Heater Temp Heater with ENTER Press Press Press Set warning temperature Confirm Machine Settings Heater... -
Page 34: Language Setup And Set Time & Day
PROGRAMMING CAFÉ ELITE Language setup and set time & day Service Menu Change language or update time/day. Language Setup Press Press Press Press Service Menu Language Setup User Language Language Setup User Language <Active language> Set language Confirm with ENTER Press Press Press... -
Page 35: Hardware Test
PROGRAMMING CAFÉ ELITE Hardware Test Service Menu Test different components in the machine. Hardware Test Press Press Pressing ENTER will open/ Service Menu Hardware Test close outlet valve 1 Hardware Test HWater - M1 0 0 = valve closed; 1= valve open Press Press Pressing ENTER will open/... - Page 36 PROGRAMMING CAFÉ ELITE Press Pressing ENTER will start/stop canister Hardware Test motor 1 Canister 4 0 0 = motor off; 1= motor on Press Press Pressing ENTER will start/stop the fan 0 = fan stopped; Hardware Test 200= fan at full speed Press Shows current temperature in boiler Hardware Test...
-
Page 37: Factory Reset
PROGRAMMING CAFÉ ELITE Factory Reset Service Menu How to perform a factory reset of the machine. Factory Reset Press Press ans hold ENTER for 3 seconds Service Menu Reset and Hold Machine will go back to factory settings Factory Reset ENTER to Reset and reboot Press... -
Page 38: Time Schedule
PROGRAMMING CAFÉ ELITE Time schedule Service Menu How to setup a schedule for energy mode and Time Schedule cleaning. Press Press Service Menu Scheduled Tasks Energy Mode 0 Time Schedule Energy Mode <XX:XX XX:XX > Press Energy Mode 1 Press <XX:XX XX:XX >... -
Page 39: Dimension Sketch
DIMENSION SKETCH CAFÉ ELITE Café Elite Model Café Elite II 735mm 310mm 515mm Café Elite III 735mm 310mm 515mm Café Elite IV 735mm 310mm 515mm... -
Page 40: Exploded View
EXPLODED VIEW CAFÉ ELITE Door Drawing... - Page 41 EXPLODED VIEW CAFÉ ELITE Door Spare parts list POS. Part No. Description 1202551 Key switch 1665009 Left overlay 1665002 Middle printing film 1665001 Membrane switch 710028 LED complete 180115 Guide pin, door 710556 PCB UC and display 2x16 complete 1604119 Battery CR 1220 3V 1604113 Spacer for UC merisc...
-
Page 42: Machine 1
EXPLODED VIEW CAFÉ ELITE Machine 1 Drawing Large canister for ELITE II & III... -
Page 43: Machine 2
EXPLODED VIEW CAFÉ ELITE Machine 1 Spare parts list POS. Part No. Description 120250 Key lock 120251 Key for Lock of Door 1206121 Non return valve holder 1604111 PCB main board IO-TE 1205626 Canister W67 H335 1505076 Rubber plug,10mm 120465 Rubber TPG 20.5 160841 Door microswitch... - Page 44 EXPLODED VIEW CAFÉ ELITE Machine 2 Drawing Pos 16 & 17 for machines produced after 20130501...
- Page 45 EXPLODED VIEW CAFÉ ELITE Machine 2 Spare parts list POS. Part No. Description 1561015 Over flow pipe 1206290 Outlet valve deltrol 24VDC 1604612 Motor gear 145RPM 1604614 Drive shaft 16mm 1604351 Fuse assembly 1604179 Fan holder 1505042 Inlet hose with connect 160565 Power cord Europe 16A/230V 160570...
-
Page 46: Tank
EXPLODED VIEW CAFÉ ELITE Tank Drawing... - Page 47 EXPLODED VIEW CAFÉ ELITE Tank Spare parts list POS. Part No. Description 1401101 Nut M3 SS A2 1461008 Spring washer M3 1364026 Sensor short 60mm 1205301 Sensor long 90 mm 1605362 Double seal level sensor 1666013 Harness water level sensor 1660057 Valve coil 24V DC black 1660058...
-
Page 48: Mixing System And Outlet
EXPLODED VIEW CAFÉ ELITE Mixing system and outlet Drawing... - Page 49 EXPLODED VIEW CAFÉ ELITE Mixing system and outlet Spare parts list POS. Part No. Description 1604591 Motor whipper 24V DC 1206701 Motor whipper plate 1206706 Bulkhead adaptor black 1604804 Slinger disc 1206702 Mounting plate 120638 O-ring 120655-02 Whipper shaft gasket 1206703 Whipper 1206704...
-
Page 50: Canister
EXPLODED VIEW CAFÉ ELITE Canister Drawing... - Page 51 EXPLODED VIEW CAFÉ ELITE Canister Spare parts list POS. Part No. Description 1204953 Lid for canister W67 1204715 Auger 1204776 Auger holder 1204777 Auger nut 1204722 Canister base W67 120633 Outlet 1204775 Plastic nut for auger 1204746 Agitator 120489 Canister W64 pipe destra 7cm L/H 120493 Canister W64 pipe destra 7cm R/H...
-
Page 52: Circuit Diagram
CIRCUIT DIAGRAM CAFÉ ELITE High Current... -
Page 53: High Current 3-Phase
CIRCUIT DIAGRAM CAFÉ ELITE High Current 3-phase... -
Page 54: Io-Board Outputs
CIRCUIT DIAGRAM CAFÉ ELITE IO-Board Outputs... -
Page 55: Ucmerisc And Io-Pay Board
CIRCUIT DIAGRAM CAFÉ ELITE Ucmerisc and IO-pay board... - Page 56 For the warranty to be valid the conditions for maintenance must have been followed according to our instructions, proper precaution has been made and warranty claim been issued without delay. The affected equipment may not be used during awaiting service if there is any risk that the damage or defect would worsen.
