- Page 1 CATER USER MANUAL U_EN II Part No.: 1704173-02...
-
Page 2: Table Of Contents
Precautions ................................4 Intended use ................................4 Facts & weight .................................5 General functional description..........................5 OVERVIEW OF COMPONENTS ......................6 Front view SINGLE CATER ...........................6 Front view CATER ..............................7 Back view SINGLE CATER ............................8 Back view CATER ..............................9 BUTTONS AND DISPLAY INFORMATION ................10 Button functions .............................. - Page 3 CATER Adjusting water quantity ............................. 18 MESSAGE SHOWN ON DISPLAY ....................19 Error message ................................ 19 DIMENSION SKETCH ..........................20 SINGLE CATER ..............................20 CATER ..................................21 Some important information may appear in textboxes seen below IMPORTANT! CAUTION! More INFO.
-
Page 4: General
GENERAL CATER Introduction Thank you for choosing a CATER coffee brewer. We hope you enjoy it ! Read the user guide before using the machine. Always keep this guide close at hand for future This guide contains important instructions for reference. -
Page 5: Facts & Weight
GENERAL CATER Facts & weight FACTS SINGLE CATER CATER Hot water tap Brew options Height 690mm 690mm Width 205mm 410mm Depth 450mm 450mm Tank volume 2.5L 2 x 2.5L Power supply 230 V 1N / 2200 W 400V 2N/ 4400 W Cold water connection ½”... -
Page 6: Overview Of Components
OVERVIEW OF COMPONENTS CATER Front view SINGLE CATER Function Buttons Hot Water Tap Filiter Holder Serving Station Lid Carry Handle Display Serving Station Level Tube Tap for Coffee Drip Tray Insert Drip Tray... -
Page 7: Front View Cater

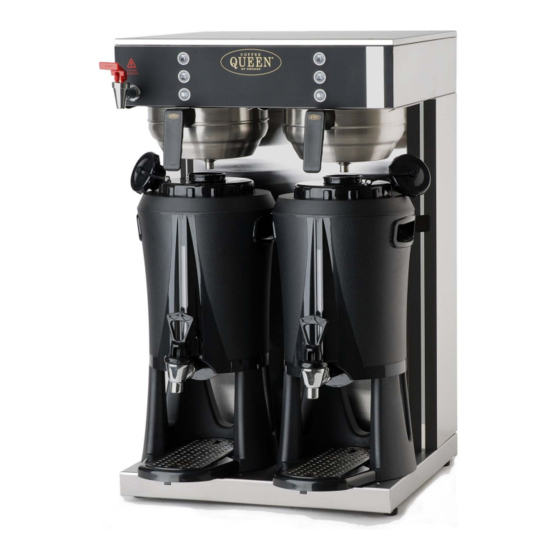

OVERVIEW OF COMPONENTS CATER Front view CATER Function Buttons Hot Water Tap Filiter Holder Serving Station Lid Carry Handle Display Serving Station Level Tube Tap for Coffee Drip Tray Insert Drip Tray... -
Page 8: Back View Single Cater
OVERVIEW OF COMPONENTS CATER Back view SINGLE CATER Water Connection Power Supply Power Switch... -
Page 9: Back View Cater
OVERVIEW OF COMPONENTS CATER Back view CATER Water Connection Power Switch Power Supply... -
Page 10: Buttons And Display Information
BUTTONS AND DISPLAY INFORMATION CATER Button functions 1/1 Brewing Full brew = 2,5L 1/2 Brewing Half brew = 1,25L Pause / Stop Display indications when brewing While machine is brewing Full brew Display shows: see A While machine is brewing... -
Page 11: Installation And Start-Up
INSTALLATION AND START-UP CATER Positioning MIN. 10cm Place the brewer unit on a flat horizontal surface that will support the weight of the machine. Make sure that air is able to circulate behind the machine Note (minimum 10cm). Water connection Connect the supplied water hose to the cold water connection using a ½’’... -
Page 12: Electrical Connection And Start-Up
INSTALLATION AND START-UP CATER Electrical connection and start-up SINGLE CATER Recommended: install a line circuit breaker and a earth fault breaker to the machine. IMPORTANT! Connect the plug to a separate earthed wall socket (230 VAC 10 A). CATER The brewer is not reconnectable and may only be installed to the electric supply network with a voltage that is stated on the brewer and shall be carried out by an authorized electrician. -
Page 13: Operation
CATER Brewing with coffee Filter positioning Place a filter in the filter holder. Always use Coffee Queen´s recommended coffee filter paper. Filter type 110mm filter paper, Part No. 110110 Add coffee Add coffee 115 - 135g (restaurant / catering grounded coffee). -
Page 14: Start Brewing
OPERATION CATER Brewing with coffee Start brewing Push button for 2,5L, push button for 1.25L 1/1 Brewing 1/1 Full brew, display is blinking between all 3 lines. 1/2 Brewing 1/2 Half brew, display is blinking between lower 2 lines. Pause / Stop When brewing starts, the brewing lamp will be lit up with a red light. -
Page 15: To Keep Temperature And Aroma
OPERATION CATER Brewing with coffee To keep temperature and aroma TIPS FOR KEEPING COFFEE HOT Pre-heating the serving station. Fill the serving station with hot water drawn from the tap and leave to stand for about 1 hour. Pour out the water. -
Page 16: Cleaning And Care
CLEANING AND CARE CATER Daily cleaning Before each brewing. Rinse the serving station with fresh tap Rinse serving station and filtre holder water. with hot water. Outside cleaning use a soft rag with liquid cleaning agent to prevent scratches. Clean the bottom plate (A). -
Page 17: Weekly Cleaning
CLEANING AND CARE CATER Weekly cleaning Disassemble the level tube and clean it every week with the enclosed brush. Turn off the bigger lid, and clean the mixer tube(A). Cleaning of serving station 2.5L Fill the serving station with hot water. ( Full IMPORTANT! brewing without coffee and filter ). -
Page 18: Programming
PROGRAMMING CATER Adjusting of water temperature Press buttons at the same time for 5 seconds until you hear one beep. Display shows the present setting Adjust with the buttons = (increase water temp.) = (decrease water temp.) Confirm the new settings by pressing the button. -
Page 19: Message Shown On Display
MESSAGE SHOWN ON DISPLAY CATER Error message Error message, Display shows: E1, E2, E3, E4. LEVEL CONTROL IMPORTANT! All maintenance and installations - Clean the level sensor. - The water high level - Change the level must be done sensor is triggerd before sensor. -
Page 20: Dimension Sketch
DIMENSION SKETCH CATER SINGLE CATER Model SINGLE CATER 690mm 205mm 450mm 105mm 436mm... -
Page 21: Cater
DIMENSION SKETCH CATER CATER Brewing Brewing Model CATER 690mm 410mm 450mm 105mm 436mm... - Page 24 For the warranty to be valid the conditions for maintenance must have been followed according to our instructions, proper precaution has been made and warranty claim been issued without delay. The affected equipment may not be used during awaiting service if there is any risk that the damage or defect would worsen.
