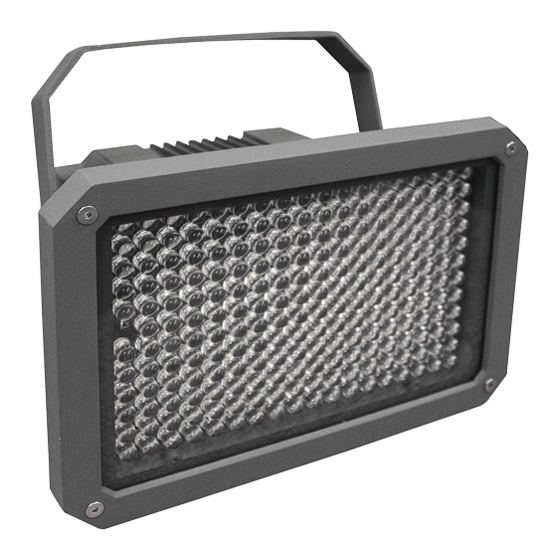

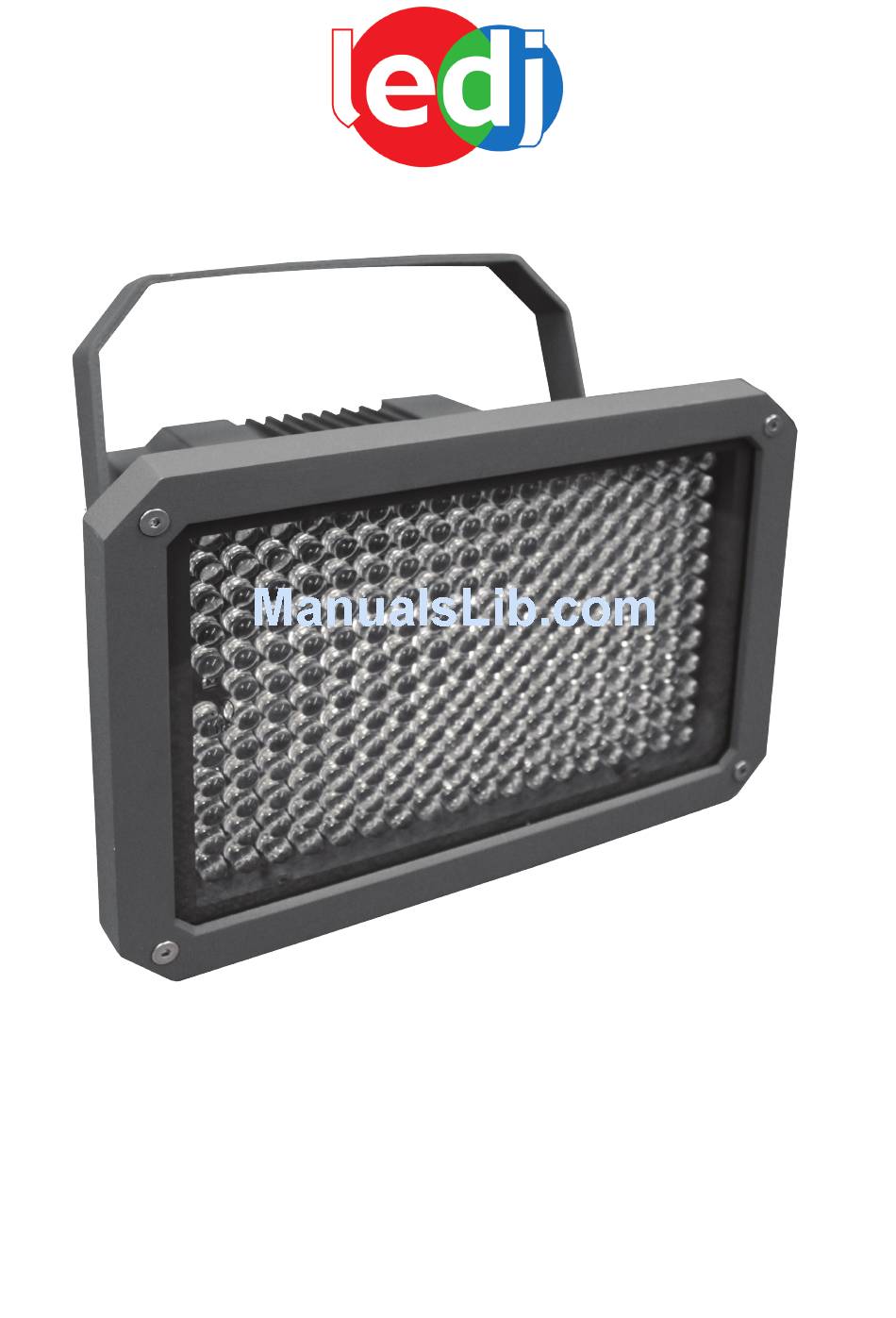

- Page 1 www.prolight.co.uk Spectra Led Flood (Exterior) Order code: LEDJ87 USER MANAUAL...
- Page 2 LEDJ Exterior Spectra Led Flood Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from flammable sources, liquids or gases. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...
- Page 3 LEDJ Exterior Spectra Led Flood Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
- Page 4 LEDJ Exterior Spectra Led Flood Over view The outdoor DMX Spectra LED Flood together with the IR remote control can produce colourful and dynamic lighting effects. It can be used in a wide variety of venues and for outdoor building illumination.
- Page 5 LEDJ Exterior Spectra Led Flood I.R. Remote I.R Remote (purchased separately: LEDJ90B) Functions: The “BLACKOUT” button is used to set the LED’s into the power on or off modes. The “AR” button is used to set the LED’s into the auto run mode.
- Page 6 LEDJ Exterior Spectra Led Flood DMX Set Up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a short circuit and erratic behaviour.
- Page 7 LEDJ Exterior Spectra Led Flood Specifications Spectra Flood Specifications: • Input power: 240V ~ 50HZ • Power consumption: 24W • 215 x 10mm LEDs (R: 48, G: 84, B: 83) • Beam angle: 40 degrees • IR signal and DMX signal available.
