Service Manual
Model No:IDW12P-E/IDW12P-U

4. Installation

4-1.Positioning the appliance

Positioning the appliance in the desired location. The back should rest against the wall behind it,
and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply
and drain hoses that can be positioned to the right or the left to facilitate proper installation.

4-2.Leveling the appliance

Once the appliance is positioned, adjust the feet (screwing them in or out) to adjust the
dishwasher, making it level. In any case, the appliance should not be inclined more than 2°. If the
appliance is level, it will help ensure proper performance.

4-3.Cold water connection

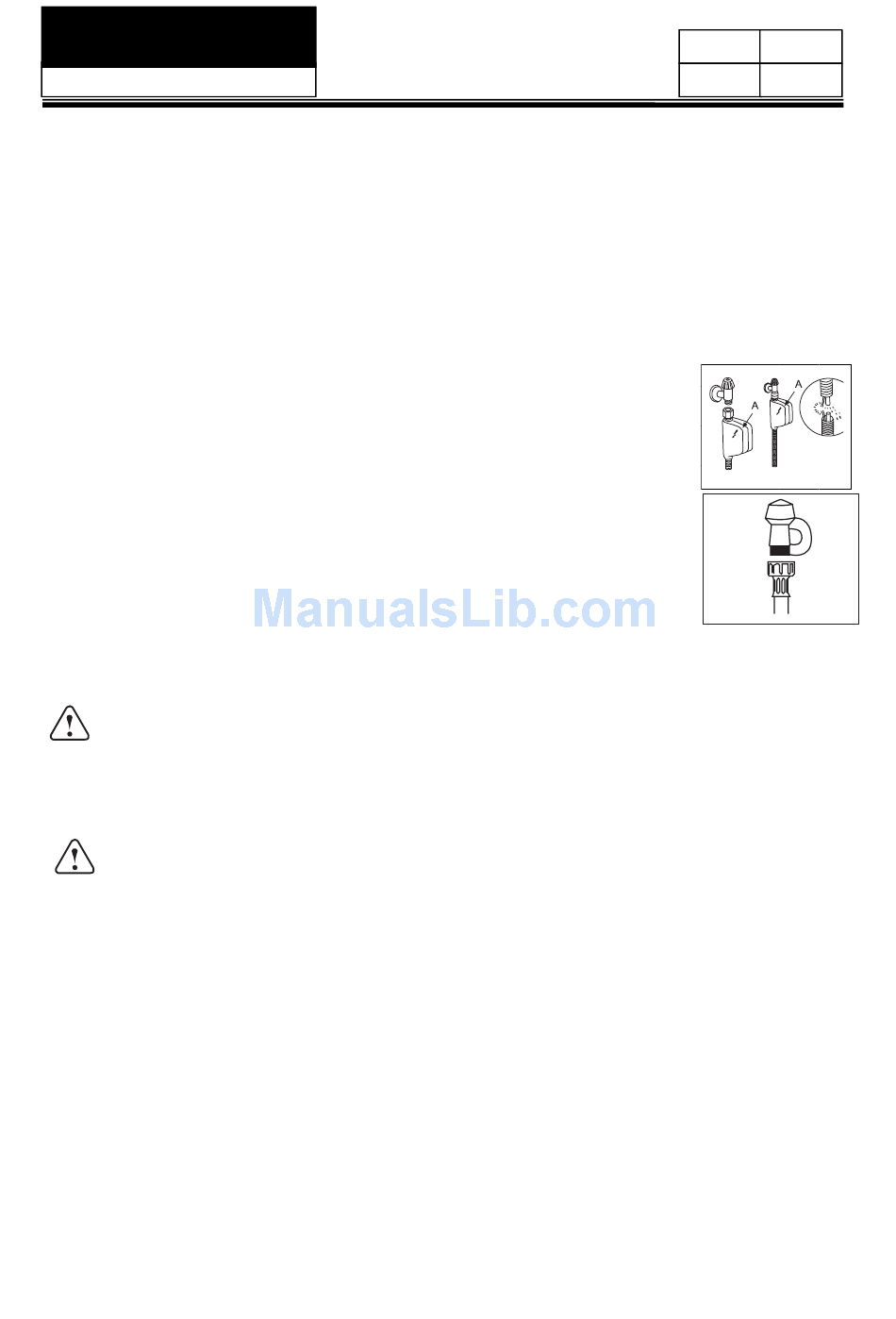

The IDW12P-E model is fitted with an "Aquastop" water supply hose(see fig.A)
in which a small filter is housed in the threaded end.
Connect the water supply hose to a standard threaded water outlet connector,
making sure that it is fastened tightly in place (IDW12P-U model only,see fig.B).
If the water pipes are new or have not been used for an extended
period of time, let the water run to make sure that the water is clear and free of
impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and
damage the appliance.
NOTE:
The minimum water pressure is 0.03 Megapascals.
The maximum water pressure is0.6 Megapascals.
Warning
The appliance is to be connected to the water mains using new hose-sets and that old
hose-sets should not be reused.

4-4.Anti-Flooding protection

The dishwasher is equipped with a system that stops the supply of water in the event of a problem
with the water supply hose, or leaks within the unit, in order to prevent damage to your home. If
for any reason the box containing the electrical components happens to get damaged, remove
the plug for the appliance from the socket immediately. In order to guarantee that the anti-flooding
feature operates properly, the "A" box with water supply hose must be attached to the water
supply tap as shown in fig.A. No other type of connection is acceptable. The water supply hose
must not, under any circumstances, be cut, as it contains electrical parts which are live.If the
length of the hose is not adequate to make a proper connection, the hose must be replaced with
one which is long enough. This hose is available upon request from specialised retailers and
service center.
7
Issue
Rev.
fig.A
fig.B
