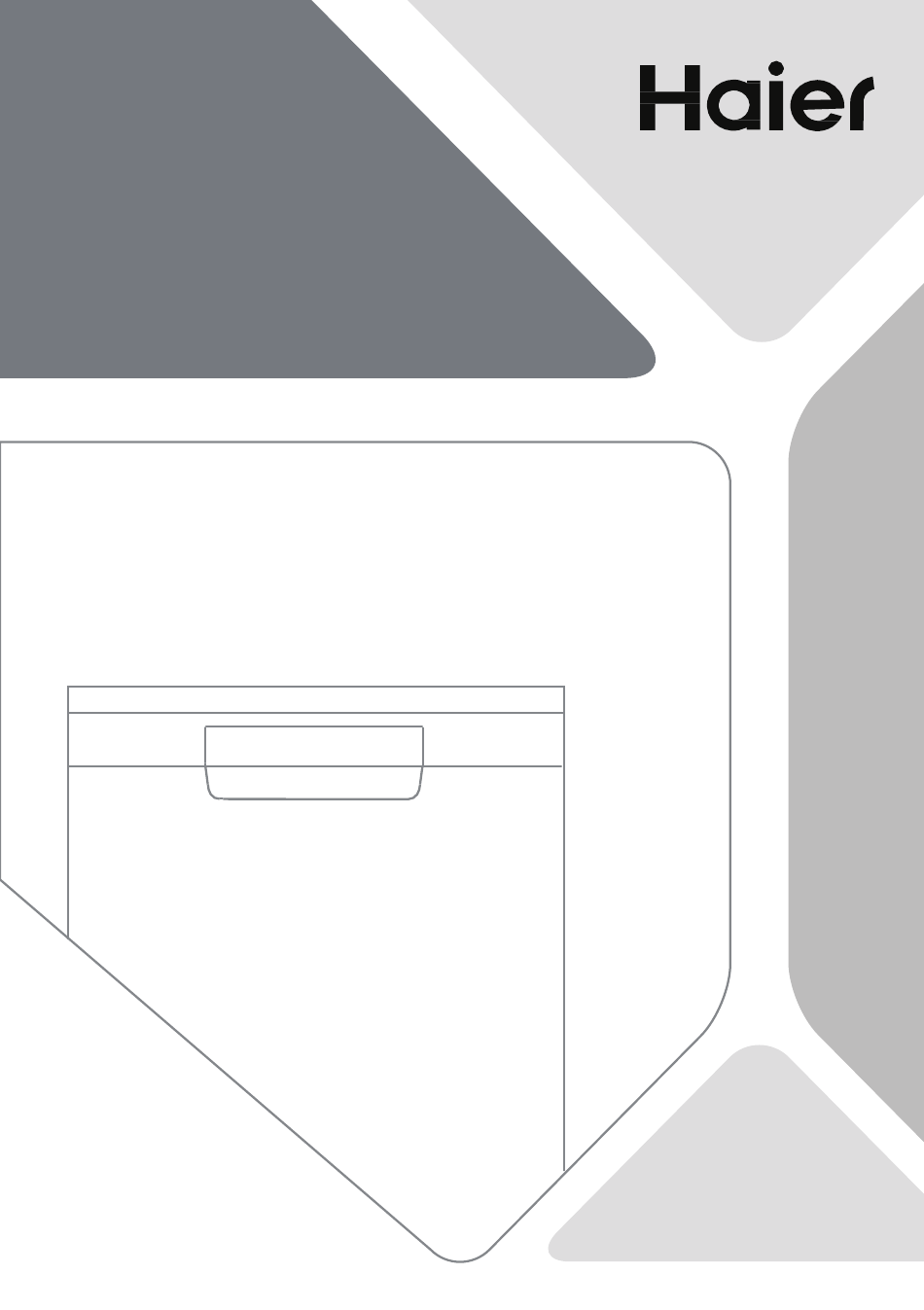

- Page 1 User Manual Dishwasher HDW13F0S1/HDW13F0W1 HDW13F0B1/HDW13F0PS1 NZ AU...
- Page 2 Thank you NZ AU Please read these instructions carefully before using this appliance. These instructions contain important information which will help you get the best experience of the appliance. Reading the manual carefully can help to ensure your safety and proper installation and better mai- ntenance in the future.
-
Page 3: Table Of Contents
Content NZ AU Safety ........................Installation ......................Technical Data ..................... 9 Product Description ..................Control Panel ...................... Programme ......................Before first use ....................Daily Use ......................Care and Cleaning ....................Troubleshooting ....................Customer service ....................Manufacturer’s Warranty.................. -
Page 4: Safety
Safety NZ AU Intended Use The appliance is designed for domestic use, including the below environm- ents inside the house, staff kitchen areas, farm houses, hotels, motels or other residential environments. It is not intended forcommercial or ind- ustrial use. Do not use it for purposes other than that for which it was designed. - Page 5 Safety NZ AU During Daily Use Do… supervise children and stop them to play with the appliance. put sharp pointed objects (e.g. knives) in a way that there is no danger of injury. Do not… open the door while a programme is operating.The appliance can release hot steam.
-
Page 6: Installation
Installation NZ AU WARNING! Any installation need to carried out only by a qualified technic- ian refer to section "safety". Free Standing Installation Install the appliance on horizontal ground. Adjust accurately all feet to get a firm, horizontal position. Only with a correct level the appliance door closes and seals correctly. -
Page 7: Fresh Water Connection
Installation NZ AU Fresh Water Connection IMPORTANT! The appliance should be connected to the water main using the new water >10mm inlet hose supplied. Old hoses shouldn't be used. Don't shorten the inlet hose. fig.A Take note of water connection requirements. The dishwasher has a single valve water connection. - Page 8 Installation NZ AU Drain Water Connection Fix the water drain hose properly to the piping.The hose has to reach at one point a height between 400 and 850 mm above the appliance bottom line. An extension hose for the water drain hose can't exceed a total length of 4 m and must have the same diameter as the water drain hose.
-
Page 9: Power Connection
Installation NZ AU Power connection As shown in the data, the power supply is plugged into an externally accessible place through the service hole for easy plugging. CAUTION! Always ensure that all connections (power supply, drain and fresh water hose) are firm, dry and not leaked. Take care these parts are never to be crushed, kinked, or twisted If the supply cord is damaged, it must be replaced by the service agent (see warranty card) in order to avoid hazards. -
Page 10: Technical Data
If the data on the rat- ing label is different from those specified below, consider those on the rating label as correct. Suppliers name or trade Haier mark HDW13F0S1/HDW13F0W1 Supplier´s model identifier HDW13F0B1/HDW13F0PS1... -
Page 11: Product Description
Product Description NZ AU control panel Upper basket Upper spray arm Detergent dispenser Rinse aid dispenser Lower spray arm Filters Lower basket Cutlery basket Accessories Check the accessories and literature in accordance with this list: water inlet hose User manual... -
Page 12: Control Panel
Control Panel NZ AU 1. ON / OFF button 2. PROGRAMME SELECT button 3. Programme indicators 4. Status indication 5. Child Lock 6. START DELAY button 7. START / PAUSE button 8. Time & Info Display/Indicator icon Time & Info display During any selection the display shows by flashing related information like Programme cycle time Programme start delay time... -
Page 13: Status Indicators
Control Panel NZ AU Indicator Icon If the indicator lights on: Rinse aid is empty! Rinse aid After adding Rinse Aid,the indicator lights off. If the indicator lights on,The appliance does not fill Water tap with water.Check section:“TROUBLE SHOOTING” If the indicator lights on, a delay start has Delay been activated. -
Page 14: Programme
Program NZ AU Programme Type of food residue Type of load Light to heavy soil: Non-delicate: dinnerware, cutlery， casserole, sauce, potato, pasta, rice, roasted or fried food pots and pans Heavy soil: Non-delicate: casserole, sauce, potato, pasta, dinnerware, cutlery， rice, roasted or fried food pots and pans Mixed soil: Non-delicate:... -
Page 15: First Step
Before first use NZ AU First Step Remove all packaging materials, keep them out of children’s reach and dispose them in an environmentally manner.There could be water residue inside the appliance due to quality checks in the factory. Perform in the following steps: Install the appliance. - Page 16 Before first use NZ AU Detergent with multifunction (e.g. Multitabs) combine detergent and rinse aid: The rinse aid setting should be adjust to . Please use the setting instructions in section HOW TO ADJUST SETTINGS and select the setting. The rinse aid is added from the rinse aid dispenser in addition to the multitabs rinse aid.
- Page 17 Before first use NZ AU Powder detergent quantity recommendations Use the table below to determine the optimal powder detergent quantity for each wash programme. If the water quality is poor in your area, more detergent may be required. Refer to 'Water Hardness' for more details. PRE WASH MAIN WASH WASH...
-
Page 18: Child Lock
Before first use NZ AU How to Adjust Settings Adjust the Rinse Aid level 1. The appliance is switched on. 2. Press and hold about 3 seconds until: The display shows the current Rinse Aid setting (the default is 3. Press to change the Rinse Aid setting in steps between (minimum dispense,no rinse aid is set) and (maximum dispense,... - Page 19 Before first use NZ AU Dishwasher operation 1. Load the baskets. 2. Press the ON/OFF button to activate the appliance. If the rinse aid indicator is on, fill the rinse aid dispenser and reset the rinse aid indicator， refer to section HOW TO RESET THE RINSE AID IDNICATOR.
-
Page 20: Daily Use
Daily Use NZ AU Load the Baskets With delicate glasses and porcelain make sure they are labelled dishwasher-proof. Do not put in the appliance items made of wood, horn, aluminium, pewter and copper. Do not put in the appliance items that can absorb water (sponges, household clothes). - Page 21 Daily Use NZ AU Upper baskets The upper basket is designed to hold items like glasses, The upper basket is designed to cups, saucers, plates, small hold items like glasses,cups, bowls and shallow pans. saucers, plates, small bowls and shallow pans. You can adjust the height of the upper basket to create more space for tall items in...
- Page 22 Daily Use NZ AU Lower basket Place the largest items here: ► pots, pans, lids, serving dishes and bowls. Ensure dishware items do not ► block the spray arm above from rotating. If you need more height for ► tall items, you can raise the upper basket.
- Page 23 Daily Use NZ AU Detergent Please use only a dedicated dishwasher detergent and follow the related instructions and dosage on its package. Using powder detergent For powder detergent quantities, refer to the following 'Powder detergent quantity recommendations' table and the detergent manufacturer’s guidance.
-
Page 24: Start A Program
Daily Use NZ AU Start a Program 1. Close the door. 2. Press the ON/OFF button 3. Press the program button you want to select and then the required program indicator flashes. Additionally the display shows the program run-time. 4. If need select a start time for a delayed start, re fer to the section START A PROGRAM WITH DELAY. - Page 25 Daily Use NZ AU Start a Program with Delay Set a start time by the following procedure in order to delay a program start: Set a program. Press the reservation button until the display shows the required delay time (from 1 to 24hours). Press the START/PAUSE button ►...
-
Page 26: Care And Cleaning
Care and Cleaning NZ AU Cleaning the filter, spray arms and filter plate Disconnect the dishwasher from the power supply and allow it to cool before undertaking any cleaning or maintenance. We recommend that the drain filter and filter plate be removed and cleaned once a month or whenever there is evidence of food particles. - Page 27 Care and Cleaning NZ AU Replacing the filters: 1. Align the filter cap with the notch on the filter base for one side. locating notch 2. Press the button to clip the filter cap under the filter base locating notches for the other sides.
-
Page 28: Cleaning The Upper Spray Arm
Care and Cleaning NZ AU Care and Cleaning of the Spray Arms Spray arms should be regularly inspected for dirt. If needed the spray arms could be removed. Cleaning the Upper spray arm To remove the upper spray arm, turn the locking nut clockwise to release. -
Page 29: Troubleshooting
Troubleshooting NZ AU Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after-sales service. CAUTION! Before maintenance, deactivate the appliance and disconnect the power plug from the power socket. - Page 30 Troubleshooting NZ AU Problem Possible cause Possible Solution Acoustic alarm, Anti-flood device is on: • Close the water tap. display shows • There are water leakages Disconnect the appliance • ALARMCODE in the appliance. Leak: The drain • The water inlet valve is from the power supply.
-
Page 31: Economic And Environmental Use
Troubleshooting NZ AU Problem Possible cause Possible Solution Increase the released quantity of rinse aid. Rinse aid dosage is too low. Refer to section DIFFERENT SETTINGS Dry water drop FOR RINSE AID. stains on glasses and dishes. Cleaning product too old, change the Quality of rinse aid or Multitab. -
Page 32: Customer Service
Customer service NZ AU We recommend our Haier Customer Service and the use of original spare parts. If you have a problem with your appliance, please first check TROUBLESHOOTING. If you cannot find a solution there, please contact: Your local dealer. -
Page 33: Manufacturer's Warranty
Manufacturer’s Warranty NZ AU... -
Page 34: Customer Care
Customer Care 0800 242 437... - Page 36 条形码尺寸40*8mm，由厂家生成。 0120507036...
