Instruction Manual

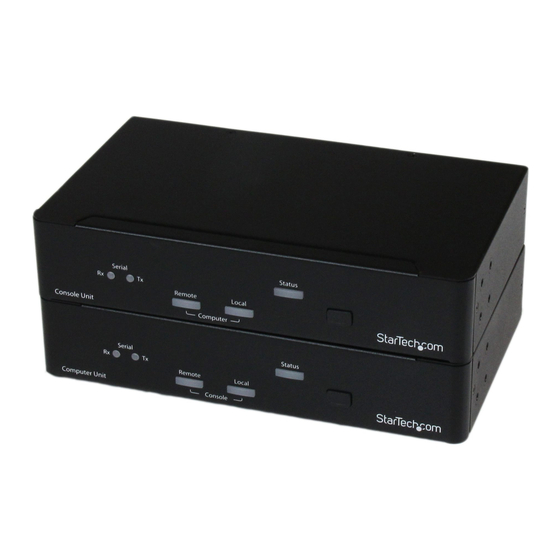

USB DVI KVM Console Extender with
Serial & Audio Over MM Fiber -
SV565FXDUSA
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/23/2013
2km
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com SV565FXDUSA
Summary of Contents for StarTech.com SV565FXDUSA
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/23/2013...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Front View ..............................2 Rear View ..............................2 Installation ....................3 Preparing Your Site ........................... 3 Installing the Computer Unit ........................ 4 Installing the Console Unit ........................4 Before Cascading with KVM Switch .................... -
Page 4: Introduction
Introduction The SV565FXDUSA USB DVI KVM Console Extender w/ Serial & Audio Over MM Fiber (2km) lets you control a server, computer or multiple computers (connected through KVM Switch) over a multi-mode fiber link, at distances of up to 2000m (6562 ft) away. -
Page 5: Front View
Front View Serial Rx/Tx Selection LEDs Status Selection button Rear View Computer USB Console 3.5mm connector Audio connectors SC fiber Console Computer connectors Serial port Serial port Console DVI Computer DVI Mask Hotkey connector connector switch Computer 3.5mm Console USB keyboard/ mouse connectors Audio connectors Instruction Manual... -
Page 6: Installation
Installation WARNING! Do not stare into laser beam or look directly into the ends of the fiber, or look directly into the aperture ports of the fiber. Invisible laser radiation can cause eye injury. Preparing Your Site Before you can install the product, you need to prepare your site. 1. -
Page 7: Installing The Computer Unit
Computer Unit. 3. Connect the power adapter from an AC electrical outlet to the unit. 4. Using the provided StarTech.com USB, DVI, Audio KVM cable, connect the Host computer system to the KVM Extender’s “Computer” connectors. Reconnect any necessary peripheral devices to the Host computer, removed in Step 2. -
Page 8: Before Cascading With Kvm Switch
OPTIONAL: If connecting a computer system to the Console Unit, switch off the computer and disconnect any existing devices. Using the provided StarTech.com integrated USB, DVI, Audio KVM cable, connect the computer system to the Console Unit’s “Computer” connectors. Reconnect any necessary peripheral devices to the Host computer, removed previously. -
Page 9: Using The Kvm Extender
Using the KVM Extender This section details how to use your KVM extender at both the local and remote locations. Using the Computer Unit The Computer Unit allows users connected to the Computer and Console units to share control of devices (computers, KVM Switches) connected to it. The Computer Unit has three modes that control which user may access the Host system (Computer A) at a given time: Auto (the KVM extender looks for keyboard or mouse activity from both Local and Remote and automatically accepts input from... - Page 10 Keyboard Shortcut Command Sequences With Compatibility Standard Command Description Mode Enabled Toggles control of Computer A [Ctrl] - [Ctrl] - [T] [Ctrl] - [Ctrl] - [T] between Auto, Local, and Remote modes [Ctrl] - [Ctrl] - [Esc] [Ctrl] - [Ctrl] - [Esc] Cancels the hotkey sequence Enables (2 beeps) or disables (1 beep) Compatibility Mode so that...
- Page 11 With Compatibility Standard Command Description Mode Enabled EDID Emulation Prevent the video resolution setting from exceeding the capability of the connected display (require CPU reboot); the following options of video resolution are available for selecting: Input 4 digits with 1007 for resolution of 1024 x 0768 [Ctrl] - [Ctrl] - [V] - [Ctrl] - [Ctrl] - [V] - 1210 for resolution of 1280 x 1024...
-
Page 12: Using The Console Unit
Beep Codes Some of the keyboard command sequences you issue to the Computer Unit have multiple possible settings. The unit will beep to indicate what setting you have selected for the command you issued. (A short beep followed by a long beep indicates an invalid command.) [Ctrl] - [Ctrl] - [Alt]+[E] (Compatibility Mode) 1 beep: disabled... - Page 13 LED Indicators Mode Remote Local Remote Access (Computer A) On (solid) Local Access (Computer B) On (solid) Keyboard Shortcut Command Sequences With Compatibility Mode Standard Command Description Enabled Toggles console control [Ctrl] - [Ctrl] - [T] [Ctrl] - [Ctrl] - [T] between Computer A and Computer B [Ctrl] - [Ctrl] - [Esc]...
- Page 14 Standard With Compatibility Description Command Mode Enabled [Ctrl] - [Ctrl] - [Q] [Ctrl] - [Ctrl] - [E] - Set DVI Video Equalization to Low - [L] [Q] - [L] [Ctrl] - [Ctrl] - [Q] [Ctrl] - [Ctrl] - [E] - Set DVI Video Equalization to Enhanced - [A] [Q] - [A]...
-
Page 15: Mask Hotkey Switch
Beep Codes Some of the keyboard command sequences you issue to the Console Unit have multiple possible settings. The Unit will beep to indicate what setting you have selected for the command you issued. (A short beep followed by a long beep indicates an invalid command.) [Ctrl] - [Ctrl] - [Alt]+[E] (Compatibility Mode) 1 beep: disabled... -
Page 16: Alternative Hot-Key Control
Alternative Hot-Key Control For some commands, an alternative to using the keyboard leading control key, [CTRL]- [CTRL], pressing and holding the physical “Selection” button on the unit itself can be used. These sequences can be used regardless if the Mask Hotkey feature is enabled or disabled. -
Page 17: Serial Device Setup
Serial Device Setup This KVM Extender provides DB9 serial ports on both the Computer and Console Units, which can be connected to serial devices such as POS, Barcode Scanners, Card Readers, and Touch screens. The KVM Extender units provide a passageway for data transmission without any baud rate limitation or configuration required. -
Page 18: Specifications
Specifications 2 x SC fiber 1 x DC Power Console: 1 x 29-pin DVI-I female 1 x DB9 serial male 2 x USB type A Connectors (Computer Unit) 2 x 3.5mm audio mini-jack Computer: 1 x 29-pin DVI-I female 1 x DB9 serial female 1 x USB type B 2 x 3.5mm audio mini-jack 2 x SC fiber... - Page 19 HDCP Support Audio Support Control Methods Front Push-button, Hot-keys Power Adapter 12VDC, 1500mA, type M plug Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F) Humidity 0 ~ 80% RH Dimensions (LxWxH) 135.0mm x 220.0mm x 44.0mm Weight 1030g (each) Instruction Manual...
-
Page 20: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 21 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
