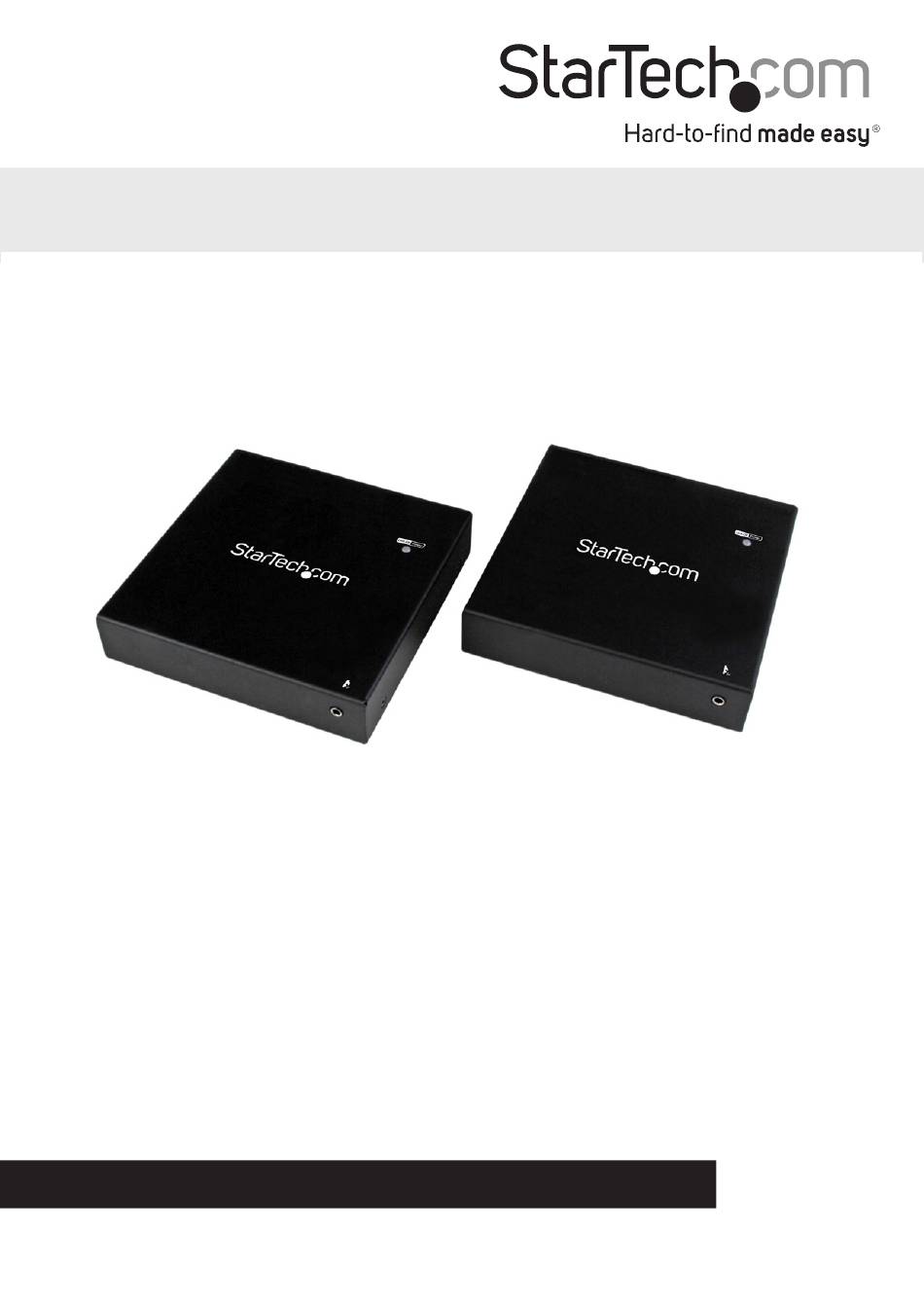

1080p HDMI® KVM Console Extender Over
Fiber with HDMI Audio & IR - 1km
SV565FXHD
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 06/12/2015
*actual product may vary from photos
Advertisement
Related Manuals for StarTech.com SV565FXHD
Summary of Contents for StarTech.com SV565FXHD
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 06/12/2015...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
- Page 3 Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Diagram ..................2 Computer Unit ............................2 Console Unit ..............................2 LED Indicators ..................3 Installation ....................3 Hardware Installation ..........................3 Technical Support ..................8 Warranty Information ................8 Instruction Manual...
- Page 4 Introduction Packaging Contents • 1x local extender unit • 1x remote extender Unit • 1x PS/2 y-cable • 1x External IR Sensor Kit • 1x 2m (6.56ft) SC-SC fiber optic cable • 2x universal power adapters (NA/EU/UK/AU) • 1x instruction manual System Requirements •...
- Page 5 Product Diagram Computer Unit Computer USB Status LED Connector Reset SC Fiber HDMI In Button Connector Connector IR Extender Port Console Unit Status LED Reset SC Fiber HDMI Out Console USB Button Connector Connectors IR Extender Port Instruction Manual...
- Page 6 LED Indicators Console Unit Solid Red: Power on Computer Unit Link OK / Power Solid Green: Power on Both Units Solid Blue: Connection to a powered-on extender unit detected Status LED Flashing Yellow: Link / Activity indicator Installation Hardware Installation Preparing Your Site 1.
- Page 7 and follow the cable manufacturer’s recommendations. Fiber optic cable is often custom designed for the installation and the manufacturer may have specific instructions on its installation. Installing the Computer Unit 1. Place the Computer Unit near your source PC / Server. Note: It is recommended to leave the PC powered off until all cables are connected and the KVM Extender has been powered.
- Page 8 Installing the Console Unit 1. Place the Console Unit near the monitor and USB device(s) in the desired remote location. 2. Connect an HDMI cable to the Console Unit (HDMI Out) and to the monitor. 3. Connect your USB Keyboard and Mouse into the USB ports on the Console Unit. Note: The USB console connections are designed for keyboard and mouse input devices only, and do not support data transfer from storage devices (e.g.
- Page 9 Video Signal HDMI Computer Unit: 1 x HDMI (19-pin) female 1 x USB type B female 1 x PS/2 female Connectors 1 x Fiber Optic SC Duplex female Console Unit: 1 x HDMI (19-pin) female 2 x USB type A female 1 x Fiber Optic SC Duplex female Compatible Cabling SM / MM Fiber optic cabling...
- Page 10 Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
- Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
