StarTech.com SV565FXHD4KU Quick Start Manual

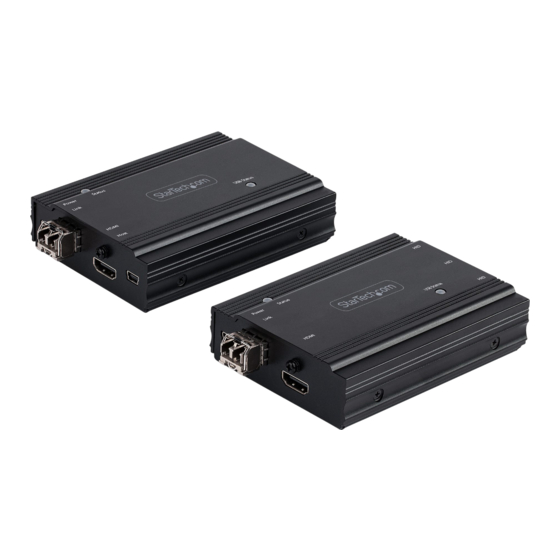

4K HDMI® KVM Console Extender Over Fiber - SFP+ Modules Included - 300m

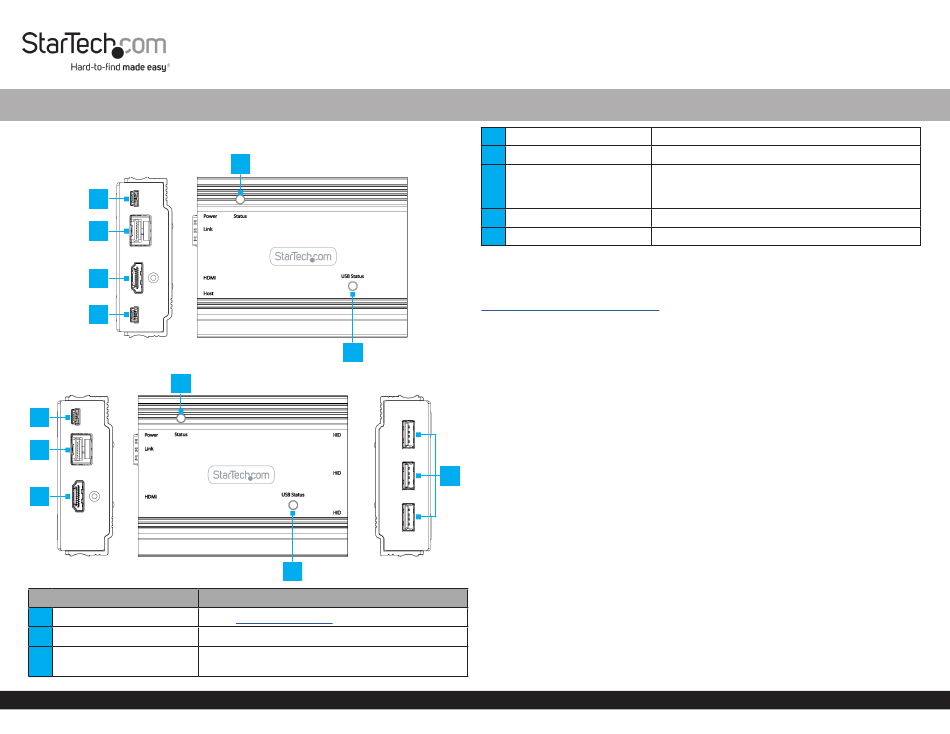

Product Diagram (SV565FXHD4KU)
Transmitter
2
3
4
5
Receiver
1
2
3
7
Component
1 Power / Connection LEDs • See
2 Power Supply Ports • Connect the Universal Power Adapters
• Use an LC-Terminated Fiber Cable to connect
3 Fiber Connection Ports
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
*Product may vary from images
1
6
6
Function
LED Indicator Table
the Transmitter and Receiver
4 Video Input Port
5
USB Host Connector
6 USB Status LEDs
7
Video Output Port
8 USB-A Ports
Information & Requirements
For the latest requirements and full manual, please visit
www.startech.com/SV565FXHD4KU
• Computer
• USB Compatible
• HDMI Output
• USB Keyboard and Mouse
• HDMI Display Device
• Duplex LC Fiber Cable (OM3)
• Multi-Mode extends up to 300M
Package Contents
• Transmitter for Host Computer x 1
8
• Receiver for Remote Console x 1
• 10G Multimode 10G SFP+ Module (Pre-Installed) x 2
• Universal Power Adapter x 2
• USB-A to Mini USB-B Cables x 3
• Quick-Start Guide x 1
Installation
1. Power OFF all the Devices (e.g. HDMI Video Source, Computer, etc.) that will be
connected to the Transmitter and Receiver.
2. Connect the Host Device and all of the USB Peripherals to the Transmitter and
Receiver.
3. Connect an HDMI Display Device to the Video Output Port on the Receiver, using
an HDMI Cable.
Quick-Start Guide
• Connect an HDMI Video Source
• Connect to a Computer
• Orange when USB Devices are connected
• (Flashes 1~4 times to indicate connected USB
Device number)
• Connect an HDMI Display Device
• Connect USB Devices (Keyboard/Mouse/etc.)
Manual Revision: April 30, 2021 5:36 PM
