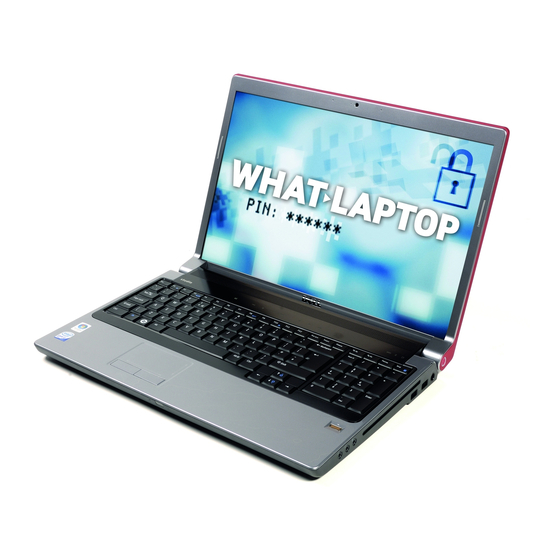

Dell Studio 1735 Service Manual
Hide thumbs
Also See for Studio 1735:
- Quick setup (2 pages) ,
- Setting up your computer (2 pages) ,
- User manual (354 pages)
Table of Contents
Advertisement
Quick Links
Dell™ Studio 1735/1737 Service Manual
Before You Begin
Base Cover
Hard Drive
Memory
Coin-Cell Battery
Processor Heat Sink
Processor
Center Control Cover
Keyboard
Display
Camera (optional)
Notes, Notices, and Cautions
NOTE:
A NOTE indicates important information that helps you make better use of your computer.
NOTICE:
A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION:
A CAUTION indicates a potential for property damage, personal injury, or death.
Information in this document is subject to change without notice.
© 2008 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.;Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under
license. Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model PP31L
October 2008 Rev. A01
Palm Rest
Optical Drive
Speakers
System Board
Fan
Charger Board
Communication Cards
Audio Board
Microphone
Battery Latch Assembly
Flashing the BIOS
