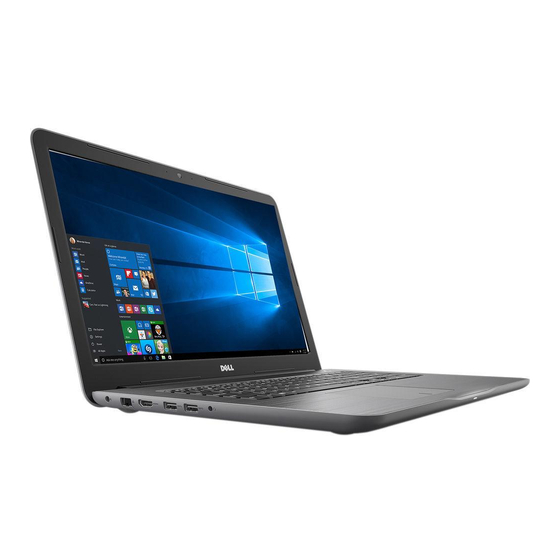

Inspiron 17 5000
Setup and Specifications
Computer Model: Inspiron 17-5765
Regulatory Model: P32E
Regulatory Type: P32E002/P32E003

Advertisement

   Summary of Contents for Dell inspiron 17 5000

  • Page 1

    Inspiron 17 5000 Setup and Specifications Computer Model: Inspiron 17-5765 Regulatory Model: P32E Regulatory Type: P32E002/P32E003...

  • Page 2

    © 2016 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.

  • Page 3: Table Of Contents

    Contents Set up your computer..............5 Views....................8 ........................8 Front ........................8 Left ........................9 Right ........................10 Base .......................11 Display Specifications................12 ................... 12 Dimensions and weight ..................12 System information ......................12 Memory ..................13 Ports and connectors ....................13 Communications .........................13 Video .........................14...

  • Page 4

    Getting help and contacting Dell........... 21 ..................21 Self-help resources ....................22 Contacting Dell...

  • Page 5: Set Up Your Computer

    Set up your computer Connect the power adapter and press the power button.

  • Page 6

    Finish operating system setup. For Windows: a) Connect to your network. b) Sign in to your Microsoft account or create a local account. For Ubuntu: Follow the instructions on the screen to finish setup.

  • Page 7

    Locate Dell apps. Register your computer Dell Help & Support SupportAssist — Check and update your computer...

  • Page 8: Views

    Views Front Power and battery-status light/hard-drive activity light Indicates the battery-charge status or the hard-drive activity. NOTE: Press Fn+H to toggle this light between power and battery- status light and hard-drive activity light. Hard-drive activity light Turns on when the computer reads from or writes to the hard drive. Power and battery-status light Indicates the power and battery-charge status.

  • Page 9: Right

    Power-adapter port Connect a power adapter to provide power to your computer and charge the battery. Network port Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or internet access. HDMI port Connect a TV or another HDMI-in enabled device. Provides video and audio output.

  • Page 10: Base

    Press to put the computer in sleep state if it is turned on. Press and hold for 4 seconds to force shut-down the computer. NOTE: You can customize the power-button behavior in Power Options. For more information, see Me and My Dell at www.dell.com/support/manuals.

  • Page 11: Display

    Right microphone Provides digital sound input for audio recording and voice calls. Service Tag label The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.

  • Page 12: Specifications

    Specifications Dimensions and weight Height 25.30 mm (1 in) Width 424 mm (16.69 in) Depth 280 mm (11.02 in) Weight (maximum) 3.09 kg (6.81 lb) NOTE: The weight of your computer varies depending on the configuration ordered and the manufacturing variability. System information Inspiron 17-5765 Computer model...

  • Page 13: Ports And Connectors

    Ports and connectors External: Network One RJ45 port • Two USB 3.0 ports • One USB 2.0 port Audio/Video • One HDMI port • One headset (headphone and microphone combo) port Internal: M.2 slot One M.2 slot for WiFi and Bluetooth combo card Communications Ethernet...

  • Page 14: Audio

    Integrated Discrete NOTE: AMD Radeon M445DX Dual graphics is supported on computers with AMD A10-9600P processor, AMD A12-9700P processor, or AMD FX-9800P processor with R7 M445 discrete graphics. Memory Shared system Up to 4 GB GDDR5 memory Audio Controller Realtek ALC3234 with Waves MaxxAudio Pro Speakers Speaker output...

  • Page 15: Media-card Reader

    Media-card reader Type One SD-card slot Cards supported • SD card • SD High Capacity (SDHC) card • SD Extended Capacity (SDXC) card Keyboard Type • Standard keyboard • Backlit keyboard (optional) Shortcut keys Some keys on your keyboard have two symbols on them.

  • Page 16: Touch Pad

    Touch pad Resolution • Horizontal: 1228 dpi • Vertical: 928 dpi Dimensions • Height: 80 mm (3.15 in) • Width: 105 mm (4.13 in) Power adapter Type • 45 W • 65 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current (maximum) 1.30 A/1.60 A/1.70 A...

  • Page 17: Display

    Operating time Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. Life span (approximate) 300 discharge/charge cycles Temperature range: 0°C to 35°C (32°F to 95°F) Operating Temperature range: –40°C to 65°C (–40°F to 149°F) Storage Coin-cell battery CR-2032 Display Type...

  • Page 18: Temperature Range

    Operating Storage Temperature range 0°C to 35°C (32°F –40°C to 65°C (–40°F to to 95°F) 149°F) Relative humidity 10% to 90% (non- 0% to 95% (non- (maximum) condensing) condensing) Vibration (maximum) 0.66 GRMS 1.30 GRMS † ‡ Shock (maximum) 110 G 160 G Altitude (maximum) –15.2 m to 3048 m...

  • Page 19: Keyboard Shortcuts

    Keyboard shortcuts Keys Description Mute audio Decrease volume Increase volume Play previous track/chapter Play/Pause Play next track/chapter Switch to external display Search Toggle keyboard backlight (optional) Decrease brightness Increase brightness Turn off/on wireless Pause/Break Sleep Toggle scroll lock Toggle between power and battery- status light/hard-drive activity light...

  • Page 20

    Keys Description System request Open application menu Toggle Fn-key lock Home Page down Page up...

  • Page 21

    Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Information about Dell products and www.dell.com services Windows 8.1 and Windows 10 Dell Help & Support app Windows 10 Get started app Windows 8.1...

  • Page 22: Contacting Dell

    Contacting Dell To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell. NOTE: Availability varies by country and product, and some services may not be available in your country. NOTE: If you do not have an active internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
