J30 – LIN2/SCI RxD selection
Controls whether the RxD pin on LIN2 or SCI is connected to the default I/O pin on
the processor. The exact pins used are dependent on the specific Mini‐Module
plugged into the motherboard. Please refer to the Mini‐Module hardware manual
for more details.
Jumper Setting
1+2
2+3
3.5

SCI

One SCI interface is available on the xPC56XXMB.
18
Effect
The LIN2 RxD pin is connected to a processor I/O pin.
This should be set if enabling LIN2.
The SCI RxD pin is connected to a processor I/O pin.

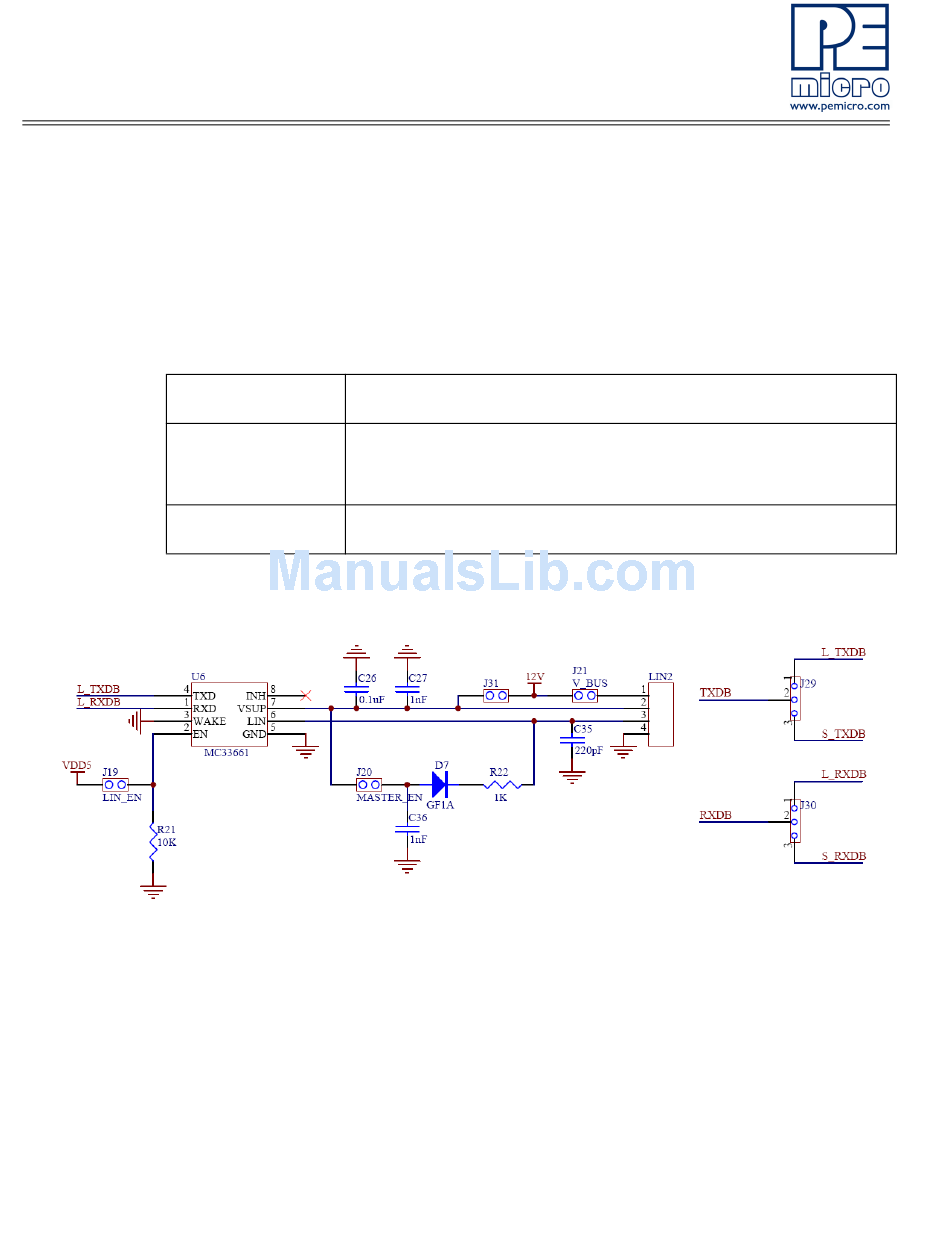

Figure 3-5: LIN2 schematic (Not populated by default)
