J30 – LIN2/SCI RxD selection
Controls whether the RxD pin on LIN2 or SCI is connected to the default I/O
pin on the MPC560xB processor.
Jumper Setting
1+2
2+3

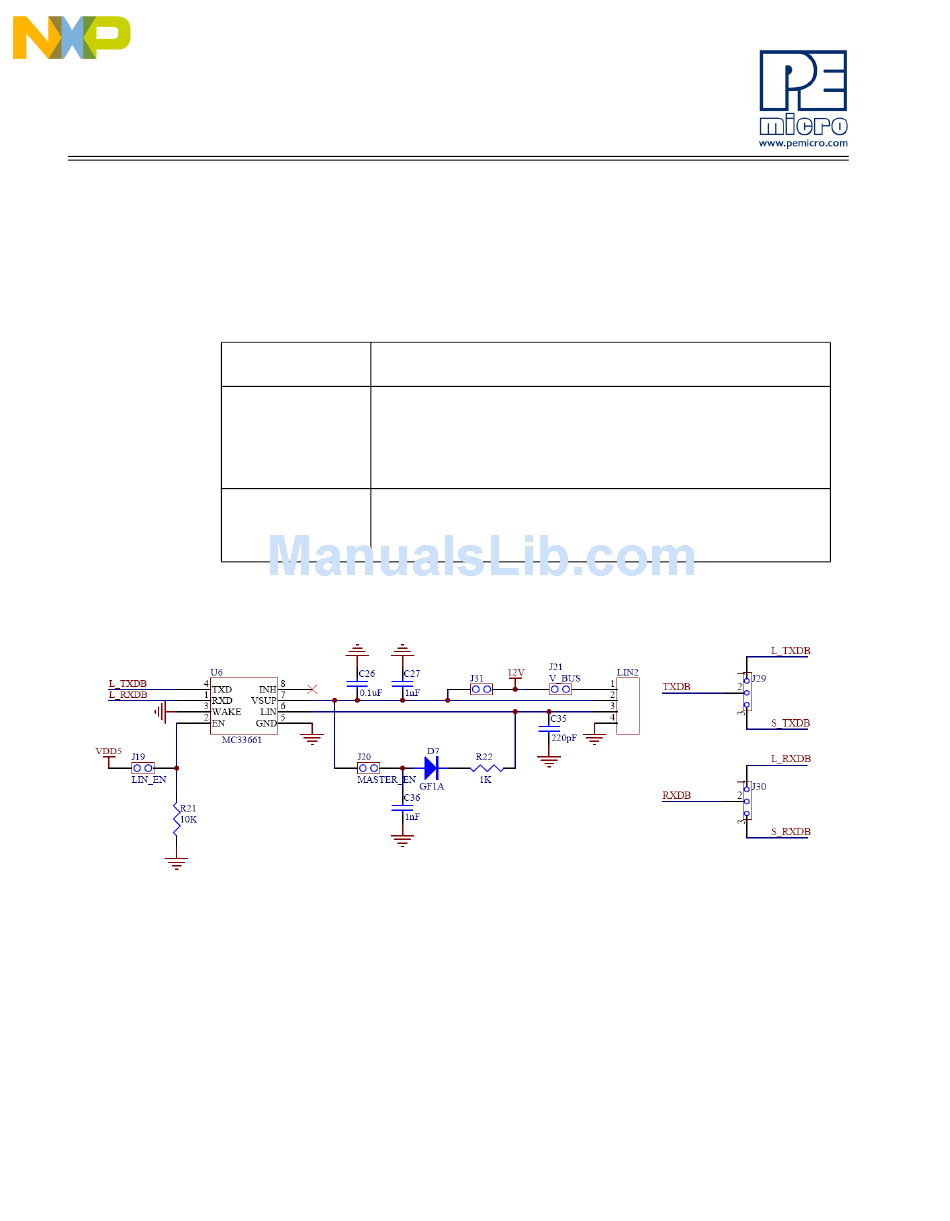

Figure 3-5: LIN2 schematic (Not populated by default)
3.5
SCI
One SCI interface is available on the xPC56XXMB.
20
Effect
The LIN2 RxD pin is connected to the "PC7" pin on
the MPC560xB processor. This should be set if
enabling LIN2.
The SCI RxD pin is connected to the "PC7" pin on the
MPC560xB processor.
xPC560B EVB User Manual
