Ceiling Mounting
Invert the projector and suspend it from the ceiling using a specific bracket.
To fit the bracket unscrew and remove the 3 rubber feet
•
Attach bracket by using 3 x M6 screws not exceeding 15 mm in length
•
Orientation
By default, the Nero 3D is configured for a Front installation (projector installed up-
right and in front of the screen). If the projector is installed behind the screen or inver-
ted, you can use the image orientation function of the projector (see
page 29)

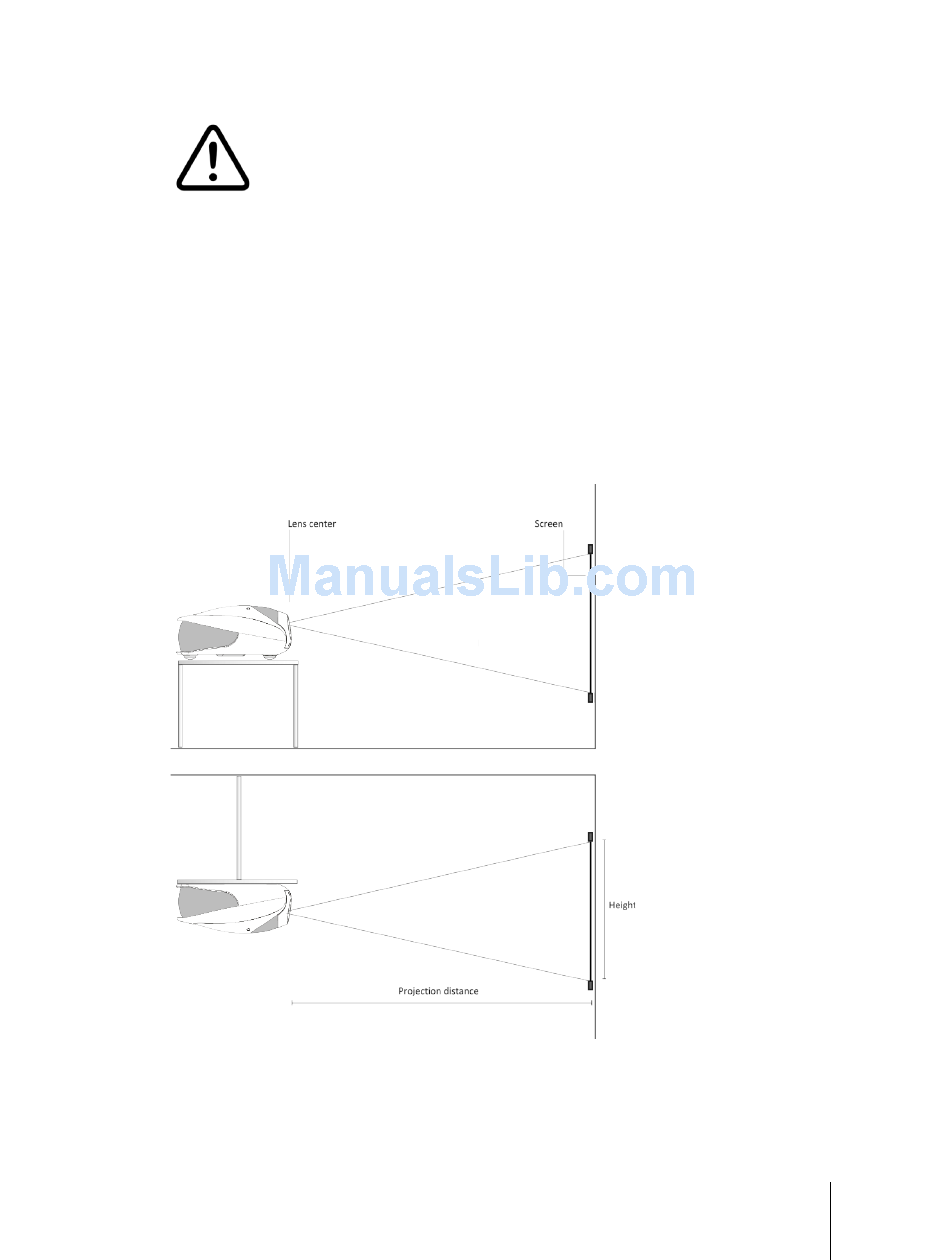

Vertical Lens Shift
Ideally, the projector should be positioned perpendicular to the screen and in such a
way that:
the lens center and screen center are aligned with each other
•
the projected image fills the screen perfectly
•
3 Installation
For ceiling mounting use only SIM2-approved ceiling brackets and adhere
to the installation instructions and safety guidelines provided with the
bracket. Do not over-tighten the screws.
"Orientation" on
