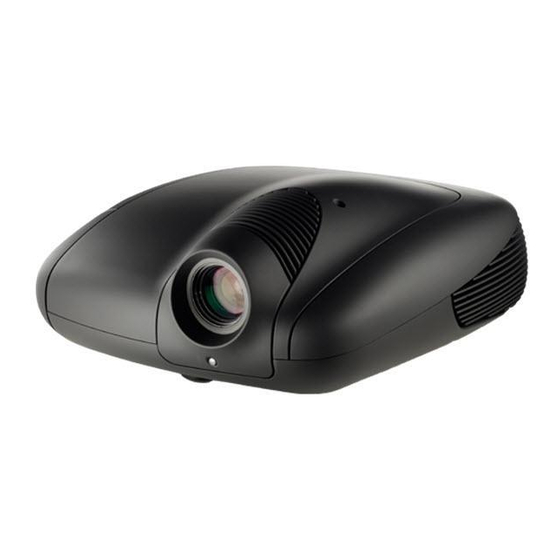

Sim2 Nero 3D HB User Manual

Hide thumbs Also See for Nero 3D HB:
Table of Contents

Advertisement

Quick Links

SIM2 Multimedia
Nero 3D-1,
Nero 3D-2,
Nero 3D HB

User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nero 3D HB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sim2 Nero 3D HB

Summary of Contents for Sim2 Nero 3D HB

  • Page 1: User Guide

    SIM2 Multimedia Nero 3D-1, Nero 3D-2, Nero 3D HB User Guide...

  • Page 2: Table Of Contents

    Contents Important information About this User Guide Safety 3D Content Environment Notice Chapter 1: Introduction Key Features and Benefits System Components Optional Accessories Chapter 2: Overview Remote Control Projector Keypad Connections 3D IR Emitter 3D Glasses Chapter 3: Installation Location Mounting Connections Switching On and Off...

  • Page 3: Important Information

    Inside the housing there are electrical parts carrying dangerously high voltages and parts operating at high temperature. Never open the housing. Entrust all servicing and repair work to a SIM2 Authorized Service Center. Opening the housing voids the war- ranty.
  • Page 4 mains. Use only the specified power supply. Connect the projector to a mains electric- al supply with rated voltage of between 100-240 V AC, 50/60 Hz and equipped with a protective earth connection. If you are not sure of your domestic mains rating, contact an electrician.

  • Page 5: Environment

    It may contain materials that constitute a health and environmental hazard. To prevent harmful materials from being released into the environment and to promote the use of natural materials, SIM2 provides the following information regarding the disposal and recycling of the product.

  • Page 6: Notice

    This characteristic of the optical system is to be deemed as normal. In order to reduce this effect SIM2 recommends that the area sur- rounding the projection screen is as dark as possible.

  • Page 7: Chapter 1: Introduction

    Windows-based computers. Key Features and Benefits high picture quality: SIM2 renown image processing and the latest 0.95 in. • 1080p DMD from Texas Instruments precision optics: patented SIM2 ALPHAPATH compact die-cast light engine •...

  • Page 8: System Components

    1 x CD with Live Color Calibration software (for Windows-based computers) • If any items are missing or damaged, contact your SIM2 Authorized Dealer as soon as possible. Keep the original packaging in case anything has to be shipped. Optional Accessories Visus System Acc (4 SIM2 Visus active shutter glasses and 1 IR emitter for •...

  • Page 9: Chapter 2: Overview

    If you are using a programmable remote control, the setup software probably • allows importing of Pronto Hex codes. See SIM2 Nero 3D- 1/3D-2/3D HB IR Control for a list of all the projector codes in Pronto Hex format, including a number of discrete codes for: ◦...

  • Page 10: Projector Keypad

    ◦ Memories ◦ 3D Controls (3D Mode and Input Formats) Operation The Nero 3D projector has two IR receivers, one on the front and one on the back of the unit. The operative range of the remote control is approximately 10 m (33 ft.). Make sure that there is nothing obstructing the infrared beam between the remote control and the IR receiver you are pointing to.
  • Page 11 Connections ❶ ❷ ❸ ❹ ❺ ❻ ❼ ❽ Inputs ❶ HDMI 1 Accept both HDMI and DVI digital video inputs. HDMI 2 ❷ Components/RGB-HV Four RCA connectors. They accept both standard and high-definition component (YPrPb) and RGB-HV signals. Also used as RGB input for SCART RGBS signals.
  • Page 12 3D IR Emitter The 3D infrared emitter is designed to be placed near the projector and aimed at the screen. It receives the 3D sync signal from the projector and emits infrared pulses that bounce off the screen and the walls to reach the 3D glasses infrared receiver. Note: The emitter emits sync pulses only when the projector displays 3D content.
  • Page 13 3 Installation This section provides instructions for the installation of the Nero 3D projector. Important: Installation procedures should be performed by a qualified AV system spe- cialist. Location When installing the Nero 3D projector, take the following considerations into account. Installation Type Select the installation type that best suits your needs: front or rear projection...
  • Page 14 Attach bracket by using 3 x M6 screws not exceeding 15 mm in length • For ceiling mounting use only SIM2-approved ceiling brackets and adhere to the installation instructions and safety guidelines provided with the bracket. Do not over-tighten the screws.
  • Page 15 If it is not possible to position the projector perpendicular to the projection screen (so that the lens center and screen cen- ter are aligned with each other) you can use the mechanical lens control at the top of the projector to shift the projected image vertically: insert the provided hex wrench into the vertical lens •...
  • Page 16 USB port, using a USB Type A (rectangular) to Type B (square) cable connector. • In this case, installation of a device driver provided by SIM2 may be required – ask your SIM2 Authorized Dealer Installation...
  • Page 17 Note: RS-232 communications are limited to 15 m (50 ft.), whereas USB are limited to 5 m (16 ft.). Triggers Some Home Theater devices can be controlled through a 12 V signal. The projector can output three 12 V (100 mA max) signals: TRIG1 for motorized screens control •...

  • Page 18: Switching On And Off

    Switching On and Off Switching On 1. Turn on the main power switch on the right hand side of the projector. The projector enters the low power Standby status. The indicator light on the left hand side of the projector turns red and the status display next to it shows . . 2.
  • Page 19 4 Operation Viewing 3D Content 3D stereo visualization offers clear and sharp 3D images thanks to 3 chip DLP Imaging technology. This technique achieves channel separation using active shutter glasses. Active shutter glasses turn on and off in rapid succession and stop light reach- •...
  • Page 20 • indicator light ramp from off to bright, and then turn off again. You are now in SIM2 Cinema mode and the glasses and the projector are synced. If, for any reason, the glasses behave differently, reset them (see below).
  • Page 21 2D display mode for normal 2D material. 3D Input Format adjustment is un- • available. PureMotion adjustment is available. 3D Input Format The Nero 3D checks AVI infoframe data and input signal resolution in order to determ- ine the appropriate 3D format. When automatic detection of 3D format is not pos- sible, choose one of the following options: (S-S) Side by Side Left and right halves of the image are separated, rescaled •...

  • Page 22: Input Menu

    Table 4.1 Signal 3D Format HDMI 1920 x 1080p @ 23.98/24 Hz Frame Packing Side by Side Top and Bottom 1920 x 1080p @ 25 Side by Side Top and Bottom 1920 x 1080p @ 29.97/30 Hz Side by Side Top and Bottom 1920 x 1080p @ 50 Hz Side by Side...

  • Page 23: Main Menu

    To enter the Input menu press: • Key 0 on the remote control or Source on the projector keypad. To select an input press the corresponding number on the remote control, or: • 1. ▴ or ▾ on the remote control or on the keypad to highlight the input ●...
  • Page 24 Picture This menu section provides access to common image quality adjustments. Adjust- ments not available for a given input are not displayed in the menu (See Table 4.3 details). Table 4.3 RGBS Video HDMI 1/2 YPrPb Graphics Brightness ● ● ●...
  • Page 25 Mode (Nero 3D-2/3D HB) This adjustement is available only on the Nero 3D-2 and Nero 3D HB. When viewing 2D contents, you can choose between two user modes: PureMovie allows a pure and unprocessed presentation of the signal coming •...
  • Page 26 When viewing 3D contents, the PureMotion3D mode is automatically activated. DynamicBlack (Nero 3D-2/ 3D HB) This adjustement is available only on the Nero 3D-2 and Nero 3D HB. DynamicBlack improves the level of black and increases the depth and the detail of the image especially in parts with low and medium brightness.
  • Page 27 Normal projects the image occupying the full height of the screen while main- • taining the aspect ratio of the input signal. When the input signal aspect ratio is 4:3, black vertical bands are displayed on the right and left of the picture. Anamorphic correctly displays a 16:9 image with over scan.
  • Page 28 To accurately set the Primaries and White Point you will need access to special- ized color measuring equipment and also the knowledge to use such equipment. Al- ternatively, contact the SIM2 Authorized Dealer where you purchased your product and ask them to arrange for an ISF certified calibrator to set up your projector.
  • Page 29 This adjustment compensates the distortion resulting from the angle of projection. Note: Keystone may cause artifacts in the image and may not be available when dis- playing specific 3D content (see Table 4.2). SIM2 recommends that you use this fea- ture only when necessary. Operation Nero 3D User Guide...
  • Page 30 Variable Iris (Nero 3D-2/3D HB) This adjustement is available only on the Nero 3D-2 and Nero 3D HB. Controls the iris in the the optical engine. Larger values increase brightness and smal- ler values increase contrast in the projected image.
  • Page 31 Language Selects the desired OSD language. The Nero 3D can display the menus in English, Itali- an, French, German, Spanish, Swedish, Portuguese, Russian and Simplified Chinese. Source List Allows customization of the Input list. To change the status of an input: 1.
  • Page 32 Help Menu When enabled, the Help bar (providing tips for menu navigation) is displayed at the bottom of the main menu. OSD Background Selects the background of the OSD (Clear or Solid). OSD Position Changes the location for the display of the Main Menu OSD. To select one of the nine preset positions: press 1-9 on the remote control •...
  • Page 33 ● ● 3D Input Format ● Notes: 1. YPrPb only 2. Nero 3D-2 and Nero 3D HB only Table 4.2 3. See on page for more information The Memory Management function menu page is activated by pressing the Memory key on the remote control.

  • Page 34: Quick Menus

    The confirmation message “Memory (1-6) recalled” is displayed. The last memory you have recalled becomes the active memory for the current input (the memory that is automatically recalled each time that input is selected). If this behavior is not desired: 1.
  • Page 35 Sharpness, Filter and Noise Reduction will appear on after the other in the lower part of the screen by pressing ▴ or ▾. Messages The following messages may appear on your screen: No signal. The projector does not recognize any signal applied to the selected •...

  • Page 36: Troubleshooting

    • blocked and that room temperature is within specifications. Wait at least 30 minutes and then turn the projector back on. Check the Status Display for any errors. Contact your SIM2 Authorized Dealer • for assistance if the error persists.
  • Page 37 3D content is displayed as two near-identical images If they are next to each other, press the 3D key on the remote control and • then choose Side by Side 3D Input Format. If they are one above the other, press the 3D key on the remote control and •...

  • Page 38: Specifications

    6 Specifications Projection Type Digital Light Processing (DLP), 1-chip DLP Type: 0.95 in., 1920 x 1080 Optical Engine Die cast, based on SIM2 patented ALPHAPATH Projection Lens High-quality glass Throw ratio:  T1: 1.37-1.66:1  T2: 1.75-2.48:1  T3: 2.54-3.90:1...
  • Page 39 Video Standards  Composite: NTSC 3.58/4.43, PAL B/G/H/I/M/N/60, SECAM (automatically selected)  Components/RGBHV: 480i, 576i, 480p, 576p, 1080i 50/60, 720p 50/60, 1080p 24/25/30/50/60, VGA, SVGA, XGA, SXGA, UXGA  HDMI: 480i, 576i, 480p, 576p, 1080i 50/60, 720p 50/60, 1080p 24/25/30/50/60, VGA, SVGA, XGA 3D Formats ...

  • Page 40: Projection Distances

    7 Projection Distances 1.78:1 (16:9) Screen Projection Distance Screen Vertical T1 (1.37-1.66:1) T2 (1.75-2.48:1) T3 (2.54-3.90:1) Offset Diagonal Width Height Size (in.) 2.21 1.25 3.03 3.73 3.92 5.22 5.76 8.63 0.62 2.66 1.49 3.65 4.48 4.72 6.38 6.91 10.36 0.75 3.32 1.87 4.58...
  • Page 41 8 Dimensions Nero 3D dimensions in millimeters and (inches). Dimensions Nero 3D User Guide...
  • Page 44 10108 USA Today Way Miramar, FL 33025 USA Phone: + 1 954 4422999 Fax: + 1 954 4422998 Email: sales@sim2usa.com www.sim2usa.com SIM2 BRIONVEGA Co., Ltd Room 303-304, No. 244 Liaoning Road Shanghai 200080 – CN Phone/Fax: 86 1 62881991 Email: InfoCHINA@sim2.com SIM2 UK Steinway House Worth Farm Little Horsted Nr.
