SIM2 Multimedia

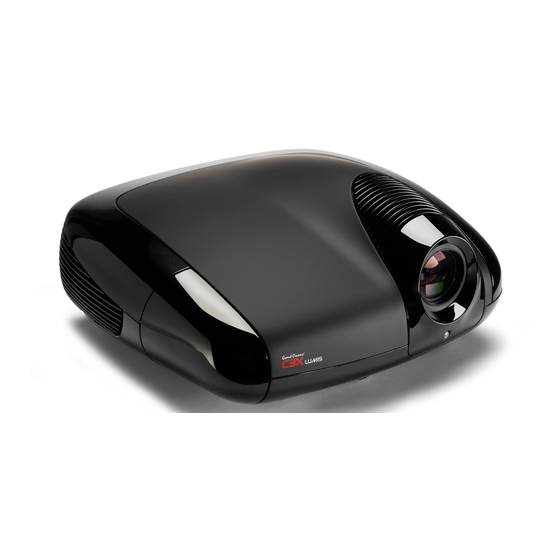

Lumis 3D-S

User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUMIS 3D-S and is the answer not in the manual?

Questions and answers

Related Manuals for Sim2 LUMIS 3D-S

Summary of Contents for Sim2 LUMIS 3D-S

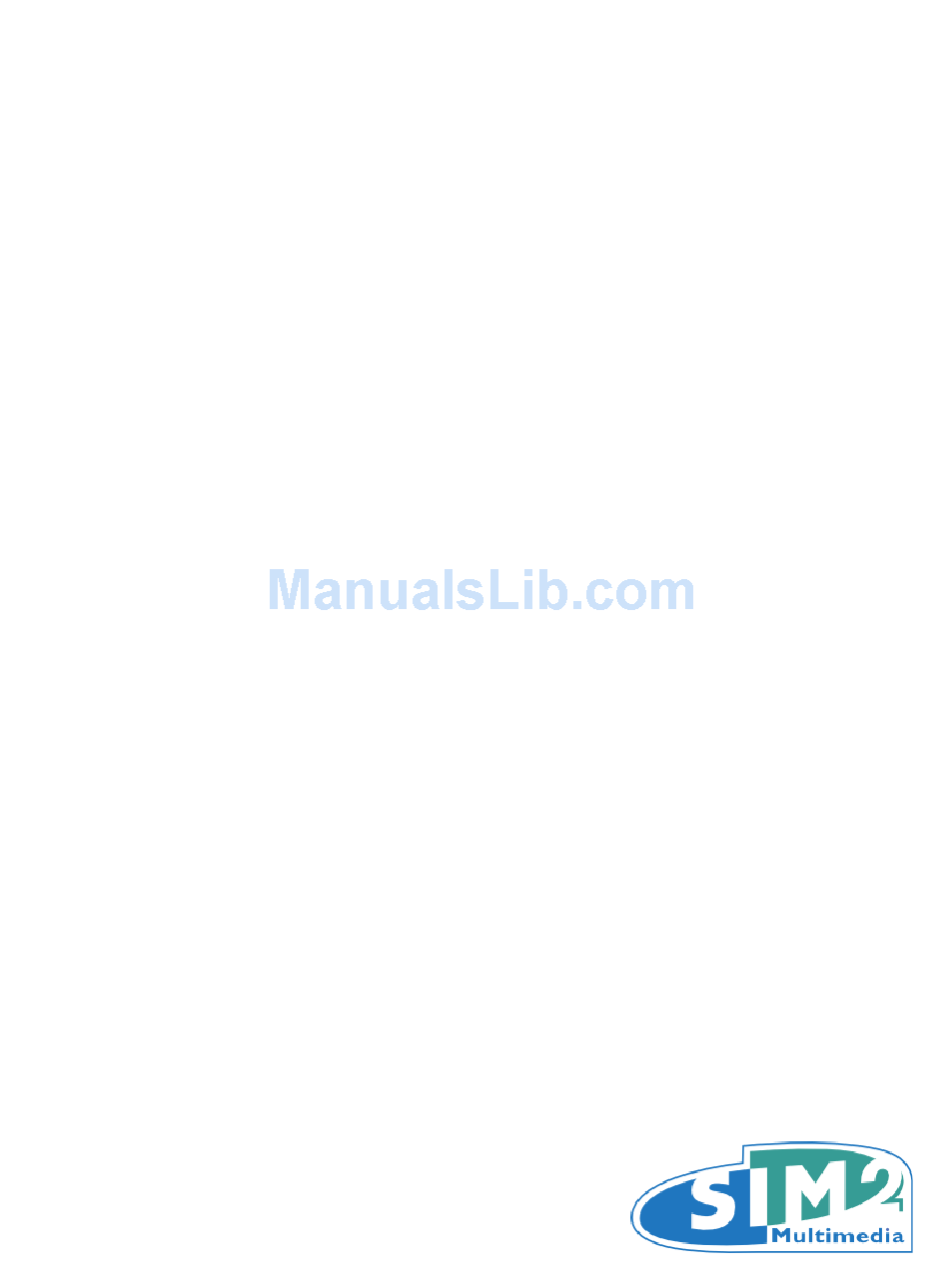

  • Page 1: User Guide

    SIM2 Multimedia Lumis 3D-S User Guide...
  • Page 2 Contents Important information Safety 3D content Environment Notice Chapter 1: Introduction Key Features and Benefits System Components Optional Accessories Chapter 2: Overview Remote Control Projector Keypad Connections 3D IR Emitter 3D Glasses Chapter 3: Installation Location Mounting Connections Switching On and Off Chapter 4: Operation Viewing 3D Content 3D Menu...
  • Page 3 Inside the housing there are electrical parts carrying dangerously high voltages and parts operating at high temperature. Never open the housing. Entrust all servicing and repair work to a SIM2 Authorized Service Center. Opening the housing voids the war- ranty.
  • Page 4 with a flat head screwdriver and replace the fuse. Fit the replacement fuse. Use only type T 10 A L H fuses for the projector. Be careful with cables Make sure cables are routed so that people are not impeded or become a trip hazard. Keep all cables away from children.
  • Page 5 • take it to your local waste disposal facility for recycling. You may return your old equipment to your SIM2 Authorized Dealer free of • charge when you buy a new product that is equivalent or has the same func- tions as the old one.
  • Page 6 This characteristic of the optical system is to be deemed as normal. In order to reduce this effect SIM2 recommends that the area surrounding the projection screen is as dark as possible.

  • Page 7: Key Features And Benefits

    Windows-based computers. Key Features and Benefits high picture quality: SIM2 renown image processing and the latest 0.95 in. • 1080p DarkChip4 DMD from Texas Instruments precision optics: SIM2 ALPHAPATH light engine •...

  • Page 8: Optional Accessories

    If any items are missing or damaged, contact your SIM2 Authorized Dealer as soon as possible. Keep the original packaging in case anything has to be shipped. Optional Accessories Additional SIM2 103-S active shutter glasses for E103-S IR emitter (part num- •...

  • Page 9: Remote Control

    If you are using a programmable remote control, the setup software probably • allows importing of Pronto Hex codes. See SIM2 Lumis 3D-S IR Control for a list of all the projector codes in Pronto Hex format, including a number of discrete codes for: ◦...

  • Page 10: Projector Keypad

    ◦ Memories ◦ 3D Controls (3D Mode and Input Formats) Operation The Lumis 3D-S projector has two IR receivers, one on the front and one on the back of the unit. The operative range of the remote control is approximately 10 m (33 ft.). Make sure that there is nothing obstructing the infrared beam between the remote control and the IR receiver you are pointing to.
  • Page 11 Connections ❶ ❷ ❸ ❹ ❺ ❻ ❼ ❽ Inputs ❶ HDMI 1 Accept both HDMI and DVI digital video inputs. HDMI 2 ❷ Components/RGB-HV Four RCA connectors. They accept both standard and high-definition component (YPrPb) and RGB-HV signals. Also used as RGB input for SCART RGBS signals.
  • Page 12 3D IR Emitter The 3D infrared emitter is designed to be placed near the projector and aimed at the screen. It receives the 3D sync signal from the projector and emits infrared pulses that bounce off the screen and the walls to reach the 3D glasses infrared receiver. Note: The emitter emits sync pulses only when the projector displays 3D content.

  • Page 13: Installation

    3 Installation This section provides instructions for the installation of the Lumis 3D-S projector. Important: Installation procedures should be performed by a qualified AV system spe- cialist. Location When installing the Lumis 3D-S projector, take the following considerations into ac- count.
  • Page 14 Attach bracket by using 3 x M6 screws not exceeding 15 mm in length • For ceiling mounting use only SIM2-approved ceiling brackets and adhere to the installation instructions and safety guidelines provided with the bracket. Do not over-tighten the screws.
  • Page 15 If it is not possible to position the projector perpendicular to the projection screen (so that the lens center and screen cen- ter are aligned with each other) you can use the mechanical lens control at the top of the projector to shift the projected image vertically: insert the provided hex wrench into the vertical lens •...
  • Page 16 USB port, using a USB Type A (rectangular) to Type B (square) cable connector. • In this case, installation of a device driver provided by SIM2 may be required – ask your SIM2 Authorized Dealer Installation...
  • Page 17 Note: RS-232 communications are limited to 15 m (50 ft.), whereas USB are limited to 5 m (16 ft.). Triggers Some Home Theater devices can be controlled through a 12 V signal. The projector can output three 12 V (100 mA max) signals: TRIG1 for motorized screens control •...

  • Page 18: Switching On And Off

    Switching On and Off Switching On 1. Turn on the main power switch on the right hand side of the projector. The projector enters the low power Standby status. The indicator light on the left hand side of the projector turns red and the status display next to it shows . . 2.

  • Page 19: Operation

    4 Operation Viewing 3D Content 3D stereo visualization offers clear and sharp 3D images thanks to 3 chip DLP Imaging technology. This technique achieves channel separation using Xpand active shutter glasses. Active shutter glasses turn on and off in rapid succession and stop light reach- •...
  • Page 20 • indicator light ramp from off to bright, and then turn off again. You are now in SIM2 Cinema mode and the glasses and the projector are synced. If, for any reason, the glasses behave differently, reset them (see below).
  • Page 21 2D display mode for normal 2D material. 3D Input Format adjustment is un- • available. PureMotion adjustment is available. 3D Input Format The Lumis 3D-S checks AVI infoframe data and input signal resolution in order to de- termine the appropriate 3D format. When automatic detection of 3D format is not possible, choose one of the following options: (S-S) Side by Side Left and right halves of the image are separated, rescaled •...

  • Page 22: Input Menu

    Table 4.1 Signal 3D Format HDMI 1.4a 1920 x 1080p @ 23.98/24 Hz Frame Packing Side by Side Top and Bottom 1920 x 1080p @ 25 Side by Side Top and Bottom 1920 x 1080p @ 29.97/30 Hz Side by Side Top and Bottom 1920 x 1080p @ 50 Hz Side by Side...

  • Page 23: Main Menu

    To enter the Input menu press: • Key 0 on the remote control or Source on the projector keypad. To select an input press the corresponding number on the remote control, or: • 1. ▴ or ▾ on the remote control or on the keypad to highlight the input ●...
  • Page 24 Picture This menu section provides access to common image quality adjustments. Adjust- ments not available for a given input are not displayed in the menu (See Table 4.3 details). Table 4.3 RGBS Video HDMI 1/2 YPrPb Graphics Brightness ● ● ●...
  • Page 25 Color This control (also called Saturation) increases or decreases the picture color intensity. When set to zero, color images are shown in black and white. Increase the value until the colors appear natural: suitable references include skin tones and the green in grass in landscape shots.
  • Page 26 DynamicBlack This function improves the level of black and increases the depth and the detail of the image especially in parts with low and medium brightness. DynamicBlack regulates light based on the informative content of the image being projected. Available settings are Off, Video and Movie.
  • Page 27 Letterbox displays a 4:3 letterbox image (source signal with black bands above • and below the picture) in such a way that it fills the 16:9 screen and maintains the correct aspect. This aspect ratio is also recommended when using Ana- morphic Lenses.
  • Page 28 To accurately set the Primaries and White Point you will need access to special- ized color measuring equipment and also the knowledge to use such equipment. Al- ternatively, contact the SIM2 Authorized Dealer where you purchased your product and ask them to arrange for an ISF certified calibrator to set up your projector.
  • Page 29 Keystone may cause artifacts in the image and may not be available when dis- playing specific 3D content (see Table 4.2). SIM2 recommends that you use this fea- ture only when necessary. Variable Iris Controls the iris in the the optical engine. Larger values increase brightness and smal- ler values increase contrast in the projected image.
  • Page 30 3D Glasses Selects the type of active shutter glasses you are using. Choose: SIM2 (the default setting) when you are using the 3D glasses (103-S) and the • 3D emitter (E103-S) provided with the projector Universal if you are using the optional Xpand Universal glasses (X103) and •...
  • Page 31 (which is undesirable if you are using a custom control system). You can change the label of each input (for example assigning the name of the device it is connected to). To rename an input: 1. highlight the input 2. press ● on the remote control to enter Text Entry menu 3.
  • Page 32 2. use ◂, ▸, ▴ or ▾ for a finer adjustment Note: Avoid locations too close to corners or edges to prevent cropping of larger menus. OSD Display Timeout Sets duration OSD is visible after the last event. Adjust in 10 second increments from 10 to 200 seconds.
  • Page 33 3. press ● to open the corresponding pull-down menu 4. press ▴ and ▾ to highlight Save current settings 5. press ▸ to execute The confirmation message “Current settings saved in Memory (1-6)” is displayed. The icon at the left of the memory name now indicates that custom values are stored. If desired, repeat the steps above to save additional memories in different locations.

  • Page 34: Quick Menus

    Important: When you enter the Memories menu, a copy of the current setting for the active input is saved in a temporary memory, numbered 0 and called Auto. After re- calling one or more memories for the current input, you will be able to revert to Auto settings at any time, provided that you do not exit Memory menu by pressing Esc.

  • Page 35: Troubleshooting

    • blocked and that room temperature is within specifications. Wait at least 30 minutes and then turn the projector back on. Check the Status Display for any errors. Contact your SIM2 Authorized Dealer • for assistance if the error persists.
  • Page 36 3D content is displayed as two near-identical images If they are next to each other, press the 3D key on the remote control and • then choose Side by Side 3D Input Format. If they are one above the other, press the 3D key on the remote control and •...

  • Page 37: Specifications

    6 Specifications Projection Type Digital Light Processing (DLP), 3-chip DLP Type: 0.95 in., 1920 x 1080, DC4 Optical Engine Die cast, based on SIM2 patented ALPHAPATH Projection Lens High-quality glass Throw ratio:  T1: 1.37-1.66:1  T2: 1.75-2.48:1  T3: 2.54-3.90:1...
  • Page 38 Video Standards  Composite: NTSC 3.58/4.43, PAL B/G/H/I/M/N/60, SECAM (automatically selected)  Components/RGBHV: 480i, 576i, 480p, 576p, 1080i 50/60, 720p 50/60, 1080p 24/25/30/50/60, VGA, SVGA, XGA, SXGA, UXGA  HDMI: 480i, 576i, 480p, 576p, 1080i 50/60, 720p 50/60, 1080p 24/25/30/50/60, VGA, SVGA, XGA 3D Formats ...

  • Page 39: Projection Distances

    7 Projection Distances 1.78:1 (16:9) Screen Projection Distance Screen Vertical T1 (1.37-1.66:1) T2 (1.75-2.48:1) T3 (2.54-3.90:1) Offset Diagonal Width Height Size (in.) 2.21 1.25 3.03 3.73 3.92 5.22 5.76 8.63 0.62 2.66 1.49 3.65 4.48 4.72 6.38 6.91 10.36 0.75 3.32 1.87 4.58...
  • Page 40 8 Dimensions Lumis 3D-S dimensions in millimeters and (inches). Dimensions Lumis 3D-S User Guide...
  • Page 42 10108 USA Today Way Miramar, FL 33025 USA Phone: + 1 954 4422999 Fax: + 1 954 4422998 Email: sales@sim2usa.com www.sim2usa.com SIM2 BRIONVEGA Co., Ltd Room 303-304, No. 244 Liaoning Road Shanghai 200080 – CN Phone/Fax: 86 1 62881991 Email: InfoCHINA@sim2.com SIM2 UK Steinway House Worth Farm Little Horsted Nr.
