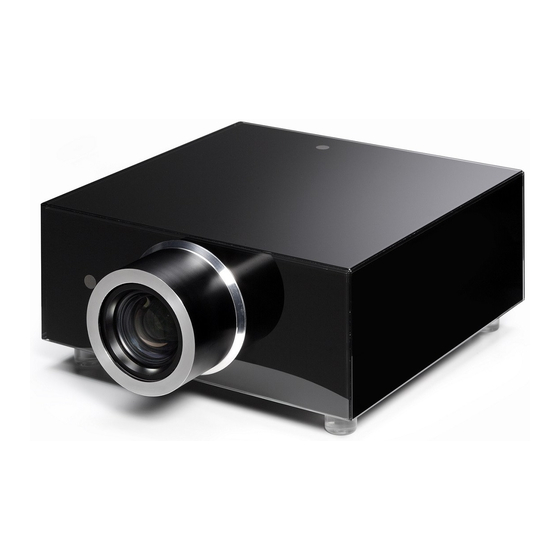

- Page 1 NERO3 PLUS Quick Start Guide...
-
Page 2: Remote Control
About this QSG The QSG (Quick Start Guide) covers only the most basic operations and features. To find out more information about NERO3PLUS projector, SIM2 very strongly recommend that you read the complete documentation. Visit www.sim2.com to find the latest news regarding your projector. - Page 3 Power Off Turn Off the projector Power On Turn On the projector Brightness Adjust the brightness of the image Gamma Set up gamma curve type Control the degree of difference between the lightest and darkest Contrast parts of the picture Advanced Display or exit the “IMAGE | Advanced” menu CMS (Color Management System) – Select one of the colors CMS (R/G/B/C/M/Y) to adjust its x/y offset and brightness LED Brightness Increase/Decrease the luminance of the image 16:9 Scale the image at a 16:9 (1920x1080) aspect ratio 4:3 Scale the image at a 4:3 (1440x1080) aspect ratio Enable the viewing of the letterboxed non-anamorphically enhanced Letter Box movie at full screen width. Part of the original image will be lost if...
- Page 4 Connections B M Inputs HDMI 1 Accept both HDMI and DVI digital video inputs. HDMI 2 D Graphics RGB One D-Sub 15-pin female connector. Accepts component or RGB high-definition signals. Components/RGB-HV Four RCA connectors. They accept both standard and high-definition component (YPrPb) and RGB-HV signals. Also used as RGB input for SCART RGBS signals. F Video One RCA connector. Accepts composite video signals. Also used as composite sync input for SCART RGBS signals. L Standby Power button / Power LED S Source Source button G SERVICE Control/ USB (type B) port for firmware upgrade. Service H RS-232 RS232 (female D-Sub 9-pin) port for serial commands and firmware upgrade. R Temperature LED Temperature warning indicator LED Outputs 12V TRIG 1 12 V 250 mA max output, for motorized screen control.
-
Page 5: Installation
Installation This section provides instructions for the installation of the NERO3PLUS projector. Important: Installation procedures should be performed by a qualified AV system specialist. Location When installing the NERO3PLUS projector, take the following considerations into account. Installation Type Select the installation type that best suits your needs: front or rear projection • floor or ceiling mount • Cooling Make sure that the planned location for the projector has adequate ventilation. Check that room temperature is below 35° C and that the projector is away from heating vents. Ensure a minimum 0.20 m (5 in.) clearance on the left, right and rear sides of the projector. Power Outlets Verify that the powers outlets are grounded and preferably shielded from power surges and fluctuations. A UPS is optional. NERO3PLUS power supply operates on any nominal line voltage between 100-240 V AC, 50-60 Hz. - Page 6 Ceiling Mounting Invert the projector and suspend it from the ceiling using a specific bracket. To fit the bracket unscrew and remove the 4 elevator feet • Attach bracket by using 4 x M6 screws not exceeding 15 mm in thread length • For ceiling mounting use only SIM2-approved ceiling brackets and adhere to the installation instructions and safety guidelines provided with the bracket. Do not over-tighten the screws. Orientation By default, the NERO3PLUS is configured for a Front installation (projector installed upright and in front of the screen). If the projector is installed behind the screen or inverted, you can use the image orientation function of the projector. Vertical Lens Shift Ideally, the projector should be positioned at a right angle to the screen and in such a way that: the lens center and screen center are aligned with each other • the projected image fills the screen perfectly • Keystone If the projector is ceiling-mounted and the screen is lower than the projector, you may need to tilt the projector by adjusting the ceiling mount. If you do so: the top and bottom borders of the image will be unequal in length •...
-
Page 7: Switching On And Off
Zoom and Focus The NERO3PLUS provides manual Zoom and Focus controls. Item Description Horizontal Lens Shift Lever Zoom Ring Focus Ring Vertical Lens Shift Lever Switching On and Off Switching On I. Securely connect the power cord supplied and the signal cable. When connected, the Power LED will turn red. II. Turn on the projector by pressing button either on the back panel of the projector or the “ ” button on remote control. The power LED will now turn blue. The startup screen will display in approximately 10 seconds. The first time you use the projector, you will be asked to select the preferred language. III. Turn on and connect the source that you want to display on the screen (computer, notebook, video player, etc). The projector will detect the source automatically. If not, push menu button and go to “SETUP”. Make sure that the “Source Lock” has been set to “Off”. -
Page 8: Input Menu
Switching Off I. Press the “|” button on the remote control or the button on the back panel of the projector one time. The following message will be displayed on the screen. Press the “|” button on the remote control, or the on the back panel again to confirm, otherwise the message will disappear after 15 seconds. When you press the “|” button for the second time, the projector will shut down (the interval between pressing has to be around one second to turn off the projector). - Page 9 Main Menu The main menu gives access to all projector adjustments. It is divided in four main sections: Image • Display • System • Setup • with various items and submenus in each of them. To enter the main menu and select the desired section press on the remote control. To enter a submenu (when available) press ! on the remote control. Use " or # to select an item on a list either in the main menu and the submenu. To return to the previous menu when in a submenu press on the remote control To select menu items press $ % on the remote control. To turn off the main menu press on the remote control. Use $ % to change settings on a selected item.
- Page 10 Observe all warnings and precautions. Keep the manual for future consultation. Do not touch internal parts of the projector Inside the housing there are electrical parts carrying dangerously high voltages and parts operating at high temperature. Never open the housing. Entrust all servicing and repair work to a SIM2 Authorized Service Center. Opening the housing voids the warranty. Disconnect the appliance from the power supply The device that disconnects the projector from the mains is the power plug. Ensure that the power cord plugs and the electrical outlets are easily accessible during installation operations. Pull the plug, not the cord, to disconnect the projector from the mains. Use only the specified power supply. Connect the projector to a mains electrical supply with rated voltage of between...
- Page 11 Observe the following instructions: When you no longer wish to use your electrical and electronic equipment, take it to your • local waste disposal facility for recycling. You may return your old equipment to your SIM2 Authorized Dealer free of charge when • you buy a new product that is equivalent or has the same functions as the old one. Contact SIM2 to find your local dealer. If you need more information regarding recycling, reuse and product exchanges, contact •...
- Page 12 SIM2 GLOBAL OFFICES For service or support please contact your local office SIM2 BV International Srl Viale Lino Zanussi, 11 33170 Pordenone – ITALY Phone: + 39 0434 383292 Fax: +39 0434 383260 Email: info@sim2.it www.sim2.com SIM2 USA SIM2 USA Inc. 10216 NW 47th Street Sunrise, FL 33351 Phone: +1 (954) 442 2999 Email: sales@sim2usa.com www.sim2usa.com SIM2 BRIONVEGA Co., Ltd Room 303-304, No. 244 Liaoning Road Shanghai 200080 – CN Phone/Fax: 86 1 62881991 Email: InfoCHINA@sim2.com QSG – (1.0)
